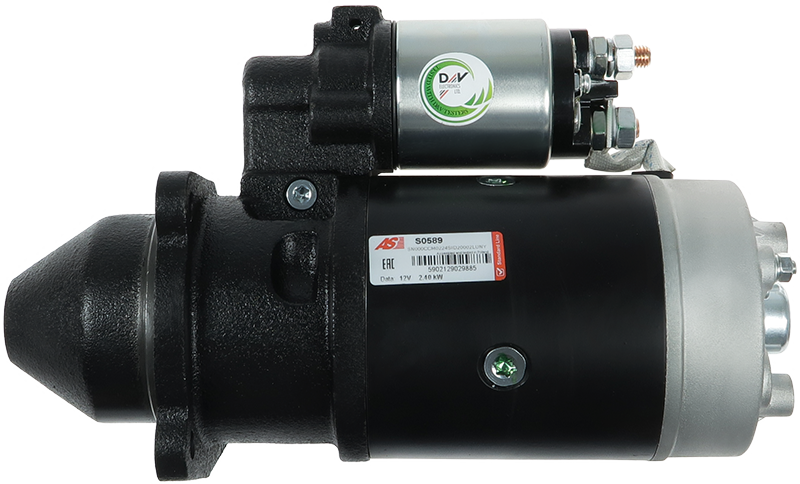

S0589 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.4 kW
Length (L.1)	315 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
Mount Hole Diameter (C.3)	10.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CASE	433	[D-155]	01.1986-12.1992
CASE	533	[D-155]	01.1978-12.1980
CASE	533A	[D-155]	01.1986-12.1992
CASE	633	[D-179]	01.1986-12.1991
CASE	633A	[D-179]	01.1986-12.1991
CASE	633V	[D-179]	01.1986-12.1990
CASE	833	[4-239]	01.1986-12.1992
CASE	833A	[D-239]	01.1986-12.1991
INTERNATIONAL	433	[D-155]	01.1973-12.1986
INTERNATIONAL	433V	[D-155]	01.1973-12.1986
INTERNATIONAL	533	[D-155]	01.1974-12.1986
INTERNATIONAL	533V	[D-155]	01.1973-12.1986
INTERNATIONAL	TD-633	[D-155]	01.1975-12.1985
INTERNATIONAL	TD-633	[D-179]	01.1975-12.1985
INTERNATIONAL	TD-633A	[D-155]	01.1975-12.1985
INTERNATIONAL	TD-633A	[D-179]	01.1975-12.1985
INTERNATIONAL	TD-633E	[D-155]	01.1975-12.1985
INTERNATIONAL	TD-633E	[D-179]	01.1975-12.1985
INTERNATIONAL	TD-633V	[D-155]	01.1975-12.1985
INTERNATIONAL	TD-633V	[D-179]	01.1975-12.1985

Reference Information

LRS1486 88213355 AZJ3317 72735904 STR1432 3218674R91 MS276 3228192EX 8EA726159-001 PRSL256 330663 25-2431 LRS01486 11.130.895 RNL362064 UD12681S A186180 0001362064 0001362301 BOM UNIT 91-15-6958 CGB-22680 120-539A 3228192R91 CS511 S12BH0269A2 000986012680 436075 IS0895 986012680 9-142-885 1362064 540.002.113.311 STRL256 1362301 540.002.113.010 DRS2680

Video/Publications

0001362064 0001362301 0986012680 10511 10511M 11.130.895 112135 3218674R91 9-142-885 91-15-6958 CGB-22680 CS511 LRS01486 LRS1486 MAV121920 RNL362064 STRL256 UD12681S UNIT BOM 120-539A
