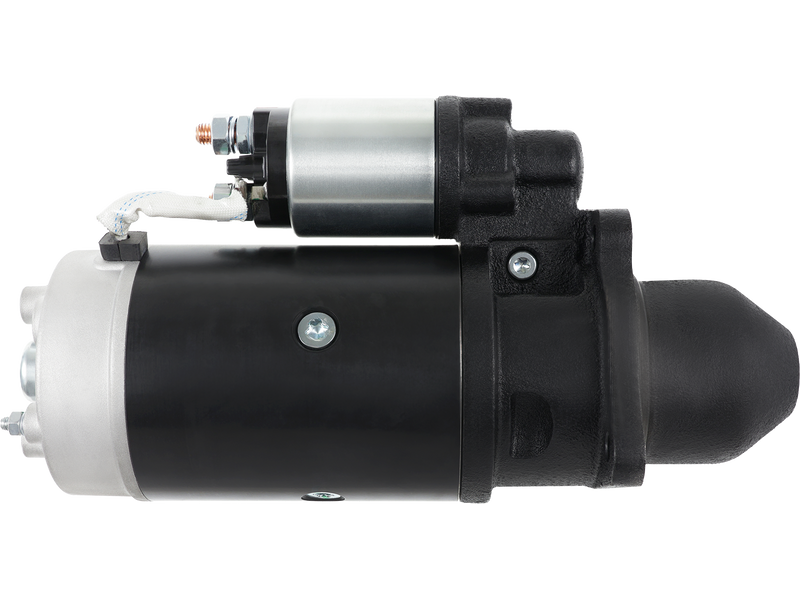

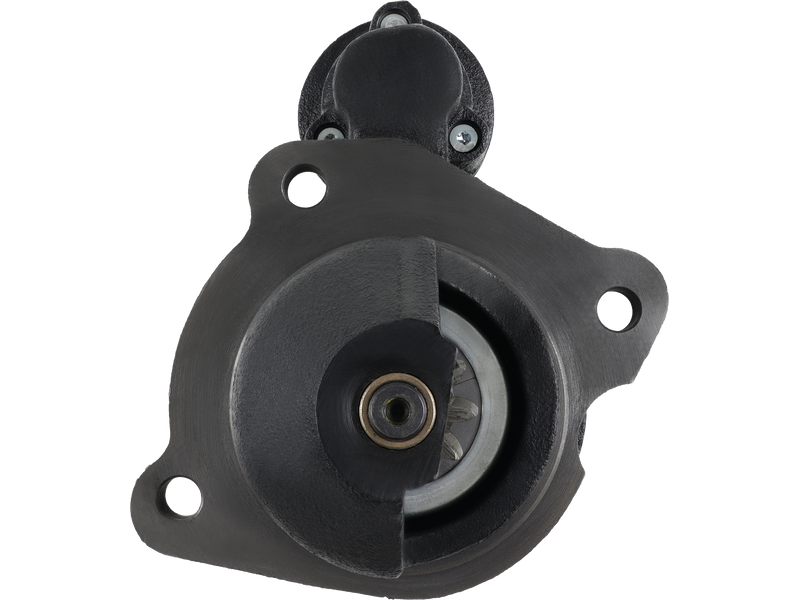

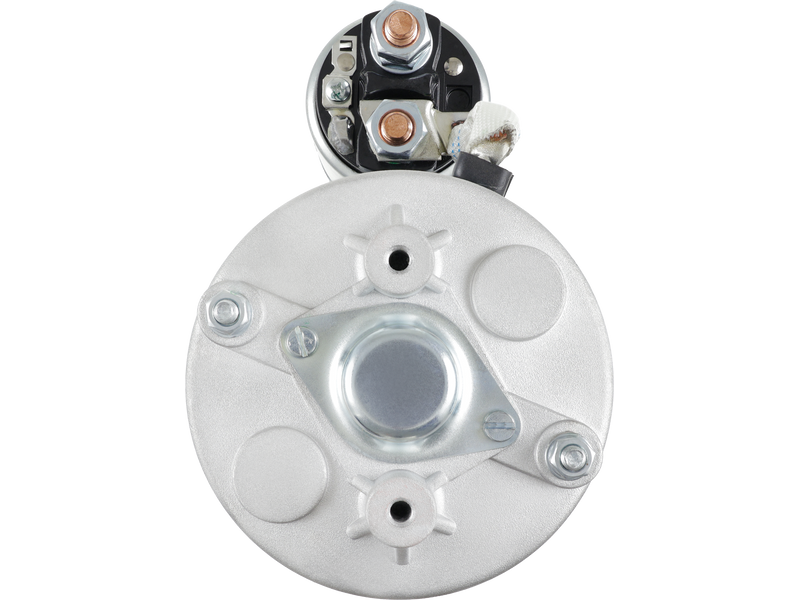

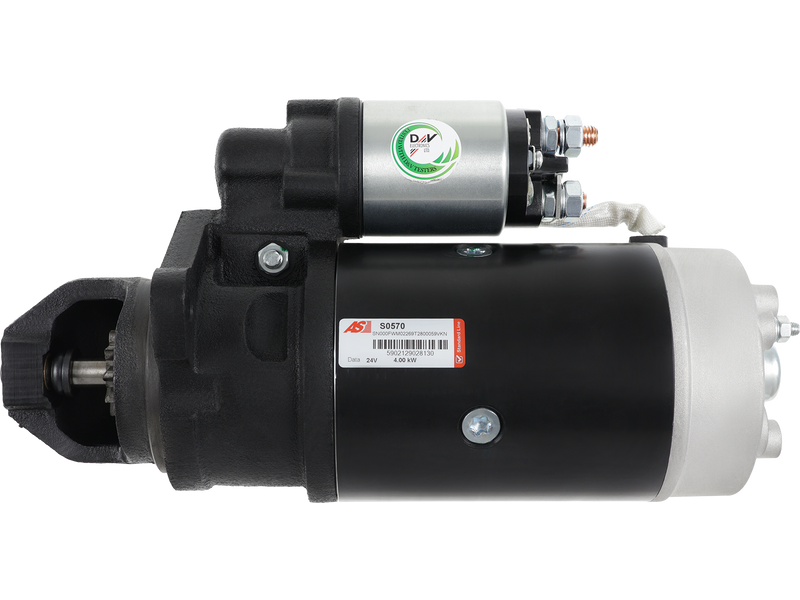

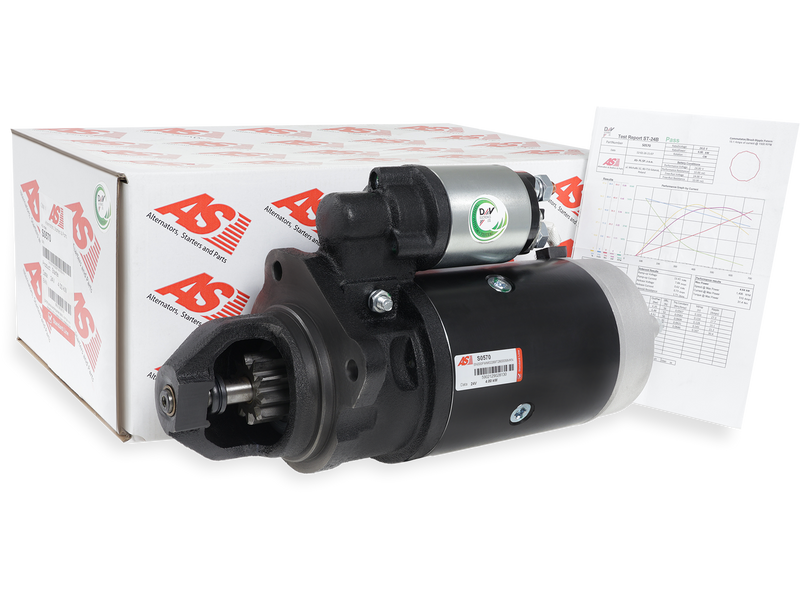

S0570 - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	336 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	29.5 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	L 80 5.8	[6.354.3]
NISSAN	M 100 5.8	[6.354.3]
NISSAN	M 125 5.8	[6.354.3]

Reference Information

CST10669RS 20401966BN 6010669 CGB-98060 23300-8X800 254275 161.002.103 STB8060 STR1439 331781 CST10669ES CST10669GS S0570 STR50112 STRL701 CST10669AS BOM CST10669 UNIT 0001368060 0009000143304 MAV126690 9.43211E+11 1368060 CST10669OS MSR1205 UD12955S 920-1027 233009X800 9000143304 116041

Video/Publications

0001368060 116041 161.002.103 20401966BN 23300-8X800 254275 6010669 9000143304 943211205010 CGB-98060 CST10669 CST10669AS CST10669ES CST10669GS CST10669OS CST10669RS MAV126690 MSR1205 STB8060 STR50112 STRL701 UD12955S UNIT BOM 920-1027 S0570
