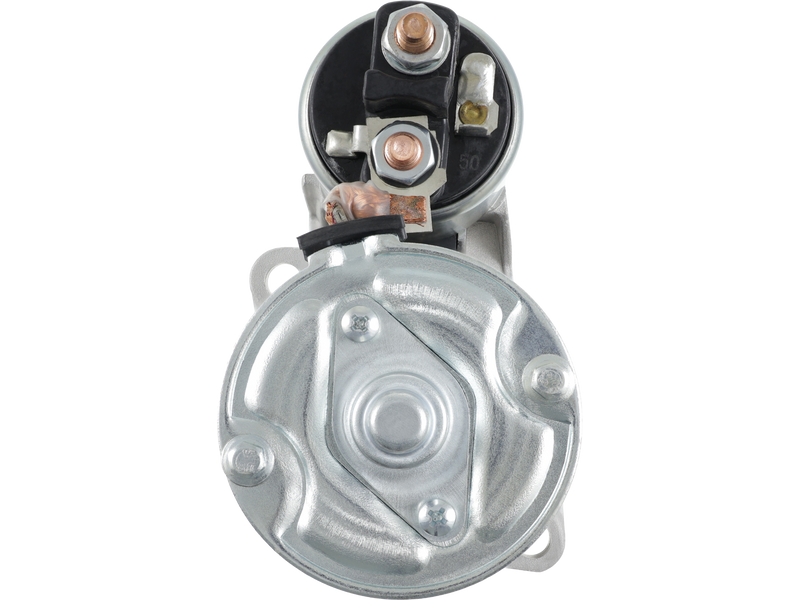

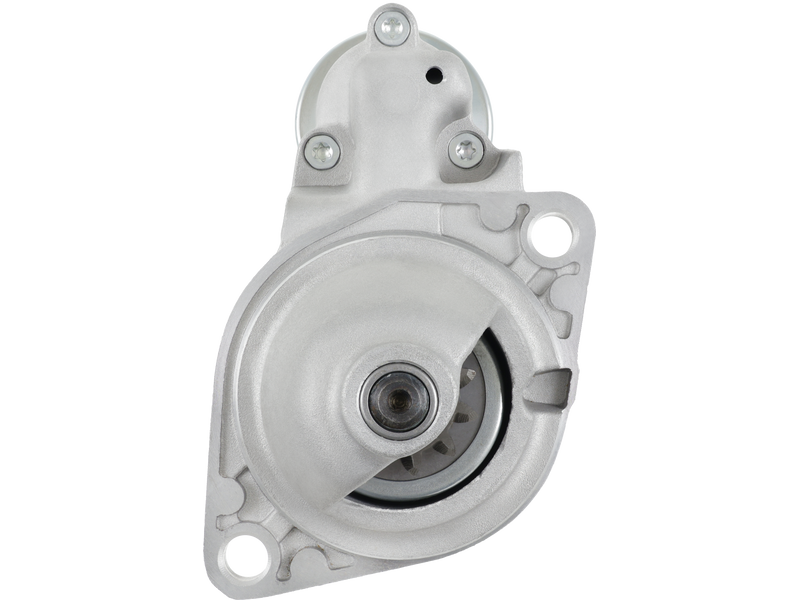

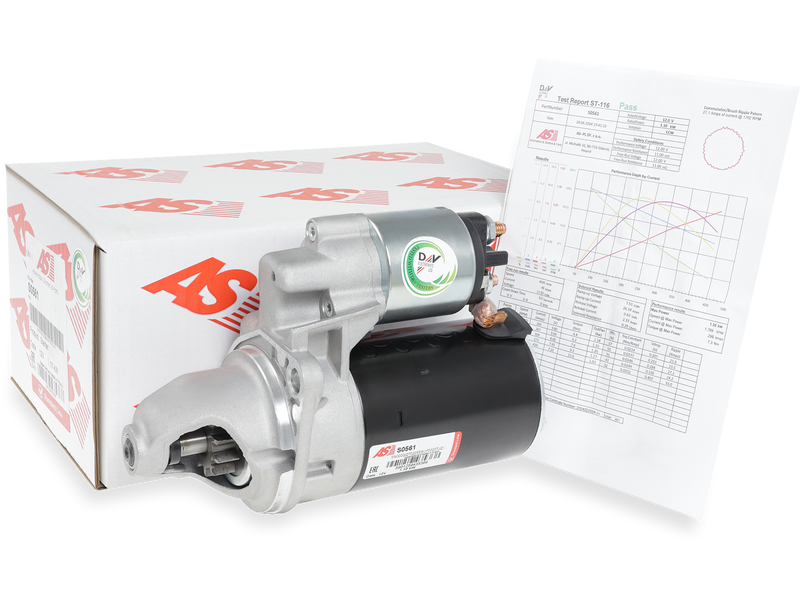

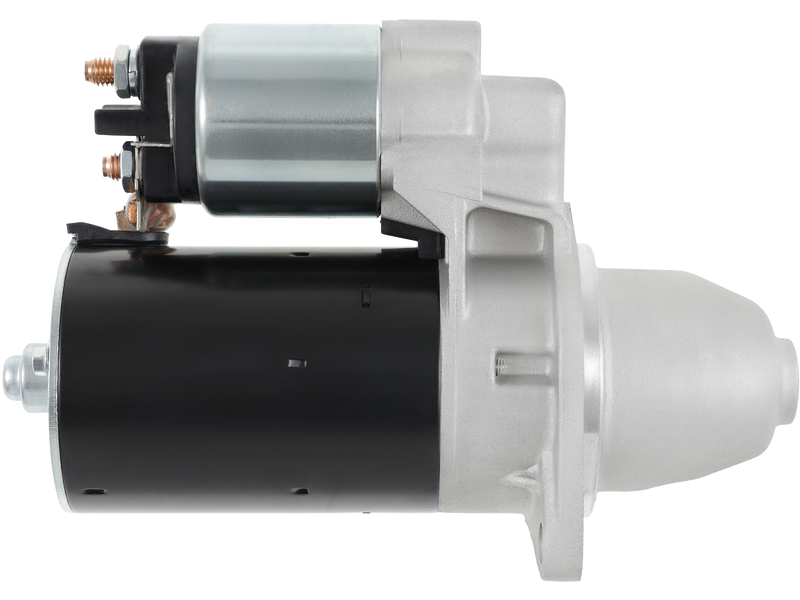

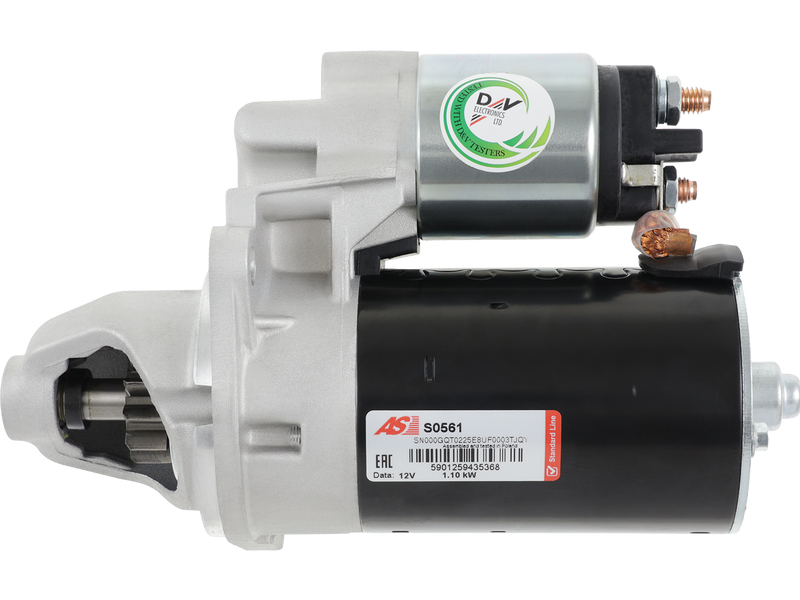

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 307.77 including GST
NZ$ 267.63 excluding GST
or four payments of $76.94
with
Learn More
each
SGB-A11001
S0561
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107090Associated Numbers
0001107090 114105 20401873BN 20401873OE 254412 254412B 563R0780 6010378 690.515.112 BOS0001107090 CST10378 CST10378AS CST10378ES CST10378GS CST10378OS CST10378RS DRS0583 EAA-151748 UD13028S UNIT BOM 120-5100Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LOMBARDINI | Engine |
Reference Information
| 0001107090 | BOSCH |
| 114105 | CARGO |
| 20401873BN | REAL |
| 20401873OE | REAL |
| 25-4094 | ELSTOCK |
| 254412 | KUHNER |
| 254412B | KUHNER |
| 30571N | WAI / TRANSPO |
| 331700 | LOGISTIK |
| 563R0780 | LOMBARDINI |
| 6010378 | SANDO |
| 690.515.112 | PSH |
| 690.515.112.018 | PSH |
| ANM12803X | ANDEL |
| BOS0001107090 | WOODAUTO |
| CST10378 | CASCO |
| CST10378AS | CASCO |
| CST10378ES | CASCO |
| CST10378GS | CASCO |
| CST10378OS | CASCO |
| CST10378RS | CASCO |
| DRS0583 | DELCO |
| F032114105 | CARGO |
| LRS02422 | LUCAS |
| LRS2422 | LUCAS |
| PRSS893 | 3EFFE |
| S0561 | AS-PL |
| S134.939 | PSH |
| S145.622 | PSH |
| STR1475 | ELECTROLOG |
| STRS893 | 3EFFE |
| UD13028S | AS-PL |
| UNIT BOM 120-5100 | WAI / TRANSPO |
Video/Publications
