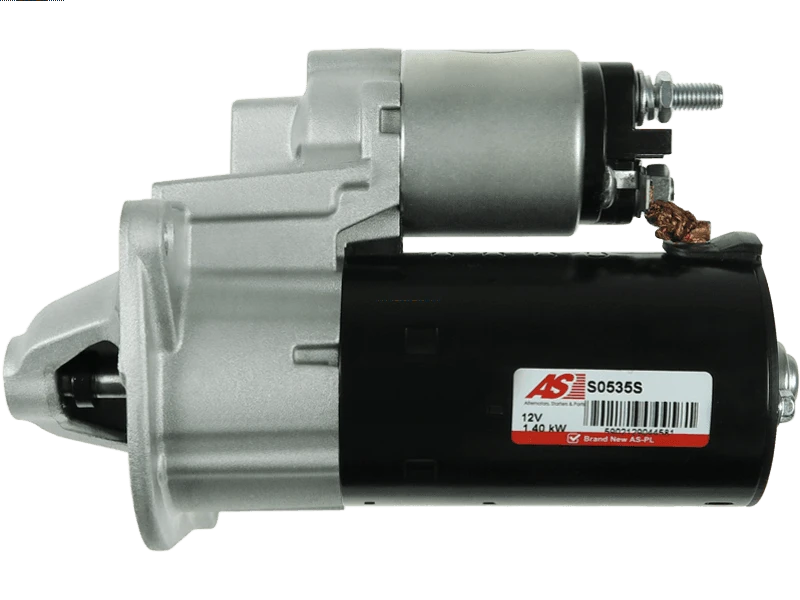

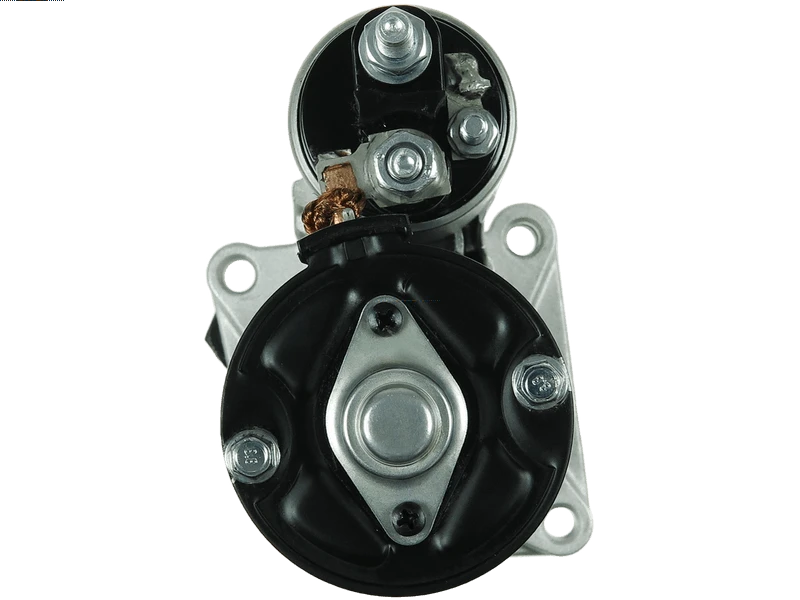

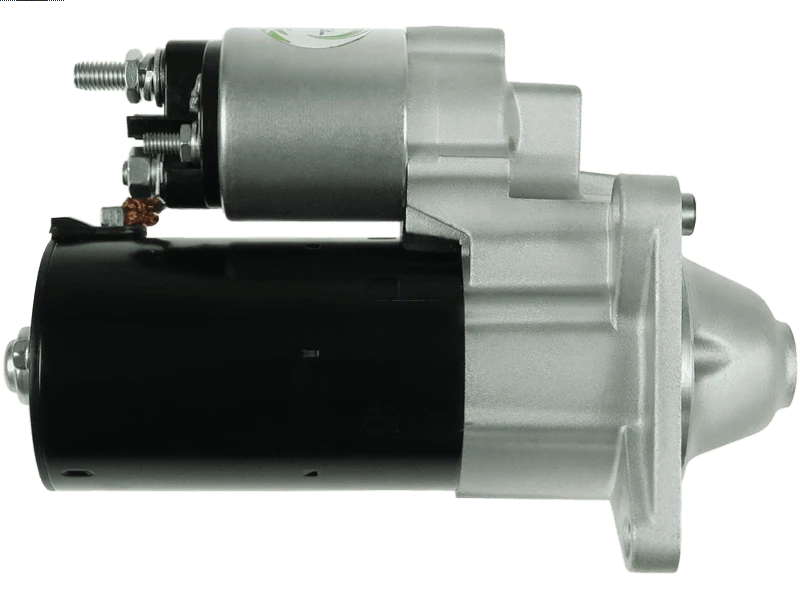

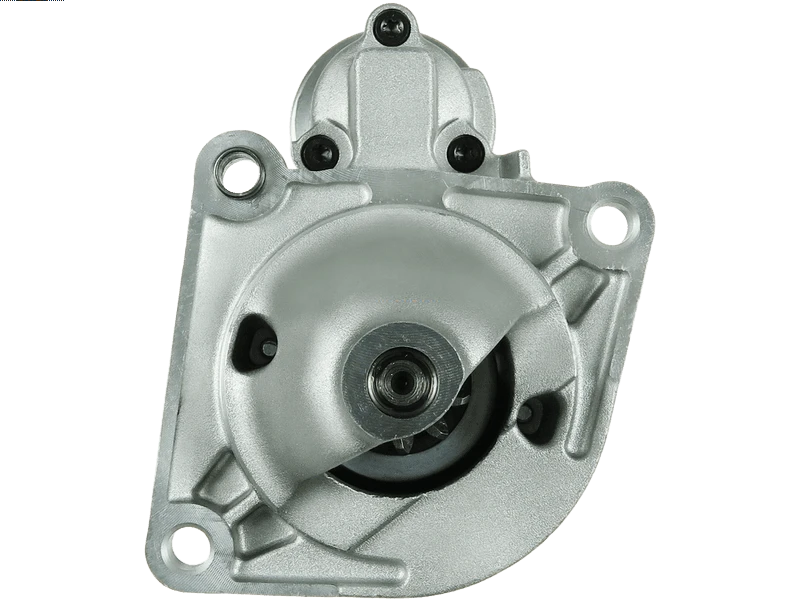

S0535S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0535S
Price: 308.55 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 308.55 including GST

NZ$ 268.31 excluding GST

UOM:

each

Product Code:

S0535S

Quantity In Stock:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0001108420 0001108421 0001108450 0001108451 0001108456 0001108457 00K68080459AA 115444 12166 180.514.103 20401915OE 220819 25-4032 254283 254283B 254668 254668B 254986 254986B 31100-55L00 31100-55L01 51787218 6010517 6010519 68080459AA 71750271 830.908.103 AEY2360 BOS0001108450 BOS0001108456 CST10425GS CST10517 CST10517AS CST10517ES CST10517GS CST10517OS CST10517RS CST10519 CST10519AS CST10519ES CST10519GS CST10519OS CST10519RS DRS0844 DRS0872 EAA-141502 K68080459AA LRS02360 UD12013S UD12956S UD14875S

Kilowatt	1.4 kW
Length (L.1)	217 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	82 mm
Mount Hole Center - Center (O.3)	82 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	9 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	4 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
ALFA ROMEO	159 2.0 JTDM	[844A2000]	01.2009-
ALFA ROMEO	159 2.0 JTDM	[939B3000]	01.2009-
ALFA ROMEO	159 2.0 JTDM	[939B4000]	01.2009-
ALFA ROMEO	Brera 2.0 JTDM	[844A2000]	01.2009-
ALFA ROMEO	Brera 2.0 JTDM	[939B3000]	01.2009-
ALFA ROMEO	Spider 2.0 JTDM	[844A2000]	01.2009-
ALFA ROMEO	Spider 2.0 JTDM	[939B3000]	01.2009-
FIAT	Bravo 2.0 D Multijet	[198A5.000]	01.2008-
FIAT	Bravo 2.0 D Multijet	[844A2.000]	01.2008-
FIAT	Doblo 1.6 JTD	[263A3.000]	01.2015-
FIAT	Doblo 1.6 JTD	[940C1.000]	01.2015-
FIAT	Ducato 115 2.0 JTD	[250A1.000]	01.2011-
FIAT	Linea 1.6 D Multijet	[198A3.000]	01.2011-
FIAT	Sedici 2.0 D Multijet	[D20AA]	01.2009-
FIAT	Sedici 2.0 D Multijet 4x4	[D20AA]	01.2009-
LANCIA	Delta 1.9 D Multijet	[844A1.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[198A5.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[198A8.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[844A2.000]	01.2008-
SUZUKI	SX4 1.6 DDiS	[D16AA]	08.2013-
SUZUKI	SX4 1.6 DDiS 4x4	[D16AA]	08.2013-
SUZUKI	SX4 2.0 DDiS	[D20AA]	07.2009-
SUZUKI	SX4 2.0 DDiS 4x4	[D20AA]	07.2009-

220756 51787218 LRS02360 UD12956S S12BH0039 EAA-141502 336033 115444 CST10517ES 254986B 1108421 1108420 CST10519AS CST10517AS CST10519ES 20401915OE DRS0844 116045 LRS2360 12166 CST10425GS 6010425 CST10519RS CST10517RS 1108456 AEY2360 180.514.103 20401524OE 1108457 1108451 254668B S0535S 1108450 UD12013S 254668 254986 DRS0872 00K68080459AA STRL204 220819 71750271 CST10519OS 254283B 31100-55L01 31100-55L00 CST10517OS BOS0001108456 25-4032 6010517 CST10519GS BOS0001108450 CST10517GS 331427 830.908.103 SX 6010519 254283 2260 UD14875S S12BH0039A2 K68080459AA 51787219 68080459AA CST10425AS

0001108420 0001108421 0001108450 0001108451 0001108456 0001108457 00K68080459AA 115444 116045 12166 180.514.103 20401915OE 220819 25-4032 254283 254283B 254668 254668B 254986 254986B 31100-55L00 31100-55L01 51787218 51787219 6010517 6010519 71750271 830.908.103 AEY2360 BOS0001108450 BOS0001108456 CST10425GS CST10517 CST10517AS CST10517ES CST10517GS CST10517OS CST10517RS CST10519 CST10519AS CST10519ES CST10519GS CST10519OS CST10519RS DRS0844 DRS0872 EAA-141502 LRS02360 LRS2360 S0535S STRL204 SX 2260 UD12013S UD12956S UD14875S 220756
