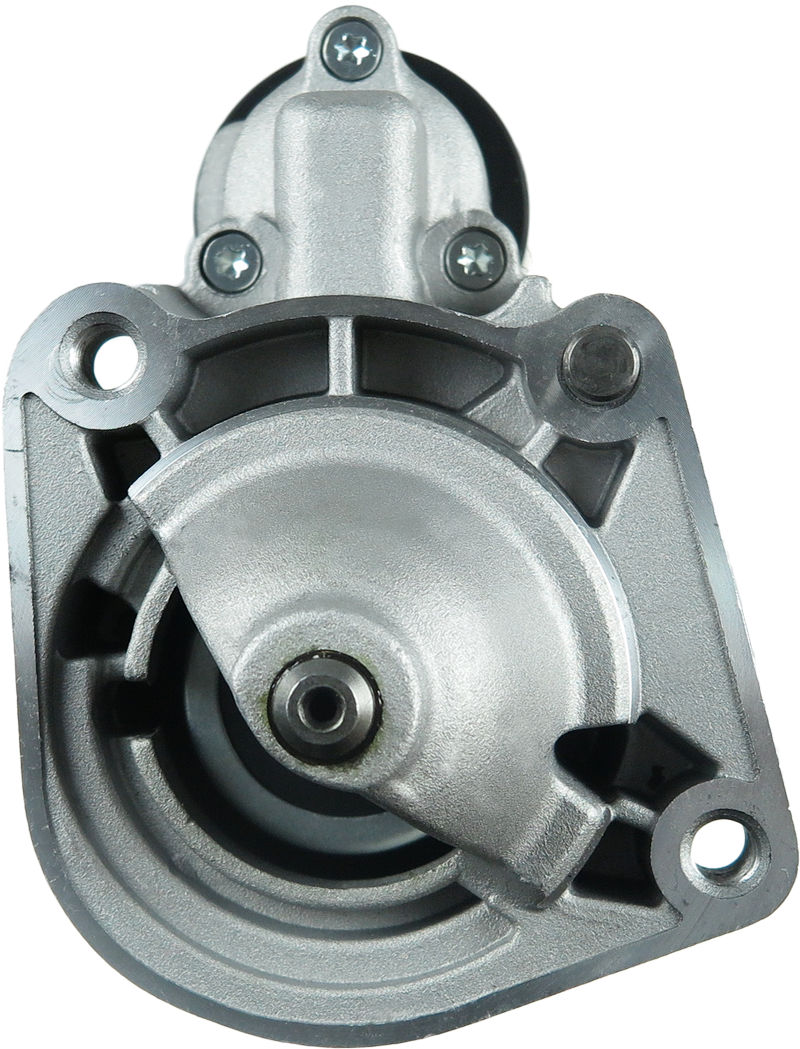

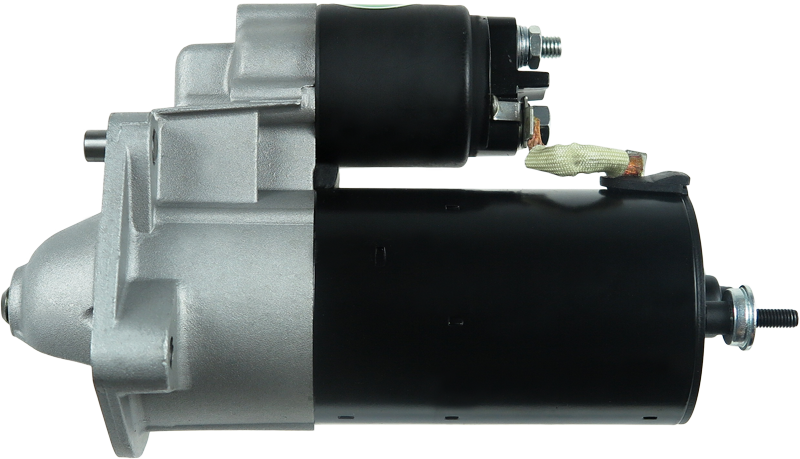

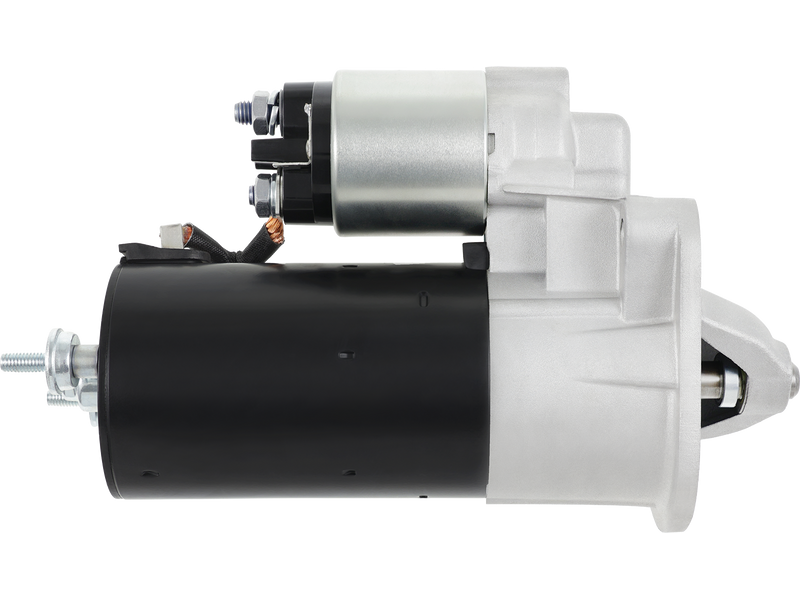

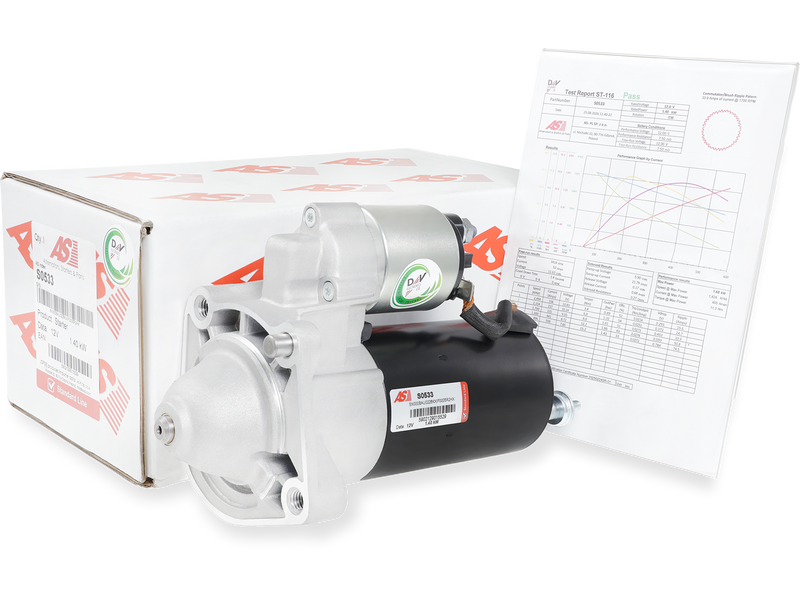

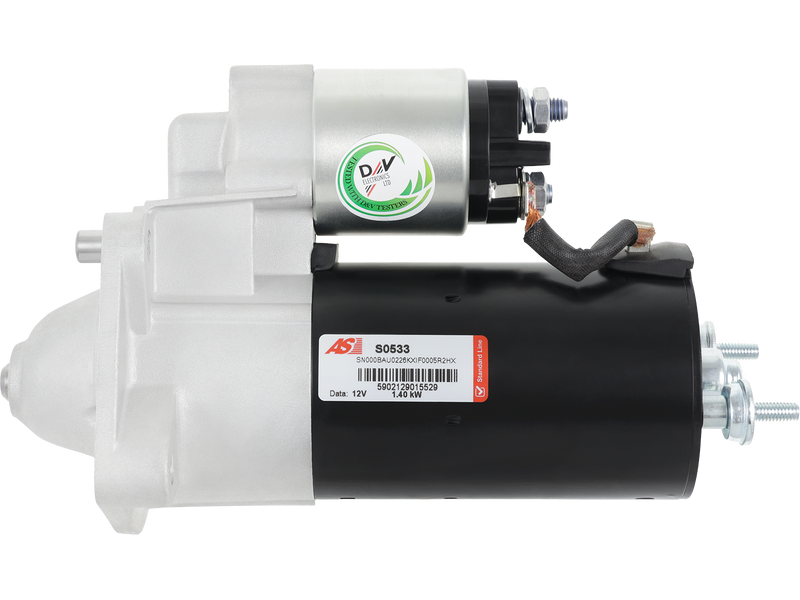

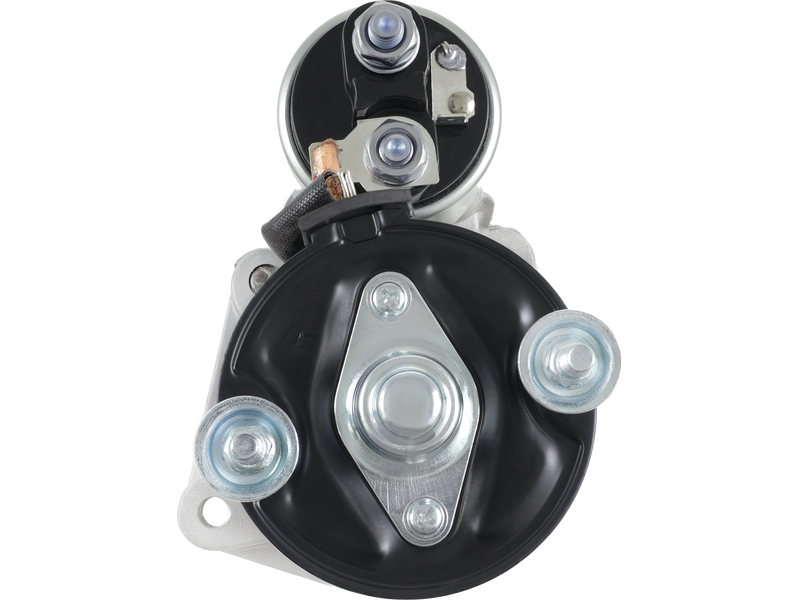

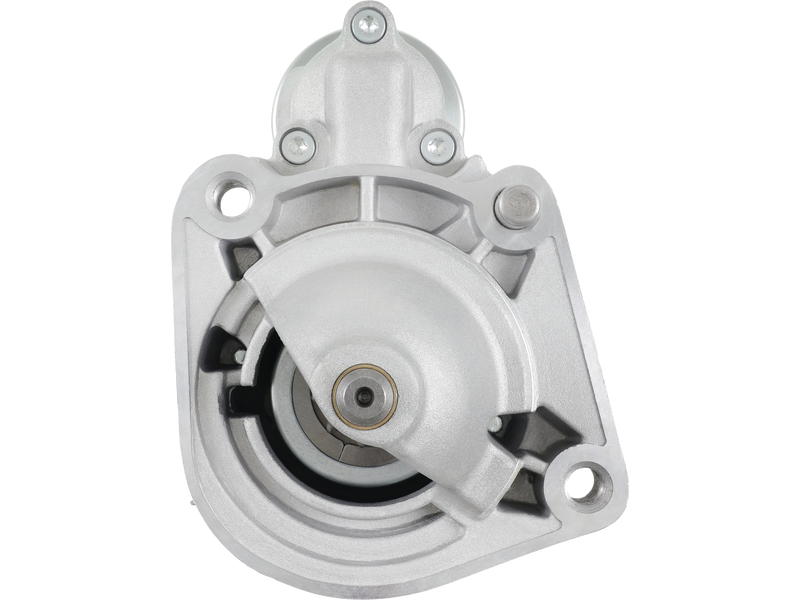

S0533 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH

Push on exciter terminal
Price:
NZ$ 295.26 including GST

NZ$ 256.75 excluding GST
each
S0059
S0533
No NZ stock
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:
each

0001108066 0001108107 0001108153 0001108166 0001108167 0986016660 10680 10979 11.139.309 11.139.407 112818 1363451 1363451-0 1363451-4 17508N 17508R 20510116 22.0680M 25-2037 25-3135 260-14111 30658564 30658565 30815466 30819127 3652 42016660 458190 5003810 5003810-0 5003810-8 5003918-0 5003918-9 564338 565904 6.0133.9 6010158 7700102000 7700103386 7700114428 810.504.093 8111302 8111302-0 8111302-9 8212223 8251551 8251551-0 8251551-1 8602084 8602085 8602085-0 8602085-6 8602104 8602104-0 8602104-5 8EA730196-001 91-15-7036 91-15-7036N 9128421 9128421-0 9128421-6 9162617 9162618 9162618-4 943241060010 944280166600 AES1216 AZE2123 AZE2182 CS680 CST10158 CST10158AS CST10158ES CST10158GS CST10158OS CST10158RS DRS6660 EAA-121311 IS9309 LRS02109 LRT00116 MS216 MSR1060 RAS37771 RS37771 S-6160 S1029B STR50020 STR50269 UD12029S 0001108032 Bosch show 0001108045 0001108046 0001108068 0001108069 0001108103 0001108104 0001108134 0001208420 0001208421 01108134 Andre Niermann 04671130 Chrysler 0986019257 ruil 0986CN1755 0986UN3514 11090004 EuroTec 11139428 Mahle 111425 Cargo 11846 EAI 120312A PIC 12044740 16963 Lester 17218 252100 Elstock 4419308 Fiat 4419311 4419312 4427 4427SP Spidan 4557130 4557209 4638171 4671130 5226444 5226842 5227282 5227342 5233006 5233007 5233656 5233666 634001092 DRI 72735681 830505093 PSH 91156922 Wilson A70100 ATL A70200 AZE2196 CS979 HC DRZ5150 Remy DRZ5161 IS9421 IS9421C LRS01323 Lucas MS53 S27179 Hitachi SR35N (USA) SR35X STR2011 Unipoint ARROWHEA SBO0011 BOSCH 0-001-108-032 0-001-108-045 0-001-108-046 0-001-108-066 0-001-108-068 0-001-108-069 0-001-108-103 0-001-108-104 0-001-108-134 CHRYSLER MOTORS J&N ELECTRICAL PRODUCTS 410-24001 JANNCO 410-24001R BXS0122 0001106167 0001108142 0001108189 0001108248 01108167 076576 Valeo 097147 0986016661 0986016663 11015600 11016660 11139309 11139407 11702 120358 120359A Volvo 1395 1395SP 17201 17508 1986S00702 Prestolite 252037 253135 254240 30358564 330063092 338019092 338037092 36003223 Herth Buss 5003918 589123 72735844 Renault 7701499617 8016660 Friesen 8016660F 810504093 8EA012527081 Hella 8EA730196001 8EL738060001 91157126 916660 EDR A16660 F042002047 F042S02046 F042S02047 HCS680 IS9309C LRS02568 LRT116 Magneti Marelli OSM10745 Optimum S27063 SP1243 SP1395 STR1113sa Electrolog STR1171sa STR1258sa STR2039 STR2102 STR2103 STR23967 Stabeco 0001107076 0986018870 101272 11968 25-2484 3115 810.515.093 88212400 8EA012527-811 8EA738060-001 944280188700 CS1272 DRS8870 EAA-122224 LRS01516 LRS1516 STB1272 STRS912 UD13941S ARROWHEAD SBO0042 0001105167 0-001-108-107 0-986-016-660 1666 1887 SR0483X DELCO 410-24305 LESTER LETRIKA/ISKRA LUCAS ELECTRIC S7257 S7272 MAHLE MS0216 MARELLI MITSUBISHI 30857255 PRESTOLITE RENAULT VALEO 458521 VS430 VOLVO 30816127 363092104-3 16962 17463 S1368 S1372 S0059. S0877s.

Push on exciter terminal

Kilowatt1.4 kW
Length (L.1)241 mm
Mount Hole Center - Center (O.1)106 mm
Mount Hole Diameter (C.1)M10x1.5 mm
Mount Hole Diameter (C.2)M10x1.5 mm
No./Mount holes2 qty
No./Mount holes with thread2 qty
No./Teeth9 qty
Pinion at Rest (B)0.5 mm
RotationCW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
RENAULT Safrane 1.9 16V [N7Q710] 07.1996-12.2000
RENAULT Safrane 1.9 16V [N7Q711] 07.1996-12.2000
RENAULT Safrane 2.5 20V [N7U700] 07.1996-12.2000
RENAULT Safrane 2.5 20V [N7U701] 07.1996-12.2000
VOLVO 850 2.0 [B5202S] 08.1994-12.1996
VOLVO 850 2.0 [B5204F] 02.1993-12.1996
VOLVO 850 2.0 Turbo [B5204FT] 08.1993-12.1996
VOLVO 850 2.0 Turbo [B5204T2] 09.1993-10.1997
VOLVO 850 2.0 Turbo [B5204T] 08.1993-12.1996
VOLVO 850 2.3 T5 [B5234FT] 08.1993-07.1996
VOLVO 850 2.3 T5 [B5234T2] 04.1996-10.1996
VOLVO 850 2.3 T5 [B5234T4] 08.1995-12.1996
VOLVO 850 2.3 T5 R [B5234T2] 04.1996-10.1996
VOLVO 850 2.3 Turbo [B5234FT] 01.1994-01.1994
VOLVO 850 2.3 Turbo 01.1995-01.1996
VOLVO 850 2.3 Turbo R [B5234T5] 06.1995-10.1997
VOLVO 850 2.3 Turbo R 01.1997-01.1997
VOLVO 850 2.4 [B5254FS] 01.1993-01.1994
VOLVO 850 2.4 GLE [B5254T] 09.1993-10.1997
VOLVO 850 2.4 GLT [B5254FS] 01.1995-01.1996
VOLVO 850 2.5 [B5252FS] 08.1994-12.1996
VOLVO 850 2.5 [B5252] 08.1992-07.1994
VOLVO 850 2.5 10V [B5252S] 08.1994-12.1996
VOLVO 850 2.5 10V [B5252] 06.1991-07.1994
VOLVO 850 2.5 20V [B5254S] 09.1992-12.1996
VOLVO 850 2.5 AWD [B5254T] 04.1996-12.1996
VOLVO C70 2.0 20V [B5204T2] 03.1998-10.2005
VOLVO C70 2.0 Turbo [B5204T2] 03.2000-09.2002
VOLVO C70 2.0 Turbo [B5204T3] 03.1998-10.2005
VOLVO C70 2.0 Turbo [B5204T4] 03.2000-10.2005
VOLVO C70 2.3 T5 [B5234T3] 03.1998-10.2005
VOLVO C70 2.3 T5 [B5234T9] 07.2002-10.2005
VOLVO C70 2.3 Turbo [B5234T3] 01.2002-01.2003
VOLVO C70 2.4 Turbo [B5244T7] 07.2002-10.2005
VOLVO C70 2.4 Turbo [B5244T] 01.2002-01.2002
VOLVO C70 2.5 [B5244S] 03.1999-09.2002
VOLVO C70 2.5 [B5254S] 11.1999-09.2002
VOLVO C70 2.5 Turbo [B5244T] 03.1997-09.2002
VOLVO C70 2.5 Turbo [B5254T] 03.1998-10.2005
VOLVO S40 1.6 [B4164S2] 03.1999-12.2003
VOLVO S40 1.6 [B4164S] 09.1995-08.1999
VOLVO S40 1.8 [B4184S2] 03.1999-12.2003
VOLVO S40 1.8 [B4184S] 07.1995-08.1999
VOLVO S40 1.9 T4 [B4194T] 05.1997-07.2000
VOLVO S40 2.0 [B4204S2] 01.1996-12.2004
VOLVO S40 2.0 [B4204S] 07.1995-08.1999
VOLVO S40 2.0 16V [B4204S] 07.1995-12.2003
VOLVO S40 2.0 Turbo [B4204T] 10.1997-07.2000
VOLVO S40 2.0 Turbo T4 [B4204T5] 07.2000-12.2003
VOLVO S60 2.0 Turbo [B5204T5] 09.2001-
VOLVO S60 2.3 T5 [B5234T3] 11.2000-
VOLVO S60 2.3 T5 [B5234T7] 11.2000-
VOLVO S60 2.3 Turbo T5 [B5234T3] 01.2002-01.2003
VOLVO S60 2.4 [B5244S2] 11.2000-
VOLVO S60 2.4 [B5244S] 01.2002-01.2003
VOLVO S60 2.4 BiFuel [B5244SG] 06.2002-
VOLVO S60 2.4 T5 [B5244T5] 04.2004-
VOLVO S60 2.4 Turbo [B5244T3] 01.2002-01.2002
VOLVO S60 2.4 Turbo AWD [B5244T3] 11.2001-
VOLVO S60 2.5 R AWD [B5254T4] 03.2003-
VOLVO S60 2.5 R Turbo AWD [B5254T4] 03.2003-
VOLVO S60 2.5 Turbo [B5254T2] 02.2004-
VOLVO S60 2.5 Turbo AWD [B5254T2] 04.2004-
VOLVO S70 2.0 [B5202FS] 01.1997-11.2000
VOLVO S70 2.0 [B5202S] 01.1997-11.2000
VOLVO S70 2.0 [B5204F] 01.1997-11.2000
VOLVO S70 2.0 [B5204T4] 01.1997-11.2000
VOLVO S70 2.0 20V [B5204T2] 01.1997-11.2000
VOLVO S70 2.0 Turbo [B5204T3] 01.1997-11.2000
VOLVO S70 2.0 Turbo [B5204T] 01.1997-11.2000
VOLVO S70 2.3 T5 [B5234T3] 01.1997-11.2000
VOLVO S70 2.3 Turbo [B5234FT] 01.1997-11.2000
VOLVO S70 2.4 [B5244S2] 08.1999-11.2000
VOLVO S70 2.4 [B5244S] 01.1997-11.2000
VOLVO S70 2.4 [B5252FS] 01.1997-11.2000
VOLVO S70 2.4 [B5254S] 06.1998-11.2000
VOLVO S70 2.4 [GB5252S] 10.1998-11.2000
VOLVO S70 2.4 Turbo [B5244T] 01.1997-11.2000
VOLVO S70 2.4 Turbo [B5254T] 01.1997-11.2000
VOLVO S70 2.5 [B5252S] 01.1997-11.2000
VOLVO S70 2.5 BiFuel [B5244SG] 07.1999-11.2000
VOLVO S80 2.0 [B5204T4] 06.1998-07.2006
VOLVO S80 2.0 Turbo [B5204T3] 06.1998-07.2006
VOLVO S80 2.0 Turbo [B5204T5] 12.1999-07.2006
VOLVO S80 2.4 [B5244S2] 01.1999-07.2006
VOLVO S80 2.4 [B5244S] 01.1999-07.2006
VOLVO S80 2.4 BiFuel [B5244SG2] 09.2001-07.2006
VOLVO S80 2.4 LTP [B5244T4] 06.2004-07.2006
VOLVO S80 2.4 T5 AWD [B5244T3] 04.2000-09.2003
VOLVO S80 2.4 Turbo [B5244T3] 06.2000-07.2006
VOLVO S80 2.5 T AWD [B5254T2] 04.2000-09.2003
VOLVO S80 2.5 Turbo [B5254T2] 03.2003-07.2006
VOLVO S80 2.5 Turbo AWD [B5254T2] 07.2003-07.2006
VOLVO V40 1.6 [B4164S2] 03.1999-06.2004
VOLVO V40 1.6 [B4164S] 12.1995-08.1999
VOLVO V40 1.8 [B4184S2] 03.1999-06.2004
VOLVO V40 1.8 [B4184S3] 01.1996-12.2004
VOLVO V40 1.8 [B4184S] 07.1995-08.1999
VOLVO V40 1.9 T4 [B4194T] 05.1997-07.2000
VOLVO V40 2.0 [B4204S] 07.1995-08.1999
VOLVO V40 2.0 16V [B4204S2] 07.1995-06.2004
VOLVO V40 2.0 Turbo [B4204T2] 07.2000-06.2004
VOLVO V40 2.0 Turbo [B4204T3] 06.2001-06.2004
VOLVO V40 2.0 Turbo 16V [B4204T] 10.1997-07.2000
VOLVO V40 2.0 Turbo T4 [B4204T5] 07.2000-06.2004
VOLVO V70 2.0 [B5202S] 01.1997-03.2000
VOLVO V70 2.0 [B5204F] 01.1997-03.2000
VOLVO V70 2.0 [B5204T4] 01.1997-03.2000
VOLVO V70 2.0 20V [B5204T2] 01.1997-03.2000
VOLVO V70 2.0 Turbo [B5204T3] 01.1997-03.2000
VOLVO V70 2.0 Turbo [B5204T5] 07.2001-
VOLVO V70 2.0 Turbo [B5204T] 01.1997-03.2000
VOLVO V70 2.0 Turbo AWD [B5204T3] 01.1997-03.2000
VOLVO V70 2.3 [B5234FT] 01.1997-03.2000
VOLVO V70 2.3 T5 [B5234T3] 03.2000-
VOLVO V70 2.3 T5 AWD [B5234T3] 01.1997-03.2000
VOLVO V70 2.3 Turbo AWD [B5234FT] 04.1997-03.2000
VOLVO V70 2.3 Turbo T5 [B5234T3] 01.2002-01.2003
VOLVO V70 2.4 [B5244S2] 03.2000-
VOLVO V70 2.4 [B5244S] 01.2002-01.2003
VOLVO V70 2.4 [B5252FS] 01.1997-03.2000
VOLVO V70 2.4 [B5254S] 06.1998-03.2000
VOLVO V70 2.4 [GB5244SG2] 08.1999-05.2000
VOLVO V70 2.4 [GB5252S] 10.1998-08.1999
VOLVO V70 2.4 BiFuel [B5244SG2] 09.2001-
VOLVO V70 2.4 BiFuel [B5244SG] 08.1999-03.2000
VOLVO V70 2.4 Turbo [B5244T3] 01.2002-01.2002
VOLVO V70 2.4 Turbo [B5244T] 01.1997-03.2000
VOLVO V70 2.4 Turbo [B5254T] 01.1997-03.2000
VOLVO V70 2.4 Turbo AWD [B5244T3] 09.2001-
VOLVO V70 2.4 Turbo AWD [B5244T] 01.1997-05.2000
VOLVO V70 2.4 Turbo AWD [B5254T] 01.1997-05.2000
VOLVO V70 2.4 Turbo T5 [B5244T5] 04.2004-
VOLVO V70 2.4 Turbo X/C [B5244T3] 01.2002-01.2002
VOLVO V70 2.5 20V [B5254S] 01.1997-12.1998
VOLVO V70 2.5 AWD [B5244T2] 03.1999-03.2000
VOLVO V70 2.5 AWD [B5254T2] 09.2002-12.2004
VOLVO V70 2.5 T [B5244T] 01.1997-12.1998
VOLVO V70 2.5 T [B5254T] 01.1997-12.1998
VOLVO V70 2.5 Turbo [B5254T2] 04.2004-
VOLVO V70 2.5 Turbo AWD [B5254T2] 09.2002-
VOLVO V70 2.5 Turbo R AWD [B5254T4] 03.2003-
VOLVO XC70 2.4 Turbo AWD [B5244T3] 03.2000-09.2002
VOLVO XC70 2.5 Turbo AWD [B5254T2] 09.2002-
VOLVO XC90 2.5 Turbo [B5254T2] 10.2002-
0001108066 0001108107 0001108153 0001108166 0001108167 0986016660 10680 10979 11.139.309 11.139.407 112818 1363451 1363451-0 1363451-4 17508N 17508R 20510116 22.0680M 220104 25-2037 25-3135 260-14111 30658564 30658565 30815466 30819127 3652 42016660 458190 5003810 5003810-0 5003810-8 5003918-0 5003918-9 564338 565904 6.0133.9 6010158 7700102000 7700103386 7700114428 810.504.093 8111302 8111302-0 8111302-9 8212223 8251551 8251551-0 8251551-1 8602084 8602085 8602085-0 8602085-6 8602104 8602104-0 8602104-5 8EA730196-001 91-15-7036 91-15-7036N 9128421 9128421-0 9128421-6 9162617 9162618 9162618-4 943241060010 944280166600 AES1216 AZE2123 AZE2182 CGB-25161 CS680 CST10158 CST10158AS CST10158ES CST10158GS CST10158OS CST10158RS DRS6660 EAA-121311 IS9309 LRS02109 LRS2109 LRT00116 MAV121580 MS 216 MS216 MSR1060 RAS37771 RS37771 S-6160 S1029B STR50020 STR50269 STRL175 UD12029S S0533

Differences in solenoid connection types between S0059, S0533, S0877S
