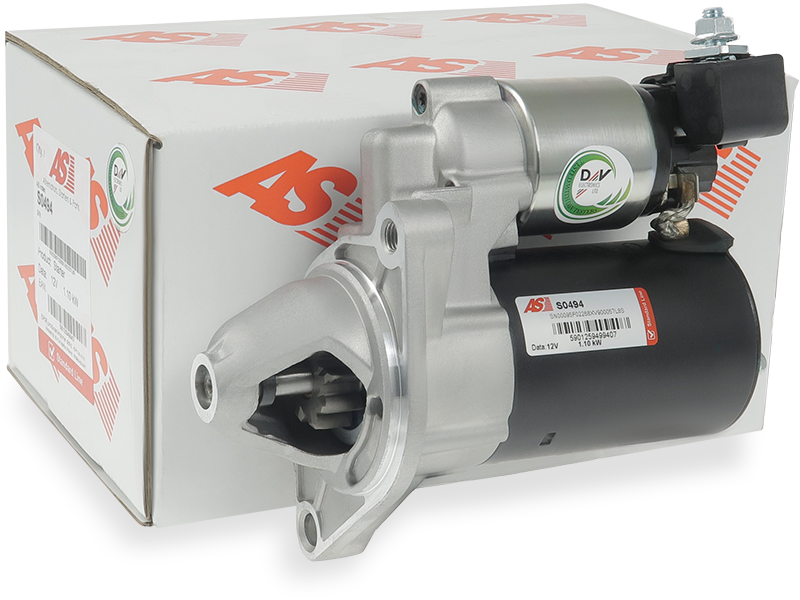

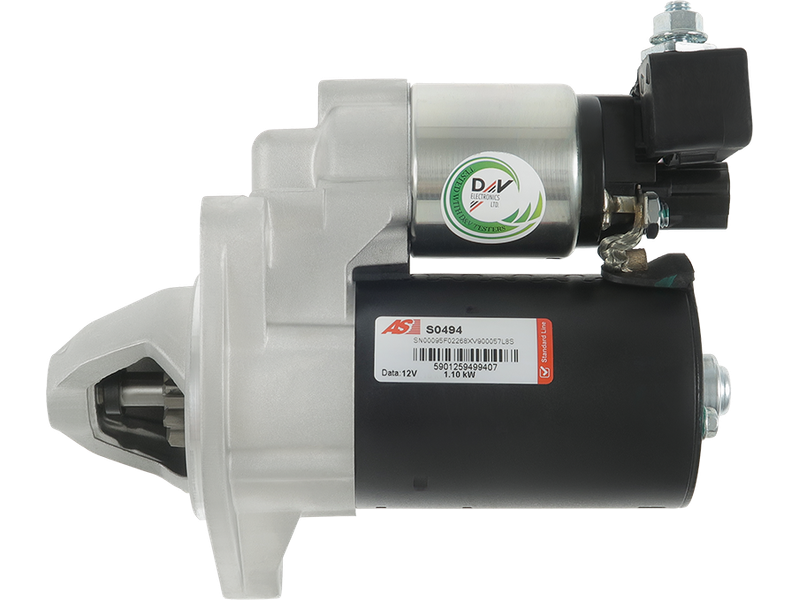

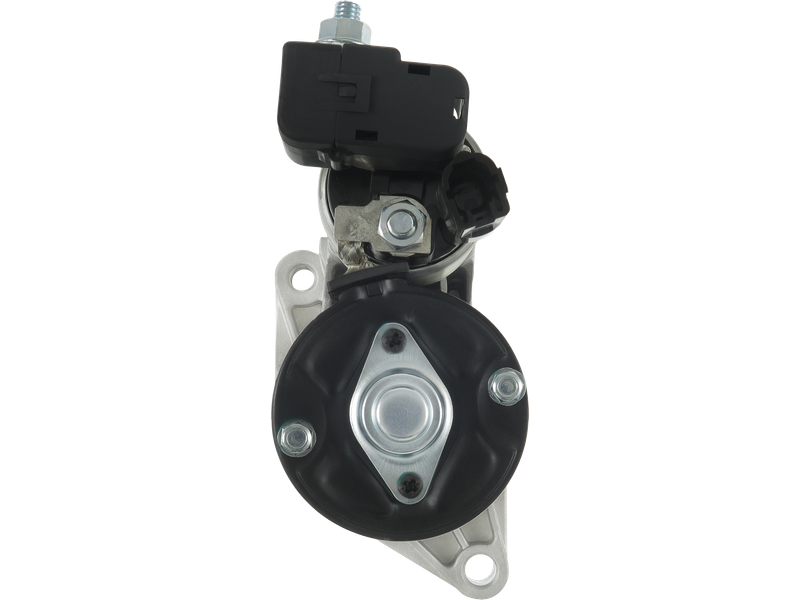

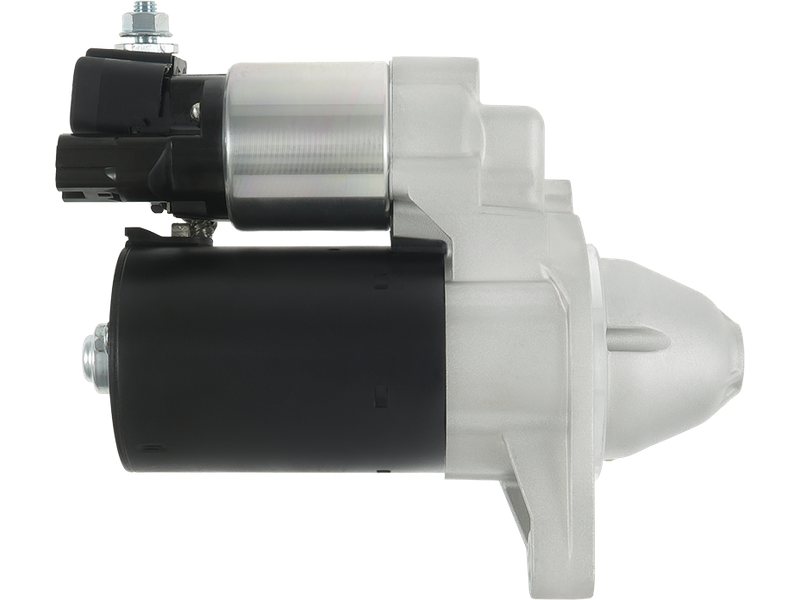

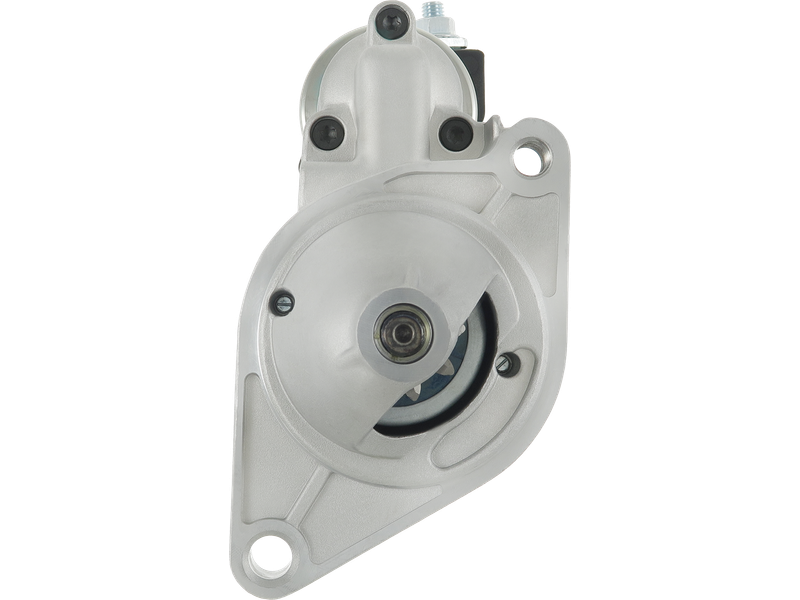

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 234.01 including GST
NZ$ 203.49 excluding GST
or four payments of $58.50
with
Learn More
each
S0494
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107440Associated Numbers
0001107440 0001107441 0986021560 101453 101453B 114068 12136 190.586.092 20401383BN 20401383OE 25-4005 28100-0N010 33320N 6010383 8EA738258-901 9756 AEY2333 CS1453 CST10383 CST10383AS CST10383ES CST10383GS CST10383OS CST10383RS DRT1560 G201453B-R GS107440-A LRS02333 S0494 SS650 STR50550 UD90043SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 123 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.4 D-4D | [1ND-TV] | 03.2007- |
| TOYOTA | Yaris 1.4 D-4D | [1ND-TV] | 05.2005-09.2005 |
| TOYOTA | Yaris 1.4 D-4D | [1ND-TV] | 08.2005- |
Reference Information
| 0001107440 | BOSCH |
| 0001107441 | BOSCH |
| 0001107441-R | BOSCH |
| 011-001-000779R | REMANTE |
| 0986021560 | BOSCH |
| 10010383AV | ITAB AUTOMOTIVE |
| 10010383OV | ITAB AUTOMOTIVE |
| 101453 | KUHNER |
| 101453B | KUHNER |
| 10439447 | ALANKO |
| 106376 | FARCOM |
| 11040681 | EUROTEC |
| 114068 | CARGO |
| 12136 | EAI |
| 136ST21 | STARTCAR |
| 1648213480 | EUROREPAR |
| 190.586.092.010 | PSH |
| 190.586.092.018 | PSH |
| 190.586.092.210 | PSH |
| 190.586.092.215 | PSH |
| 190.586.092.280 | PSH |
| 1986S00673 | BOSCH |
| 20401383BN | REAL |
| 20401383OE | REAL |
| 220659 | ERA |
| 25-4005 | ELSTOCK |
| 28100-0N010 | TOYOTA |
| 2S0305 | RIDEX |
| 3113872 | HENKEL PARTS |
| 332096 | LOGISTIK |
| 33320N | WAI / TRANSPO |
| 335222092 | DRI |
| 458824 | VALEO |
| 5010039 | MEAT & DORIA |
| 6010383.0 | SANDO |
| 6010383.1 | SANDO |
| 803-17192 | IAP QUALITY PARTS |
| 88213279 | POWERMAX |
| 8EA011611-321 | HELLA |
| 8EA738258-901 | HELLA |
| 9756 | CEVAM |
| A21560 | ATL AUTOTECHNIK |
| AC-CBS1453 | ACAUTO |
| AEY2333 | AUTOELECTRO |
| AI-80044 | AINDE |
| ANM23780X | ANDEL |
| ASM1596 | APEC |
| AZMT-53-010-1567 | A.Z. MEISTERTEILE |
| BST2309 | BORG & BECK |
| CMA-621948 | COMLINE |
| CS1453 | HC PARTS |
| CST10383AS | CASCO |
| CST10383GS | CASCO |
| DRT1560 | DELCO |
| EST-9016 | KAVO PARTS |
| F032114068 | CARGO |
| G201453B-R | GPARTS |
| GS107440-A | GPARTS |
| H5010039 | HOFFER |
| H5010039G | HOFFER |
| IR9817 | PROTECH |
| J5212128 | HERTH+BUSS |
| LES0576 | LE PART |
| LRS02333 | LUCAS |
| LRS2333 | LUCAS |
| NPANSM1596 | NAPA |
| PRSL159 | 3EFFE |
| QRS2482 | QUINTON HAZELL |
| RE83718N | THE NEW LINE |
| RNL2156 | RNL |
| S0494 | AS-PL |
| S12BH0069 | SIDAT |
| S12BH0069A2 | SIDAT |
| S131.089 | PSH |
| S144.845 | PSH |
| S-50550 | DTS |
| SBO383 | AUTOTEAM |
| SBO383A | AUTOTEAM |
| SEG0001107440 | WOODAUTO |
| SG0561 | GHIBAUDI |
| SKSTR-0330304 | STARK |
| SS650 | SOVEREIGN |
| ST01532 | TMI |
| STB1453 | KRAUF |
| STM1330 | ROLLCO |
| STR1480 | ELECTROLOG |
| STR50550 | WOODAUTO |
| STRL159 | 3EFFE |
| STX201060 | STARDAX |
| SX6016 | STARLINE |
| T521A139 | NPS |
| TO9068 | SNRA |
| UD90043S | AS-PL |
| WG2013214 | WILMINK GROUP |
| WG2174881 | WILMINK GROUP |
Video/Publications
