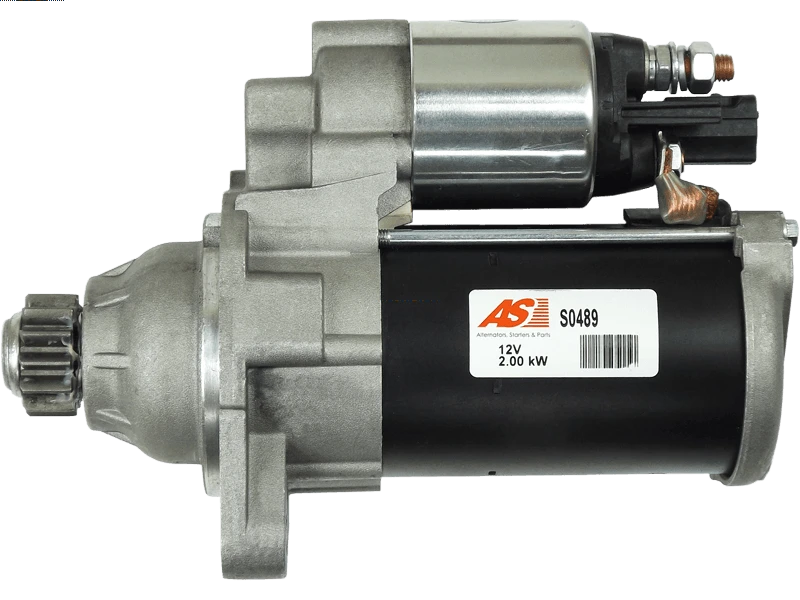

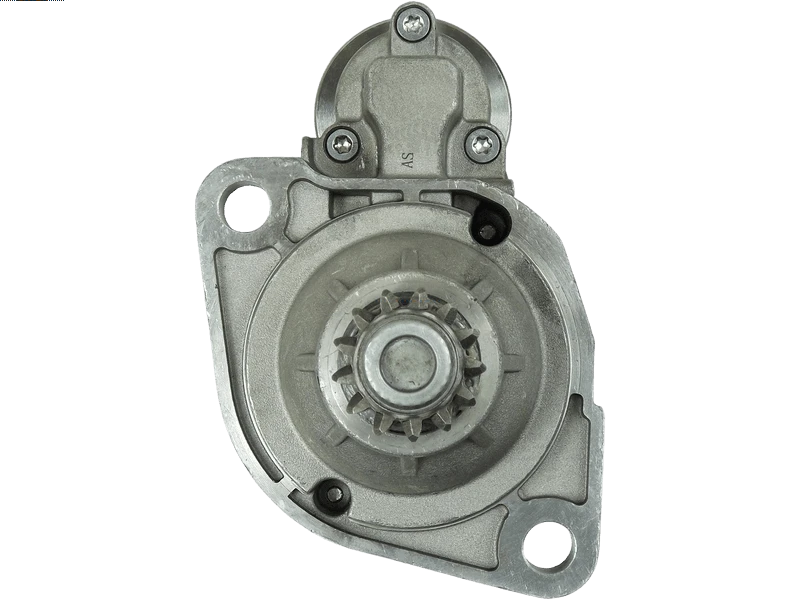

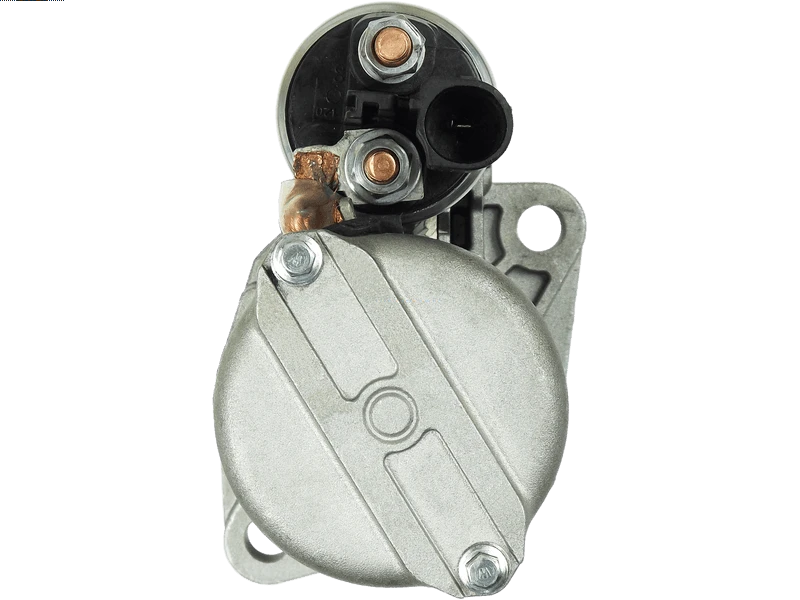

S0489 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 365.46 including GST

NZ$ 317.79 excluding GST
each
S0489
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001177002 0001177010 0001177011 0AH911023H 0AH911023HX 255183 255183B DRS0839 UD02356S
Kilowatt2 kW
Length (L.1)216 mm
Mount Hole Center - Center (O.1)111 mm
Mount Hole Diameter (C.1)12.5 mm
Mount Hole Diameter (C.2)12.5 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth13 qty
No./Teeth (Replaces)13 qty
Pinion at Rest (B)57 mm
RotationACW
Spigot Diameter (A)79 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI A3 1.2 TFSi [CJZA] 02.2013-
AUDI A3 1.2 TFSi Sportback [CJZA] 05.2013-
1177010 0001177002 255183B 0001177011 CST10A00GS 6010A00.0 STR1980 6010A00.1 0AH911023HX 255183 2040100AOE DRS0839 0AH911023H 2040100ABN STRE403 UD02356S 1177002 0001177010 1177011 CST10A00AS
0001177002 0001177010 0001177011 0AH911023H 0AH911023HX 255183 255183B DRS0839 STRE403 UD02356S
