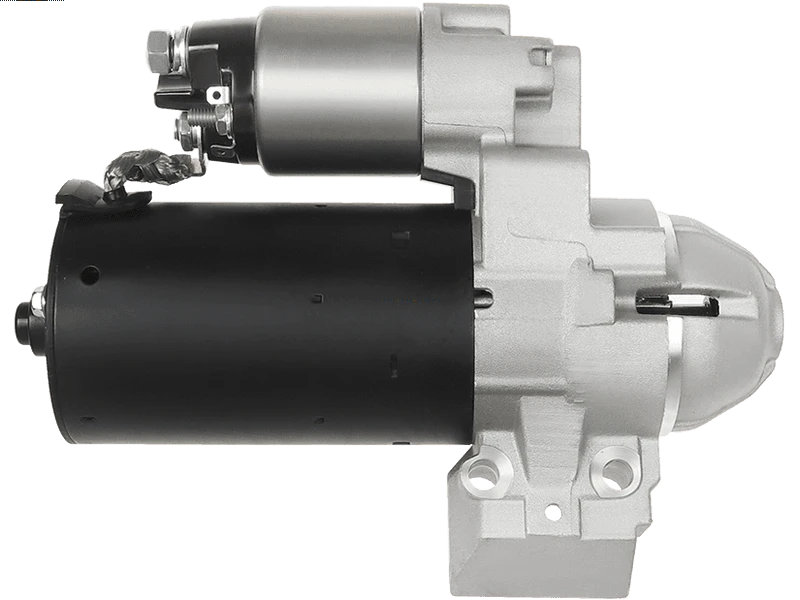

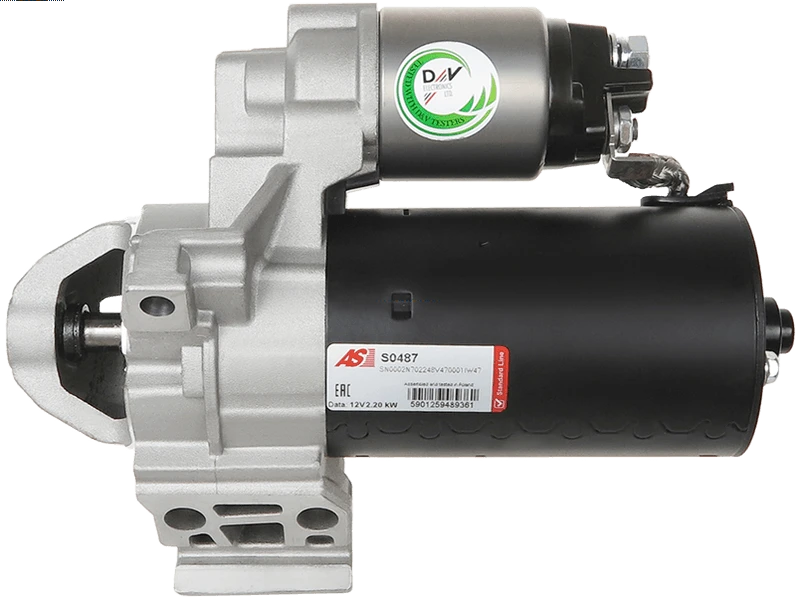

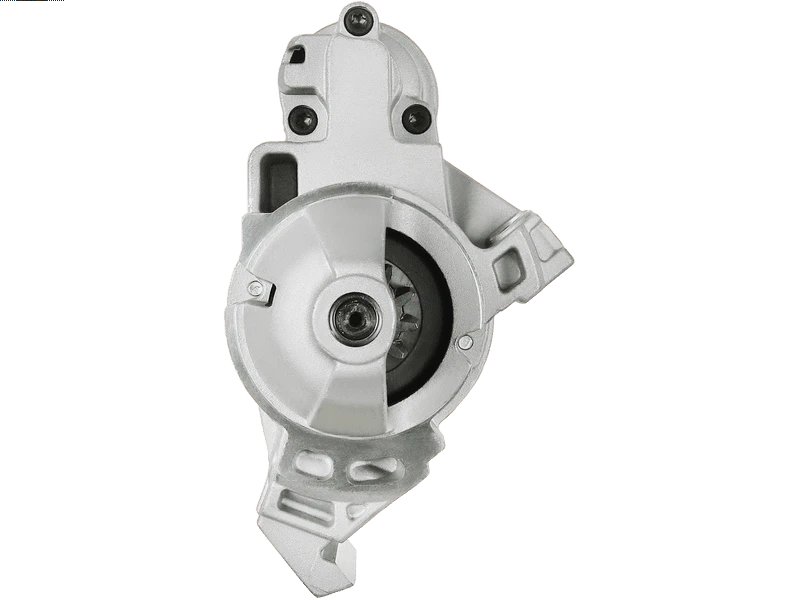

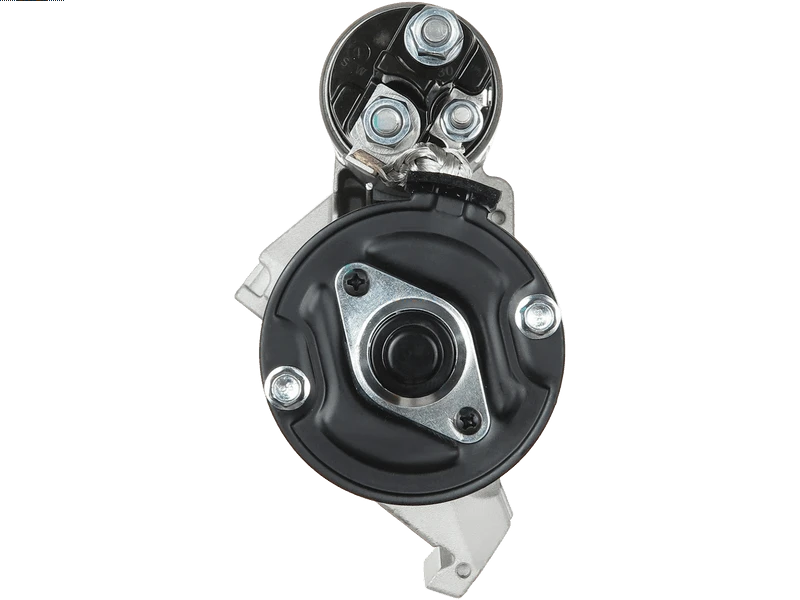

S0487 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	235 mm
Mount Hole Center - Center (O.1)	99 mm
Mount Hole Center - Center (O.2)	39 mm
Mount Hole Center - Center (O.3)	107 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	5 mm
Rotation	CW
Spigot Diameter (A)	69 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	114 1.6	[N47D16A]	07.2012-
BMW	114 1.6	[N47D16A]	10.2012-
BMW	114 1.6 Diesel	(F20)[N47D16A]	10.2012-
BMW	114 1.6 Diesel	(F21)[N47D16A]	07.2012-
BMW	114 1.6 Diesel	(F21)[N47D16A]	10.2012-
BMW	116 1.6	[N47D16A]	11.2012-
BMW	116 1.6	[N47D16A]	12.2011-
BMW	116 1.6 Diesel	(F20)[N47D16A]	11.2012-
BMW	116 1.6 Diesel	(F21)[N47D16A]	12.2011-
BMW	116 2.0	[N47D20A]	01.2011-12.2011
BMW	116 2.0	[N47D20A]	11.2008-09.2012
BMW	116 2.0	[N47D20A]	12.2008-09.2012
BMW	116 2.0	[N47D20C]	01.2011-12.2011
BMW	116 2.0	[N47D20C]	01.2012-
BMW	116 2.0	[N47D20C]	06.2011-
BMW	116 2.0 Diesel	(E81)[N47D20A]	01.2011-12.2011
BMW	116 2.0 Diesel	(E81)[N47D20A]	11.2008-09.2012
BMW	116 2.0 Diesel	(E81)[N47D20C]	01.2011-12.2011
BMW	116 2.0 Diesel	(E87)[N47D20A]	11.2008-09.2012
BMW	116 2.0 Diesel	(E87)[N47D20A]	12.2008-09.2012
BMW	116 2.0 Diesel	(E87)[N47D20C]	01.2011-12.2011
BMW	116 2.0 Diesel	(F20)[N47D20C]	06.2011-
BMW	116 2.0 Diesel	(F21)[N47D20C]	01.2012-
BMW	118 2.0	[M47D20(204D4)]	11.2003-09.2012
BMW	118 2.0	[N47D20A]	09.2006-09.2012
BMW	118 2.0	[N47D20A]	09.2008-
BMW	118 2.0	[N47D20A]	11.2003-09.2012
BMW	118 2.0	[N47D20C]	09.2008-
BMW	118 2.0	[N47D20C]	09.2009-
BMW	118 2.0	[N47D20C]	11.2003-09.2012
BMW	118 2.0	[N47D20C]	12.2010-
BMW	118 2.0	[N47D20C]	12.2011-
BMW	118 2.0 Diesel	(E81)[N47D20A]	09.2006-09.2012
BMW	118 2.0 Diesel	(E82)[N47D20C]	09.2009-
BMW	118 2.0 Diesel	(E87)[M47D20(204D4)]	11.2003-09.2012
BMW	118 2.0 Diesel	(E87)[N47D20A]	09.2006-09.2012
BMW	118 2.0 Diesel	(E87)[N47D20A]	11.2003-09.2012
BMW	118 2.0 Diesel	(E87)[N47D20C]	11.2003-09.2012
BMW	118 2.0 Diesel	(E88)[N47D20A]	09.2008-
BMW	118 2.0 Diesel	(E88)[N47D20C]	09.2008-
BMW	118 2.0 Diesel	(F20)[N47D20C]	12.2010-
BMW	118 2.0 Diesel	(F21)[N47D20C]	12.2011-
BMW	118 2.0 Diesel xDrive	(F20)[N47D20C]	07.2013-
BMW	118 2.0 Diesel xDrive	(F21)[N47D20C]	05.2013-
BMW	118 2.0 xDrive	[N47D20C]	05.2013-
BMW	118 2.0 xDrive	[N47D20C]	07.2013-
BMW	120 2.0	[M47D20(204D4)]	11.2003-09.2012
BMW	120 2.0	[N47D20A]	03.2008-
BMW	120 2.0	[N47D20A]	09.2006-09.2012
BMW	120 2.0	[N47D20A]	10.2007-
BMW	120 2.0	[N47D20A]	11.2003-09.2012
BMW	120 2.0	[N47D20C]	01.2011-
BMW	120 2.0	[N47D20C]	01.2012-
BMW	120 2.0	[N47D20C]	03.2008-
BMW	120 2.0	[N47D20C]	06.2011-
BMW	120 2.0	[N47D20C]	07.2012-
BMW	120 2.0	[N47D20C]	10.2007-
BMW	120 2.0	[N47D20C]	11.2003-09.2012
BMW	120 2.0	[N47D20C]	12.2010-
BMW	120 2.0 Diesel	(E82)[N47D20A]	10.2007-
BMW	120 2.0 Diesel	(E82)[N47D20C]	10.2007-
BMW	120 2.0 Diesel	(E87)[M47D20(204D4)]	11.2003-09.2012
BMW	120 2.0 Diesel	(E87)[N47D20A]	09.2006-09.2012
BMW	120 2.0 Diesel	(E87)[N47D20A]	11.2003-09.2012
BMW	120 2.0 Diesel	(E87)[N47D20C]	11.2003-09.2012
BMW	120 2.0 Diesel	(E88)[N47D20A]	03.2008-
BMW	120 2.0 Diesel	(E88)[N47D20C]	03.2008-
BMW	120 2.0 Diesel	(F20)[N47D20C]	01.2011-
BMW	120 2.0 Diesel	(F20)[N47D20C]	06.2011-
BMW	120 2.0 Diesel	(F20)[N47D20C]	12.2010-
BMW	120 2.0 Diesel	(F21)[N47D20C]	01.2012-
BMW	120 2.0 Diesel	(F21)[N47D20C]	07.2012-
BMW	120 2.0 Diesel xDrive	(F20)[N47D20C]	01.2011-
BMW	120 2.0 Diesel xDrive	(F20)[N47D20C]	12.2010-
BMW	120 2.0 Diesel xDrive	(F21)[N47D20C]	01.2012-
BMW	120 2.0 Diesel xDrive	(F21)[N47D20C]	02.2012-
BMW	120 2.0 Diesel xDrive	(F21)[N47D20C]	12.2010-
BMW	120 2.0 xDrive	[N47D20C]	01.2011-
BMW	120 2.0 xDrive	[N47D20C]	01.2012-
BMW	120 2.0 xDrive	[N47D20C]	02.2012-
BMW	120 2.0 xDrive	[N47D20C]	12.2010-
BMW	123 2.0	[N47D20B]	03.2007-09.2012
BMW	123 2.0	[N47D20B]	09.2008-
BMW	123 2.0	[N47D20B]	10.2007-
BMW	123 2.0	[N47D20C]	03.2007-09.2012
BMW	123 2.0	[N47D20D]	03.2007-09.2012
BMW	123 2.0	[N47D20D]	09.2008-
BMW	123 2.0	[N47D20D]	10.2007-
BMW	123 2.0 Diesel	(E81)[N47D20D]	03.2007-09.2012
BMW	123 2.0 Diesel	(E82)[N47D20B]	10.2007-
BMW	123 2.0 Diesel	(E82)[N47D20D]	10.2007-
BMW	123 2.0 Diesel	(E87)[N47D20B]	03.2007-09.2012
BMW	123 2.0 Diesel	(E87)[N47D20C]	03.2007-09.2012
BMW	123 2.0 Diesel	(E87)[N47D20D]	03.2007-09.2012
BMW	123 2.0 Diesel	(E88)[N47D20B]	09.2008-
BMW	123 2.0 Diesel	(E88)[N47D20D]	09.2008-
BMW	125 2.0	[N47D20D]	08.2011-
BMW	125 2.0	[N47D20D]	12.2011-
BMW	125 2.0 Diesel	(F20)[N47D20D]	08.2011-
BMW	125 2.0 Diesel	(F21)[N47D20D]	12.2011-
BMW	218 2.0	[N47D20C]	01.2014-
BMW	218 2.0 Diesel	(F22)[N47D20C]	01.2014-
BMW	220 2.0	[N47D20C]	03.2014-
BMW	220 2.0	[N47D20C]	10.2013-
BMW	220 2.0 Diesel	(F22)[N47D20C]	03.2014-
BMW	220 2.0 Diesel	(F22)[N47D20C]	10.2013-
BMW	225 2.0	[N47D20D]	01.2014-
BMW	225 2.0 Diesel	(F22)[N47D20D]	01.2014-
BMW	316 2.0	[N47D20C]	02.2012-
BMW	316 2.0	[N47D20C]	06.2012-
BMW	316 2.0	[N47D20C]	07.2009-12.2011
BMW	316 2.0	[N47D20C]	09.2009-
BMW	316 2.0 Diesel	(E90)[N47D20C]	07.2009-12.2011
BMW	316 2.0 Diesel	(E91)[N47D20C]	09.2009-
BMW	316 2.0 Diesel	(F30)[N47D20C]	02.2012-
BMW	316 2.0 Diesel Touring	(F31)[N47D20C]	06.2012-
BMW	318 2.0	[N47D20A]	09.2005-12.2011
BMW	318 2.0	[N47D20A]	09.2007-
BMW	318 2.0	[N47D20C]	02.2012-
BMW	318 2.0	[N47D20C]	06.2012-
BMW	318 2.0	[N47D20C]	09.2005-12.2011
BMW	318 2.0	[N47D20C]	09.2007-
BMW	318 2.0 Diesel	(E90)[N47D20A]	09.2005-12.2011
BMW	318 2.0 Diesel	(E90)[N47D20C]	09.2005-12.2011
BMW	318 2.0 Diesel	(E91)[N47D20A]	09.2007-
BMW	318 2.0 Diesel	(E91)[N47D20C]	09.2007-
BMW	318 2.0 Diesel	(F30)[N47D20C]	02.2012-
BMW	318 2.0 Diesel	(F35)[N47D20C]	02.2012-
BMW	318 2.0 Diesel Gran Turismo	(F34)[N47D20C]	03.2013-
BMW	318 2.0 Diesel Touring	(F31)[N47D20C]	06.2012-
BMW	318 2.0 Diesel xDrive	(F30)[N47D20C]	11.2012-
BMW	318 2.0 Diesel xDrive	(F31)[N47D20C]	01.2013-
BMW	318 2.0 Gran Turismo	[N47D20C]	03.2013-
BMW	318 2.0 xDrive	[N47D20C]	01.2013-
BMW	318 2.0 xDrive	[N47D20C]	11.2012-
BMW	320 2.0	[N47D20A]	03.2007-
BMW	320 2.0	[N47D20A]	09.2007-
BMW	320 2.0	[N47D20A]	09.2007-12.2011
BMW	320 2.0	[N47D20C]	01.2007-
BMW	320 2.0	[N47D20C]	01.2008-
BMW	320 2.0	[N47D20C]	01.2010-
BMW	320 2.0	[N47D20C]	01.2010-12.2011
BMW	320 2.0	[N47D20C]	02.2012-
BMW	320 2.0	[N47D20C]	03.2007-
BMW	320 2.0	[N47D20C]	06.2012-
BMW	320 2.0	[N47D20C]	09.2007-
BMW	320 2.0	[N47D20C]	09.2007-12.2011
BMW	320 2.0	[N47D20C]	10.2011-
BMW	320 2.0		03.2013-
BMW	320 2.0 Diesel	(E90)[N47D20A]	09.2007-12.2011
BMW	320 2.0 Diesel	(E90)[N47D20C]	01.2010-12.2011
BMW	320 2.0 Diesel	(E90)[N47D20C]	09.2007-12.2011
BMW	320 2.0 Diesel	(E91)[N47D20A]	09.2007-
BMW	320 2.0 Diesel	(E91)[N47D20C]	01.2010-
BMW	320 2.0 Diesel	(E91)[N47D20C]	09.2007-
BMW	320 2.0 Diesel	(E92)[N47D20A]	03.2007-
BMW	320 2.0 Diesel	(E92)[N47D20C]	01.2007-
BMW	320 2.0 Diesel	(E92)[N47D20C]	01.2010-
BMW	320 2.0 Diesel	(E93)[N47D20A]	03.2007-
BMW	320 2.0 Diesel	(E93)[N47D20C]	01.2008-
BMW	320 2.0 Diesel	(E93)[N47D20C]	01.2010-
BMW	320 2.0 Diesel	(E93)[N47D20C]	03.2007-
BMW	320 2.0 Diesel	(F30)[N47D20C]	02.2012-
BMW	320 2.0 Diesel	(F30)[N47D20C]	10.2011-
BMW	320 2.0 Diesel	(F31)[N47D20C]	06.2012-
BMW	320 2.0 Diesel	(F31)[N47D20C]	10.2011-
BMW	320 2.0 Diesel	(F34)	03.2013-
BMW	320 2.0 Diesel	(F35)[N47D20C]	02.2012-
BMW	320 2.0 Diesel	(F80)[N47D20C]	02.2012-
BMW	320 2.0 Diesel Gran Turismo	(F34)[N47D20C]	03.2013-
BMW	320 2.0 Diesel Touring	(F31)[N47D20C]	06.2012-
BMW	320 2.0 Diesel Xdrive	(E90)[N47D20C]	01.2010-12.2011
BMW	320 2.0 Diesel Xdrive	(E90)[N47D20C]	09.2007-12.2011
BMW	320 2.0 Diesel Xdrive	(E90)[N47D20C]	09.2008-12.2011
BMW	320 2.0 Diesel Xdrive	(E91)[N47D20A]	09.2007-
BMW	320 2.0 Diesel Xdrive	(E91)[N47D20C]	01.2010-
BMW	320 2.0 Diesel Xdrive	(E91)[N47D20C]	09.2008-
BMW	320 2.0 Diesel Xdrive	(E92)[N47D20A]	03.2007-
BMW	320 2.0 Diesel Xdrive	(E92)[N47D20C]	01.2010-
BMW	320 2.0 Diesel Xdrive	(E92)[N47D20C]	09.2008-
BMW	320 2.0 Diesel xDrive	(E90)[N47D20C]	07.2008-12.2011
BMW	320 2.0 Diesel xDrive	(E91)[N47D20C]	07.2009-
BMW	320 2.0 Diesel xDrive	(F30)[N47D20C]	05.2012-
BMW	320 2.0 Diesel xDrive	(F30)[N47D20C]	10.2011-
BMW	320 2.0 Diesel xDrive	(F31)[N47D20C]	01.2013-
BMW	320 2.0 Diesel xDrive	(F31)[N47D20C]	06.2012-
BMW	320 2.0 Diesel xDrive	(F34)[N47D20C]	05.2013-
BMW	320 2.0 Diesel xDrive	(F35)[N47D20C]	05.2012-
BMW	320 2.0 Diesel xDrive	(F80)[N47D20C]	05.2012-
BMW	320 2.0 Gran Turismo	[N47D20C]	03.2013-
BMW	320 2.0 xDrive	[N47D20A]	03.2007-
BMW	320 2.0 xDrive	[N47D20A]	09.2007-
BMW	320 2.0 xDrive	[N47D20C]	01.2010-
BMW	320 2.0 xDrive	[N47D20C]	01.2010-12.2011
BMW	320 2.0 xDrive	[N47D20C]	01.2013-
BMW	320 2.0 xDrive	[N47D20C]	05.2012-
BMW	320 2.0 xDrive	[N47D20C]	05.2013-
BMW	320 2.0 xDrive	[N47D20C]	06.2012-
BMW	320 2.0 xDrive	[N47D20C]	07.2008-12.2011
BMW	320 2.0 xDrive	[N47D20C]	07.2009-
BMW	320 2.0 xDrive	[N47D20C]	09.2007-12.2011
BMW	320 2.0 xDrive	[N47D20C]	09.2008-
BMW	320 2.0 xDrive	[N47D20C]	09.2008-12.2011
BMW	320 2.0 xDrive	[N47D20C]	10.2011-
BMW	325 2.0	[N47D20D]	03.2013-
BMW	325 2.0	[N47D20D]	07.2013-
BMW	325 2.0	[N47D20D]	10.2011-
BMW	325 2.0 Diesel	(F30)[N47D20D]	10.2011-
BMW	325 2.0 Diesel	(F31)[N47D20D]	03.2013-
BMW	325 2.0 Diesel	(F34)[N47D20D]	07.2013-
BMW	325 3.0	[M57D30306D3]	02.2010-
BMW	325 3.0	[N57D30A]	02.2010-
BMW	325 3.0 Diesel	(E93)[M57D30306D3]	02.2010-
BMW	325 3.0 Diesel	(E93)[N57D30A]	02.2010-
BMW	330 3.0	(E91)	01.2009-
BMW	330 3.0	[N57D30A]	01.2009-
BMW	330 3.0	[N57D30A]	01.2009-12.2011
BMW	330 3.0		01.2009-
BMW	330 3.0 Diesel	(E90)[N57D30A]	01.2009-12.2011
BMW	330 3.0 Diesel	(E91)[N57D30A]	01.2009-
BMW	330 3.0 Diesel	(E92)[N57D30A]	01.2009-
BMW	330 3.0 Diesel	(E93)[N57D30A]	01.2009-
BMW	330 3.0 Diesel xDrive	(E90)[N57D30A]	01.2009-12.2011
BMW	330 3.0 Diesel xDrive	(E91)[N57D30A]	01.2009-
BMW	330 3.0 Diesel xDrive	(E92)[N57D30A]	01.2009-
BMW	330 3.0 xDrive	[N57D30A]	01.2009-
BMW	330 3.0 xDrive	[N57D30A]	01.2009-12.2011
BMW	420 2.0	[N47D20C]	10.2013-
BMW	420 2.0 Diesel	(F33)[N47D20C]	10.2013-
BMW	420 2.0 Diesel xDrive	(F32)[N47D20C]	11.2013-
BMW	420 2.0 xDrive	[N47D20C]	11.2013-
BMW	425 2.0	[N47D20D]	01.2014-
BMW	425 2.0	[N47D20D]	07.2014-
BMW	425 2.0 Diesel	(F32)[N47D20D]	01.2014-
BMW	425 2.0 Diesel	(F33)[N47D20D]	07.2014-
BMW	425 2.0 Diesel	(F82)[N47D20D]	01.2014-
BMW	425 2.0 Diesel	(F83)[N47D20D]	07.2014-
BMW	518 2.0	[N47D20C]	01.2013-
BMW	518 2.0 Diesel	(F10)[N47D20C]	01.2013-
BMW	518 2.0 Diesel	(F11)[N47D20C]	01.2013-
BMW	520 2.0	[M47D20(204D4)]	09.2007-
BMW	520 2.0	[N47D20A]	09.2007-
BMW	520 2.0 Diesel	(E60)[M47D20(204D4)]	09.2007-
BMW	520 2.0 Diesel	(E61)[N47D20A]	09.2007-
BMW	520 2.0 Diesel Gran Turismo	(F07)[N47D20C]	10.2011-
BMW	520 2.0 Diesel xDrive	(F10)[N47D20C]	02.2013-
BMW	520 2.0 Diesel xDrive	(F11)[N47D20C]	02.2013-
BMW	520 2.0 Gran Turismo	[N47D20C]	10.2011-
BMW	520 2.0 xDrive	[N47D20C]	02.2013-
BMW	525 2.0	[N47D20D]	09.2011-
BMW	525 2.0 Diesel	(F10)[N47D20D]	09.2011-
BMW	525 2.0 Diesel	(F11)[N47D20D]	09.2011-
BMW	525 2.0 Diesel xDrive	(F10)[N47D20D]	09.2011-
BMW	525 2.0 Diesel xDrive	(F11)[N47D20D]	09.2011-
BMW	525 2.0 xDrive	[N47D20D]	09.2011-
BMW	530 3.0	[N57D30A]	09.2011-
BMW	530 3.0 Diesel	(F11)[N57D30A]	09.2011-
BMW	530 3.0 Diesel xDrive	(F10)[N57D30A]	09.2011-
BMW	530 3.0 xDrive	[N57D30A]	09.2011-
BMW	X1 2.0	(E84)[N47D20C]	03.2011-
BMW	X1 2.0	[N47D20C]	03.2011-
BMW	X1 2.0	[N47D20C]	04.2012-
BMW	X1 2.0 Diesel	(E84)[N47D20C]	04.2012-
BMW	X1 2.0 Diesel sDrive	(E84)[N47D20C]	10.2009-
BMW	X1 2.0 Diesel sDrive18d	(E84)[N47D20C]	03.2009-
BMW	X1 2.0 Diesel sDrive20d	(E84)[N47D20C]	03.2010-
BMW	X1 2.0 Diesel xDrive	(E84)[N47D20C]	10.2009-
BMW	X1 2.0 Diesel xDrive	(E84)[N47D20D]	10.2009-
BMW	X1 2.0 Diesel xDrive	(E84)[N47SD20D]	10.2009-
BMW	X1 2.0 Diesel xDrive18d	(E84)[N47D20C]	03.2009-
BMW	X1 2.0 Diesel xDrive20d	(E84)[N47D20C]	03.2010-
BMW	X1 2.0 sDrive	[N47D20C]	10.2009-
BMW	X1 2.0 sDrive18d	[N47D20C]	03.2009-
BMW	X1 2.0 sDrive20d	[N47D20C]	03.2010-
BMW	X1 2.0 xDrive	[N47D20C]	10.2009-
BMW	X1 2.0 xDrive	[N47D20D]	10.2009-
BMW	X1 2.0 xDrive	[N47SD20D]	10.2009-
BMW	X1 2.0 xDrive18d	[N47D20C]	03.2009-
BMW	X1 2.0 xDrive20d	[N47D20C]	03.2010-
BMW	X3 2.0	(F25)[N47D20C]	09.2010-
BMW	X3 2.0	[N47D20C]	08.2011-
BMW	X3 2.0	[N47D20C]	09.2010-
BMW	X3 2.0 Diesel	(F25)[N47D20C]	08.2011-
BMW	X3 2.0 Diesel sDrive	(F25)[N47D20C]	08.2011-
BMW	X3 2.0 Diesel sDrive 18 d	(F25)	02.2014-
BMW	X3 2.0 Diesel xDrive 20d	(F25)[N47D20C]	09.2010-
BMW	X3 2.0 sDrive	[N47D20C]	08.2011-
BMW	X3 2.0 sDrive18d		02.2014-
BMW	X3 2.0 xDrive20d	[N47D20C]	09.2010-
BMW	X3 3.0 Diesel xDrive 30d	(F25)[N57D30A]	05.2011-
BMW	X3 3.0 xDrive30d	[N57D30A]	05.2011-
BMW	X5 2.0 Diesel sDrive 25	(F15)[N47D20D]	01.2013-
BMW	X5 2.0 Diesel xDrive 25	(F15)[N47D20D]	01.2013-
BMW	X5 2.0 sDrive25	[N47D20D]	01.2013-
BMW	X5 2.0 xDrive25	[N47D20D]	01.2013-
BMW	X5 3.0	(E70)[N57D30A]	09.2008-

Reference Information

210.538.113 12418515795 STRL638 12417823701 12418509198 115335 1148033 5010194 12417823700 220874 UD01755S 1148010 S12BH0431A2 1148019 012 12417798006 12418519154 8EA 1139015 1139016 6010410 LRS2492 6010551 101467 101467B CST10410AS DRS0177 88212439 738 CST10410GS LRS02492 CS1467 12418570238 12417804140 258-941 1148020 1148009 UD16912S S12BH0431 1139001 12418570383 1139002 986022020 527-841 20401155BN 12418506657 S0487 25-4164

Video/Publications

0001139001 0001139002 0001139015 0001139016 0001148009 0001148010 0001148019 0001148020 0001148033 0986022020 101467 101467B 115335 12417798006 12417804140 12417823700 12417823701 12418506657 12418509198 12418515795 12418519154 12418570383 20401155BN 210.538.113 25-4164 6010410 6010551 88212439 8EA 012 527-841 8EA 738 258-941 CS1467 CST10410AS CST10410GS DRS0177 LRS02492 LRS2492 S0487 STRL638 UD01755S UD16912S 220874

Add Your Number

Contact Details

Request More Information

Add your number to the message box below and we will add it to our system
