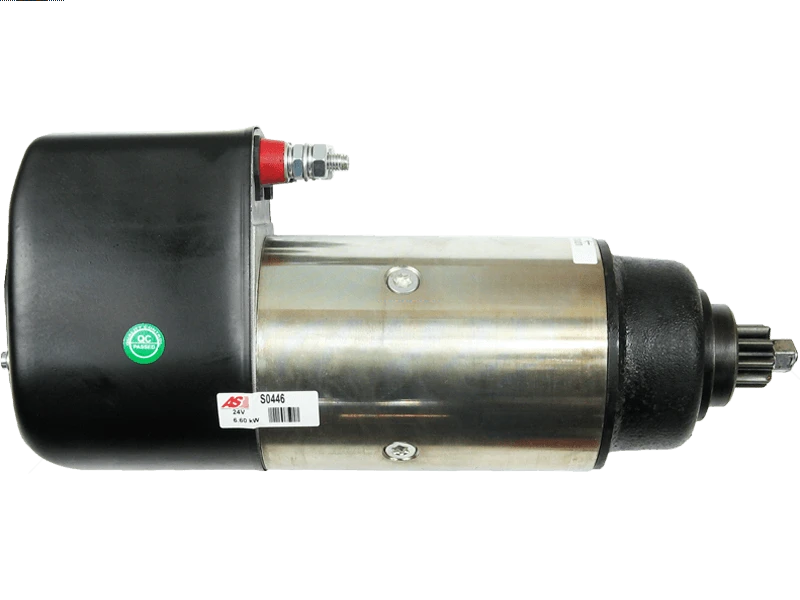

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 857.89 including GST
NZ$ 745.99 excluding GST
or four payments of $214.47
with
Learn More
each
S0446
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417017Associated Numbers
0001410015 0001410016 0001410041 0001417017 0001417036 0011513901 0031516601 0090000 0100000 0120000 10195 110531 16372N 19024136 20401346BN 20401346EL 28.3004 2998007 45-0030 6010643 6220000 8594 860667GB 88.26201-6200 88.26201-9200 A0011513901 A0031516601 CST10643AS CST10643ES DRS1440 F042002123 LRS00823 R22.10 R22.12 UD00248S UD00256SSpecifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 422 mm |
| No./Mount holes | 0 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 72 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ATLAS COPCO | 335 Air Compressor | [KHD F6L514] | 01.1969-12.1979 |
| ATLAS COPCO | 335 Air Compressor | [KHDF6L514] | 01.1969-12.1979 |
| ATLAS COPCO | PRH425 | [KHD F8L714] | 01.1971-12.1986 |
| ATLAS COPCO | PRH425 | [KHDF8L714] | 01.1971-12.1986 |
| MAN | 14.192 | [D2855BYUL] | 01.1972-12.1976 |
| MAN | 16.32 | [D3256BTXUL] | 01.1972-12.1977 |
| MAN | 16.320 | [D3256BTXUL] | 01.1972-12.1977 |
| MAN | 19.32 | [D3256BTXUL] | 01.1977-12.1979 |
| MAN | 19.320 | [D3256BTXUL] | 01.1977-12.1979 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.916] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.979] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.980] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.981] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.984] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.985] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 302 8.7 | [OM360.986] | 05.1969-12.1974 |
| MERCEDES BENZ TRUCKS & BUSES | O 317 10.8 | [OM346.911] | 01.1966-01.1976 |
| MERCEDES BENZ TRUCKS & BUSES | O 317 10.8 | [OM346.918] | 01.1966-01.1976 |
Reference Information
| 0001410015 | BOSCH |
| 0001410016 | BOSCH |
| 0001410041 | BOSCH |
| 0001417017 | BOSCH |
| 0001417036 | BOSCH |
| 0011513901 | MERCEDES |
| 001151390180 | MERCEDES |
| 0031516601 | MERCEDES |
| 003151660180 | MERCEDES |
| 0090000 | ELMOT |
| 0100000 | ELMOT |
| 01170947 | KHD |
| 0120000 | ELMOT |
| 10195 | KUHNER |
| 110531 | CARGO |
| 1170947 | KHD |
| 1516710R | DAF |
| 16372N | WAI / TRANSPO |
| 19024136 | DELCO |
| 20401346BN | REAL |
| 20401346EL | REAL |
| 220294 | ERA |
| 220316 | ERA |
| 220338 | ERA |
| 28.3004 | LAUBER |
| 2998007 | CAV |
| 331824 | LOGISTIK |
| 45-0030 | ELSTOCK |
| 51262016200 | MAN |
| 6010643 | SANDO |
| 6220000 | ELMOT |
| 6730 | EFEL |
| 7431023000 | KASSBOHRER |
| 8010104 | ZM |
| 8122191 | IVECO |
| 8123168 | MAGIRUS-DEUTZ |
| 8594 | CEVAM |
| 860667GB | PRESTOLITE |
| 88.26201-6200 | MAN |
| 88.26201-9200 | MAN |
| A0011513901 | MERCEDES |
| A001151390180 | MERCEDES |
| A0031516601 | MERCEDES |
| A003151660180 | MERCEDES |
| CST10643AS | CASCO |
| CST10643ES | CASCO |
| D1R24X6H7623 | KHD |
| D8R24X6H7623 | KHD |
| DRS1440 | DELCO |
| F032110531 | CARGO |
| F042002123 | BOSCH |
| LRS00823 | LUCAS |
| LRS823 | LUCAS |
| MAV126430 | SIOM |
| R22.10 | ELMOT |
| R22.12 | ELMOT |
| S0446 | AS-PL |
| STR1081 | ELECTROLOG |
| STRS718 | 3EFFE |
| UD00248S | AS-PL |
| UD00256S | AS-PL |
| ZM8010104 | ZM |
