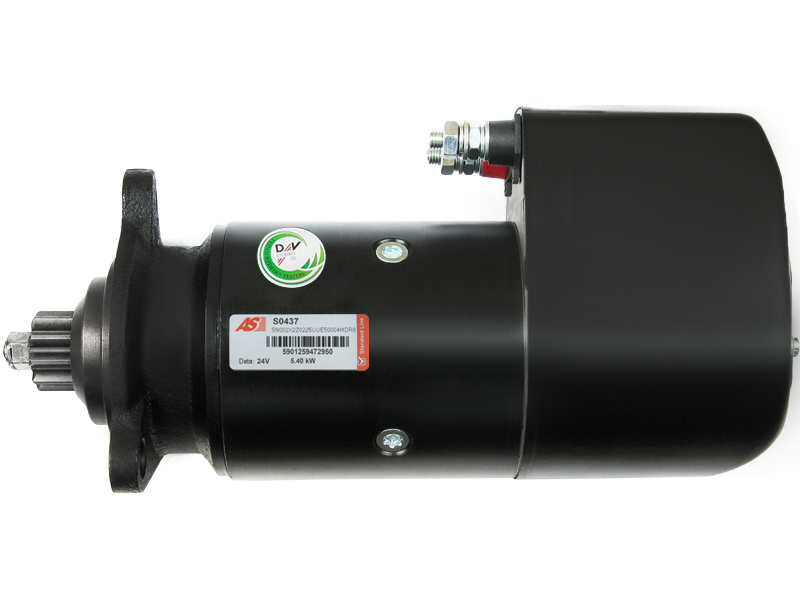

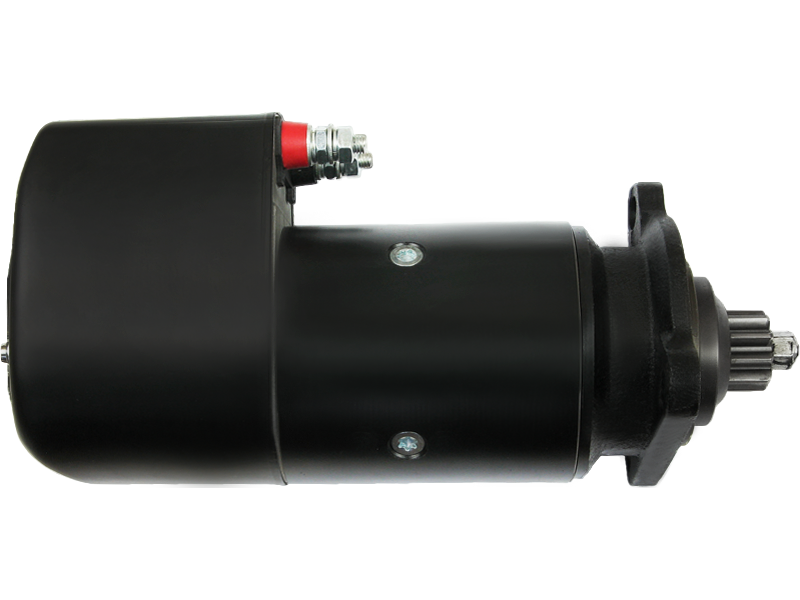

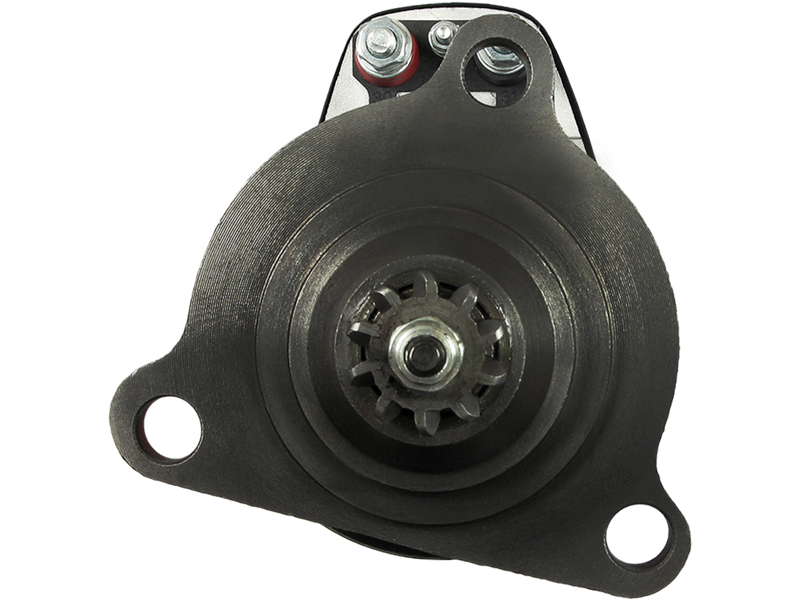

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 715.65 including GST
NZ$ 622.30 excluding GST
or four payments of $178.91
with
Learn More
UOM:
each
Product Code:
S0437
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416029Associated Numbers
0001416029 11.139.116 112123 17094N 19024029 19082015 20401526 20401526BN 254029 254029M 260-46215 4774976 47749764 6010625 72736108 8599 91-15-6930 9125360 AZK5465 BOS0001416029 CST10625 CST10625AS CST10625ES CST10625GS CST10625OS CST10625RS EAA-111855 IS9103 MS480 SG0490 STB1692 TS-6064 UD00216S UD16619S UNIT BOM 120-6092Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 125 mm |
| Mount Hole Center - Center (O.2) | 125 mm |
| Mount Hole Center - Center (O.3) | 125 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 91.50 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | FA 120 5.5 | 8065.25.096 | 09.1984-05.1992 |
| FIAT | FB 7 3.7 | 8045.04.293 | 01.1984-01.1985 |
| FIAT | FD 10 E 5.9 | 8065.25.099 | 05.1990-12.1992 |
| FIAT | FD 9 5.5 | 8065.25.095 | 01.1984- |
| FIAT | FE 18 5.5 | 8065.04.097 | 01.1982-07.1985 |
| FIAT | FE 18 R 5.5 | 8065.24.098 | 01.1983-07.1985 |
| FIAT | FL 10 E 5.9 | 8065.25.097 | 04.1988-12.1992 |
| FIAT | FL 7 5.5 | 8065.04.095 | 03.1982-02.1986 |
| FIAT | FR 10 B 5.9 | 8065.05.290 | 12.1985-12.1990 |
| FIAT | FR 10 C 5.9 | 8065.05.290 | 01.1990- |
| FIAT-ALLIS | FA 120 5.5 | [8065.25.096] | 09.1984-05.1992 |
| FIAT-ALLIS | FB 7 3.7 | [8045.04.293] | 01.1984-01.1985 |
| FIAT-ALLIS | FD 10 E 5.9 | [8065.25.099] | 05.1990-12.1992 |
| FIAT-ALLIS | FD 9 5.5 | [8065.25.095] | 01.1984- |
| FIAT-ALLIS | FE 18 5.5 | [8065.04.097] | 01.1982-07.1985 |
| FIAT-ALLIS | FE 18 R 5.5 | [8065.24.098] | 01.1983-07.1985 |
| FIAT-ALLIS | FL 10 E 5.9 | [8065.25.097] | 04.1988-12.1992 |
| FIAT-ALLIS | FL 7 5.5 | [8065.04.095] | 03.1982-02.1986 |
| FIAT-ALLIS | FR 10 B 5.9 | [8065.05.290] | 12.1985-12.1990 |
| FIAT-ALLIS | FR 10 C 5.9 | [8065.05.290] | 01.1990- |
| IVECO | P/PA 170-23 AH,180-23 AH | F8L513 | 01.1991-12.1993 |
| IVECO | P/PA 170-23 AHW,180-23 AHW | F8L513 | 01.1991-12.1993 |
| IVECO | P/PA 190-32 AHW | F10L413F | 01.1983-12.1985 |
| IVECO | P/PA 190-32 AHW | F10L413F | 01.1983-12.1985 |
| IVECO | P/PA 260-25 AH | F8L413F | 03.1984-06.1986 |
| IVECO | P/PA 260-25 AH | F8L413F | 03.1984-06.1986 |
| IVECO | P/PA 260-25 AH | F8L413F | 03.1984-06.1986 |
| IVECO | P/PA 260-25 AHB | F8L413F | 03.1984-06.1986 |
| IVECO | P/PA 260-25 AHB | F8L413F | 03.1984-06.1986 |
| IVECO | P/PA-Haubenfahrzeuge 170-23 ANW | F8L513 | 01.1990-12.1990 |
| IVECO | P/PA-Haubenfahrzeuge 170-23 ANW | F8L513 | 01.1991-12.1993 |
| IVECO | P/PA-Haubenfahrzeuge 170-23 ANW | F8L513 | 01.1991-12.1993 |
| IVECO | P/PA-Haubenfahrzeuge 170-23 ANW | F8L513 | 04.1988-12.1990 |
| VOLVO | F10 F 10/260 | TD100G | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/300 | TD101F | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101F | 01.1987-12.1987 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1987-12.1987 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1991-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 10.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1991-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 10.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F80 F 88/260 | TD100A | 08.1965-06.1977 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
Reference Information
| 0001416029 | BOSCH |
| 11.139.116 | ISKRA / LETRIKA |
| 112123 | FIAT |
| 17094N | WAI |
| 19024029 | DELCO |
| 19082015 | DELCO |
| 20401526 | REAL |
| 20401526BN | REAL |
| 254029 | KUHNER |
| 254029M | KUHNER |
| 260-46215 | DIXIE |
| 4774976 | FIAT |
| 47749764 | FIAT |
| 6010625 | SANDO |
| 72736108 | MAHLE |
| 8599 | CEVAM |
| 91-15-6930 | WILSON |
| 9125360 | MAGNETON |
| AZK5465 | ISKRA / LETRIKA |
| BOS0001416029 | WOODAUTO |
| CST10625 | CASCO |
| CST10625AS | CASCO |
| CST10625ES | CASCO |
| CST10625GS | CASCO |
| CST10625OS | CASCO |
| CST10625RS | CASCO |
| IS9103 | ISKRA / LETRIKA |
| MAV126250 | SIOM |
| MS 480 | MAHLE |
| MS480 | MAHLE |
| S0437 | AS-PL |
| SG0490 | GHIBAUDI |
| STB1692 | KRAUF |
| STM1090 | ROLLCO |
| STR79543 | ELECTROLOG |
| STRS946 | 3EFFE |
| TS-6064 | DIXIE |
| UD00216S | AS-PL |
| UD16619S | AS-PL |
| UNIT BOM 120-6092 | WAI |
Video/Publications
S0437View your shopping basket or Browse other items in Starter Motors.
