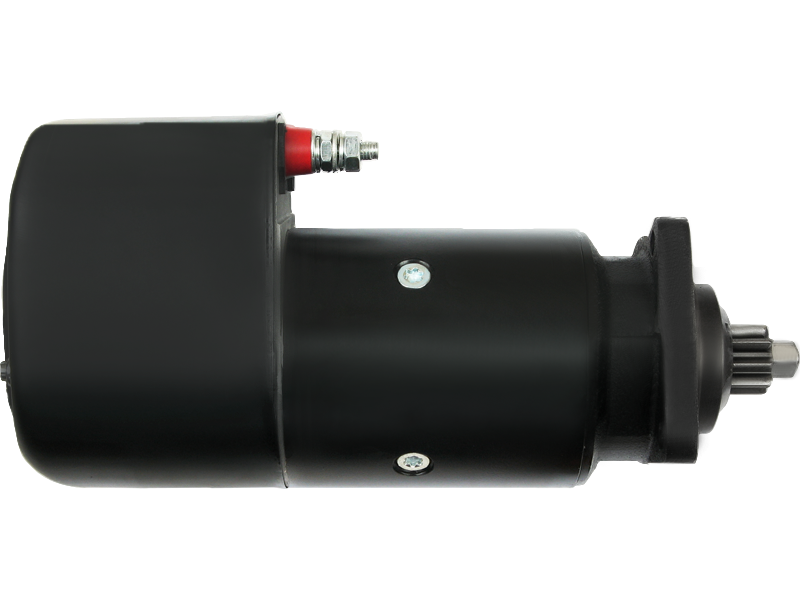

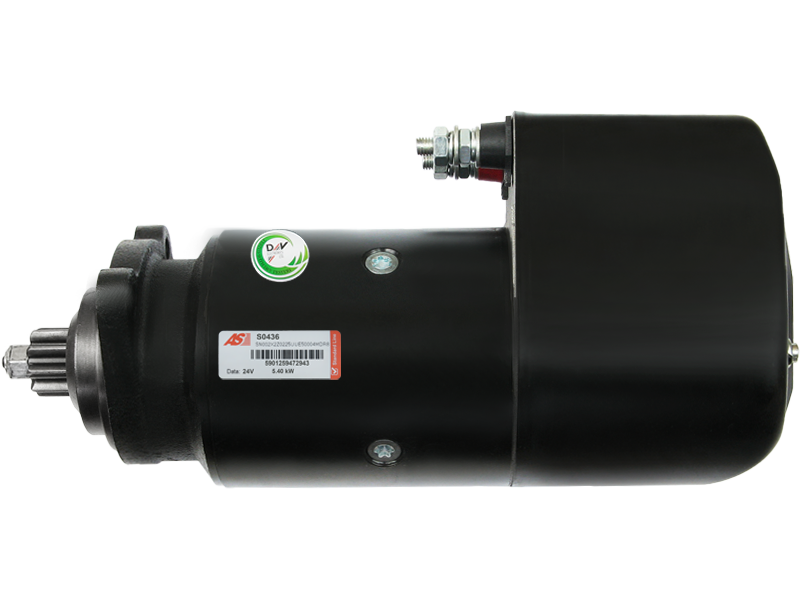

S0436 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5.4 kW
Length (L.1)	385 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Oil Sealed	Yes
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	F 613 5.5	[TD60B]	09.1975-02.1986
VOLVO	F 614 5.5	[TD60B]	09.1975-02.1986
VOLVO	F 615 S 5.5	[TD60B]	12.1978-10.1981
VOLVO	F 616 5.5	[TD60B]	02.1981-02.1986
VOLVO	F 617 S 5.5	[TD60B]	12.1978-02.1986
VOLVO PENTA	Engine 5.5	[TD60.]	01.1982-06.1986

Reference Information

45-2360 4774617 255242 220310 112507 4881097 0001414022 LRS01940 120-6077A CST10623AS 499 254322M 254322 CST10623ES 0001416026 DRS0171 LRS1940 UD00213S 860520 20401326EL IS9099 860520GB CGB-11526 BOM STR1425 8682 UNIT LRS01918 331989 STRF109 MS 45-3089 MAV126230 28.3048 STR50369 1414022 LRS1918 19024026 20401326BN 1416026 120-6077 6010623 9004881097

Video/Publications

0001414022 0001416026 112507 19024026 20401326BN 20401326EL 254322 254322M 255242 28.3048 45-2360 45-3089 4774617 4881097 6010623 860520 860520GB 8682 9004881097 CGB-11526 CST10623AS CST10623ES DRS0171 IS9099 LRS01918 LRS01940 LRS1918 LRS1940 MAV126230 MS 499 STR50369 STRF109 UD00213S UNIT BOM 120-6077 UNIT BOM 120-6077A 220310
