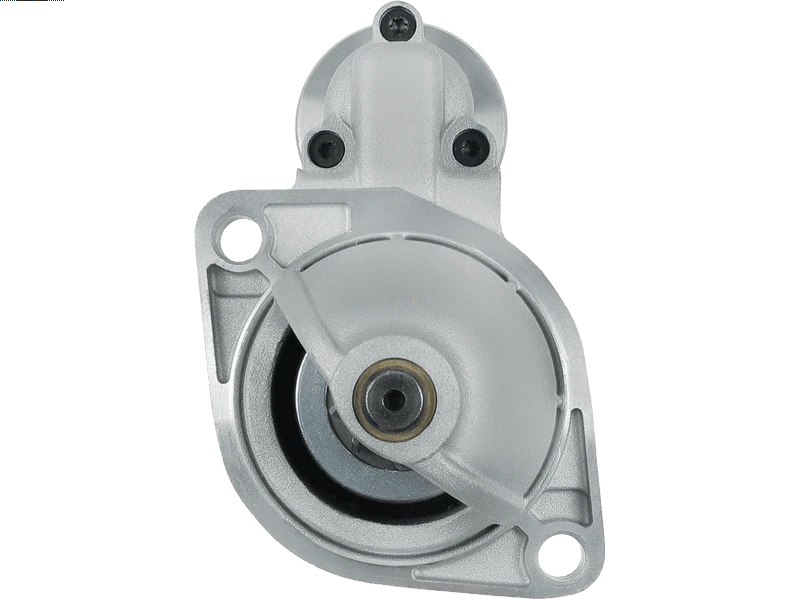

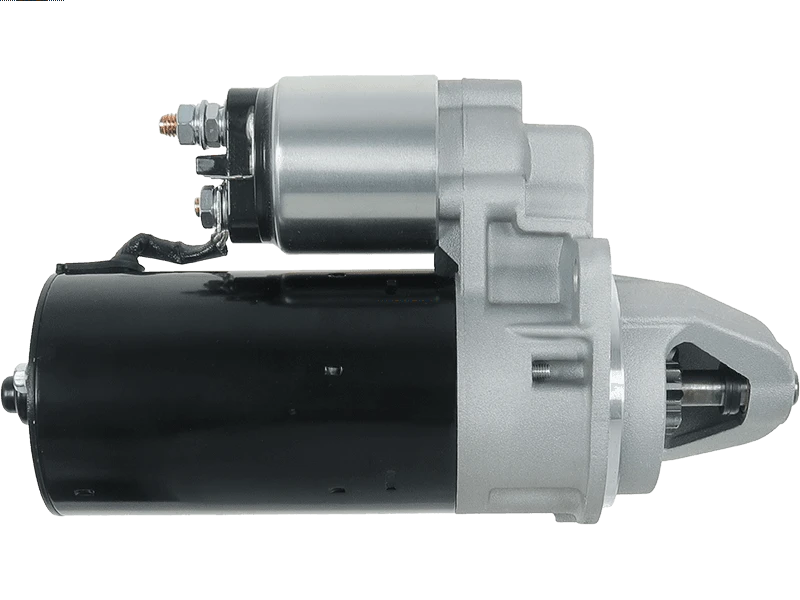

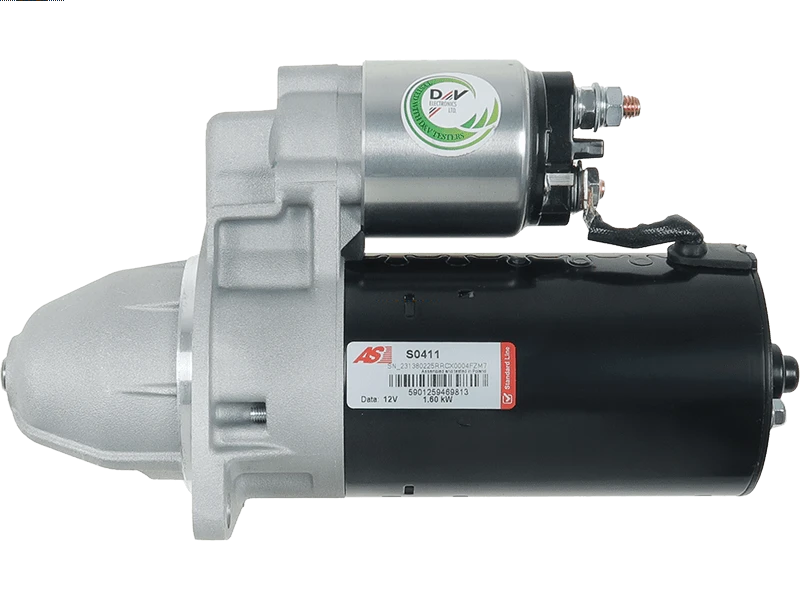

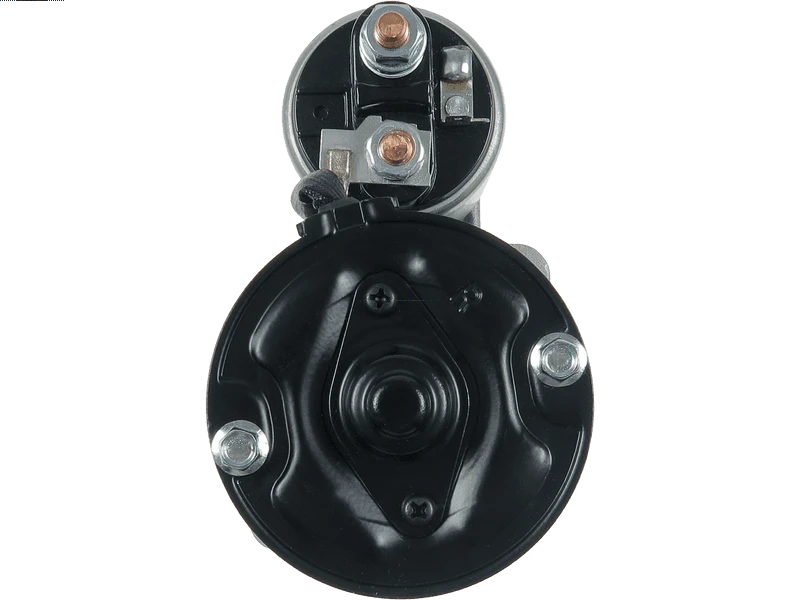

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 268.89 including GST
NZ$ 233.82 excluding GST
or four payments of $67.22
with
Learn More
each
S0411
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109009Associated Numbers
0001108210 0001109009 0001110028 0001110041 0001110042 0001115035 0001314001 10515 10515B 112172 11659 12411713898 12411720636 12411720663 12411720664 18365N 20401341BN 20401341OE 20401631BN 22.0515 22.0515M 25-2357 254005 254005B 3607 58402240 6010136 6010143 8014890 8212785 8480 88212785 A1016373 AEY1439 B001117013 CS515 CST10136AS CST10143AS CST10143GS DRS3876 DRS4890 EAA-121041 GS109009-A LRS01439 S0411 S1059B STR22070Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 255 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AMMANN | RX1510-CI 1.0 | [LDW1003] | 01.2008- |
| ARONA | Various Models | [AD...] | 02.1978- |
| BCS | 300 1.0 | [LDW1003] | 01.2005- |
| BCS | 400 1.4 | [LDW1404] | 01.2005- |
| BMW | 530 3.0 i | [M30B30] | 01.1988-08.1991 |
| BMW | 535 3.5 i | [M30] | 01.1988-01.1993 |
| BMW | 535 3.5 i | [M30B35] | 01.1988-09.1995 |
| BMW | 535 3.5 iS | [M30] | 01.1988- |
| BMW | 730 3.0 i | [M30B30] | 12.1986-09.1994 |
| BMW | 730 3.0 Li | [M30B30] | 12.1986-09.1994 |
| BMW | 735 3.4 i | [M30B35] | 09.1986-09.1992 |
| BMW | 735 3.4 i | [M30B35] | 09.1986-12.1987 |
| BMW | 735 3.5 iL | [M30] | 01.1988-01.1992 |
| BMW | M5 3.5 | [S38B36] | 10.1988-05.1992 |
| BMW | M5 3.6 | [S38] | 01.1991-01.1993 |
| BMW | M5 3.8 | [S38B38] | 03.1992-09.1995 |
| BMW | M5 3.8 | [S38B38] | 09.1994-01.1997 |
| FERRARI | 1100 1.1 Diesel | [9LD561] | 12.1985- |
| FERRARI | 1300 1.3 Diesel | [8LD665.2] | 12.1985- |
| LOMBARDINI | 904 1.2 | 01.1995- | |
| LOMBARDINI | Engine 0.7 | [7LD665F] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [7LD740F] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [8LD740.2] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [LDW702] | |
| LOMBARDINI | Engine 1.0 | [LDW1003] | |
| LOMBARDINI | Engine 1.1 | [9LD561.2] | 01.1992- |
| LOMBARDINI | Engine 1.2 | [9LD625.2] | 01.1992- |
| LOMBARDINI | Various Models 0.7 Diesel | [8LD740.2] | 05.1983- |
| LOMBARDINI | Various Models 1.1 Diesel | [9LD561.2] | 01.1984- |
| LOMBARDINI | Various Models 1.3 Diesel | [9LD625.2] | 06.1987- |
| MOSA | Various Models | ||
| PIAGGIO | Porter 1.4 D | [LDW1404] | 04.1998- |
| PIAGGIO | Quargo 0.7 D | [LDW702] | 01.2004- |
| VOLVO | ZL302C 1.4 | [F4M1008] |
Reference Information
| 0001109009 | BOSCH |
| 0001110042 | BOSCH |
| 0001115034 | BOSCH |
| 0001115035 | BOSCH |
| 0001314001 | BOSCH |
| 011-001-000038R | REMANTE |
| 0986022500 | BOSCH |
| 1005821194 | LOMBARDINI |
| 103696 | FARCOM |
| 10439777 | ALANKO |
| 11022500 | EUROTEC |
| 115816 | CARGO |
| 120-10109 | ROBERT'S |
| 120-10109NOE | ROBERT'S |
| 18365N | WAI / TRANSPO |
| 1986S00762 | BOSCH |
| 2-0030 | EXACT |
| 20401341BN | REAL |
| 20401341OE | REAL |
| 220913 | ERA |
| 220913A | ERA |
| 25-2357 | ELSTOCK |
| 254005 | KUHNER |
| 254005B | KUHNER |
| 3124616 | HENKEL PARTS |
| 3124617 | HENKEL PARTS |
| 330667 | LOGISTIK |
| 5010367 | MEAT & DORIA |
| 5340147 | LOMBARDINI |
| 5840081 | LOMBARDINI |
| 5840147 | LOMBARDINI |
| 58401470 | LOMBARDINI |
| 5840224 | LOMBARDINI |
| 58402240 | LOMBARDINI |
| 6010143.0 | SANDO |
| 6010143.1 | SANDO |
| 681012092 | CEVAM |
| 690.501.092.011 | PSH |
| 690.501.092.280 | PSH |
| 690.501.092.460 | PSH |
| 8014890 | FRIESEN |
| 850051 | PIAGGIO |
| 88212785 | POWERMAX |
| 91-15-7076 | WILSON |
| A1016373 | CASE |
| A22500 | ATL AUTOTECHNIK |
| ANM16096X | ANDEL |
| ASM1765 | APEC |
| BOS0001115034 | WOODAUTO |
| BOS0001115035 | WOODAUTO |
| CGB-23876 | AINDE |
| CMA-621041 | COMLINE |
| CS1545 | HC PARTS |
| CST10143AS | CASCO |
| CST10143GS | CASCO |
| DRS3876 | DELCO |
| ED0058402240-S | LOMBARDINI |
| F002G70047 | BOSCH |
| F032115816 | CARGO |
| GS115035-A | GPARTS |
| GS115035B-CX | GPARTS |
| GS115035B-R | GPARTS |
| H5010367 | HOFFER |
| IR9030 | PROTECH |
| LRS01439 | LUCAS |
| LRS1439 | LUCAS |
| MAV6570 | SIOM |
| NPANSM1765 | NAPA |
| PRSL070 | 3EFFE |
| RNL2250 | RNL |
| S0411 | AS-PL |
| S12BH0103A2 | SIDAT |
| S134.804 | PSH |
| S145.398 | PSH |
| S-22070 | DTS |
| S510486 | BTS TURBO |
| SBO143 | AUTOTEAM |
| SBO143A | AUTOTEAM |
| SEG0001115034 | WOODAUTO |
| SEG0001115035 | WOODAUTO |
| SG2041 | GHIBAUDI |
| SS115035-A | GPARTS |
| SS115035B-R | GPARTS |
| ST00984 | TMI |
| STB0515 | KRAUF |
| STR10256 | ELECTROLOG |
| STR22070 | WOODAUTO |
| STR50541 | WOODAUTO |
| STRL070 | 3EFFE |
| UD102871S | AS-PL |
| VOE9002901237 | VOLVO |
| WG2013481 | WILMINK GROUP |
| WG2013482 | WILMINK GROUP |
Video/Publications
