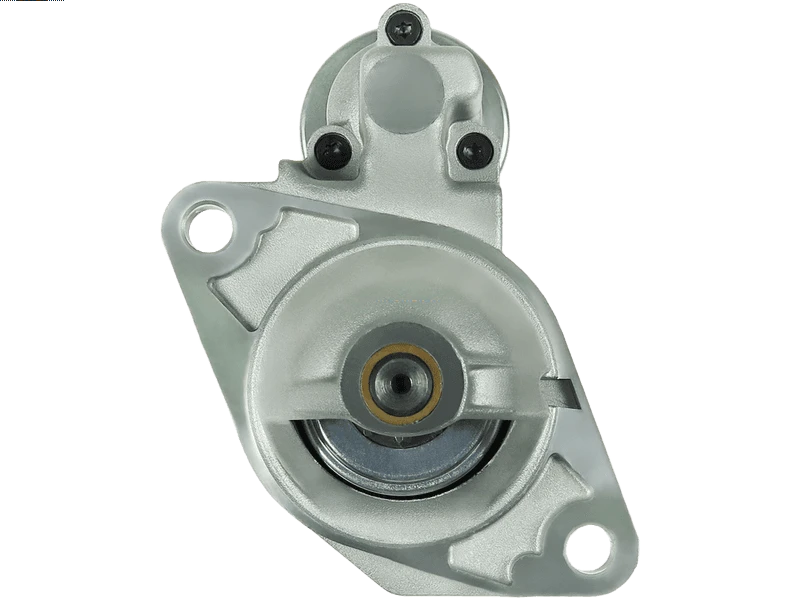

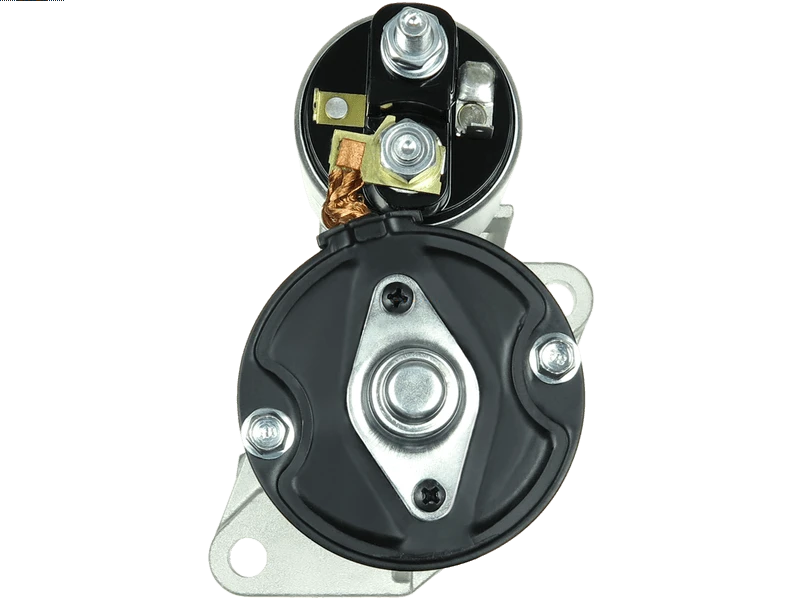

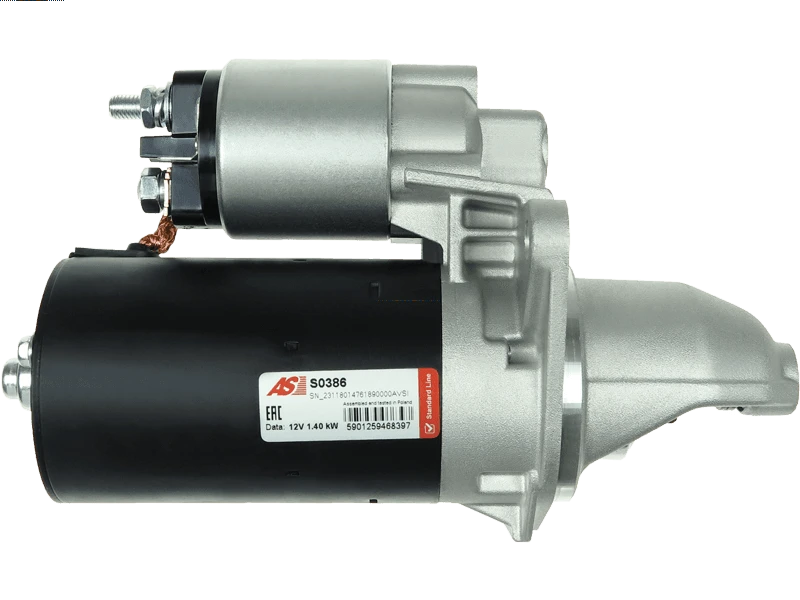

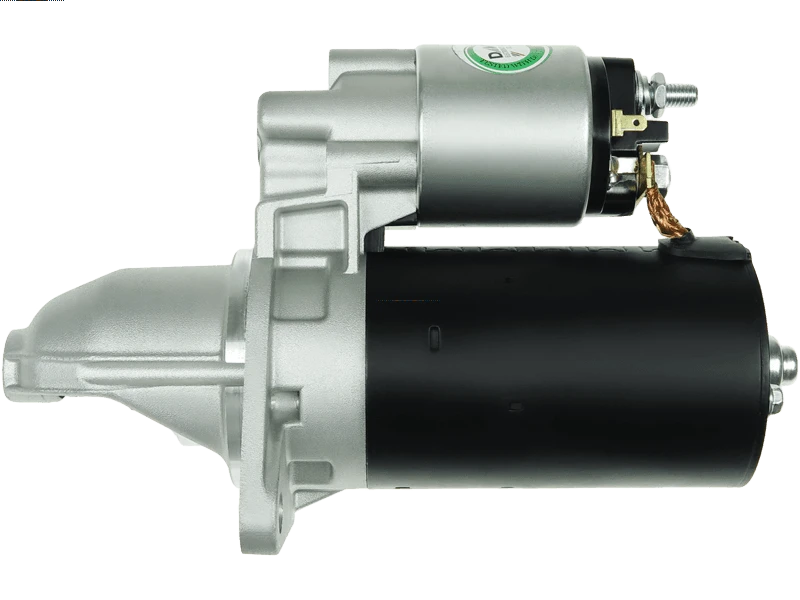

S0386 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	243 mm
Mount Hole Center - Center (O.1)	118 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	40 mm
Rotation	CW
Spigot Diameter (A)	73 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LANCIA	Ardea Berlina 0.9		12.1939-11.1949
LAND ROVER	Defender 3.5 V8		08.1990-12.1998
LAND ROVER	Defender 3.9		01.1993-01.1993
LAND ROVER	Defender 3.9		01.1994-01.1995
LAND ROVER	Defender 3.9 V8	[37L]	11.1998-
LAND ROVER	Defender 3.9 V8	(LD)[37L]	11.1998-
LAND ROVER	Discovery 3.5	[22D]	09.1989-06.1994
LAND ROVER	Discovery 3.9		01.1994-01.1995
LAND ROVER	Discovery 3.9 V8	[35D]	09.1993-06.1994
LAND ROVER	Discovery 3.9 V8	[36D]	09.1993-06.1994
LAND ROVER	Discovery 4.0 V8	[OHV]	11.1998-
LAND ROVER	Range Rover 3.5	[31D]	01.1987-09.1990
LAND ROVER	Range Rover 3.5		01.1987-01.1988
LAND ROVER	Range Rover 3.5 Vogue	[11D]	08.1981-09.1990
LAND ROVER	Range Rover 3.5 Vogue	[24D]	10.1985-09.1990
LAND ROVER	Range Rover 3.5 Vogue	[25D]	10.1985-09.1990
LAND ROVER	Range Rover 3.9	[37D]	11.1988-07.1994
LAND ROVER	Range Rover 3.9	[38D]	11.1988-07.1994
LAND ROVER	Range Rover 3.9	[42D]	07.1994-03.2002
LAND ROVER	Range Rover 3.9		01.1989-01.1992
LAND ROVER	Range Rover 3.9		01.1993-01.1994
LAND ROVER	Range Rover 3.9 Vogue SEI	[35D]	11.1988-07.1994
LAND ROVER	Range Rover 3.9 Vogue SEI	[36D]	11.1988-07.1994
LAND ROVER	Range Rover 4.0	[42D]	06.1998-03.2002
LAND ROVER	Range Rover 4.2 LWB		01.1993-01.1994
LAND ROVER	Range Rover 4.3 Vogue LSE	[40D]	09.1992-07.1994
LAND ROVER	Range Rover 4.6	[46D]	06.1998-03.2002
LAND ROVER	Range Rover 4.6	[46D]	07.1994-03.2002

Reference Information

AZE2201 20510169 NAD101190 6010208 STR10249 STR2025 63226801 NAD100380 220479 AES1269 SS191 AMR2165 S12BH0641A2 66925165 DRS3198N ANM15418X 111865 MAV4050 MS NAD10038 NAD10038E NAD10119 26801 PRC5658 STRS281 AES1196 ESR2191 LRS02102 ESR2192 DRS3198 S0386 10589 1108137 11.139.432 0001108137 NAD10149 25696A 330741 PRC6578 RTC6061N 5010491 25696L NAD101190E AES7109 172 NAD101490 CS589 25681 STRF060 CST10208AS SS691 17792N CGB-23198 101049 726801000 330739 MAV321490 ERR6087 STR1166 25696 RTC6061 25696l ERR6087E SS446 20401802BN 25-3018 26267 IS9425 LRS2102
