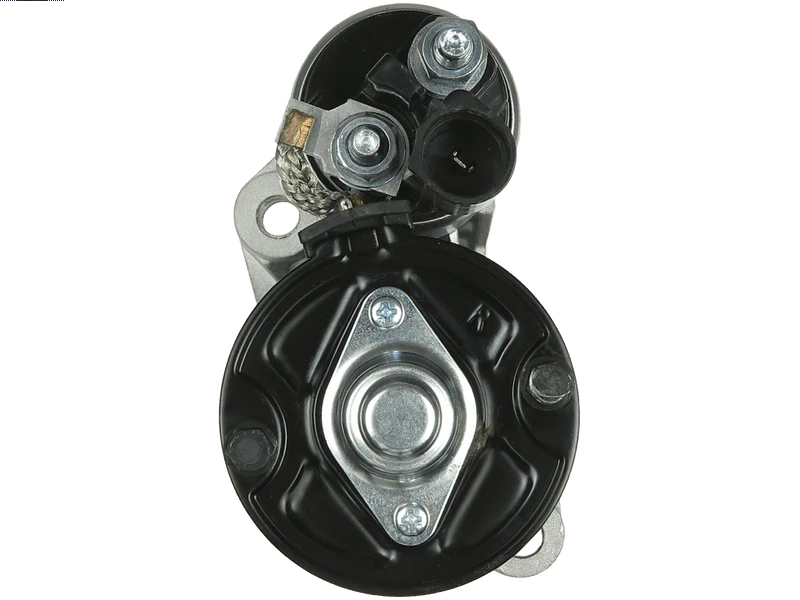

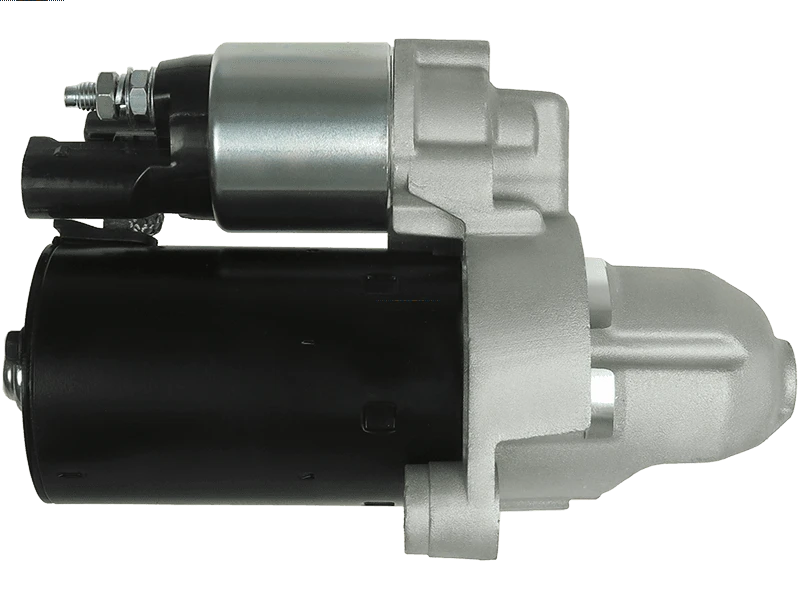

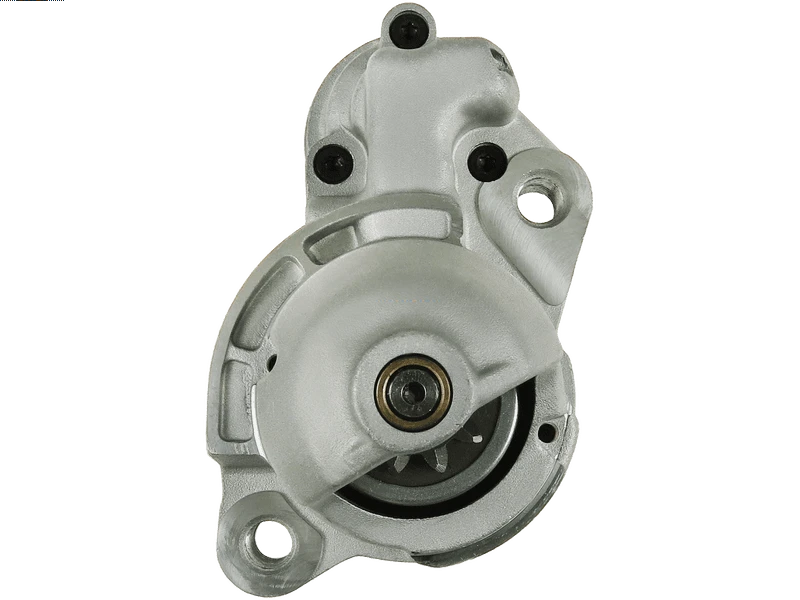

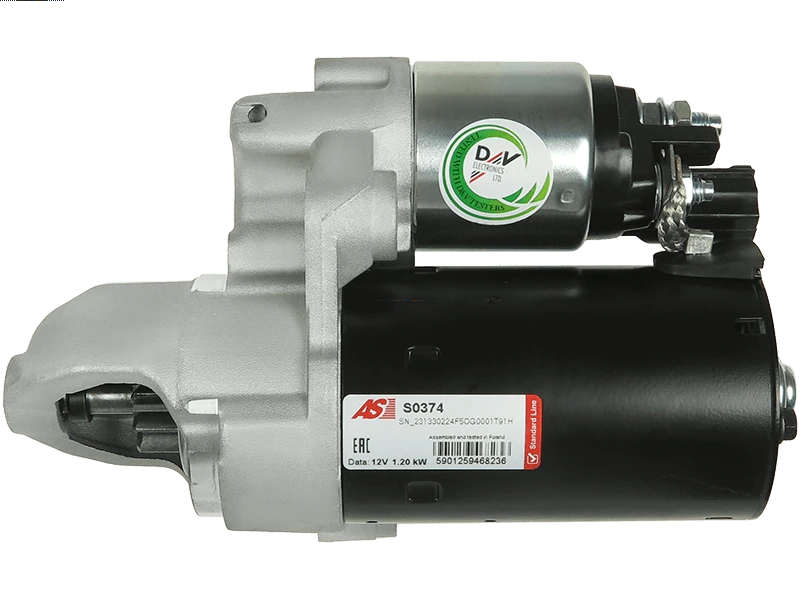

S0374 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	213 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	25 mm
Rotation	CW
Spigot Diameter (A)	66 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A4 3.2 FSi	[AUK]	01.2005-06.2008
AUDI	A4 3.2 FSi	[AUK]	01.2006-03.2009
AUDI	A4 3.2 FSi Quattro	[AUK]	01.2005-06.2008
AUDI	A4 3.2 FSi Quattro	[AUK]	01.2006-03.2009
AUDI	A4 3.2 FSi Quattro	[BKH]	01.2005-06.2008
AUDI	A4 3.2 FSi Quattro	[BKH]	01.2006-03.2009
AUDI	A6 2.4	[BDW]	03.2005-10.2008
AUDI	A6 2.4	[BDW]	05.2004-10.2008
AUDI	A6 2.4 Quattro	[BDW]	01.2005-10.2008
AUDI	A6 2.4 Quattro	[BDW]	03.2005-10.2008
AUDI	A6 2.8 FSi	[BDX]	10.2008-08.2011
AUDI	A6 2.8 FSi	[BDX]	11.2006-10.2008
AUDI	A6 2.8 FSi	[CCDA]	10.2008-03.2011
AUDI	A6 2.8 FSi	[CCDA]	10.2008-08.2011
AUDI	A6 2.8 FSi	[CCEA]	10.2008-03.2011
AUDI	A6 2.8 FSi	[CCEA]	11.2006-10.2008
AUDI	A6 2.8 FSi Quattro	[BDX]	06.2007-10.2008
AUDI	A6 2.8 FSi Quattro	[BDX]	10.2008-08.2011
AUDI	A6 2.8 FSi Quattro	[CCDA]	06.2007-10.2008
AUDI	A6 2.8 FSi Quattro	[CCDA]	10.2008-03.2011
AUDI	A6 2.8 FSi Quattro	[CCEA]	10.2008-03.2011
AUDI	A6 2.8 FSi Quattro	[CCEA]	10.2008-08.2011
AUDI	A6 3.0 TFSi	[CAJA]	01.2008-
AUDI	A6 3.0 TFSi Quattro	[CAJA]	10.2008-03.2011
AUDI	A6 3.0 TFSi Quattro	[CAJA]	10.2008-08.2011
AUDI	A6 3.0 TFSi Quattro	[CCAA]	10.2008-03.2011
AUDI	A6 3.0 TFSi Quattro	[CCAA]	10.2008-08.2011
AUDI	A6 3.2 FSi	[AUK]	03.2005-10.2008
AUDI	A6 3.2 FSi	[AUK]	05.2004-05.2009
AUDI	A6 3.2 FSi	[BKH]	05.2004-05.2009
AUDI	A6 3.2 FSi	[CALA]	05.2009-03.2011
AUDI	A6 3.2 FSi Quattro	[AUK]	03.2005-10.2008
AUDI	A6 3.2 FSi Quattro	[AUK]	05.2004-10.2008
AUDI	A6 3.2 FSi Quattro	[BKH]	03.2005-10.2008
AUDI	A6 3.2 FSi Quattro	[BKH]	05.2004-10.2008
AUDI	A6 3.2 FSi Quattro	[BYU]	09.2006-10.2008
AUDI	A6 Allroad 3.0 TFSi Quattro	[CAJA]	10.2008-08.2011
AUDI	A6 Allroad 3.2 FSi Quattro	[AUK]	05.2006-10.2008
AUDI	A8 2.8 FSi	[BDX]	08.2007-07.2010
AUDI	A8 3.2 FSi	[BPK]	06.2005-07.2010
AUDI	A8 3.2 FSi Quattro	[BPK]	06.2005-07.2010
AUDI	Allroad 3.2 Quattro	[AUK]	01.2006-

Reference Information

8EA011612-071 CST10509GS 6E911023CX DS1145 CS1339 12153 EAA-121611 332101 MAV125090A 200.519.102.210 20401905OE 6E911023B 6E911023E 200.519.102.215 ANM12255X 6E911023C 986022430 17976R 200.519.102.010 20401905BN 06E911023F 6E911023BX 06E911023E 06E911023C 17976N STR1500 06E911023B LRS2208 AI-80171 6010509.1 91-15-7226 06E911023EX 200.519.102.500 STB1339 STM1201 101339B 458844 324985 302479 MAV125090 6010509 9.44281E+11 6E911023EX CST10509AS 3064 CGB-53379 06E911023BX STR50511 DRS0035 S0374 STRL648 0001108406 0001108405 114837 STRL648B 220605 42022430 PRSL648 000986022430 06E911023CX 25-3379 2S0453 200.519.102.280 S1010B 1108405 LRS02208 101339 1108406

Video/Publications

0001108405 0001108406 06E911023B 06E911023C 101339 101339B 114837 12153 17976N 200.519.102 20401905OE 22.1339 25-3379 3064 6010509 8080214 88212762 8EA738244001 AEU1339 CS1339 CST10509GS DRS0035 LRS02208 LRS2208 S1010B SS501 STR50511 STRL648 220605
