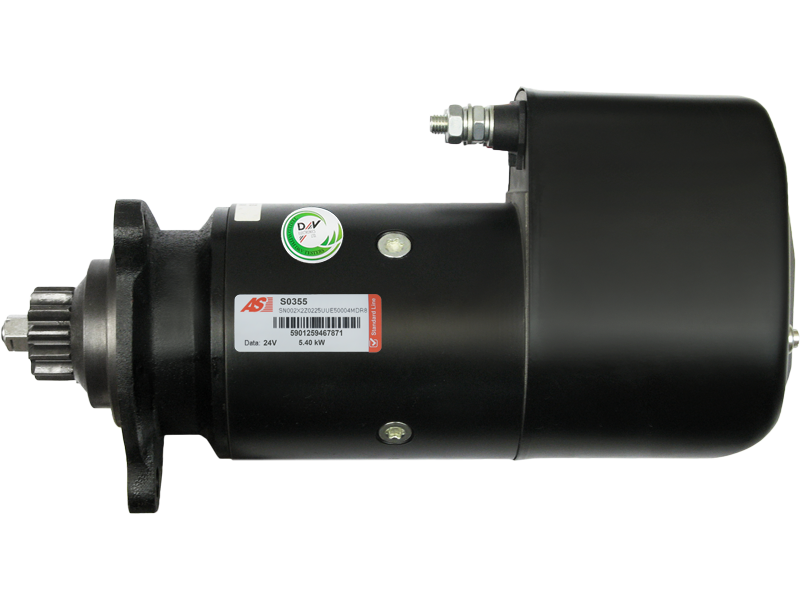

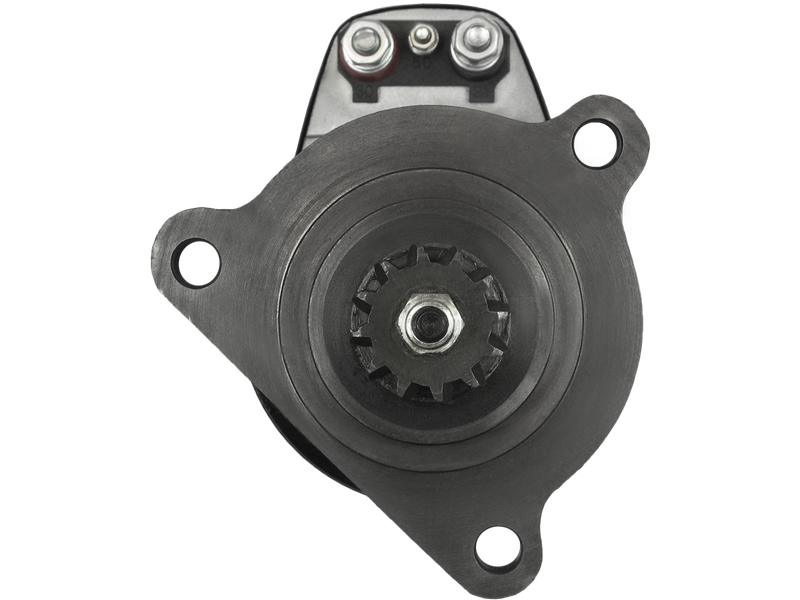

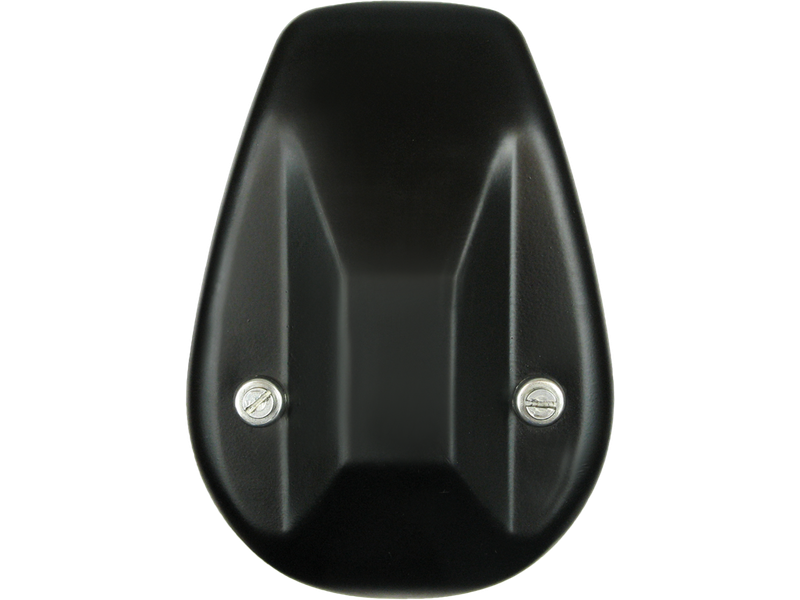

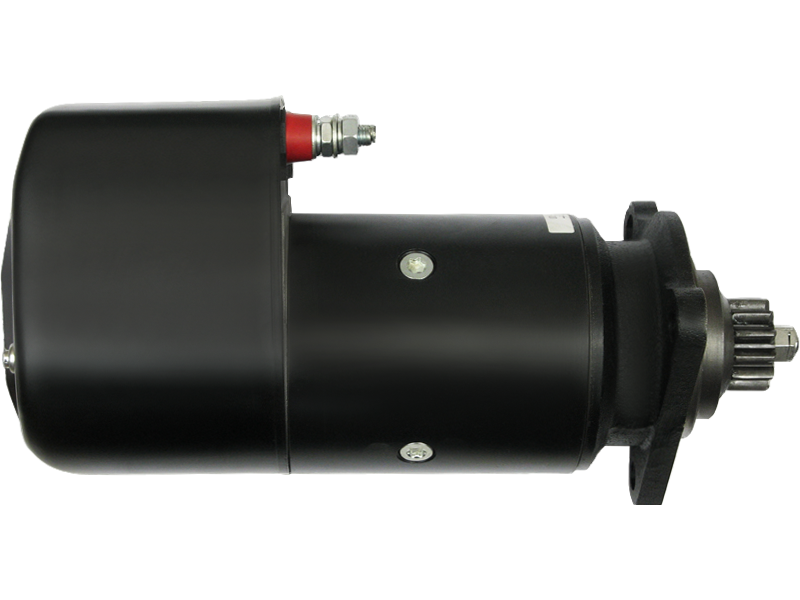

S0355 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5.4 kW
Length (L.1)	386 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
No./Teeth (Replaces)	12 qty
Oil Sealed	Yes
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	FL 7/230 6.7	[D7B230]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD71F]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD71FQ]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD73E]	09.1985-09.1998
VOLVO	FL 7/260 6.7	[D7B260]	11.1991-09.1998
VOLVO	FL 7/260 6.7	[TD73ES]	11.1991-09.1998
VOLVO	FL 7/290 6.7	[D7A285]	10.1993-09.1998
VOLVO	FM 7/250 7.3	[D7C250]	08.1998-12.2001
VOLVO	FM 7/290 7.3	[D7C290]	08.1998-12.2001
VOLVO	FS 718/260 6.7	[D7B230]	09.1994-03.1996
VOLVO	FS 718/260 6.7	[D7B260]	09.1994-03.1996

Reference Information

8113907 M9T081979 860512GB 110980 MAV126360 AZK5188 20401636BN 33897 8113230 8192965 471638 6340000 10699 EAA-121382 8741 MS STR1265 18376N CGB-11561 CS699 420731 85000440 CST10636ES 19024048 STRL650 5003312 M009T081979 CST10636AS 8212921 M009T81979 0001416061 R23.34 8815430 6010636 45-1366 20401636EL 28.0699 874304 540 220291 1516796R ANM17650X IS9029 1416061 M9T81979 477049 11.139.029 DRS5430 1416065 1326960 STR79468

Video/Publications

0001416061 10699 11.139.029 110980 18376N 19024048 20401636BN 20401636EL 28.0699 33897 45-1366 471638 477049 5003312 6010636 6340000 8113907 8212921 85000440 860512GB 8741 8815430 AZK5188 CGB-11561 CS699 CST10636AS CST10636ES DRS5430 EAA-121382 IS9029 M9T81979 MAV126360 MS 540 R23.34 STRL650 220291
