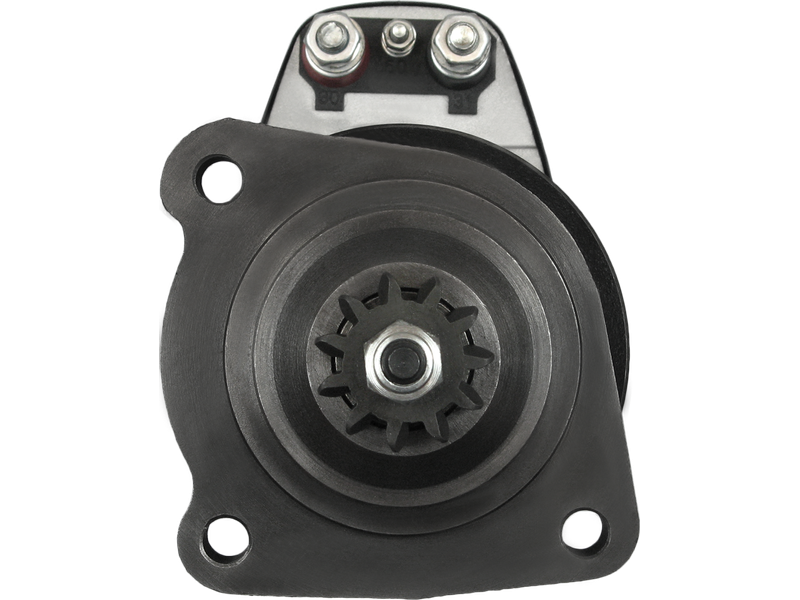

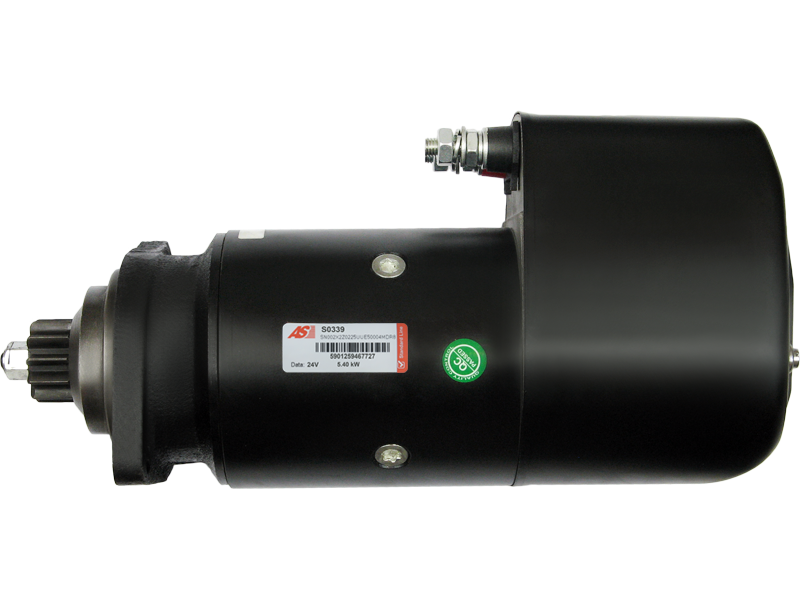

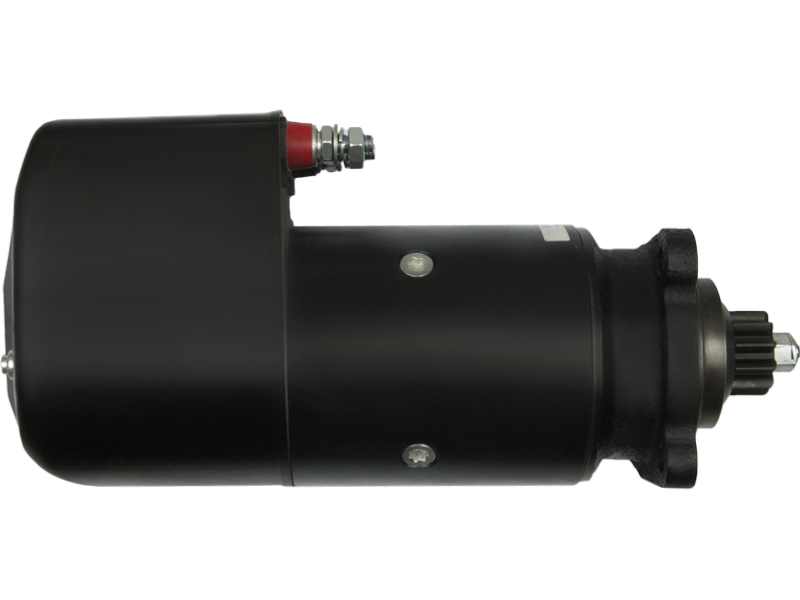

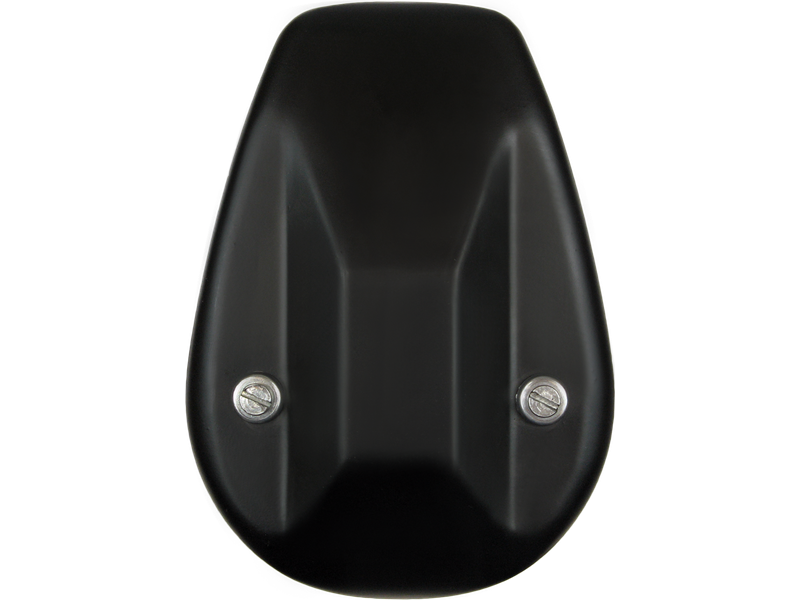

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 767.19 including GST
NZ$ 667.12 excluding GST
or four payments of $191.80
with
Learn More
each
S0339
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416030Associated Numbers
0001410053 0001410063 0001410099 0001410109 0001416030 0001416035 10383 110534 17094N 19024030 20401626EL 45-1274 6010626 6180000 860652 860670GB 8676 9125370 AES8161 CST10626ES LRS02151 R23.18Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 387 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 01.1985-12.1985 |
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 01.1986-05.1989 |
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 01.1988-05.1989 |
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 04.1984-05.1989 |
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 04.1984-12.1985 |
| IVECO | P/PA 160-23 12.8 | [F8L413F] | 04.1985-12.1985 |
| IVECO | P/PA 170-23 13.4 | [F8L513] | 01.1990-12.1990 |
| IVECO | P/PA 170-23 13.4 | [F8L513] | 01.1991-12.1993 |
| IVECO | P/PA 170-23 13.4 | [F8L513] | 04.1988-12.1990 |
| IVECO | P/PA 190-32 16.0 | [F10L413F] | 01.1983-12.1985 |
| IVECO | P/PA 260-25 12.8 | [F8L413F] | 03.1984-06.1986 |
| IVECO | P/PA 260-25 12.8 | [F8L413F] | 12.1979-10.1985 |
| IVECO | P/PA 260-32 16.0 | [F10L413F] | 01.1983-12.1985 |
Reference Information
| 0001120609 | SNVI |
| 0001410053 | BOSCH |
| 0001410063 | BOSCH |
| 0001410099 | BOSCH |
| 0001410109 | BOSCH |
| 0001416030 | BOSCH |
| 0001416035 | BOSCH |
| 01162504 | KHD |
| 01162506 | KHD |
| 01171203 | KHD |
| 01174633 | KHD |
| 01174643 | KHD |
| 0146440410 | KHD |
| 02403887 | KHD |
| 05710918 | BOMAG |
| 10383 | KUHNER |
| 10600 | EFEL |
| 110534 | CARGO |
| 1162504 | IVECO |
| 1162504 | KHD |
| 1162506 | IVECO |
| 1162506 | KHD |
| 1171203 | KHD |
| 1174633 | DAF |
| 1174633 | KHD |
| 1174633 | IVECO |
| 1174643 | KHD |
| 1321209 | KHD |
| 1326430 | CLAAS |
| 1516755R | DAF |
| 1701049 | FAUN |
| 1707049 | FAUN |
| 17094N | WAI / TRANSPO |
| 19024030 | DELCO |
| 20401626EL | REAL |
| 220247 | ERA |
| 2403887 | KHD |
| 2403887 | IVECO |
| 42493570 | IVECO |
| 42522679 | IVECO |
| 45-1274 | ELSTOCK |
| 4774976 | FIAT |
| 4842813 | IVECO |
| 6000887 | LIEBHERR |
| 6010626 | SANDO |
| 6180000 | ELMOT |
| 8121335 | MAGIRUS-DEUTZ |
| 8121335 | IVECO |
| 8122161 | FIAT |
| 8122161 | IVECO |
| 860652 | PRESTOLITE |
| 860670GB | PRESTOLITE |
| 8676 | CEVAM |
| 9125370 | MAGNETON |
| AES8161 | AUTOELECTRO |
| CGB-11530 | AINDE |
| CS383 | HC PARTS |
| CST10626ES | CASCO |
| D6R24X6H7622 | KHD |
| D8R24X6H7622 | KHD |
| F032110534 | CARGO |
| LRS02151 | LUCAS |
| LRS2151 | LUCAS |
| MAV126260 | SIOM |
| R23.18 | ELMOT |
| STM1090 | ROLLCO |
| STR10107 | ELECTROLOG |
| STR10220 | ELECTROLOG |
| STRS599 | 3EFFE |
