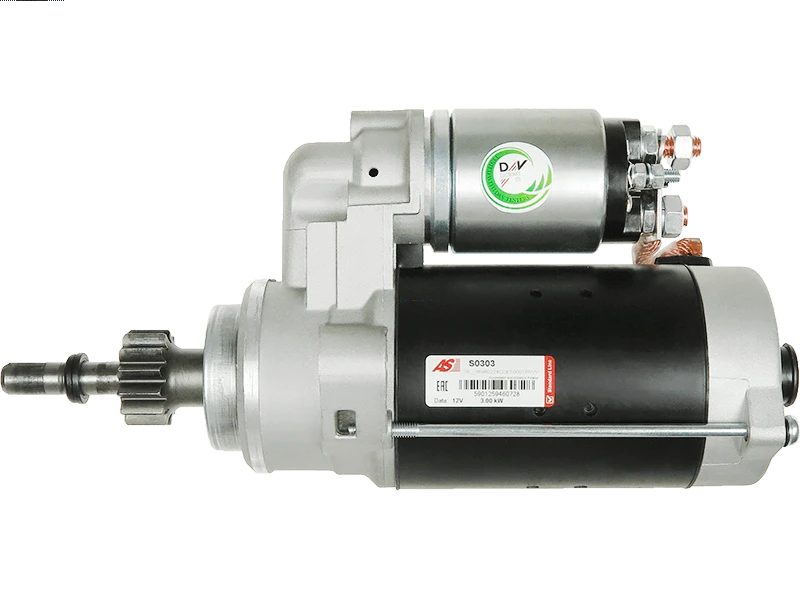

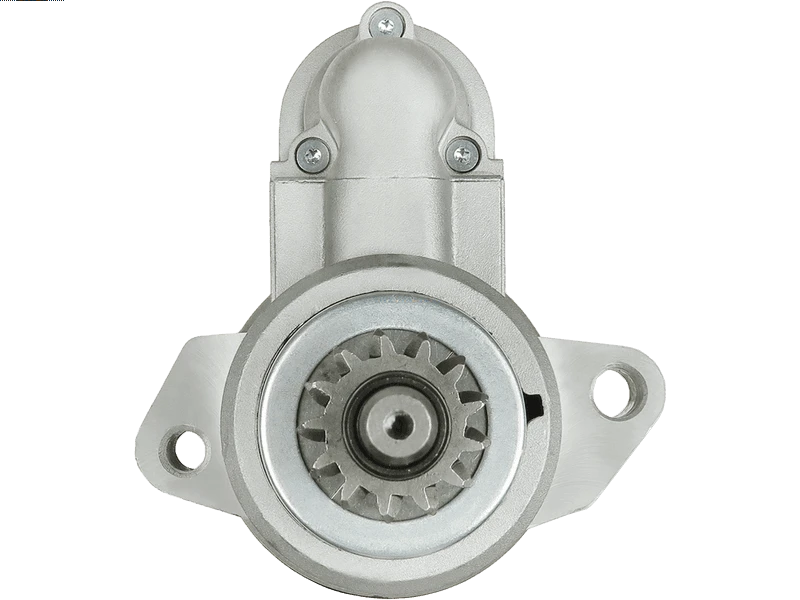

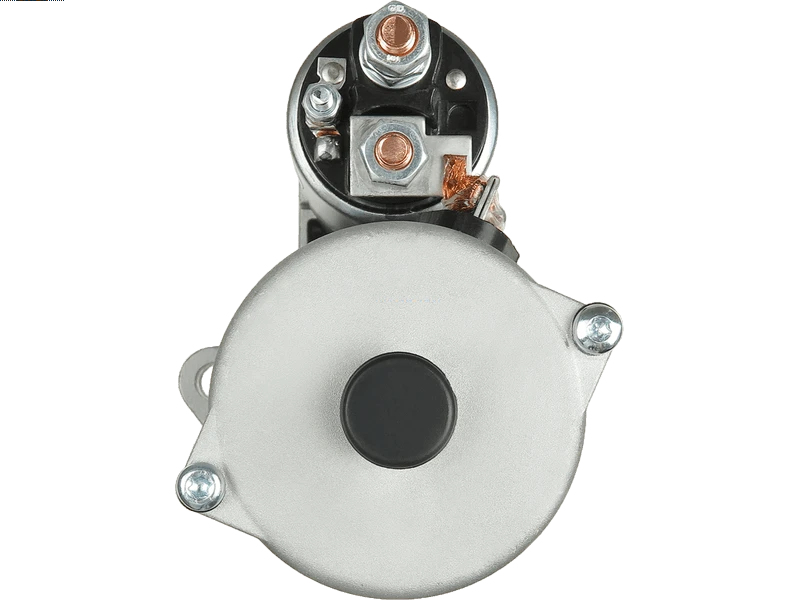

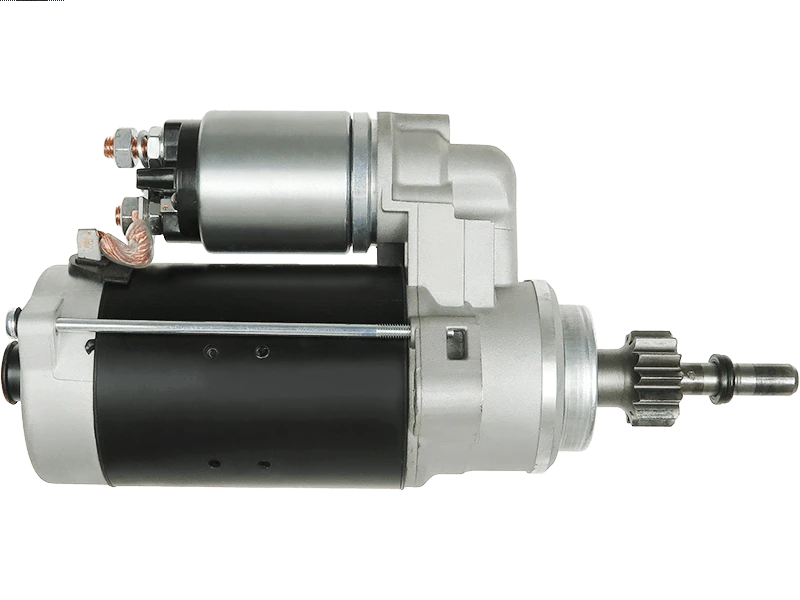

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 499.91 including GST
NZ$ 434.70 excluding GST
or four payments of $124.98
with
Learn More
UOM:
each
Product Code:
S0303
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230028Associated Numbers
0001230015 0001230016 0001230028 0001230029 07Z911023A 07Z911023B 115941 12222 20401743BN 20401743OE 22.3092 22.3092M 25-3416 254966 300.556.132 3119 6010347 88214337 91-15-7244 AEY2245 BOS0001230028 CST10347 CST10347AS CST10347ES CST10347GS CST10347OS CST10347RS DRS0364 EAA-121639 EAA-121776 LRS02245 S-6302 STB4315 STR50531Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 336 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 13 qty |
| No./Teeth (Replaces) | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 87 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Phaeton 5.0 TDi | [AJS] | 01.2002-12.2006 |
| VW | Phaeton 5.0 TDi R50 | [CBWA] | 01.2007- |
| VW | Touareg 5.0 TDi | [AYH] | 01.2002-12.2006 |
| VW | Touareg 5.0 TDi | [BLE] | 01.2002-12.2006 |
Reference Information
| 0001230015 | BOSCH |
| 0001230016 | BOSCH |
| 0001230028 | BOSCH |
| 0001230029 | BOSCH |
| 07Z911023A | VW |
| 07Z911023B | VW |
| 07Z911023BX | VW |
| 115941 | CARGO |
| 12222 | EAI |
| 20401743BN | REAL |
| 20401743OE | REAL |
| 22.3092 | LAUBER |
| 22.3092M | LAUBER |
| 25-3416 | ELSTOCK |
| 254966 | KUHNER |
| 300.556.132 | PSH |
| 3119 | CEVAM |
| 332133 | LOGISTIK |
| 6010347 | SANDO |
| 88214337 | POWERMAX |
| 91-15-7244 | WILSON |
| AEY2245 | AUTOELECTRO |
| AM-2323 | AUTO MAGNETO |
| BOS0001230028 | WOODAUTO |
| CST10347 | CASCO |
| CST10347AS | CASCO |
| CST10347ES | CASCO |
| CST10347GS | CASCO |
| CST10347OS | CASCO |
| CST10347RS | CASCO |
| DRS0364 | DELCO |
| F032115941 | CARGO |
| LRS02245 | LUCAS |
| LRS2245 | LUCAS |
| MAV123470 | SIOM |
| S0303 | AS-PL |
| S132.354 | PSH |
| S-6302 | DIXIE |
| STB4315 | KRAUF |
| STR1605 | ELECTROLOG |
| STR50531 | WOODAUTO |
| STRS471 | 3EFFE |
| STX200433 | STARDAX |
Video/Publications
