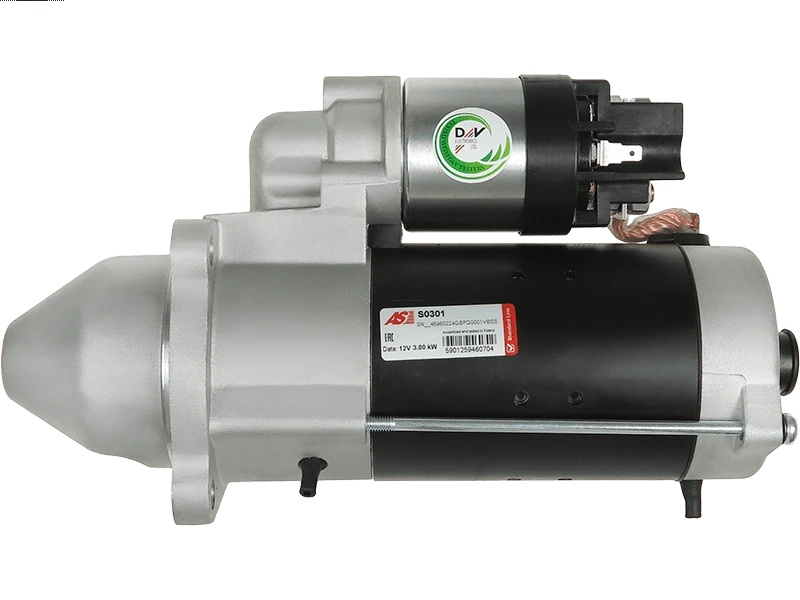

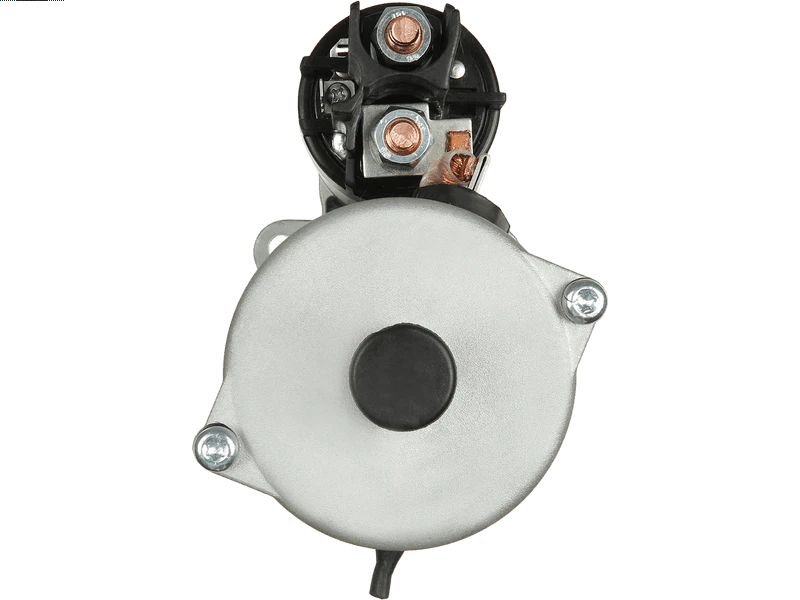

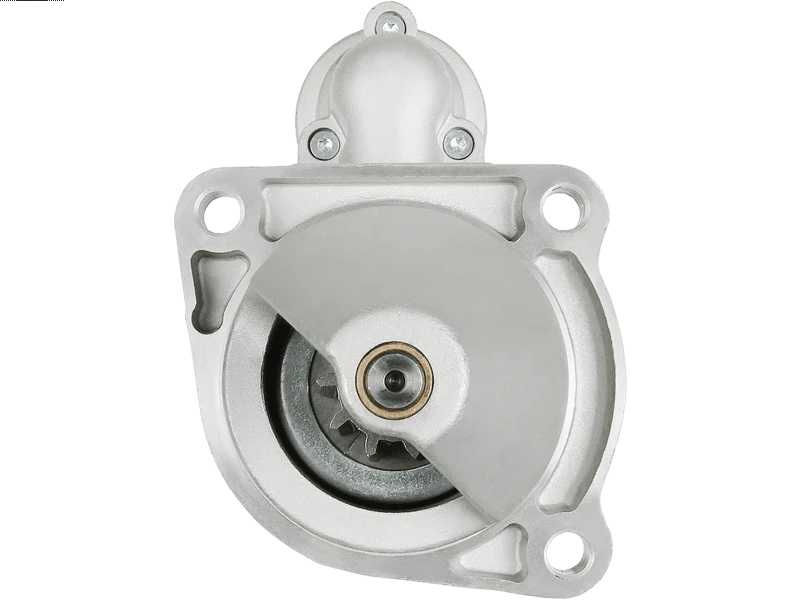

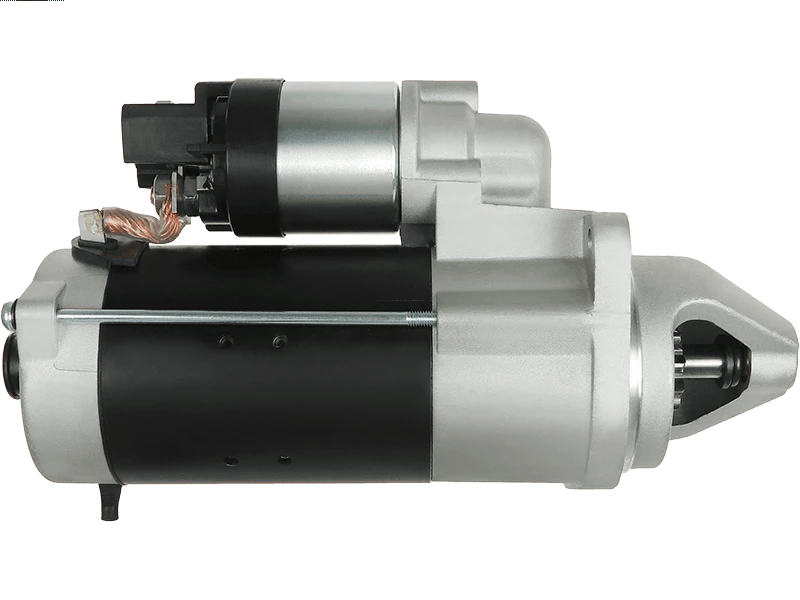

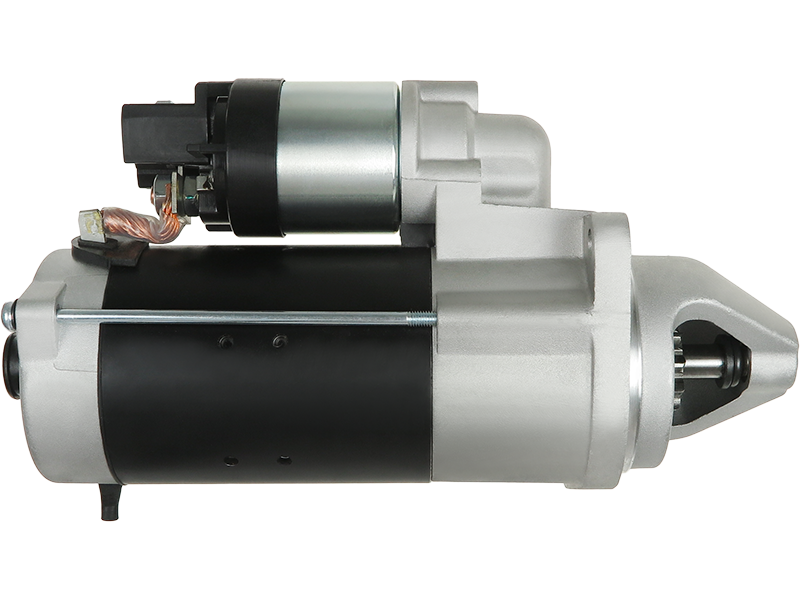

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 504.57 including GST
NZ$ 438.76 excluding GST
or four payments of $126.14
with
Learn More
UOM:
each
Product Code:
S0301
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230020Associated Numbers
0001262021 0001262022 0001230020 0001230026 0001262019 0001262020 2852178 8003 19083000 DRS0026 DS1136 EAA-121767 25-4079 47132888 SG9063 504357110 323019050 504031929 504357109 254129 254129B 254129M LRS02407 88213989 500.545.103 120-20191 19980N STR50579 STR50290Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CARRARO | Agricube 100 4.5 | 10.2010- | |
| CARRARO | Agricube 70 3.2 | 10.2010- | |
| CARRARO | Agricube 80 3.2 | 10.2010- | |
| CARRARO | Agricube 90 3.2 | 10.2010- | |
| CASE IH | 121E Series 3 | 432T/M3 | 01.2008-12.2015 |
| CASE IH | 140 Maxxum 6.7 | IvecoNEF667TA | 01.2007-12.2011 |
| CASE IH | 210 Puma 6.7 | IvecoNEF | 01.2007-12.2011 |
| CASE IH | 225 Puma 6.7 | IvecoNEF | 01.2007-12.2011 |
| CASE IH | 420CT Series 3 | 432T/M3 | 01.2008-12.2012 |
| CASE IH | 420 Series 3 | 432T/M3 | 01.2008-12.2012 |
| CASE IH | 435 Series 3 | 432T/M3 | 01.2008-12.2012 |
| CASE IH | 570NXT 3.4 | F5HFL413B | 01.2012-12.2014 |
| CASE IH | 586H 3.4 | F5H | 01.2012-12.2023 |
| CASE IH | 588H 3.4 | F5H | 01.2012-12.2023 |
| CASE IH | Farmall 105U 4.5 | N45 | 01.2008-12.2012 |
| CASE IH | Farmall 65A 3.2 | F32 | 01.2010-12.2015 |
| CASE IH | Farmall 75A 3.2 | F32 | 01.2010-12.2015 |
| CASE IH | Farmall 85C 3.2 | F32 | 01.2007-12.2012 |
| CASE IH | Farmall 85U 4.5 | N45 | 01.2008-12.2014 |
| CASE IH | Farmall 90 4.5 | N45 | 01.2007-12.2014 |
| CASE IH | Farmall 95 4.5 | N45 | 01.2007-12.2015 |
| CASE IH | Farmall 95C 3.2 | F32 | 01.2007-12.2012 |
| CASE IH | Farmall 95N 4.5 | N45 | 01.2008-12.2015 |
| CASE IH | Farmall 95U 4.5 | N45 | 01.2008-12.2015 |
| CASE IH | JX1070U 4.5 | 4-274 | 01.2004-12.2008 |
| CASE IH | JX1080U | 4-274 | 01.2004-12.2008 |
| CASE IH | JX1085C | 4-274 | 01.2005-12.2008 |
| CASE IH | JX1090U | 4-274 | 01.2004-12.2008 |
| CASE IH | JX1095C | 4-274 | 01.2005-12.2008 |
| CASE IH | JX1100U | 4-274 | 01.2004-12.2008 |
| CASE IH | MX110 6.7 | NEF | 01.1997- |
| CASE IH | MX135 6.7 | NEF | 01.1997- |
| CASE IH | SR200 3.2 | 432T/M3 | 01.2011-12.2015 |
| CASE IH | SR200 3.4 | F5HFL463 | 01.2013-12.2019 |
| CASE IH | SR210 3.4 | F5HFL463 | 01.2013-12.2019 |
| CASE IH | SR220 3.4 | F5HFL413 | 01.2013-12.2019 |
| CASE IH | SR240 3.4 | F5HFL463 | 01.2015-12.2019 |
| CASE IH | SR250 3.2 | F5CE5454 | 01.2013-12.2020 |
| CASE IH | SR250 3.4 | F5HFL413 | 01.2011-12.2017 |
| CASE IH | SR270 3.4 | F5BFL413 | 01.2015-12.2017 |
| CASE IH | SV250 3.2 | 432T/M3 | 01.2011-12.2012 |
| CASE IH | SV250 3.2 | F5CE5454 | 01.2013-12.2020 |
| CASE IH | SV250 3.4 | F5HFL413 | 01.2013-12.2015 |
| CASE IH | SV280 3.4 | F5HFL463 | 01.2015-12.2019 |
| CASE IH | SV300 3.2 | 432T/M3 | 01.2011-12.2015 |
| CASE IH | SV300 3.4 | F5HFL413 | 01.2012-12.2019 |
| CASE IH | SV340 3.4 | F5BFL413 | 01.2016-12.2019 |
| CASE IH | TR270 3.2 | 432T/M3 | 01.2011-12.2015 |
| CASE IH | TR270 3.4 | F5HFL463 | 01.2013-12.2019 |
| CASE IH | TR310 3.4 | F5HFL463 | 01.2017-12.2019 |
| CASE IH | TR320 3.2 | 432T/M3 | 01.2011-12.2013 |
| CASE IH | TR320 3.4 | F5HFL413 | 01.2011-12.2019 |
| CASE IH | TR340 3.4 | F5BFL413 | 01.2015-12.2019 |
| CASE IH | TV370 3.4 | F5HFL463 | 01.2017-12.2019 |
| CASE IH | TV380 3.2 | 432T/M3 | 01.2011-12.2013 |
| CASE IH | TV380 3.4 | F5HFL413 | 01.2012-12.2019 |
| CASE IH | TV450 3.4 | F5BFL413 | 01.2018-12.2019 |
| CASE IH | TX1055 4.5 | F4BE | 01.2008-12.2015 |
| CASE IH | TX742 4.5 | F4BE | 01.2007-12.2015 |
| CASE IH | TX842 4.5 | F4BE | 01.2006-12.2016 |
| CASE IH | TX945 4.5 | F4BE | 01.2006-12.2016 |
| CASE IH | Various Models | 117HK | - |
| DIECI | 4017 | ||
| DIECI | 4017 | - | |
| KOMATSU | WB97S-5 4.5 | [F4GE9894F] | 01.2006-12.2013 |
| KOMATSU | WB97S-5 4.5 | F4GE9894F | 01.2006-12.2013 |
| LANDINI | Landpower DT 125 6.7 | NEF2V | 01.2008- |
| LANDINI | Landpower DT 135 6.7 | NEF2V | 01.2008- |
| LANDINI | Landpower DT 145 6.7 | NEF2V | 01.2008- |
| LANDINI | Landpower DT 165 6.7 | NEF2V | 01.2008- |
| LANDINI | Landpower DT 180 6.7 | NEF2V | 01.2008- |
| LANDINI | Landpower DT 185 6.7 | NEF2V | 01.2008- |
| MCCORMICK | MTX135 6.8 | 6Cyl | 01.2004-12.2007 |
| MCCORMICK | MTX150 6.8 | 6Cyl | 01.2004-12.2007 |
| MCCORMICK | TTX190M 6.8 | 01.2008-12.2013 | |
| MCCORMICK | XTX145 6.8 | 01.2006-12.2008 | |
| NEW HOLLAND | B110 4.5 | [445T/M2] | 01.2006- |
| NEW HOLLAND | B115 4.5 | [445T/M2] | 01.2006- |
| NEW HOLLAND | B95 4.5 | [445T/M2] | 01.2006- |
| NEW HOLLAND | LM5040 4.5 | [NEF] | 01.2007- |
| NEW HOLLAND | LM5060 4.5 | [NEF] | 01.2007- |
| NEW HOLLAND | LM5080 4.5 | [NEF] | 01.2007- |
| NEW HOLLAND | T6 T6.120 | 10.2012- | |
| NEW HOLLAND | T6 T6.120 | 10.2012- | |
| NEW HOLLAND | T6 T6.140 | 10.2012- | |
| NEW HOLLAND | T6 T6.140 | 10.2012- | |
| NEW HOLLAND | T6 T6.140 | 10.2012- | |
| NEW HOLLAND | T6 T6.140 | 10.2012- | |
| NEW HOLLAND | T6 T6.150 | 10.2012- | |
| NEW HOLLAND | T6 T6.150 | 10.2012- | |
| NEW HOLLAND | T6 T6.150 | 10.2012- | |
| NEW HOLLAND | T6 T6.150 | 10.2012- | |
| NEW HOLLAND | T6 T6.155 | 10.2012- | |
| NEW HOLLAND | T6 T6.155 | 10.2012- | |
| NEW HOLLAND | T6 T6.160 | 10.2012- | |
| NEW HOLLAND | T6 T6.160 | 10.2012- | |
| NEW HOLLAND | T6 T6.160 | 10.2012- | |
| NEW HOLLAND | T6 T6.160 | 10.2012- | |
| NEW HOLLAND | T6 T6.165 | 10.2012- | |
| NEW HOLLAND | T6 T6.165 | 10.2012- | |
| NEW HOLLAND | T6 T6.175 | 10.2012- | |
| NEW HOLLAND | T6 T6.175 | 10.2012- | |
| NEW HOLLAND | T7 T7.170 | 08.2010- | |
| NEW HOLLAND | T7 T7.170 | 08.2010- | |
| NEW HOLLAND | T7 T7.185 | 08.2010- | |
| NEW HOLLAND | T7 T7.185 | 08.2010- | |
| NEW HOLLAND | T7 T7.200 | 08.2010- | |
| NEW HOLLAND | T7 T7.200 | 08.2010- | |
| NEW HOLLAND | T7 T7.210 | 08.2010- | |
| NEW HOLLAND | T7 T7.220 | 08.2010- | |
| NEW HOLLAND | T7 T7.220 | 08.2010- | |
| NEW HOLLAND | T7 T7.235 | 08.2010- | |
| NEW HOLLAND | T7 T7.235 | 08.2010- | |
| NEW HOLLAND | T7 T7.250 | 08.2010- | |
| NEW HOLLAND | T7 T7.250 | 08.2010- | |
| NEW HOLLAND | T7 T7.260 | 08.2010- | |
| NEW HOLLAND | T7 T7.260 | 08.2010- | |
| NEW HOLLAND | T7 T7.270 | 08.2010- | |
| NEW HOLLAND | T7 T7.270 | 08.2010- | |
| NEW HOLLAND | TS-A TS100A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS100A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS110A | 12.2003- | |
| NEW HOLLAND | TS-A TS115A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS115A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS125A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS125A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS135A | 10.2003-12.2006 | |
| NEW HOLLAND | TS-A TS135A | 10.2003-12.2006 | |
| NEW HOLLAND | WORKMASTER 65, 75 | 10.2009- | |
| NEW HOLLAND | WORKMASTER 65, 75 | 10.2009- | |
| REDROCK | TH280S | ||
| REDROCK | TH280S | - |
Reference Information
| 0001230020 | BOSCH |
| 0001230022 | BOSCH |
| 0001230026 | BOSCH |
| 0001250021 | BOSCH |
| 0001262019 | BOSCH |
| 0001262020 | BOSCH |
| 0001262021 | BOSCH |
| 0001262022 | BOSCH |
| 10010304AV | ITAB AUTOMOTIVE |
| 10010304OV | ITAB AUTOMOTIVE |
| 10439595 | ALANKO |
| 106557 | FARCOM |
| 114021 | CARGO |
| 120-20191 | ROBERT'S |
| 120-20191NOE | ROBERT'S |
| 19980N | WAI |
| 20401403BN | REAL |
| 20401403OE | REAL |
| 25-4079 | ELSTOCK |
| 25-4079CT | AINDE |
| 254129 | KUHNER |
| 254129B | KUHNER |
| 254129M | KUHNER |
| 254129S | KUHNER |
| 2852178 | CASE |
| 3118803 | HENKEL PARTS |
| 3118804 | HENKEL PARTS |
| 3118805 | HENKEL PARTS |
| 3118808 | HENKEL PARTS |
| 323019050 | FIAT |
| 330400 | MEC-DIESEL |
| 330401 | MEC-DIESEL |
| 331868 | LOGISTIK |
| 47132888 | FIAT |
| 500.546.103.011 | WAI |
| 500.546.103.013 | WAI |
| 500.546.103.280 | WAI |
| 5010507G | MEAT & DORIA |
| 504031929 | FIAT |
| 504357109 | FIAT |
| 504357110 | CASE |
| 6010304.0 | SANDO |
| 6010304.1 | SANDO |
| 618036102 | DRI |
| 7.61125 | DT SPARE PARTS |
| 8003 | CEVAM |
| 861092 | PRESTOLITE |
| 88213989 | POWERMAX |
| 8EA015642-631 | HELLA |
| 91-15-7314 | WILSON |
| A90940 | ATL AUTOTECHNIK |
| AC-CBS5557 | ACAUTO |
| AM-2919 | AUTO MAGNETO |
| BOS0001250002 | WOODAUTO |
| CST10304AS | CASCO |
| CST10304GS | CASCO |
| DRS0026 | DELCO |
| F032114021 | CARGO |
| LES0391 | LE PART |
| LRS02407 | LUCAS |
| LRS2407 | LUCAS |
| QRS2452 | QUINTON HAZELL |
| S0301 | AS-PL |
| S12BH0666 | SIDAT |
| S12BH0666A2 | SIDAT |
| S132.974 | WAI |
| S144.574 | WAI |
| S-50290 | DTS |
| S513038 | BTS TURBO |
| SEG0001250002 | WOODAUTO |
| ST01599 | TMI |
| STB4021 | KRAUF |
| STM1287 | ROLLCO |
| STR10007 | ELECTROLOG |
| STR1442 | ELECTROLOG |
| STR4139 | 3EFFE |
| STR50290 | WOODAUTO |
| STR50561 | WOODAUTO |
| STR50579 | WOODAUTO |
| WOOSTR50290 | WOODAUTO |
| WOOSTR50561 | WOODAUTO |
| WOOSTR50579 | WOODAUTO |
