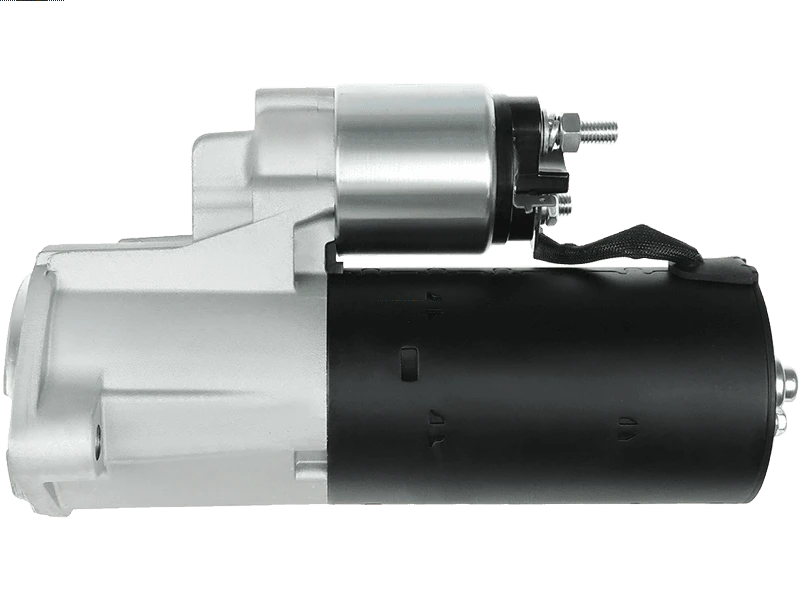

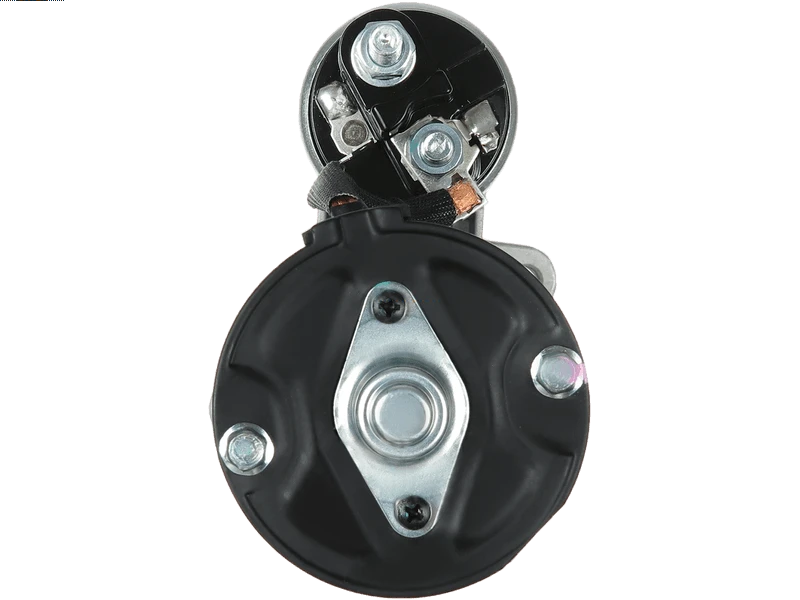

S0234 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.8 kW
Length (L.1)	255 mm
Mount Hole Center - Center (O.1)	101.5 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	2.5 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A4 1.9 TDi	[AJM]	08.1998-09.2001
AUDI	A4 1.9 TDi	[AVF]	04.2001-12.2003
AUDI	A4 1.9 TDi	[AWX]	12.2000-12.2003
AUDI	A4 1.9 TDi Quattro	[AJM]	08.1998-09.2001
AUDI	A4 1.9 TDi Quattro	[ATJ]	01.2000-11.2000
AUDI	A4 1.9 TDi Quattro	[AVF]	11.2001-12.2003
AUDI	A6 1.9 TDi	[AVF]	08.2001-12.2003
AUDI	A6 1.9 TDi	[AWX]	08.2001-12.2003
VW	Passat 1.9 TDi	[AJM]	08.1998-11.2000
VW	Passat 1.9 TDi	[ATJ]	12.1999-11.2000
VW	Passat 1.9 TDi	[AVF]	11.2000-12.2003
VW	Passat 1.9 TDi 4-Motion	[AVF]	11.2000-12.2003
VW	Passat 1.9 TDi Syncro 4-Motion	[ATJ]	01.2000-11.2000
VW	Passat 2.0 TDi	[BGH]	11.2003-12.2003
VW	Passat 2.0 TDi	[BGW]	11.2003-12.2003

Reference Information

63521240200 6010221.1 PRSL199 STRL199NE 88212265 112443 EAA-121213 1124021 1124020 220137 5010177 20401122OE MAV122210 ANM16039X 101208 331360 25-3125 MSRC1208 LRS1605 20401122BN 438404 986020370 LRS01605 068911024H CST10221AS S0234 8EA012526-211 AEU1208 CS1208 CST10221GS 42020370 DRS3819 STRL199B S12BH0246A2 11978 9.43212E+11 32605N STR50367 STRL199 3047 458461 SG0686 6010221

Video/Publications

0001124020 0001124021 068911024H 0986020370 101208 112443 11978 20401122BN 22.1208 22.1208M 25-3125 3047 32605N 42020370 458461 6010221 8080092 8212265 88212265 8EA012526-211 8EA737891-001 AEU1208 CS1208 CST10221AS CST10221GS DRS3819 EAA-121213 LRS01605 LRS1605 MAV122210 RNL2037 S0234 SS063 STR50367 STRL199 220137
