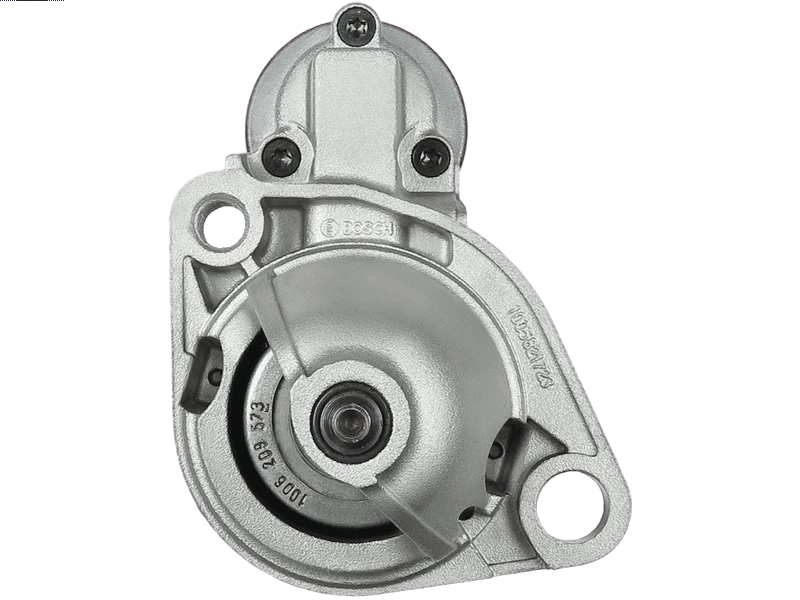

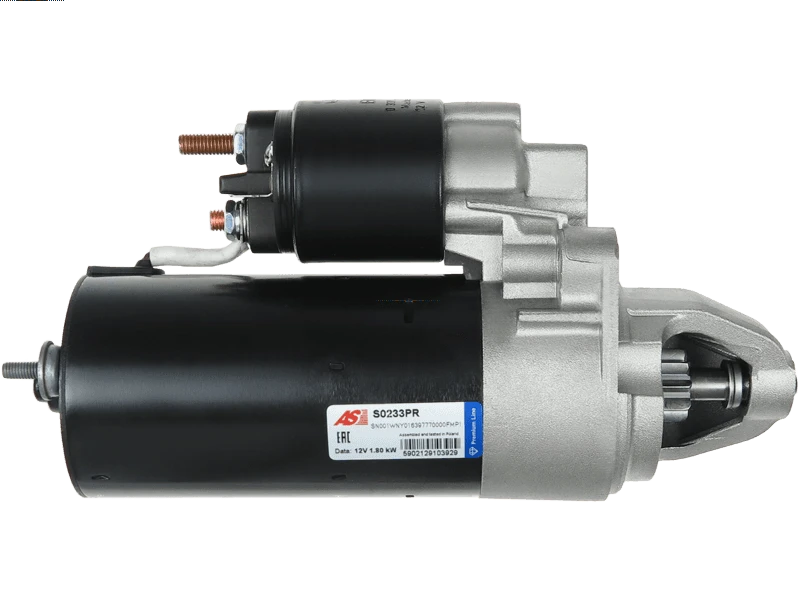

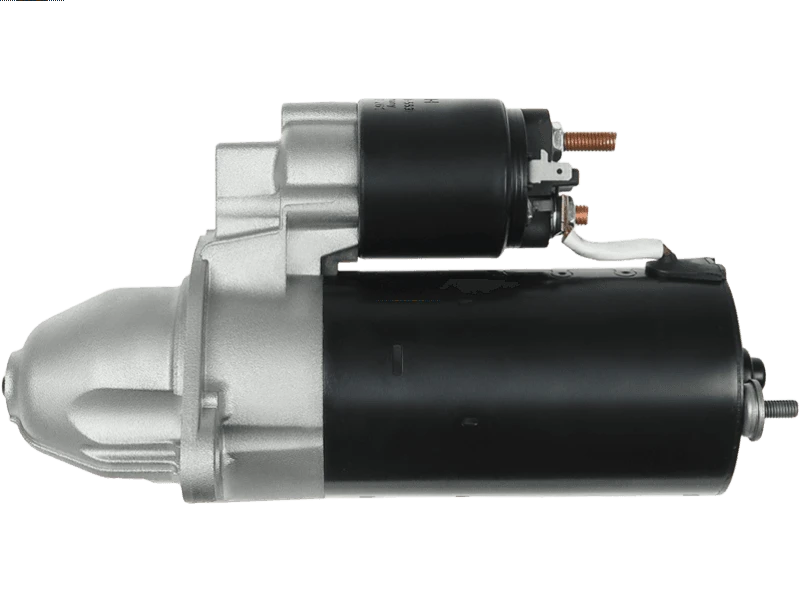

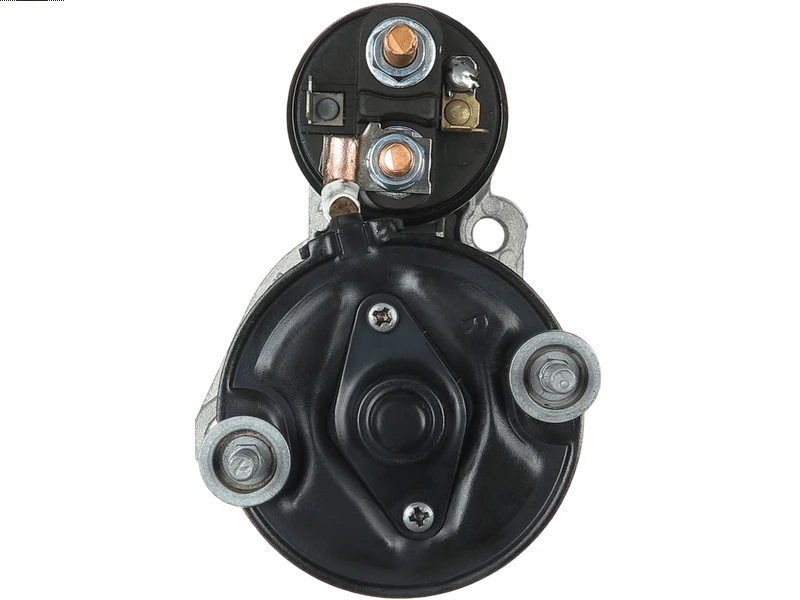

S0233PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.8 kW
Length (L.1)	267 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	15.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	29 mm
Product Line	Premium Line
Product Type	Remanufactured
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A6 4.2 Quattro	[ARS]	11.1998-01.2005
AUDI	A6 4.2 Quattro	[ASG]	11.1998-01.2005
AUDI	A8 3.7	[AEW]	07.1995-12.1998
AUDI	A8 3.7	[AKC]	11.1998-09.2002
AUDI	A8 3.7	[AQG]	11.1998-09.2002
AUDI	A8 3.7 Quattro	[AEW]	07.1995-11.1998
AUDI	A8 3.7 Quattro	[AKC]	11.1998-09.2002
AUDI	A8 3.7 Quattro	[AKJ]	07.1995-11.1998
AUDI	A8 3.7 Quattro	[AQG]	11.1998-09.2002
AUDI	A8 4.2 Quattro	[ABZ]	03.1994-11.1998
AUDI	A8 4.2 Quattro	[AEM]	03.1994-07.1996
AUDI	A8 4.2 Quattro	[AKG]	03.1994-11.1998
AUDI	A8 4.2 Quattro	[AQF]	11.1998-09.2002
AUDI	A8 4.2 Quattro	[ARU]	02.1999-04.2000
AUDI	A8 4.2 Quattro	[AUW]	11.1998-09.2002
AUDI	A8 4.2 Quattro	[AUX]	11.1998-09.2002
AUDI	S6 4.2 Quattro	[ANK]	09.1999-01.2005
AUDI	S6 4.2 Quattro	[AQJ]	09.1999-01.2005
AUDI	S8 4.2 Quattro	[AHC]	07.1996-06.1999
AUDI	S8 4.2 Quattro	[AKH]	07.1996-06.1999
AUDI	S8 4.2 Quattro	[AQH]	06.1999-09.2002
AUDI	S8 4.2 Quattro	[AVP]	06.1999-09.2002
AUDI	S8 4.2 Quattro	[BCS]	06.1999-09.2002

Reference Information

STRF038 26-2104 77911023EX STR10128 88213078 111817 91-15-7111 077911023EX CST10594ES CST10594GS 77911023E CST10594AS 42018060 CST10594 17752R STR50096 CST10594OS 8EA737290-001 STX200346 458513 101041 20401495 CST10594RS S-6173 943253145010 0001110100 STB1041 0001110101 3373 CS1041 0986018060 AEU1041 DS9170 MSR5345 DRS8060 LRS1777 11796 077911023E 200.511.092 LRS01777

Video/Publications

S0233PR
