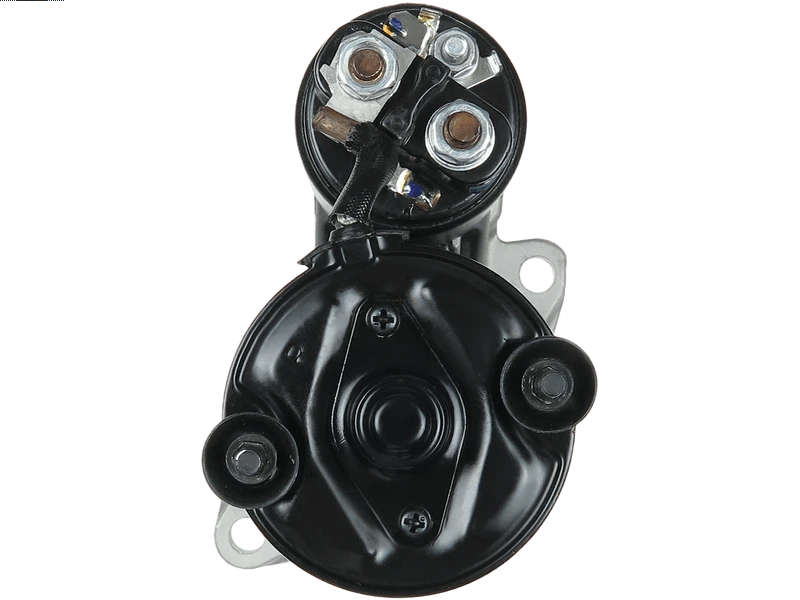

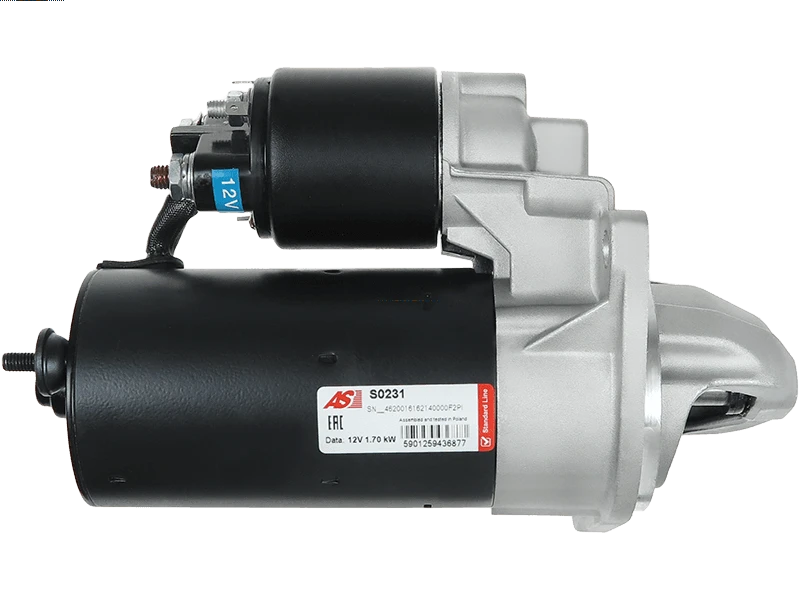

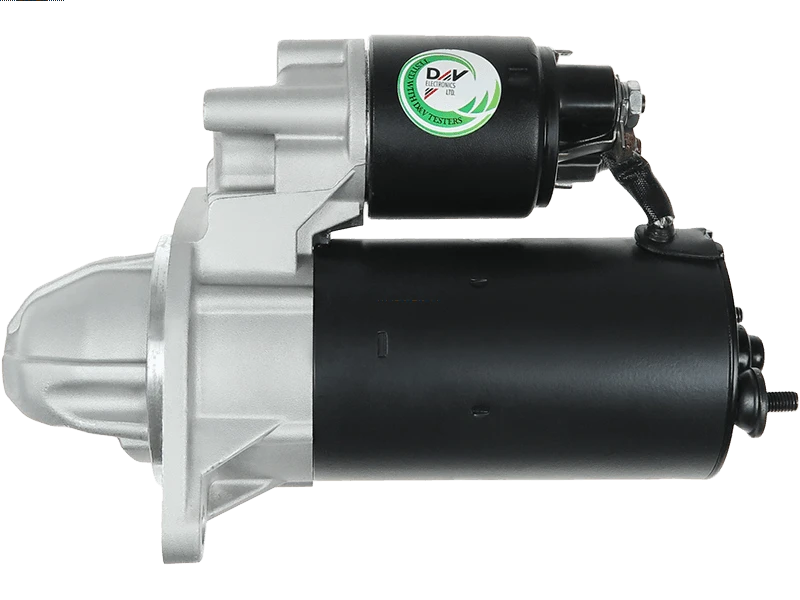

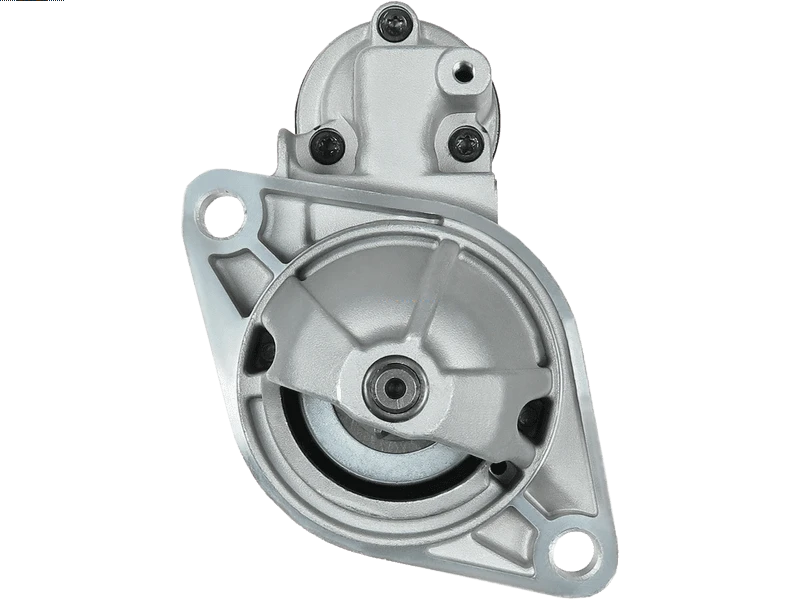

S0231 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	234 mm
Mount Hole Center - Center (O.1)	117 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	19 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Signum 3.2 V6	[Z32SE]	05.2003-
OPEL	Vectra A 2.5 CD 4x4	[C25XE]	09.1994-08.1995
OPEL	Vectra B 2.6 i V6	[Y26SE]	09.2000-09.2002
OPEL	Vectra C 3.2 i V6	[Z32SE]	08.2002-
OPEL	Vectra C 3.2 i V6 GTS	[Z32SE]	08.2002-
VAUXHALL	Signum 3.2 V6	[Z32SE]	05.2003-
VAUXHALL	Vectra 2.6 i V6	[Y26SE]	09.2000-08.2001
VAUXHALL	Vectra 3.2 i V6 GTS	[Z32SE]	08.2002-09.2005
VAUXHALL	Vectra 3.2 V6	[Z32SE]	06.2003-

Reference Information

93172020 22.1247M ANM16047X 24460703 9200890 SS232 9224108 25-3248 6010377 32698N LRS01703 S0231 93175887 8019970 9512769 22.3224 6202006 CS1247 STR1747 0001115015 LRS01698 99224108 R1540013 0001115020 S12BH0535A2 12125 22.1247 000986019970 STR10020 20401773OE 1115020 6202052 DRS3827 130.543.092 93175905 LRS1703 STRF263 101247B 88212272 3154 1115015 8212272 AEU1247 6202021 9007007 CST10377GS 986019970 EAA-121404 8EA737921-001 LRS1698

Video/Publications

0001115015 0001115020 0986019970 101247B 12125 130.543.092 20401773OE 22.1247 22.1247M 22.3224 24460703 25-3248 3154 32698N 6010377 6202006 6202021 6202052 8019970 8212272 88212272 8EA737921-001 9200890 93172020 93175887 93175905 9512769 99224108 AEU1247 CS1247 CST10377GS DRS3827 EAA-121404 LRS01698 LRS01703 LRS1698 LRS1703 R1540013 S0231 SS232 STR10020 STRF263
