Associated Numbers

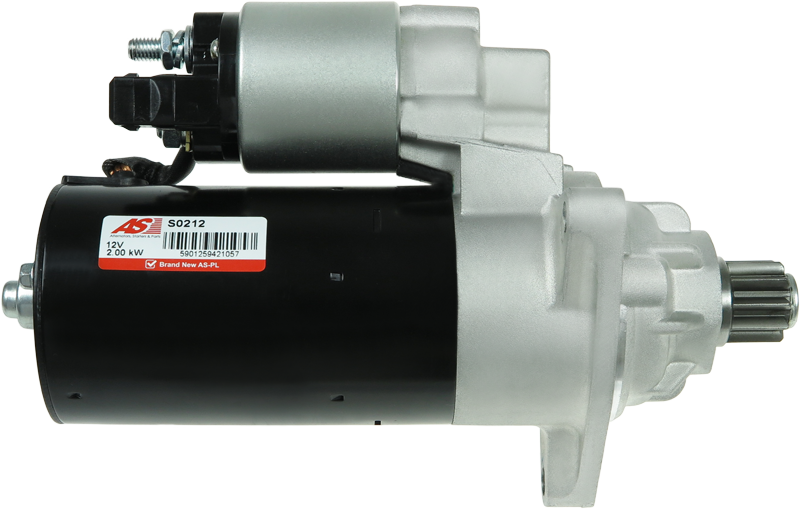

0001125016 0001125017 0001125046 0001125047 02B911023E 02B911023EX 02B911023M 101209 101209B 112444 12137 20401682BN 20401682OE 20401682RC 22.1209 22.1209M 25-3063 3112 32564N 6010286 8080205 8212530 88212530 8EA737892-001 AEU1209 CS1209 CST10286AS CST10286GS CST10286RS DRS3823 EAA-121486 LRS01564 S0212 SS064 STR50368Specifications
Kilowatt | 2 kW |
Length (L.1) | 259 mm |
Mount Hole Center - Center (O.1) | 101 mm |
Mount Hole Center - Center (O.2) | 101 mm |
Mount Hole Center - Center (O.3) | 106.5 mm |
Mount Hole Diameter (C.1) | 8.5 mm |
Mount Hole Diameter (C.2) | 8.5 mm |
Mount Hole Diameter (C.3) | 8.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
No./Teeth (Replaces) | 10 qty |
Pinion at Rest (B) | 62 mm |
Rotation | ACW |
Spigot Diameter (A) | 76 mm |
Unit Type | BOSCH |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VW | Transporter 2.5 TDi | [AHY] | 05.1998-03.2004 |
VW | Transporter 2.5 TDi | [AXG] | 05.1998-03.2004 |
VW | Transporter 2.8 V6 | [AMV] | 04.2000-04.2003 |
VW | Transporter 2.8 VR6 | [AMV] | 06.2000-08.2001 |
Reference Information
02B911023EX LRS1564 112444 ANM16043X 02B911023MX RNL2187 8EA737892-001 STM1074 1125016 101209B 0001125047 1125017 CST10286AS S12BH0348A2 88212530 CS1209 8212530 22.1209 STR50368 STRS524 8080205 SS064 0001125016 0001125017 32564N 5010413 22.1209M 20401682RC 02B911023M 101209 LRS01564 DRS3823 02B911023E CST10286GS 12137 25-3063 S0212 20401682BN STR1568 AEU1209 0001125046 1125046 3112 20401682OE MAV122860 CST10286RS 331147 EAA-121486 6010286 1125047 STA0476R 1516691RVideo/Publications
0001125016 0001125017 0001125046 0001125047 02B911023E 02B911023EX 101209 101209B 112444 12137 20401682BN 20401682OE 20401682RC 22.1209 22.1209M 25-3063 3112 32564N 6010286 8080205 8212530 88212530 8EA737892-001 AEU1209 CS1209 CST10286AS CST10286GS CST10286RS DRS3823 EAA-121486 LRS01564 LRS1564 MAV122860 RNL2187 S0212 SS064 STR50368 STRS524Add Your Number
