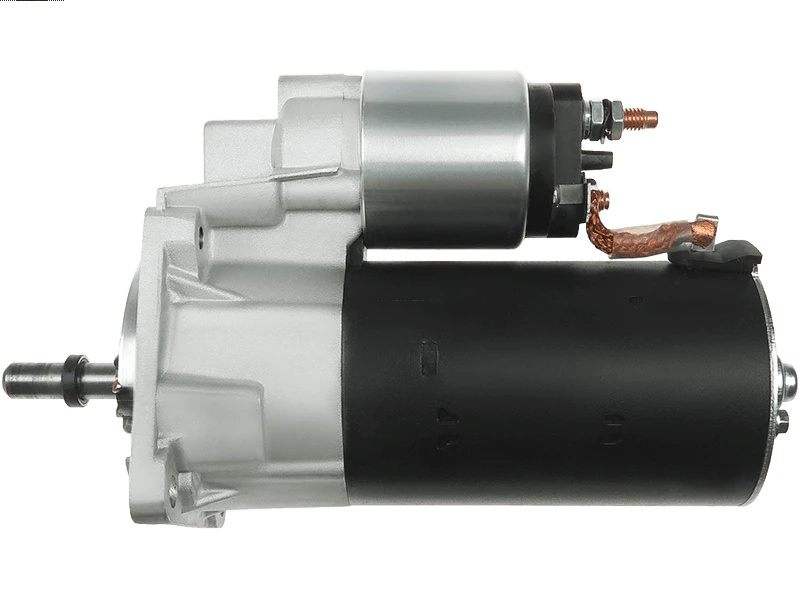

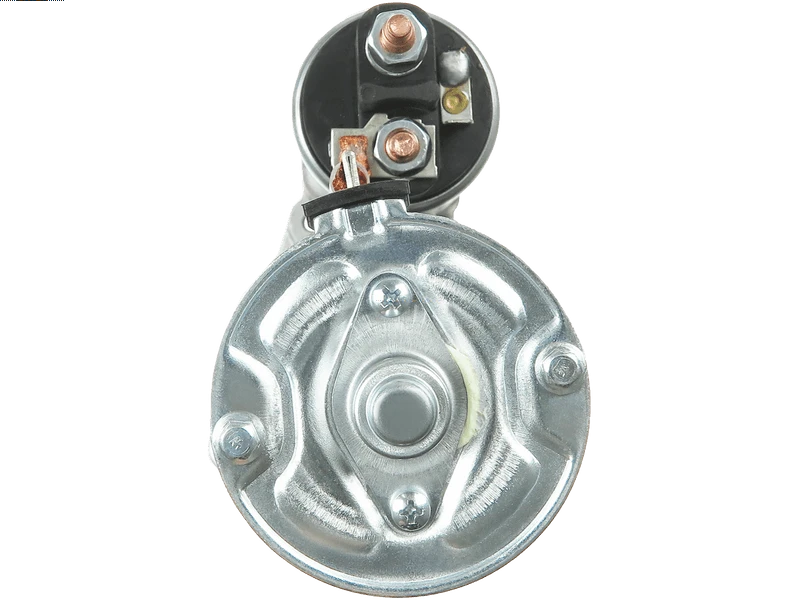

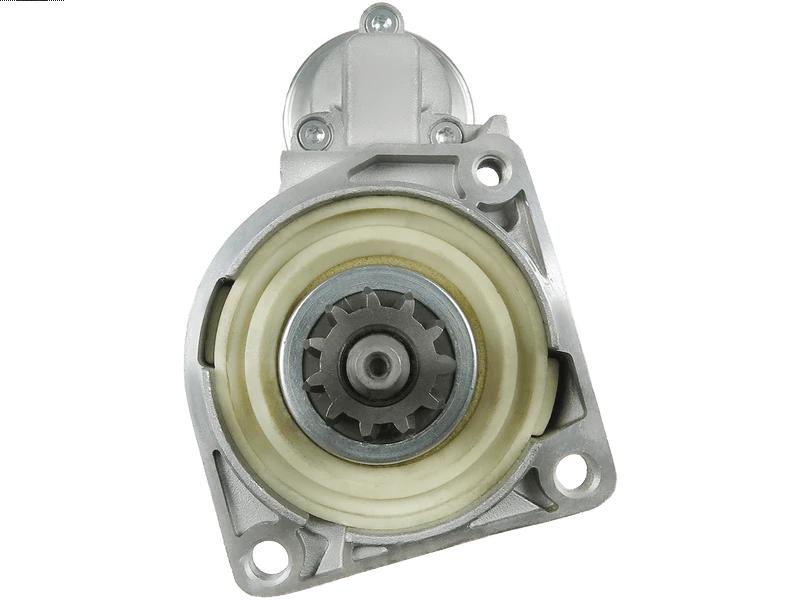

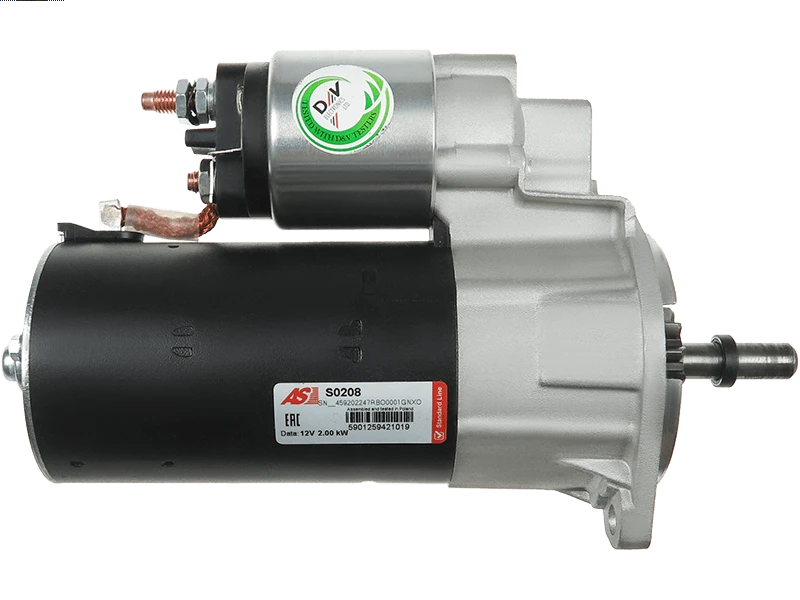

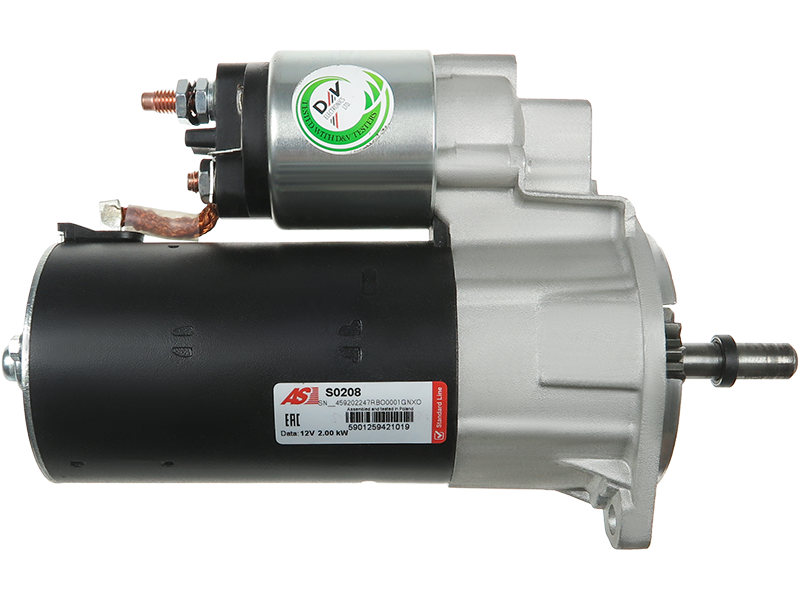

S0208 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 338.65 including GST

NZ$ 294.48 excluding GST
each
S0208
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001109017 11.130.979 112496 254607 5474041 5474046 6010388 CST10388GS STR50198
Kilowatt2 kW
Length (L.1)255 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Center - Center (O.2)74 mm
Mount Hole Center - Center (O.3)74 mm
Mount Hole Diameter (C.1)9 mm
Mount Hole Diameter (C.2)M8x1.25 mm
Mount Hole Diameter (C.3)9 mm
No./Mount holes3 qty
No./Mount holes with thread1 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)14.5 mm
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
FARYMANN Various Models
1109017 120-10126 STR1508 CST10388GS 331880 5474046 20401883OE 5474761 5474041 182-30136 S0208 STB2496 STRF271 112496 6010388 254607 11.130.979 0001109017 STR50198
0001109017 11.130.979 112496 120-10126 182-30136 20401883OE 254607 5474041 5474046 6010388.0 CST10388GS S0208 STB2496 STR50198 STRF271
