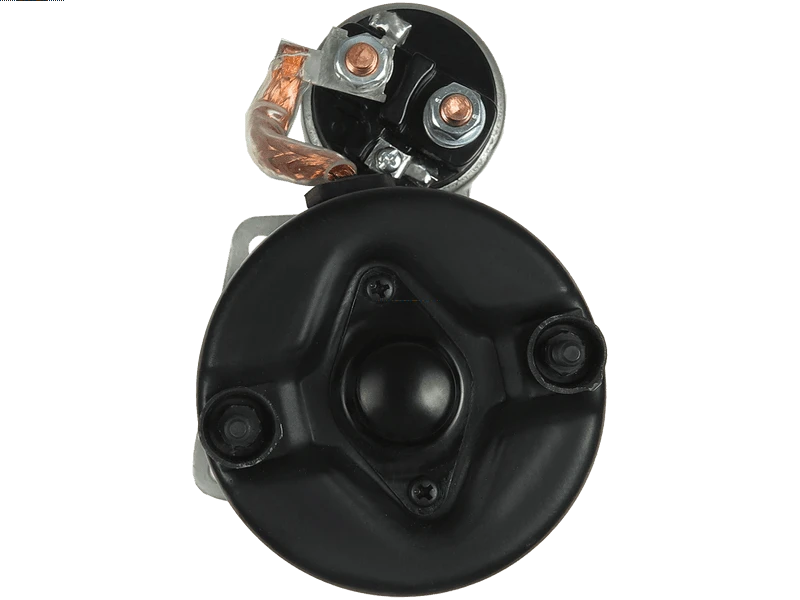

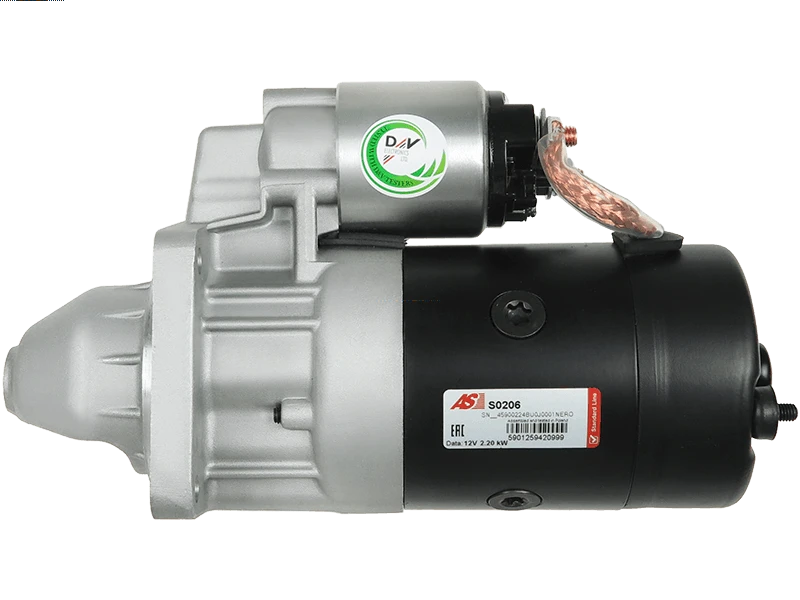

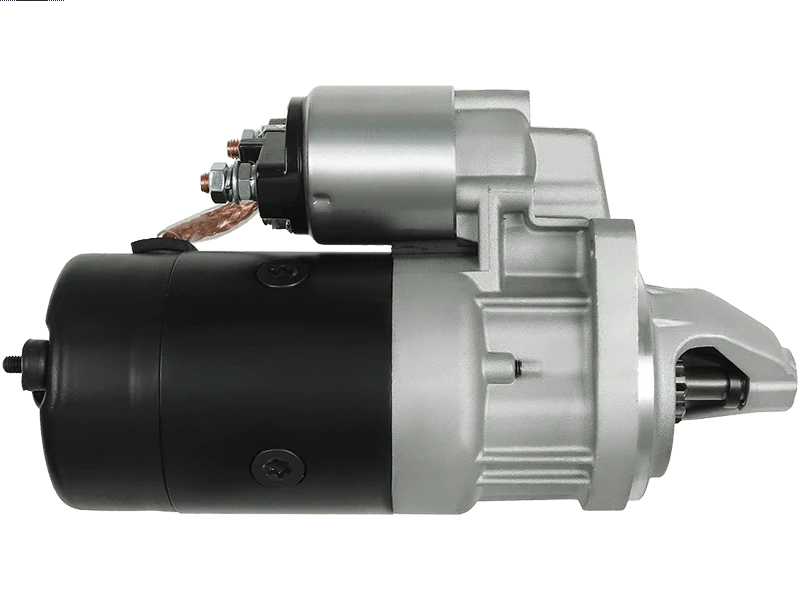

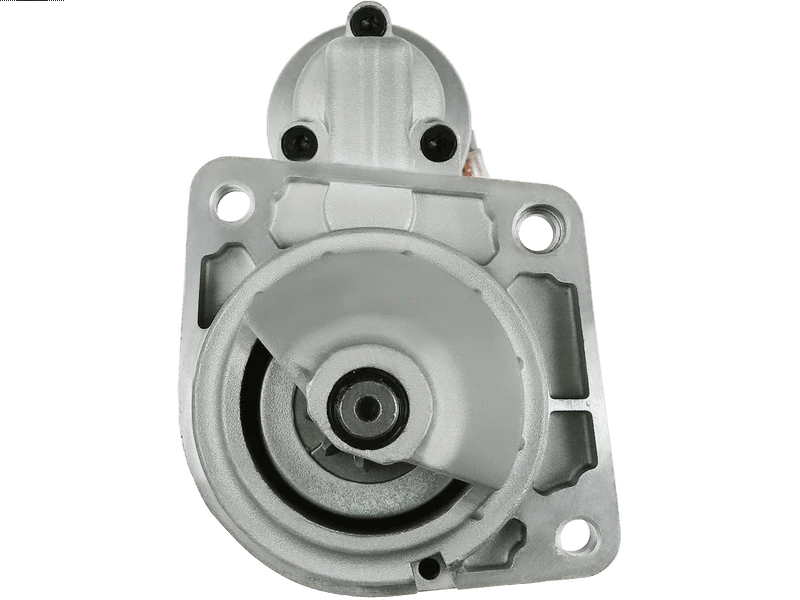

S0206 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	272 mm
Mount Hole Center - Center (O.1)	73 mm
Mount Hole Center - Center (O.2)	73 mm
Mount Hole Center - Center (O.3)	113.5 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
Mount Hole Diameter (C.3)	8.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
JEEP	Cherokee 2.5 TD	[VMHR425CLIRX]	09.1996-
JEEP	Grand Cherokee 2.5 TD		09.1996-

Reference Information

6010308 22.118 CGB-27960 8017960 EAA-121158 20401803RC 331332 SS577 04883447AA 986017960 11945 114233 830.511.093 STR50194 0001218177 STRS618 000986017960 STR10150 CST10308AS DRS7960 35532045 KRL042349AA 20401803OE 8212150 LRT00196 35532059F 20401803BN CST10308GS 35532045F 101180 8EA737765-001 AES1296 CST10308RS S0206 3028 CS1180 MAV123080 1218177 4883447AA 035532045F ANM10180X 22.1180M S12BH0747A2 25-3030

Video/Publications

0001218177 0986017960 101180 114233 11945 20401803BN 20401803OE 20401803RC 22.1180 22.1180M 25-3030 3028 35532059F 4883447AA 6010308 8017960 8212150 830.511.093 8EA737765-001 AES1296 CGB-27960 CS1180 CST10308AS CST10308GS CST10308RS DRS7960 EAA-121158 LRT00196 MAV123080 S0206 SS577 STR50194 STRS618
