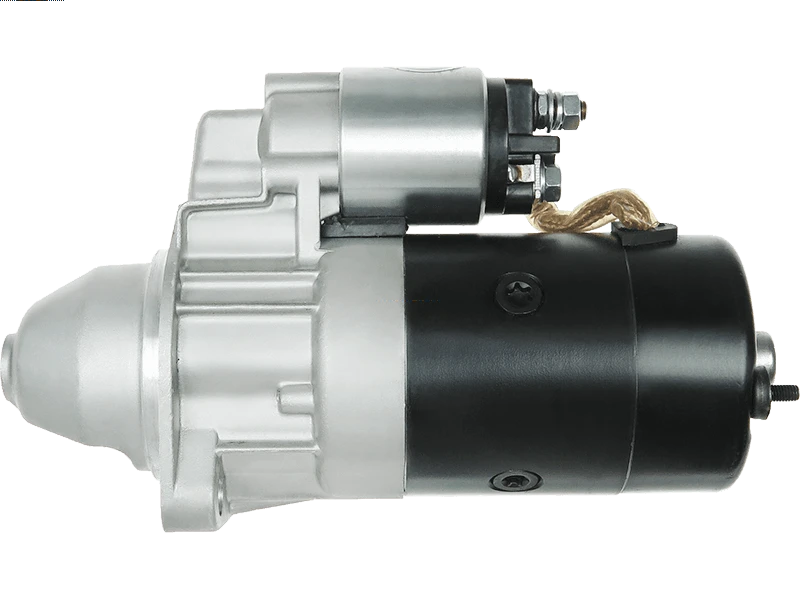

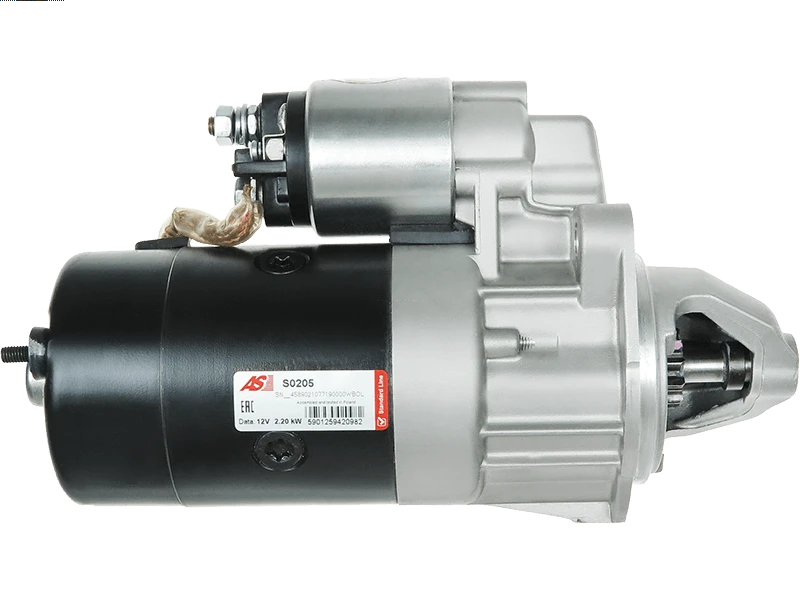

S0205 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 511.24 including GST

NZ$ 444.56 excluding GST
each
S0205
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001218007 0001218126 0986012610 10507 10507M 11113 20401745RC 22.0507 25-1332 3528 436027 6010547 8012610 8EA726155-001 CS507 CST10547RS DRS2610 STR50319
Kilowatt2.2 kW
Length (L.1)272 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)13 mm
Mount Hole Diameter (C.2)13 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)21 mm
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
ALFA ROMEO 75 2.0 TD [VM80A] 05.1985-09.1992
ALFA ROMEO 75 2.4 TD [VM81A] 09.1988-02.1992
ALFA ROMEO 90 2.4 TD [VM81A] 10.1984-01.1987
ALFA ROMEO Alfetta 2.4 TD [VM4HT2.4] 06.1983-12.1984
ALFA ROMEO Giulietta 2.0 TD [VM4HT] 06.1983-04.1985
20401745RC STR1775 605225650 22.0507 8012610 STR50319 DRS2610 986012610 CS507 000986012610 436027 1218126 CST10547RS STRS956 1218007 330659 10507M 60522565 1.16611E+11 8EA726155-001 25-1332 10507 11113 6010547 0001218007 3528 0001218126
0001218007 0001218126 0986012610 10507 10507M 11113 20401745RC 22.0507 25-1332 3528 436027 6010547 8012610 8EA726155-001 CS507 CST10547RS DRS2610 STR50319 STRS956
