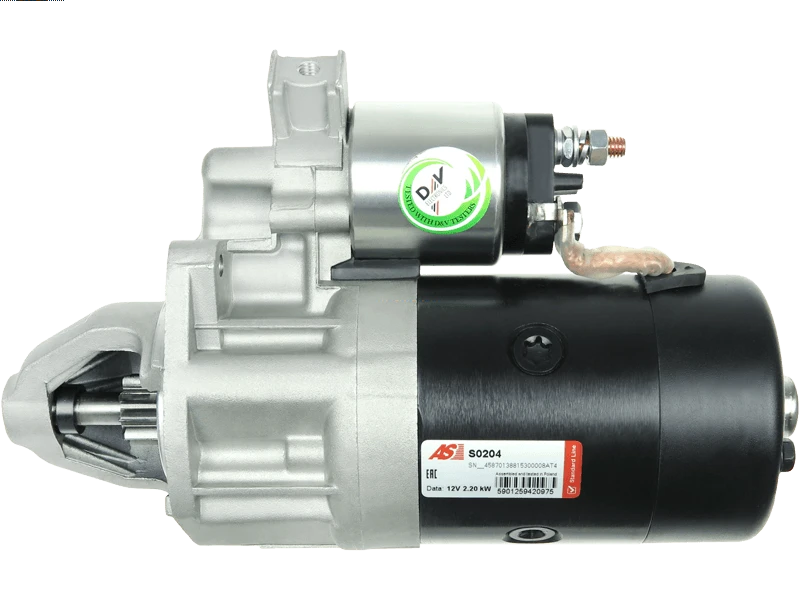

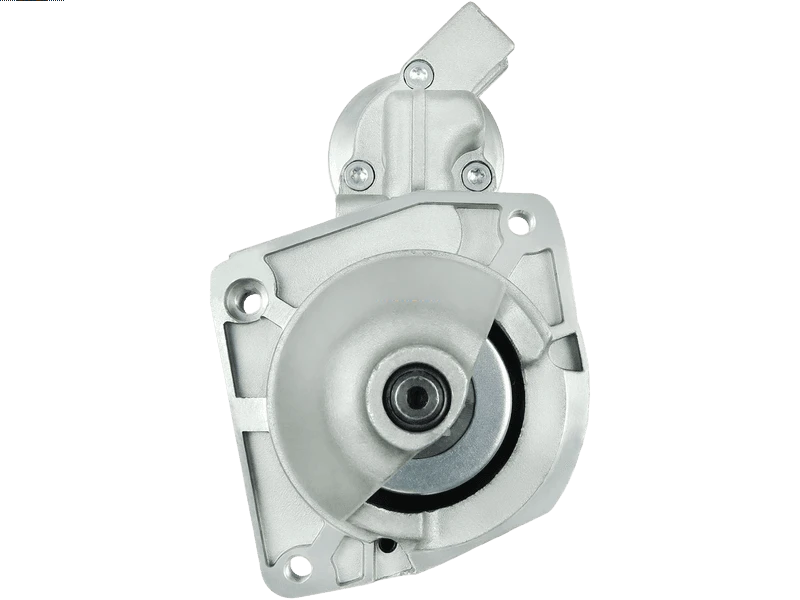

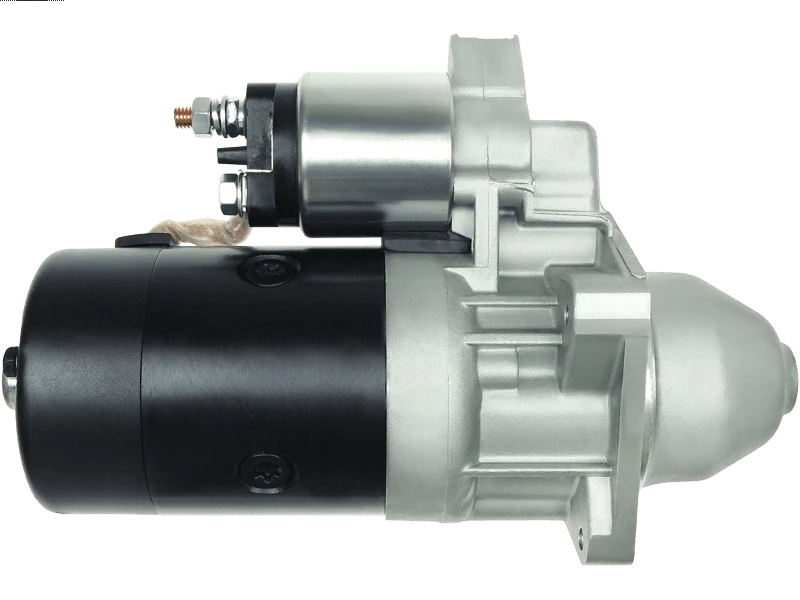

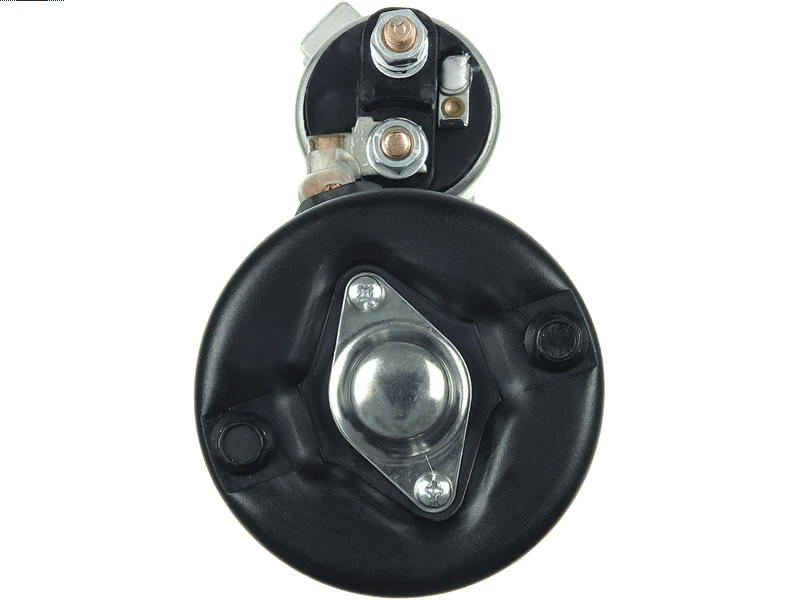

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 410.42 including GST
NZ$ 356.89 excluding GST
or four payments of $102.61
with
Learn More
each
S0204
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001218008Associated Numbers
0001218008 0001218131 0001218145 0986013400 0986017220 10376 10376R 111423 11209 20404871RC 22.0376 25-1080 25-2041 30591R 3547 433348 500.501.093 5984563 6030178 63221801 63221831 63222036 63222133 7608589 7716771 77425430 8013400 8EA726124-001 AES5191 CS376 CST30178RS DRS3400 DRS7230 EAA-121362 LRS00591 SS163 STR52040 VS289Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 272 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Center - Center (O.2) | 78 mm |
| Mount Hole Center - Center (O.3) | 80 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9. 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Marengo 1.9 Diesel | [160A7.000] | 02.1990-12.1996 |
| FIAT | Regata 1.9 Diesel | [149A1.000] | 04.1984-07.1989 |
| FIAT | Tempra 1.9 Diesel | [160A7.000] | 02.1990-12.1996 |
| FIAT | Tempra 1.9 TD | [160A7.000] | 07.1991-08.1996 |
| FIAT | Tipo 1.9 Diesel | [160A7.000] | 07.1989-09.1991 |
Reference Information
| 0001218008 | BOSCH |
| 0001218131 | BOSCH |
| 0001218145 | BOSCH |
| 0986013400 | BOSCH |
| 0986017220 | BOSCH |
| 10376 | KUHNER |
| 10376R | KUHNER |
| 111423 | CARGO |
| 11209 | EAI |
| 20404871RC | REAL |
| 220043 | ERA |
| 220123 | ERA |
| 22.0376 | LAUBER |
| 25-1080 | ELSTOCK |
| 25-2041 | ELSTOCK |
| 30591R | WAI / TRANSPO |
| 330528 | LOGISTIK |
| 3547 | CEVAM |
| 433348 | VALEO |
| 500.501.093 | PSH |
| 500.501.093.608 | PSH |
| 5884563 | FIAT |
| 5984563 | FIAT |
| 6030178 | SANDO |
| 60808773 | FIAT |
| 63221801 | MAGNETI MARELLI |
| 63221831 | MAGNETI MARELLI |
| 63222036 | MAGNETI MARELLI |
| 63222133 | MAGNETI MARELLI |
| 7576186 | FIAT |
| 7608589 | FIAT |
| 7716194 | FIAT |
| 7716196 | FIAT |
| 7716767 | FIAT |
| 7716771 | FIAT |
| 77425430 | FIAT |
| 8013400 | FRIESEN |
| 8EA726124-001 | HELLA |
| AES5191 | AUTOELECTRO |
| ANM15620X | ANDEL |
| CS376 | HC PARTS |
| CST30178RS | CASCO |
| DRS3400 | DELCO |
| DRS7230 | DELCO |
| F032111423 | CARGO |
| LRS00591 | LUCAS |
| LRS591 | LUCAS |
| MAV2060 | SIOM |
| MAV2160 | SIOM |
| MAV321360 | SIOM |
| MAV3250 | SIOM |
| S0204 | AS-PL |
| S132.609 | PSH |
| S148.492 | PSH |
| SS163 | SOVEREIGN |
| STR1670 | ELECTROLOG |
| STR1995 | ELECTROLOG |
| STR52040 | WOODAUTO |
| STRS166 | 3EFFE |
| STX200374 | STARDAX |
| STX200374R | STARDAX |
| STX200735 | STARDAX |
| VS289 | VALEO |
Video/Publications
