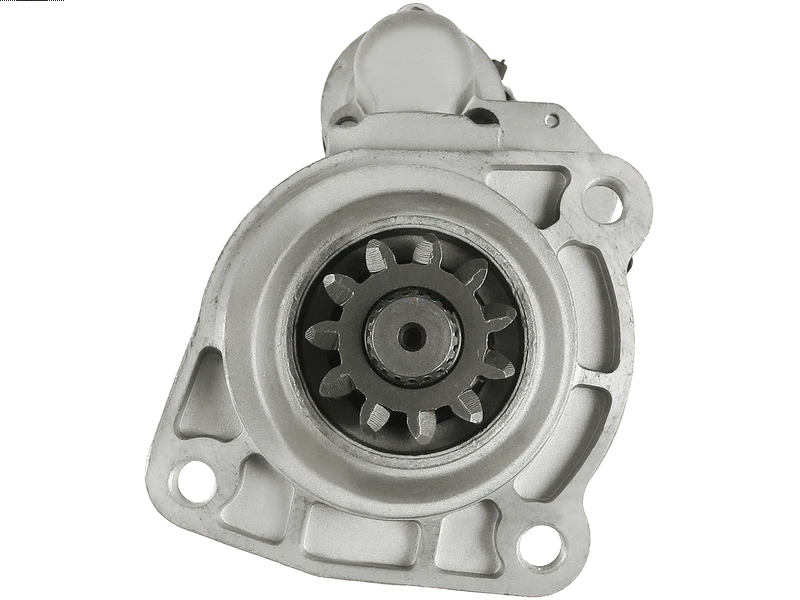

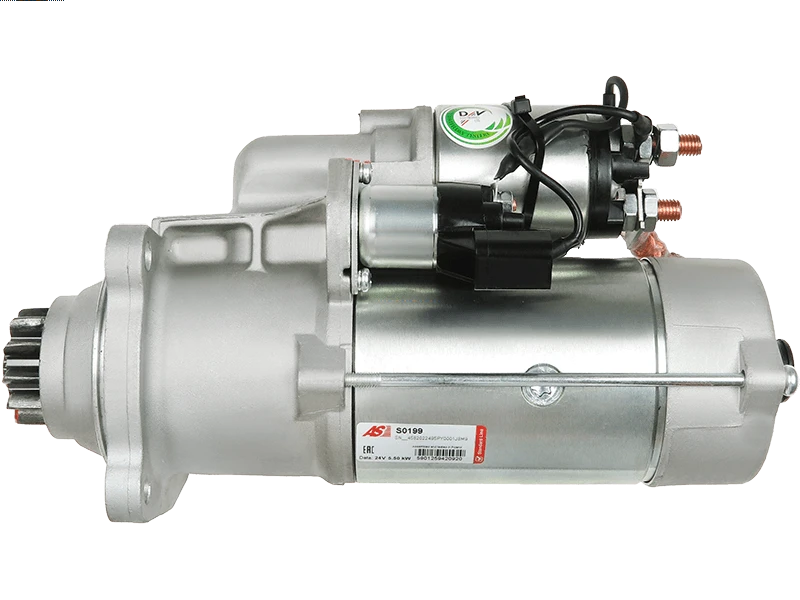

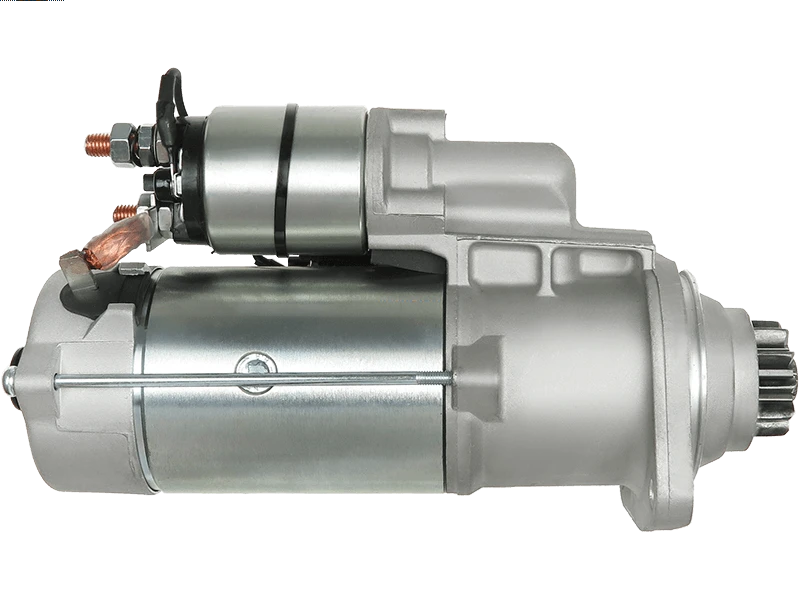

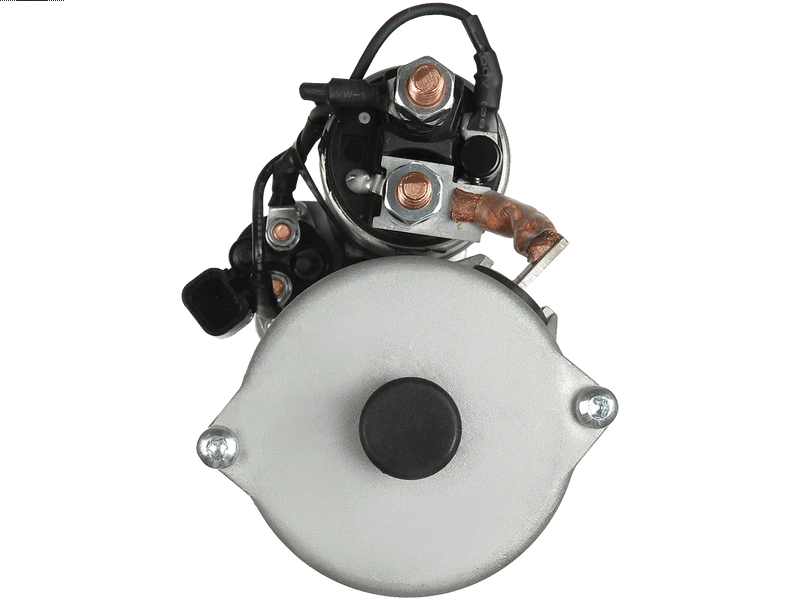

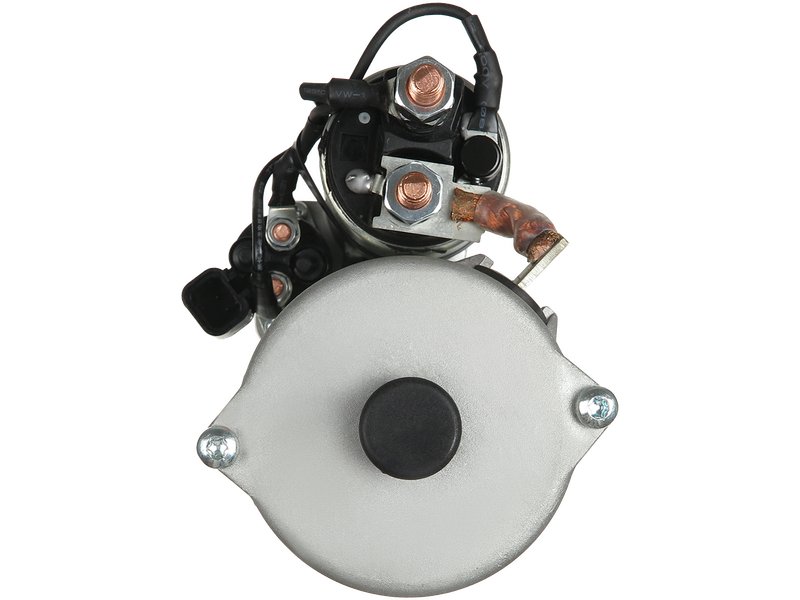

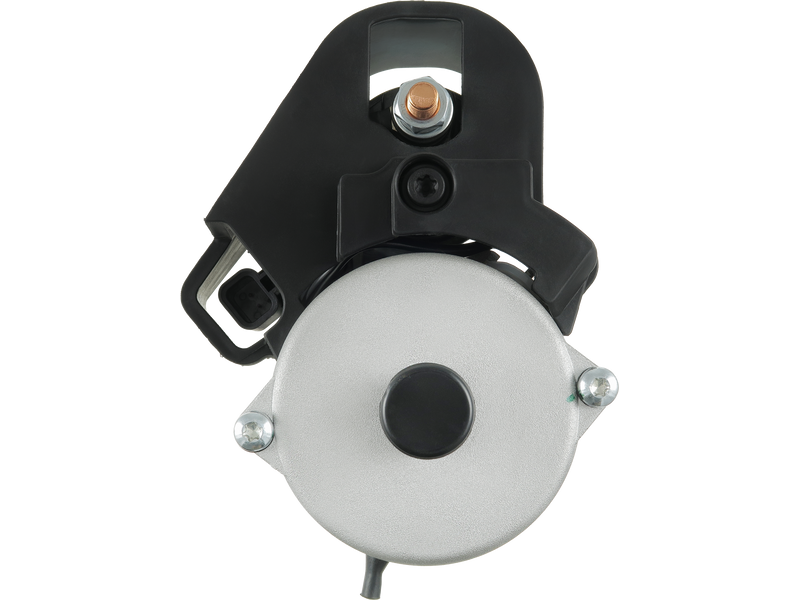

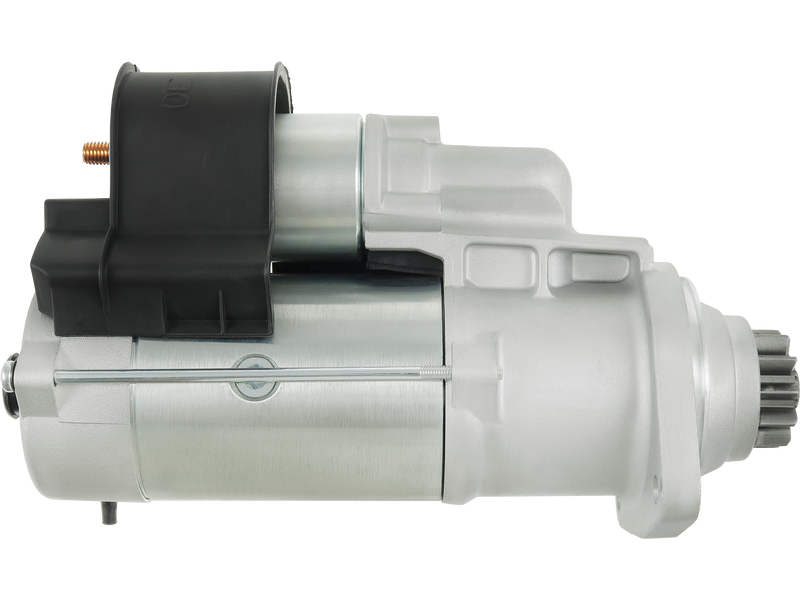

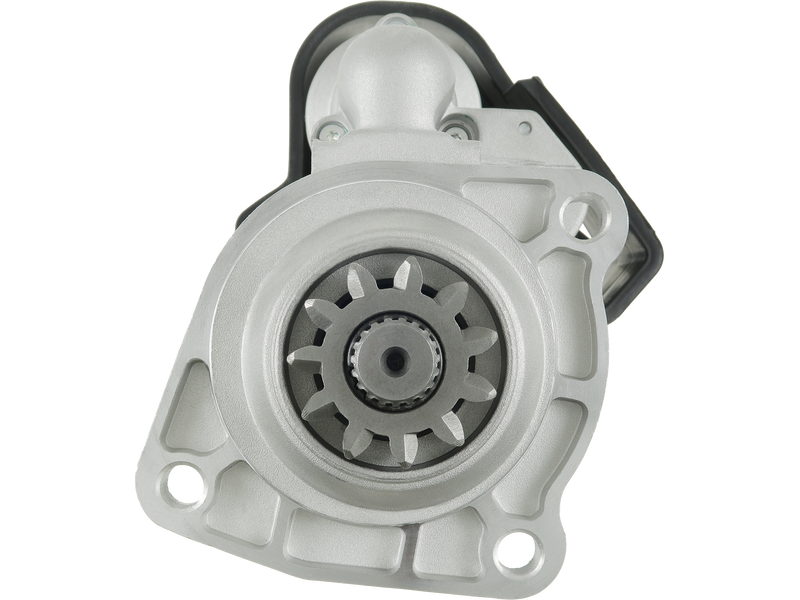

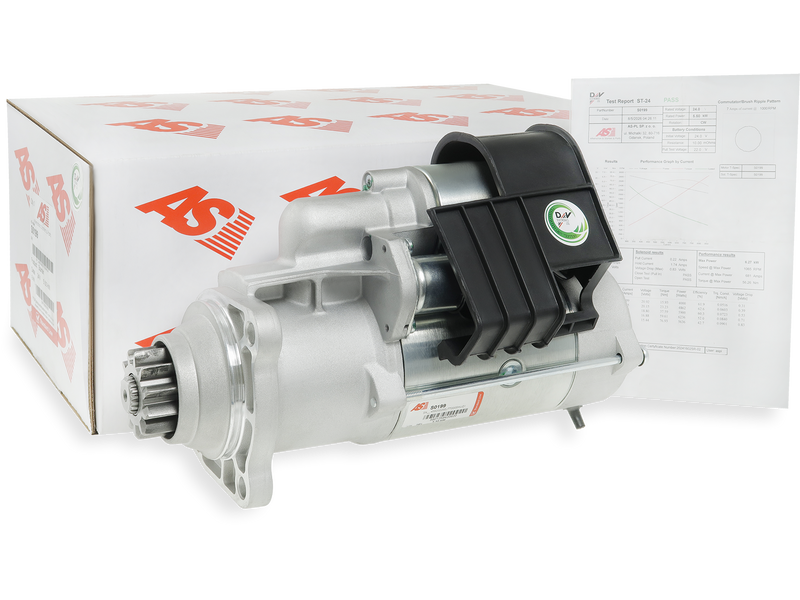

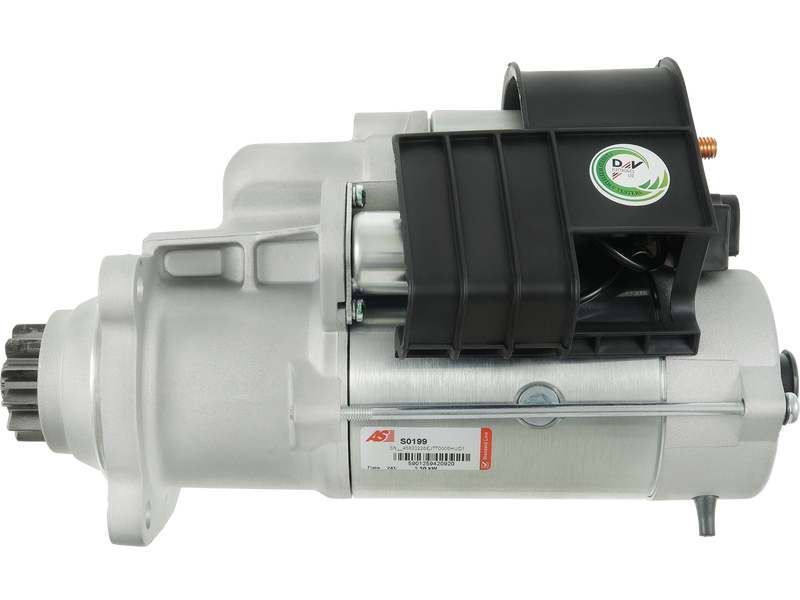

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 928.38 including GST
NZ$ 807.29 excluding GST
or four payments of $232.10
with
Learn More
each
S0199
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001261014Associated Numbers
0001261014 107302 254773 6010768 CST10768 CST10768AS CST10768ES CST10768GS CST10768OS CST10768RS EAA-122503 SG0009 STB4114 STB4114MH STB4114UL STB6114 STB6114MH STB8114 STR50577Specifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 326 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| WEICHAI | WP10 | [WD615] |
Reference Information
| 0001241022 | BOSCH |
| 0001261014 | BOSCH |
| 0001261021 | BOSCH |
| 0001261030 | BOSCH |
| 0001261036 | BOSCH |
| 0001261052 | BOSCH |
| 0001261053 | BOSCH |
| 10010768AV | ITAB AUTOMOTIVE |
| 107302 | FARCOM |
| 120-20165 | ROBERT'S |
| 20401867BN | REAL |
| 254773 | KUHNER |
| 3127114 | HENKEL PARTS |
| 6010768.0 | SANDO |
| 612600090409 | WEICHAI |
| 612600090562 | WEICHAI |
| 612600091076 | WEICHAI |
| 612630030277 | WEICHAI |
| 901.514.113.010 | PSH |
| 901.514.113.210 | PSH |
| CST10768AS | CASCO |
| M105R3040SE | PRESTOLITE |
| MAV127680A | SIOM |
| MS745 | MAHLE |
| PRSE140 | 3EFFE |
| PRSE275 | 3EFFE |
| RNL261014 | RNL |
| S0199 | AS-PL |
| S100706 | BTS TURBO |
| S135.966 | PSH |
| SBO768A | AUTOTEAM |
| SG0009 | GHIBAUDI |
| STB4114 | KRAUF |
| STR10386 | ELECTROLOG |
| STR50577 | WOODAUTO |
| STRE140 | 3EFFE |
| STRE275 | 3EFFE |
| WOOSTR50577 | WOODAUTO |
