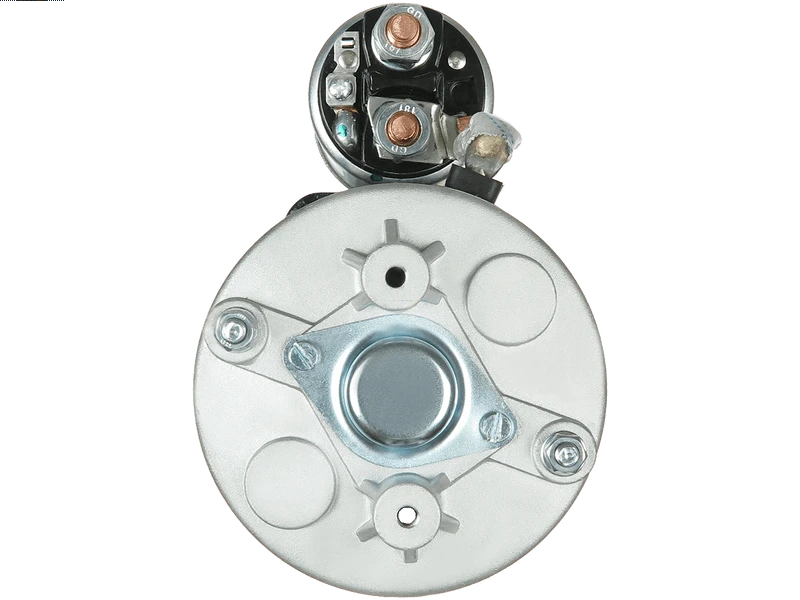

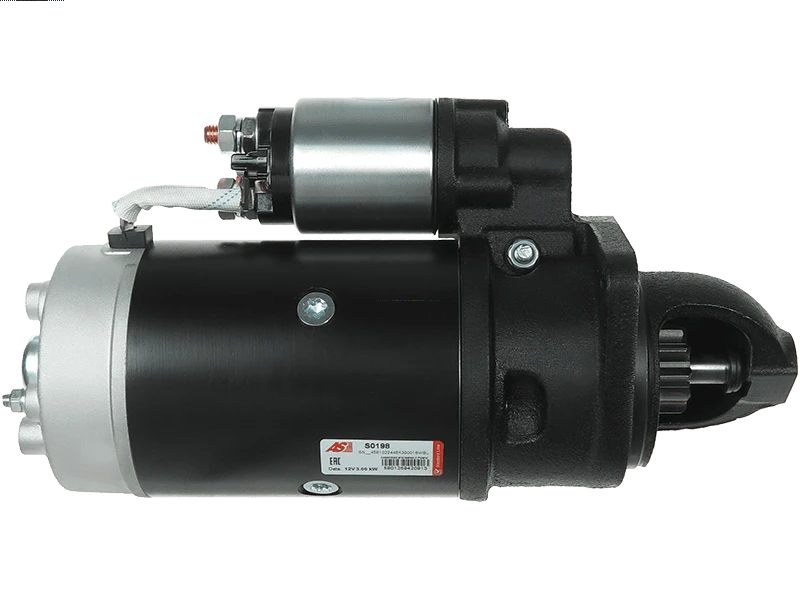

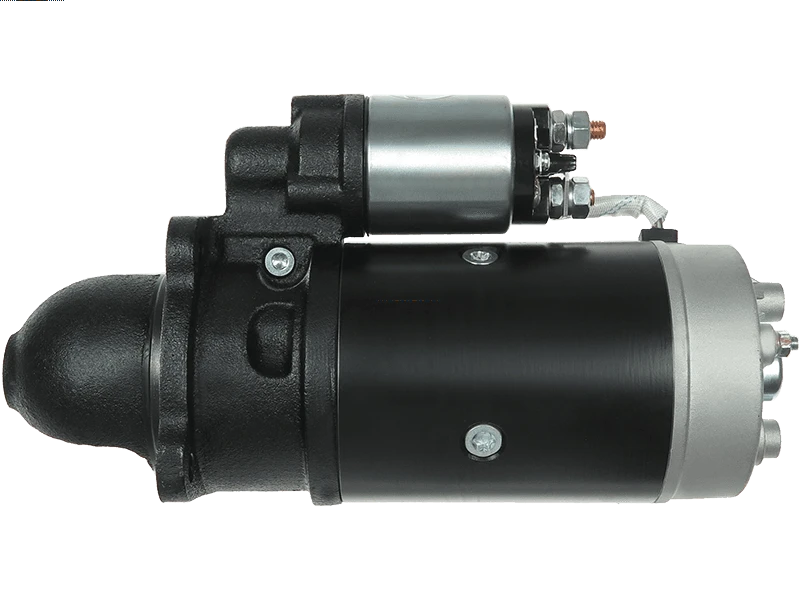

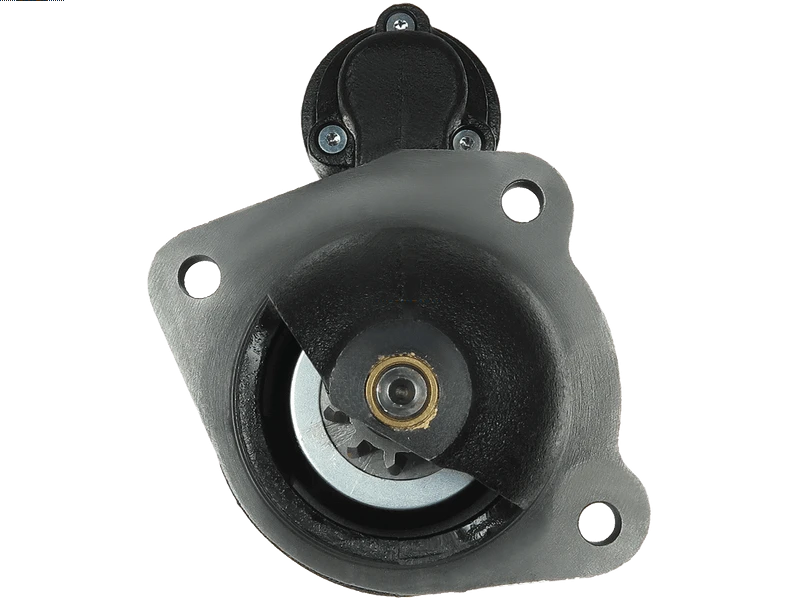

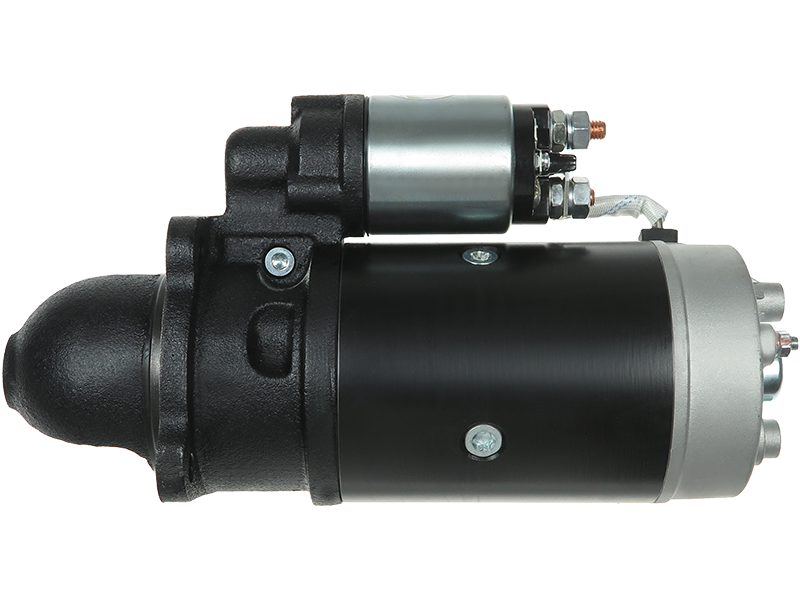

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 448.80 including GST
NZ$ 390.26 excluding GST
or four payments of $112.20
with
Learn More
each
S0198
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001367076Associated Numbers
0001359020 0001359088 0001359117 0001367017 0001367048 0001367076 100-8224 101123 111793 17257N 19024261 20401892BN 20401892EL 22.1123 25-0373 254167 2873D201 2873D202 33573 35261175 3737270 465471 6010298 700.516.103 8502 8735 8735R 88212288 CS1123 CST10298AS CST10298ES LRS01075 STR22048Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 89.50 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 89.50 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | 01.1995-12.2000 | |
| MERCEDES BENZ | Various Models | ||
| VOLVO | F 406 3.9 | [D39B] | 09.1975-02.1986 |
| VOLVO | F 407 3.9 | [D39B] | 09.1975-02.1986 |
Reference Information
| 0001359020 | BOSCH |
| 0001359088 | BOSCH |
| 0001359117 | BOSCH |
| 0001367017 | BOSCH |
| 0001367048 | BOSCH |
| 0001367076 | BOSCH |
| 01471690 | CLAAS |
| 100-8224 | CATERPILLAR |
| 101123 | KUHNER |
| 111793 | CARGO |
| 17257N | WAI / TRANSPO |
| 19024261 | DELCO |
| 20401892BN | REAL |
| 20401892EL | REAL |
| 22.1123 | LAUBER |
| 241232 | VOLVO |
| 25-0373 | ELSTOCK |
| 254167 | KUHNER |
| 2873D201 | PERKINS |
| 2873D202 | PERKINS |
| 331275 | LOGISTIK |
| 33573 | EAI |
| 35261175 | PRESTOLITE |
| 3737270 | CLARK |
| 465471 | VOLVO |
| 481034 | VOLVO |
| 504786 | DAF |
| 56 | CATERPILLAR |
| 560000 | CATERPILLAR |
| 598012 | O&K |
| 6010298 | SANDO |
| 6570660 | CLAAS |
| 700.516.103 | PSH |
| 700719635 | HOLDEN |
| 8502 | CEVAM |
| 8735 | CEVAM |
| 8735R | CEVAM |
| 88212288 | POWERMAX |
| 9000044000 | BOSCH |
| CGB-27750 | AINDE |
| CS1123 | HC PARTS |
| CST10298AS | CASCO |
| CST10298ES | CASCO |
| F032111793 | CARGO |
| LRS01075 | LUCAS |
| LRS1075 | LUCAS |
| MAV122980 | SIOM |
| RNL1775 | RNL |
| S0198 | AS-PL |
| S12BH0386A2 | SIDAT |
| STR1230 | ELECTROLOG |
| STR22048 | WOODAUTO |
| STRL832 | 3EFFE |
| STX200988 | STARDAX |
| STX200988R | STARDAX |
Video/Publications
