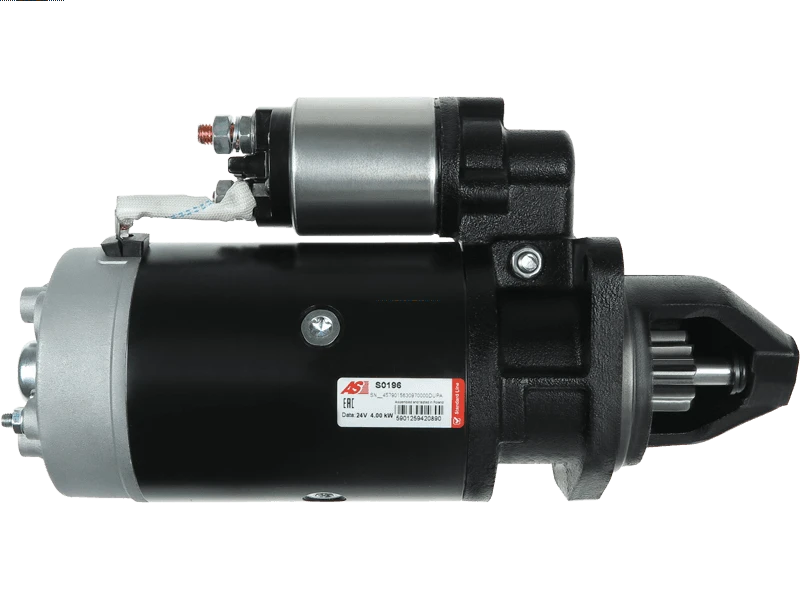

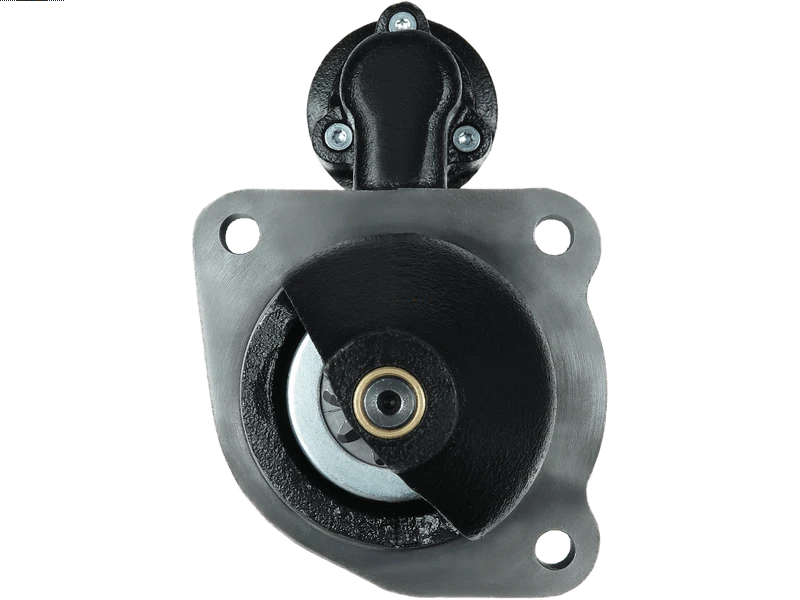

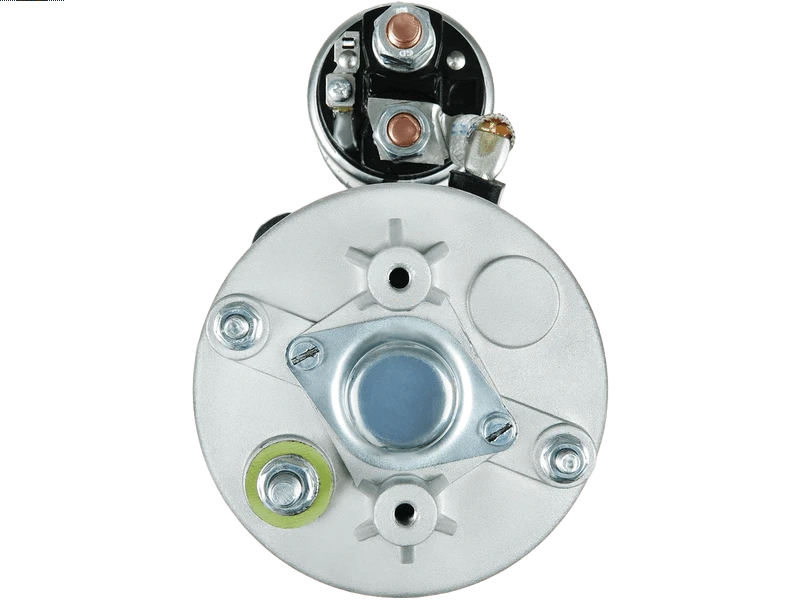

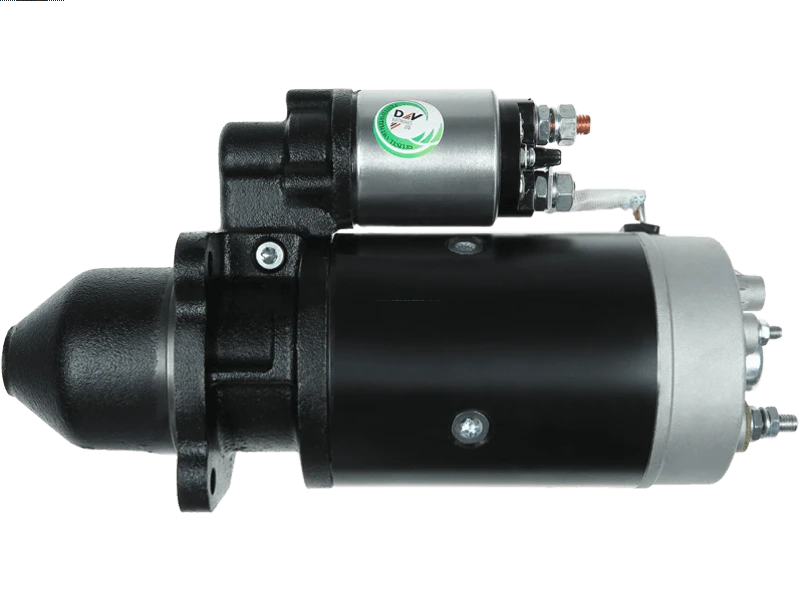

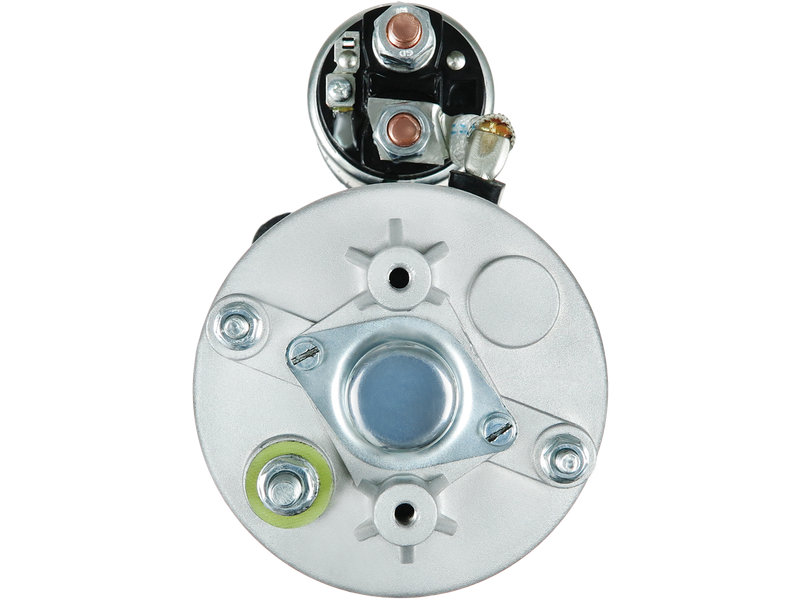

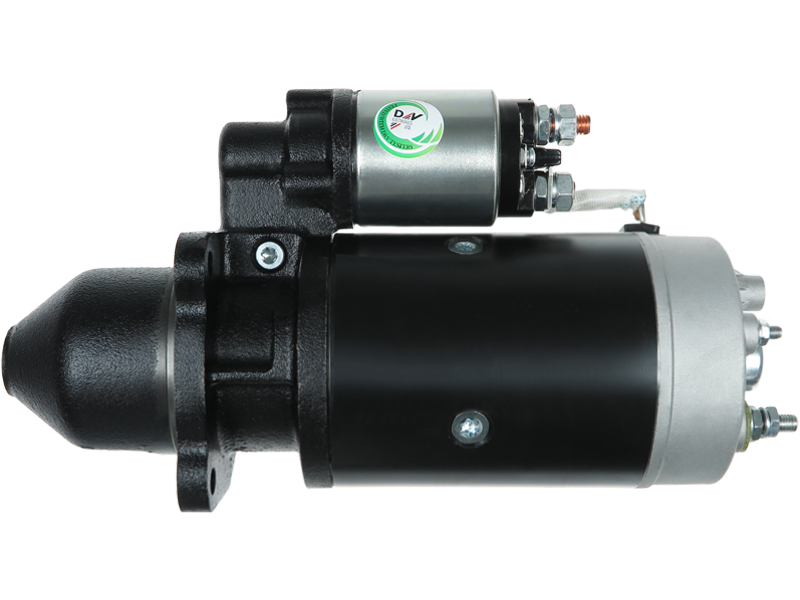

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 491.13 including GST
NZ$ 427.07 excluding GST
or four payments of $122.78
with
Learn More
each
S0196
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368083Associated Numbers
0001368083 0986017520 10989 10989P 111399 1201327 19024262 20401916BN 20401916EL 22.0989 28.0989M 30095N 45-2240 6010619 8503 859022 8EA737238-001 AES1235 CS989 CST10619AS CST10619ES DRS7520 EAA-121515 LRT00135 S0196 STR22034 UD03450SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 341 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 38 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | 45.120 5.9 | [CD85] | 05.1991-12.2000 |
| DAF | 45.130 5.9 | [CN96] | 05.1991-12.2000 |
| DAF | 45.130 5.9 | [CS97M] | 05.1991-12.2000 |
| DAF | 45.130 5.9 | [CT97] | 05.1991-12.2000 |
| DAF | 45.150 5.9 | [CB108] | 05.1991-12.2000 |
| DAF | 45.150 5.9 | [CS107M] | 05.1991-12.2000 |
| DAF | 45.150 5.9 | [CT108] | 05.1991-12.2000 |
| DAF | 45.160 5.9 | [CS119] | 05.1991-12.2000 |
| DAF | 45.160 5.9 | [CT119] | 05.1991-12.2000 |
| DAF | 45.180 5.9 | [CS133M] | 05.1991-12.2000 |
| DAF | 45.210 5.9 | [CS158M] | 05.1991-12.2000 |
| DAF | 55.180 B13 5.9 | [CS133M] | 11.1995- |
| DAF | 55.180 B15 5.9 | [CS133M] | 11.1995- |
| DAF | 55.210 B13 5.9 | [CS158M] | 11.1995- |
| DAF | 55.210 B15 5.9 | [CS158M] | 11.1995- |
| DAF | 55.210 B21 5.9 | [CS158M] | 11.1995- |
| DAF | 55.230 B13 5.9 | [CS173M] | 11.1995- |
| DAF | 55.230 B15 5.9 | [CS173M] | 11.1995- |
Reference Information
| 0001368083 | BOSCH |
| 0986017520 | BOSCH |
| 10989 | KUHNER |
| 10989P | KUHNER |
| 111399 | CARGO |
| 1201327 | DAF |
| 19024262 | DELCO |
| 20401916BN | REAL |
| 20401916EL | REAL |
| 220286 | ERA |
| 22.0989 | LAUBER |
| 28.0989M | LAUBER |
| 30095N | WAI / TRANSPO |
| 330684 | LOGISTIK |
| 45-2240 | ELSTOCK |
| 6010619 | SANDO |
| 8503 | CEVAM |
| 859022 | PRESTOLITE |
| 8EA737238-001 | HELLA |
| AELB426 | DAF |
| AELB426R | DAF |
| AELB426R | LEYLAND |
| AES1235 | AUTOELECTRO |
| AMPB074 | DAF |
| AMPB074 | LEYLAND |
| AMPB074R | LEYLAND |
| AMPB074R | DAF |
| ANM19740X | ANDEL |
| CGB-27520 | AINDE |
| CS989 | HC PARTS |
| CST10619AS | CASCO |
| CST10619ES | CASCO |
| DRS7520 | DELCO |
| F032111399 | CARGO |
| LRT00135 | LUCAS |
| MAV126190 | SIOM |
| PTC-4049 | POWER TRUCK |
| S0196 | AS-PL |
| S24BH0111A2 | SIDAT |
| STR1363 | ELECTROLOG |
| STR22034 | WOODAUTO |
| STRW162 | 3EFFE |
| UD03450S | AS-PL |
Video/Publications
