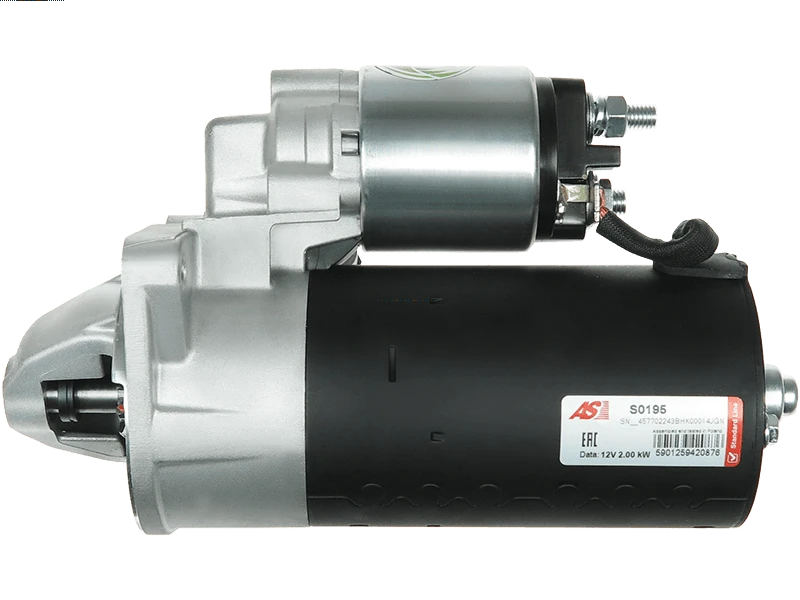

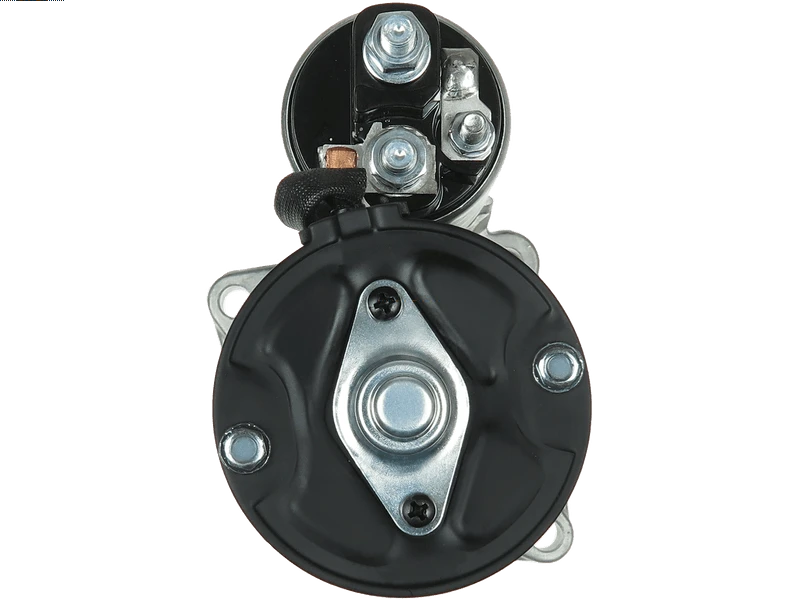

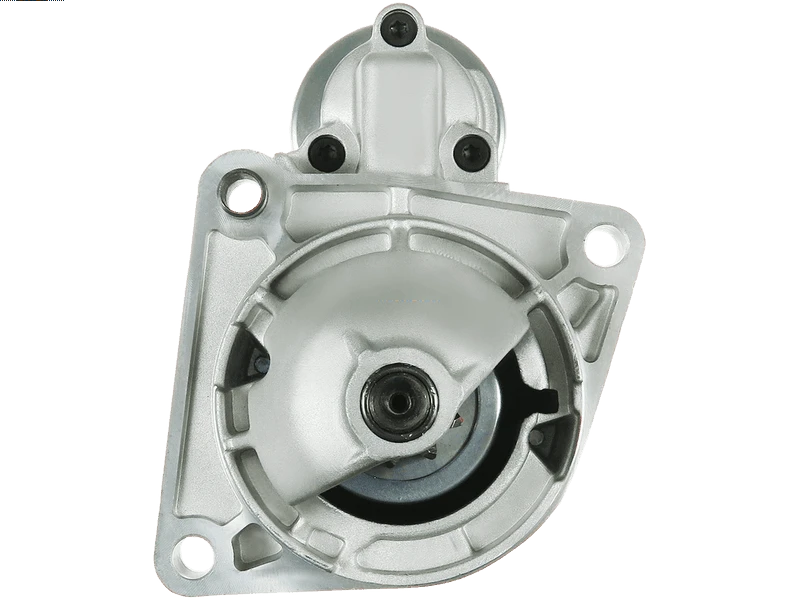

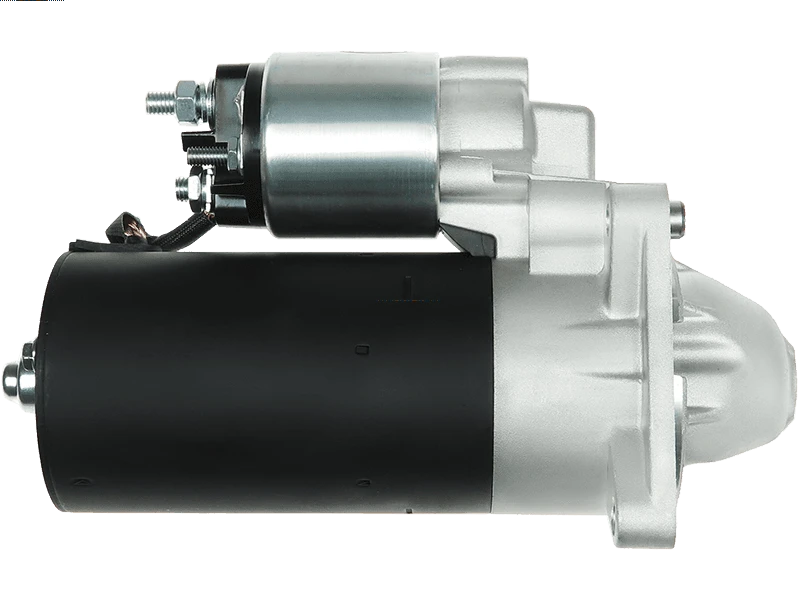

S0195 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 250.01 including GST

NZ$ 217.40 excluding GST



or four payments of $62.50 with
Afterpay Payment Offer Learn More

each
S0195
3
Purchase Qty:

0001109030
0001109030 0001115021 0001115025 0986017790 0986021830 101045 101045B 101045M 101264 101264B 101264M 11.130.997 113430 11808 11932 20401782 20401782BN 20401782OE 20404111RC 20510199 22.1045 25-3002 31202N 32669N 3680 42018900 458212 46430784 46473784 46478945 500.532.093 551952110 6010287 6030111 60814911 63113002 726043 726843 8017790 8018900 88212453 8EA011610-011 AES1299 AZE2111 CS1045 CST10287AS CST10287GS CST10425GS CST30111RS DRS3314 EAA-121039 EAA-121150 GS109030-A GS109030B-R LRT00199 RNL109030 S0195 STR52046
Kilowatt2 kW
Length (L.1)236 mm
Mount Hole Center - Center (O.1)83 mm
Mount Hole Center - Center (O.2)116 mm
Mount Hole Center - Center (O.3)83 mm
Mount Hole Diameter (C.1)8.50 mm
Mount Hole Diameter (C.2)8.50 mm
Mount Hole Diameter (C.3)8.50 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9. 11 qty
OEM ProductNo
Pinion at Rest (B)9 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)82 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
ALFA ROMEO 145 1.9 JTD [AR32302] 02.1999-01.2001
ALFA ROMEO 147 1.9 JTD [937A2.000] 11.2000-05.2002
ALFA ROMEO 147 1.9 JTD 16V [192A5.000] 04.2005-
ALFA ROMEO 147 1.9 JTD 16V [937A4.000] 04.2005-
ALFA ROMEO 147 1.9 JTDM [937A6.000] 06.2008-
ALFA ROMEO 147 1.9 JTDM 16V [937A5.000] 07.2005-
ALFA ROMEO 156 1.9 JTD [937A2.000] 05.2001-05.2006
ALFA ROMEO 156 1.9 JTD [AR32302] 09.1997-10.2000
ALFA ROMEO 156 1.9 JTD [AR37101] 10.2000-12.2001
ALFA ROMEO 159 1.9 JTDM 16V [937A8.000] 09.2005-
ALFA ROMEO 159 1.9 JTDM 16V [939A2.000] 09.2005-
ALFA ROMEO 159 1.9 JTDM 16V [939A8.000] 09.2005-
ALFA ROMEO 159 1.9 JTDM 8V [939A7.000] 09.2005-
FIAT Brava 1.9 JTD [182B4.000] 12.1998-10.2001
FIAT Brava 1.9 JTD [182B9.000] 09.2000-10.2001
FIAT Brava 1.9 TD [182A7.000] 03.1996-10.2001
FIAT Brava 1.9 TD [182A8.000] 03.1996-10.2001
FIAT Bravo 1.6 Multijet [198A2.000] 03.2008-
FIAT Bravo 1.9 Diesel Multijet [937A5.000] 04.2007-
FIAT Bravo 1.9 JTD [182B4.000] 12.1998-10.2001
FIAT Bravo 1.9 JTD [182B9.000] 09.2000-10.2001
FIAT Bravo 1.9 TD [182A7.000] 03.1996-10.2001
FIAT Croma 1.9 Diesel Multijet [939A2.000] 06.2005-
FIAT Doblo 1.9 JTD [182B9.000] 10.2001-
FIAT Doblo 1.9 JTD [223A7.000] 10.2001-09.2005
FIAT Doblo 1.9 JTD [223B1.000] 10.2001-09.2005
FIAT Doblo 1.9 JTD [223B2.000] 10.2001-
FIAT Grande Punto 1.9 Diesel Multijet [199A5.000] 10.2005-
FIAT Marea 1.9 JTD [182B4.000] 04.1999-01.2001
FIAT Marea 1.9 JTD [186A6.000] 01.2001-
FIAT Marea 1.9 TD [182A7.000] 09.1996-
FIAT Marea 1.9 TD [182A8.000] 09.1996-
FIAT Marea 1.9 TDi [182A7.000] 09.1996-
FIAT Marengo 1.9 JTD [182B4.000] 03.1999-09.2002
FIAT Marengo 1.9 JTD [186A6.000] 08.2000-09.2002
FIAT Marengo 1.9 TD [182A7.000] 01.1997-02.1999
FIAT Marengo 1.9 TD [182A8.000] 03.1999-09.2002
FIAT Multipla 1.9 JTD [182B4.000] 04.1999-
FIAT Multipla 1.9 JTD [186A6.000] 03.2001-
FIAT Multipla 1.9 JTD [186A8.000] 07.2002-
FIAT Punto 1.9 JTD [188A2.000] 09.1999-
FIAT Punto 1.9 JTD [188A7.000] 06.2001-06.2003
FIAT Stilo 1.9 Diesel [192B5.000] 09.2004-
FIAT Stilo 1.9 Diesel Multijet [192A8.000] 09.2005-
FIAT Stilo 1.9 Diesel Multijet [192A9.000] 09.2005-
FIAT Stilo 1.9 Diesel Multijet [937A5.000] 09.2005-
FIAT Stilo 1.9 JTD [192A1.000] 10.2001-
FIAT Stilo 1.9 JTD [192A3.000] 10.2001-
FIAT Stilo 1.9 JTD [192B5.000] 09.2004-
FIAT Stilo 1.9 JTD [937A7.000] 01.2003-
FIAT Strada 1.9 JTD [188A2.000] 04.2003-
LANCIA Lybra 1.9 JTD [937A2.000] 05.2001-
LANCIA Lybra 1.9 JTD [AR32302] 07.1999-09.2000
LANCIA Lybra 1.9 JTD [AR37101] 09.2000-
LANCIA Lybra 1.9 JTD SW [AR37101] 09.2000-
LANCIA Lybra 2.4 JTD [839A5.000] 10.1999-09.2000
LANCIA Lybra 2.4 JTD [839A6.000] 09.2000-05.2002
LANCIA Lybra 2.4 JTD [AR32501] 10.1999-09.2000
LANCIA Lybra 2.4 JTD SW [839A6.000] 09.2000-05.2002
LANCIA Thesis 2.4 JTD [841C.000] 04.2002-
0001109030BOSCH
0001109045BOSCH
0001109253BOSCH
0001109268BOSCH
0001109269BOSCH
0001109270BOSCH
0001109336BOSCH
0001109337BOSCH
0001109438BOSCH
0001109517BOSCH
0001115021BOSCH
0001115025BOSCH
004765911FIAT
063113002010MAGNETI MARELLI
063114008010MAGNETI MARELLI
063521082390MAGNETI MARELLI
063521092680MAGNETI MARELLI
063721045010MAGNETI MARELLI
063721264010MAGNETI MARELLI
0986017790BOSCH
0986018900BOSCH
101045KUHNER
101045BKUHNER
101045MKUHNER
10439572ALANKO
10440734ALANKO
10440790ALANKO
11.130.997ISKRA / LETRIKA
113297CARGO
113430CARGO
11932EAI
1202282CADILLAC
1202282OPEL
12130176AES
201068VALEO
201162VALEO
20401492BNREAL
20401492OEREAL
20401492REREAL
20401782BNREAL
20401782OEREAL
20401782REREAL
20404111BNREAL
20404111OEREAL
20404111RCREAL
20510199PRESTOLITE
220149ERA
220720ERA
25-3002ELSTOCK
31100-79J00SUZUKI
3110079J00000SUZUKI
31100-79J00-000SUZUKI
31100-H79J0-0000SUZUKI
31100H79J00-000SUZUKI
311348RHIAG
32669NWAI / TRANSPO
331197LOGISTIK
331458LOGISTIK
3680CEVAM
42018900HERTH+BUSS
438369VALEO
458212VALEO
458550VALEO
46430784FIAT
46451895FIAT
46463250FIAT
46473784FIAT
46478945FIAT
46748351FIAT
46800159FIAT
46817002FIAT
46823543FIAT
4765911FIAT
4765911IVECO
500.579.093.010PSH
500.579.093.018PSH
500.579.093.210PSH
500.579.093.215PSH
500.579.093.770PSH
5010034MEAT & DORIA
51782321FIAT
51832953FIAT
51832954CHRYSLER
51832954FIAT
55192482FIAT
55195029FIAT
55195211FIAT
551952110FIAT
55585237VAUXHALL
55585237CADILLAC
55585237CHEVROLET
55585237SAAB
55832954FIAT
6010287.0SANDO
6010287.1SANDO
6010294.0SANDO
6010294.1SANDO
6010294.4SANDO
6030111.0SANDO
6030111.1SANDO
6030111.2SANDO
60814911FIAT
60816083FIAT
6202074OPEL
63113002MAGNETI MARELLI
71721240FIAT
71721774FIAT
71722349FIAT
71723345FIAT
71723462FIAT
71746669FIAT
71782379FIAT
71782384FIAT
71782386FIAT
71789267FIAT
71792037FIAT
726043VALEO
726204VALEO
726843VALEO
72736001MAHLE
838049VALEO
88212443POWERMAX
88212453POWERMAX
8EA011610-011HELLA
8EA737294-001HELLA
93951832953PININFARINA
93955195029PININFARINA
943114008010MAGNETI MARELLI
943210451010MAGNETI MARELLI
944280177900MAGNETI MARELLI
944280189000MAGNETI MARELLI
AES1299AUTOELECTRO
ANM15534XANDEL
ASM1028APEC
AZE2111ISKRA / LETRIKA
CGB-23314AINDE
CGB-53002AINDE
CS1045HC PARTS
CST10287ASCASCO
CST10287GSCASCO
CST10287OSCASCO
CST10294ASCASCO
CST10294GSCASCO
CST10294OSCASCO
CST30111ASCASCO
CST30111GSCASCO
CST30111RSCASCO
DENDSN3018WOODAUTO
DRS3314DELCO
DRS3314XDELCO
F032113297CARGO
F032113430CARGO
GS109030-AGPARTS
GS109030B-RGPARTS
IS0997ISKRA / LETRIKA
LRT00199LUCAS
LRT199LUCAS
MAV122940SIOM
MQS1045MAGNETI MARELLI
MRS17790MAGNETI MARELLI
MRS18900MAGNETI MARELLI
MS373MAHLE
MSN610MAGNETI MARELLI
MSR610MAGNETI MARELLI
MSRC1045MAGNETI MARELLI
NPANSM1028NAPA
PRSL0083EFFE
PRSS2073EFFE
RAS34425DELCO
S0195AS-PL
S12BH0020A2SIDAT
S12BH0789A2SIDAT
S132.805PSH
SG0099GHIBAUDI
STA0007RBOVEZ
STB1045KRAUF
STM1035ROLLCO
STR1945ELECTROLOG
STR52046WOODAUTO
STR79103ELECTROLOG
STRL0083EFFE
STRL008B3EFFE
STRS2073EFFE
STX200011STARDAX
STX200011RSTARDAX
STX200037STARDAX
STX200037RSTARDAX
STX200200STARDAX
STX200200RSTARDAX
STX200294STARDAX
S0195
