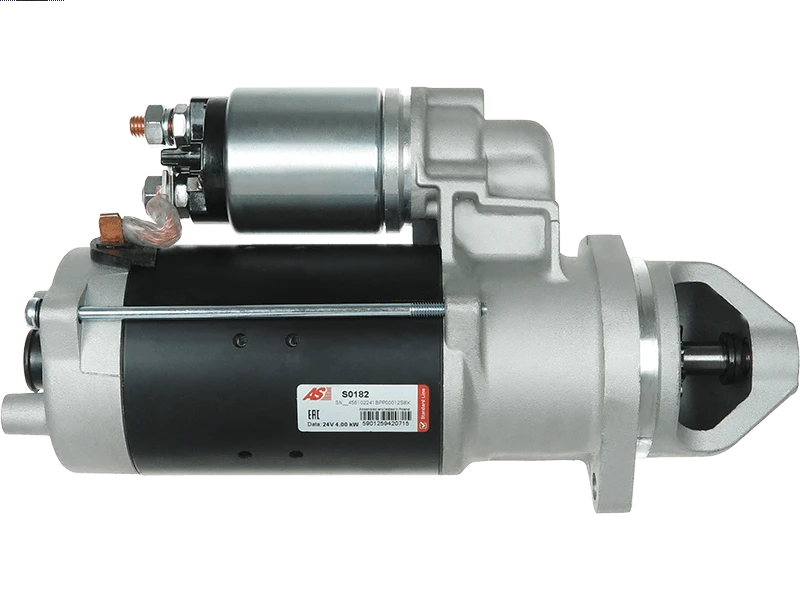

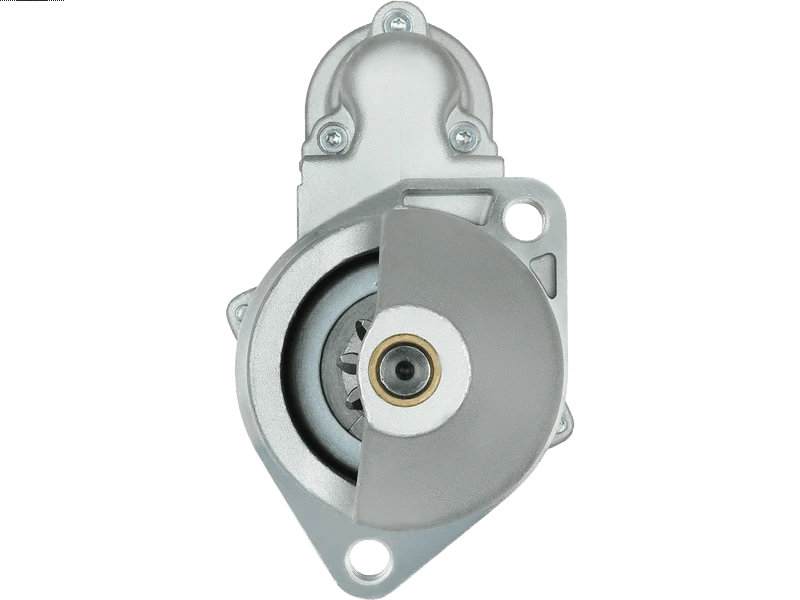

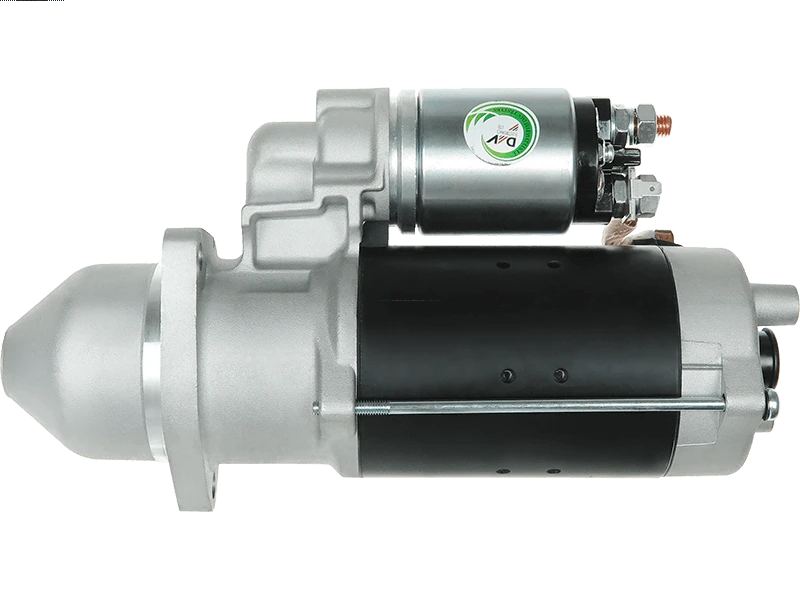

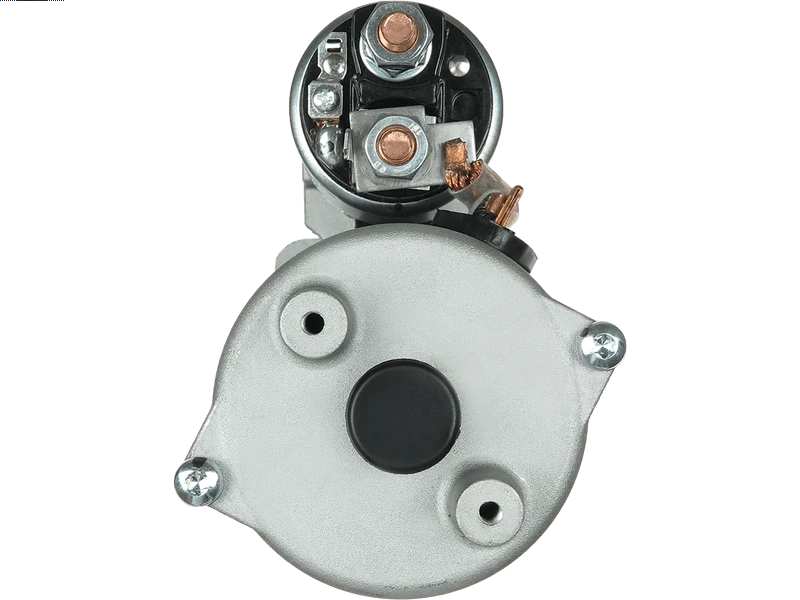

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 506.52 including GST
NZ$ 440.45 excluding GST
or four payments of $126.63
with
Learn More
UOM:
each
Product Code:
S0182
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001231018Associated Numbers
116132 04300286 8110 45-4402 LRS02729 MS68 72735696 88213990 19083008 SG0550 BOS0001231018 MAHMS68 STB4220 STI4220 116132 04300286 8110 45-4402 LRS02729 MS68 72735696 88213990 19083008 SG0550 BOS0001231018 MAHMS68 STB4220 STI4220 0001101110 0001231018 01171750 01181753 01182126 01182390 04300286 063522310180 11.131.607 11.131.863 114220 1181753 1182126 1182390 19724 20401486OE 20419506OE 254308 254308M 260-23219 30329N 511.502.092 6010684 6021605 63522310 AZF4156 AZF4230 CST10684GS CST21605GS DRS0366 DRS0366N EAA-121383 IS1236 LETIS1236 MSN2046 S0182 S9099(LETRIKA) STR50079 UD11166S UNITBOM120-6370Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 320 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AHLMANN | 11 4.0 | BF4M1012EC | 01.1995-12.2001 |
| AHLMANN | 11S 3.2 | BF4L1012EC | 01.1994-12.2001 |
| AHLMANN | 14 4.0 | BF4M1012E | 01.1995-12.2001 |
| AHLMANN | 14 4.0 | BF4M1012EC | 01.1995-12.2001 |
| BMW | 2 Active Tourer (F45) 216 d | B37C15A | 03.2014-10.2021 |
| DEUTZ-FAHR | 1011 3.6 | D2011L4W | 01.2004-12.2009 |
| DEUTZ-FAHR | 2011 1.6 | D2011L02 | 01.2010-12.2015 |
| DEUTZ-FAHR | 2011 1.6 | TD2011-L2 | 01.2005-12.2011 |
| DEUTZ-FAHR | 2011 2.3 | TD2011-L3 | 01.2005-12.2012 |
| DEUTZ-FAHR | 2011 3.1 | BF4M2011 | 01.2001-12.2007 |
| DEUTZ-FAHR | 2011 3.6 | TCD2011L1 | 01.2007-12.2013 |
| DEUTZ-FAHR | 2011 3.6 | TD2011L4 | 01.2005-12.2012 |
| DEUTZ-FAHR | Various Models | ||
| DYNAPAC | F5CS 2.3 | BF3M201 | 01.2002-12.2008 |
| KHD | Engine 1.6 | TD2011 | 01.2005-12.2011 |
| KHD | Engine 2.3 | TD2011 | 01.2005-12.2012 |
| KHD | Engine 3.1 | BF4M2011 | 01.2001-12.2007 |
| KHD | Engine 3.6 | TD2011 | 01.2005-12.2012 |
| MECALAC | AS 11 4.0 | BF4M1012 | 01.1996-12.2000 |
| MECALAC | AS 14 4.0 | BF4M1012 | 01.1998-12.2005 |
| VOGELE | SUPER 1100-2 3.6 | TCD2011 | 01.2006-12.2014 |
| VOGELE | SUPER 1300-2 3.6 | TCD2011 | 01.2006-12.2014 |
| VOGELE | SUPER 600 2.3 | TCD2011 | 07.1990-12.2015 |
| VOGELE | SUPER 700 2.3 | TCD2011 | 07.1990-12.2015 |
| VOGELE | SUPER 800 2.3 | TCD2011 | 07.1990-12.2015 |
| WIRTGEN | TCM 1800 3.6 | D2011 | 01.2004-12.2012 |
| WIRTGEN | TCM 950 3.6 | D2011 | 01.2004-12.2012 |
| WIRTGEN | W 35 3.6 | D2011 | 02.2003-05.2003 |
| WIRTGEN | W 35 DC 3.6 | D2011 | 02.2003-05.2003 |
| WIRTGEN | W 50 3.6 | TD2011 | 02.2003-05.2003 |
Reference Information
| 0001101110 | BOSCH |
| 0001231018 | BOSCH |
| 0001263069 | BOSCH |
| 0001263089 | BOSCH |
| 01171750 | KHD |
| 01181753 | KHD |
| 01182126 | KHD |
| 01182390 | KHD |
| 042493 | DA SILVA |
| 04300286 | KHD |
| 063522310180 | MAGNETI MARELLI |
| 10010684AV | ITAB AUTOMOTIVE |
| 10010684OV | ITAB AUTOMOTIVE |
| 10438629 | ALANKO |
| 105159 | FARCOM |
| 11.131.607 | ISKRA / LETRIKA |
| 11.131.863 | ISKRA / LETRIKA |
| 114220 | CARGO |
| 116132 | CARGO |
| 1171750 | KHD |
| 1181753 | KHD |
| 1182126 | KHD |
| 1182390 | KHD |
| 19083008 | DELCO |
| 19724 | LESTER |
| 20401486BN | REAL |
| 20401486OE | REAL |
| 220859A | ERA |
| 254308 | KUHNER |
| 254308M | KUHNER |
| 254308S | KUHNER |
| 260-23219 | DIXIE |
| 30-0726 | AIRSTAL |
| 30329N | WAI |
| 332134 | LOGISTIK |
| 4300286 | KHD |
| 45-4402 | ELSTOCK |
| 5110032 | MEAT & DORIA |
| 5110032G | MEAT & DORIA |
| 511.502.092.010 | WAI |
| 511.502.092.090 | WAI |
| 511.502.092.280 | WAI |
| 511.502.092.310 | WAI |
| 511.502.092.340 | WAI |
| 511.502.092.391 | WAI |
| 600243094 | DRI |
| 6010684.0 | SANDO |
| 6010684.1 | SANDO |
| 63522310 | MAGNETI MARELLI |
| 72735696 | MAHLE |
| 8110 | CEVAM |
| 88213990 | POWERMAX |
| 8880534 | FRIESEN |
| AM-2175 | AUTO MAGNETO |
| ANM12586 | ANDEL |
| ANM12586X | ANDEL |
| AZF4156 | ISKRA / LETRIKA |
| AZF4230 | ISKRA / LETRIKA |
| BOS0001231018 | WOODAUTO |
| BREF032114220 | CARWOOD GROUP |
| CGB-31018 | AINDE |
| CST0417 | COMLINE |
| CST10684AS | CASCO |
| CST10684GS | CASCO |
| DRS0366 | DELCO |
| DRS0366N | DELCO |
| F032114220 | CARGO |
| F032116132 | CARGO |
| H5110032 | HOFFER |
| H5110032G | HOFFER |
| IS1236 | ISKRA / LETRIKA |
| LETIS1236 | WOODAUTO |
| LRS02729 | LUCAS |
| LRS2729 | LUCAS |
| MAHMS68 | WOODAUTO |
| MAV126840 | SIOM |
| MAV126840A | SIOM |
| MS68 | MAHLE |
| MSN2046 | MAGNETI MARELLI |
| PTC-4330 | POWER TRUCK |
| RNL231018 | RNL |
| S0182 | AS-PL |
| S100680 | BTS TURBO |
| S104404 | BTS TURBO |
| S104405 | BTS TURBO |
| S133.390 | WAI |
| S144.533 | WAI |
| S24BH0015 | SIDAT |
| S24BH0015A2 | SIDAT |
| SER84222-12B1 | DELCO REMY |
| SG0550 | GHIBAUDI |
| ST02718 | TMI |
| STB4220 | KRAUF |
| STR1173 | ELECTROLOG |
| STR50079 | WOODAUTO |
| STR60644 | WOODAUTO |
| STR7975 | ELECTROLOG |
| TT16063 | TESLA TECHNICS |
| UD11166S | AS-PL |
| WG2644640 | WILMINK GROUP |
| WOOSTR50079 | WOODAUTO |
| WOOSTR60644 | WOODAUTO |
Video/Publications
