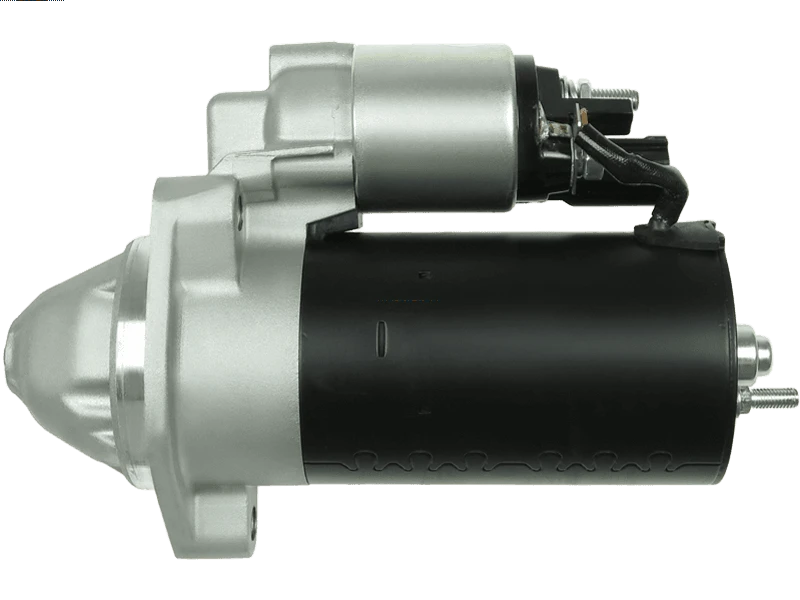

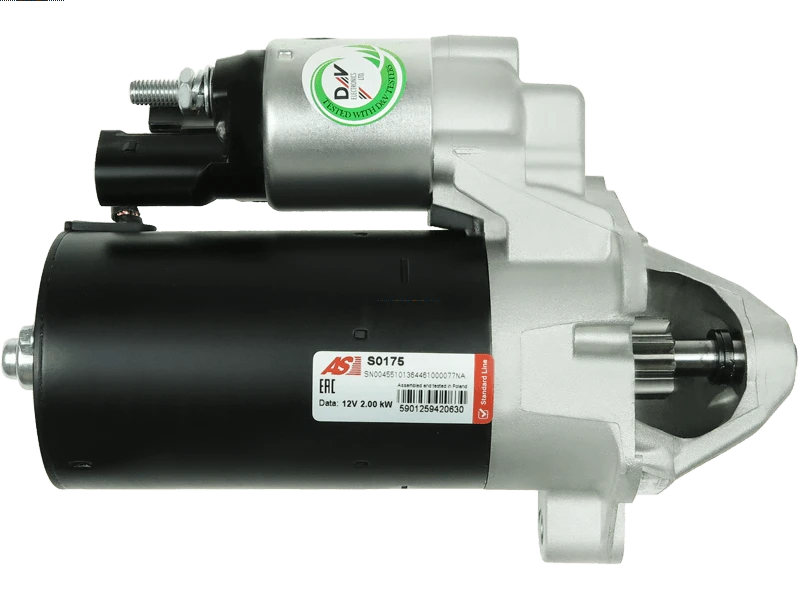

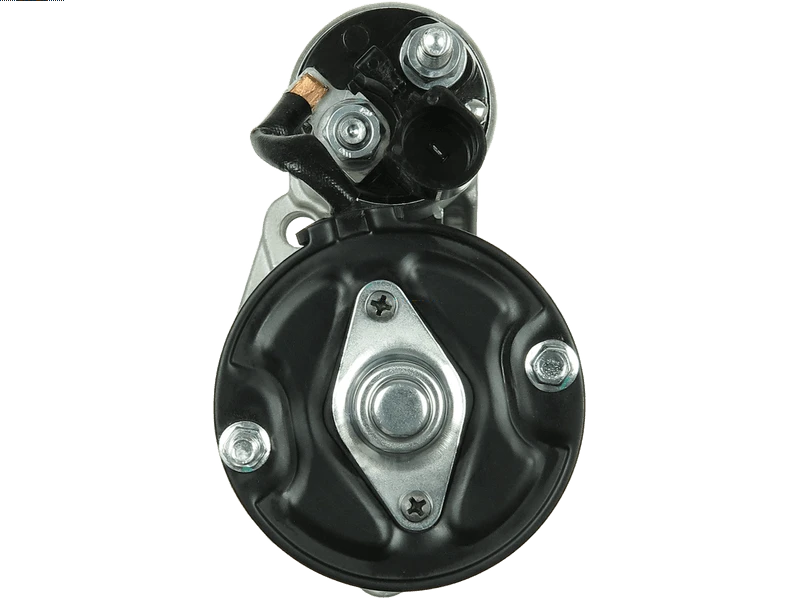

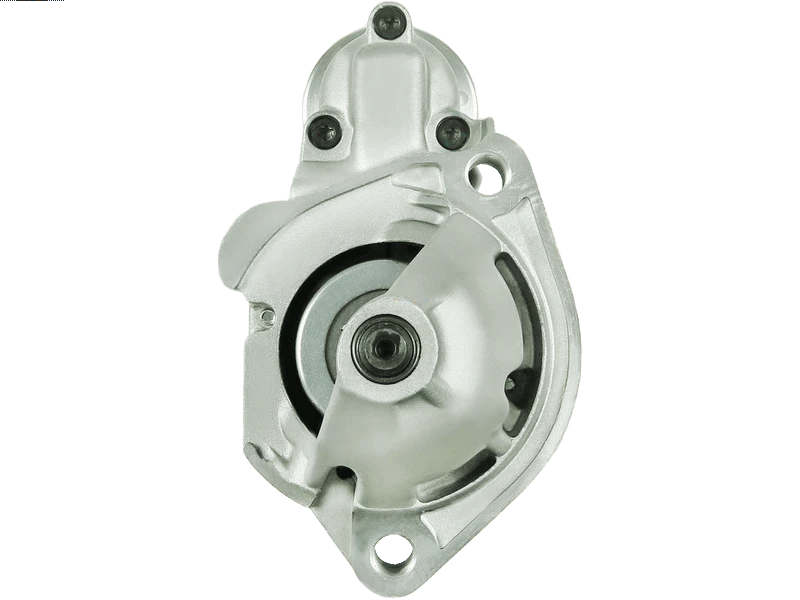

S0175 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	241 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A4 1.9 TDi	[8E]	01.2006-
AUDI	A4 1.9 TDi	[BKE]	11.2004-06.2008
AUDI	A4 1.9 TDi	[BRB]	11.2004-06.2008
AUDI	A4 2.0 TDi	[8EC, 8ED, 8H7, 8HE]	11.2004-
AUDI	A4 2.0 TDi	[8EC,8ED,8H7,8HE]	11.2004-
AUDI	A4 2.0 TDi	[BNA]	11.2004-06.2008
AUDI	A4 2.0 TDi	[BPW]	01.2006-03.2009
AUDI	A4 2.0 TDi	[BPW]	11.2004-06.2008
AUDI	A4 2.0 TDi	[BRC]	01.2006-03.2009
AUDI	A4 2.0 TDi	[BRD]	06.2006-06.2008
AUDI	A4 2.0 TDi	[BRF]	11.2004-06.2008
AUDI	A4 2.0 TDi	[BVF]	11.2005-11.2006
AUDI	A4 2.0 TDi 16V	[BLB]	11.2004-06.2008
AUDI	A4 2.0 TDi 16V	[BRE]	11.2004-06.2008
AUDI	A4 2.0 TDi Quattro	[8EC, 8ED, 8H7, 8HE]	11.2004-
AUDI	A4 2.0 TDi Quattro	[8EC,8ED,8H7,8HE]	11.2004-
AUDI	A4 2.0 TDi Quattro	[BPW]	01.2006-06.2008
AUDI	A4 2.0 TDi Quattro	[BRD]	06.2006-06.2008
AUDI	A6 2.0 TDi	[4F2, 4F5]	04.2009-
AUDI	A6 2.0 TDi	[4F2,4F5]	04.2009-
AUDI	A6 2.0 TDi	[4F2,4F5]	07.2004-
AUDI	A6 2.0 TDi	[BLB]	06.2005-10.2008
AUDI	A6 2.0 TDi	[BLB]	07.2004-10.2008
AUDI	A6 2.0 TDi	[BNA]	06.2005-08.2011
AUDI	A6 2.0 TDi	[BNA]	07.2004-03.2011
AUDI	A6 2.0 TDi	[BRE]	06.2005-10.2008
AUDI	A6 2.0 TDi	[BRE]	07.2004-10.2008
AUDI	A6 2.0 TDi	[BRF]	06.2005-08.2011
AUDI	A6 2.0 TDi	[BRF]	07.2004-03.2011
AUDI	A6 2.0 TDi	[CAGB]	06.2005-08.2011
AUDI	A6 2.0 TDi	[CAGB]	07.2004-03.2011
AUDI	A6 2.0 TDi	[CAHA]	10.2008-08.2011
AUDI	A6 2.0 TDi	[CAHA]	11.2008-03.2011
SEAT	Exeo 2.0 TDi	[CAGA]	12.2008-
SEAT	Exeo 2.0 TDi	[CAGC]	08.2009-
SEAT	Exeo 2.0 TDi	[CAHA]	02.2009-
SEAT	Exeo 2.0 TDi	[CJCA]	12.2008-
SEAT	Exeo 2.0 TDi	[CJCC]	08.2009-
SEAT	Exeo 2.0 TDi ST	[CAGA]	05.2009-
SEAT	Exeo 2.0 TDi ST	[CAGC]	07.2009-
SEAT	Exeo 2.0 TDi ST	[CAHA]	05.2009-
SEAT	Exeo 2.0 TDi ST	[CJCA]	05.2009-
SEAT	Exeo 2.0 TDi ST	[CJCC]	07.2009-

Reference Information

068911024CX 220870 MSN2139 58911023BX 68911024FX DT2720 CST10384ES 068911023RX 58911023BV 101423 33327N 068911024BX 3G911023A STRL290 68911024GX 6010384 25-4007 CST10384 S1052B DRT1610 058911023BV 068911023P STR0022 1109064 068911023R 000986021610 068911023S 3G911023AX 1109065 20401483BN 8EA738258-711 STR1517 114177 CST10384GS 068911023PX 068911024B 068911024C 068911024BV 068911024E 068911024F 068911024G CST10384OS 5010148 6B911023 MSRC1423 42021610 986021610 MQS1423 6B911023X 438072 STA0428R LRS2335 68911023PX 68911024BV 220037 CST10384AS 58911023B ANM23830X 68911024BX 8EA012526-091 03G911023AX 63521090640 101423B 53911023A 53911023B 726044 12083 10624V 10624K AEY2335 MAV122120 10624 S12BH0170A2 10624B 68911024CX 0001109064 0001109065 068911024GX 455933 88212323 68911023R 68911023RX 68911023S 20401483OE 53911023BX 200.523.092.010 68911023P 200.523.092 LRS02335 9.43214E+11 RNL2161 068911024FX S0175 68911023SX 63721423010 03G911023A CST10384RS BOS0001109064 CS1423 53911023AX 068911023SX 68911024EX 331146 EAA-121244 68911024E 68911024F 68911024C 68911024G 304193 068911024EX 68911024B SG0648

Video/Publications

0001109064 0001109065 03G911023A 03G911023AX 063521090640 063721423010 0986021610 101423 101423B 10624 10624B 10624K 10624V 114177 12083 200.523.092 20401483BN 20401483OE 220870 25-4007 33327N 42021610 438072 455933 6010384 726044 88212323 8EA012526-091 8EA738258-711 943214231010 AEY2335 BOS0001109064 CS1423 CST10384 CST10384AS CST10384ES CST10384GS CST10384OS CST10384RS DRT1610 DT2720 EAA-121244 LRS02335 LRS2335 MAV122120 MQS1423 MSN2139 MSRC1423 RNL2161 S0175 S1052B SG0648 STRL290 220037
