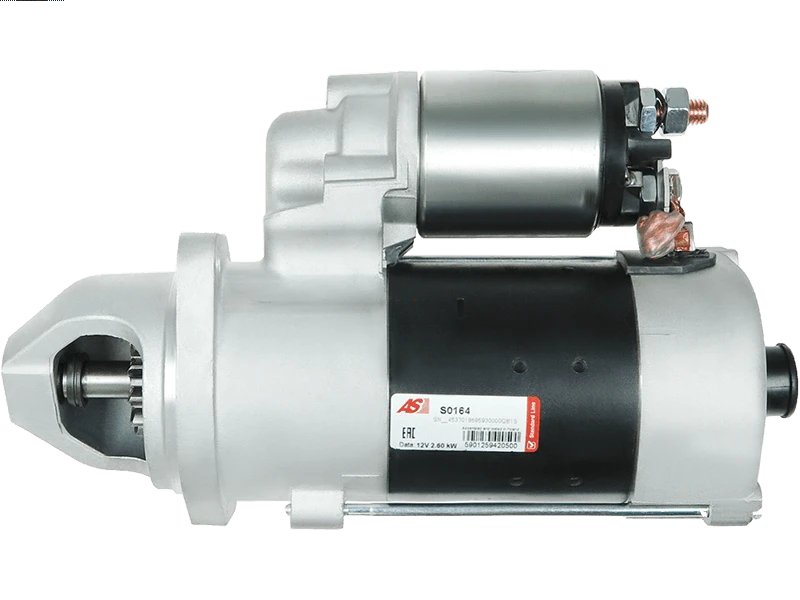

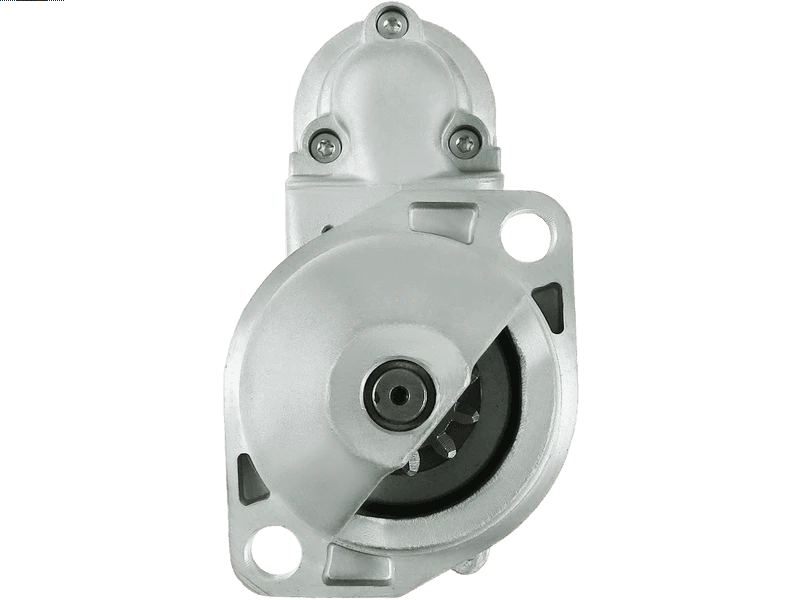

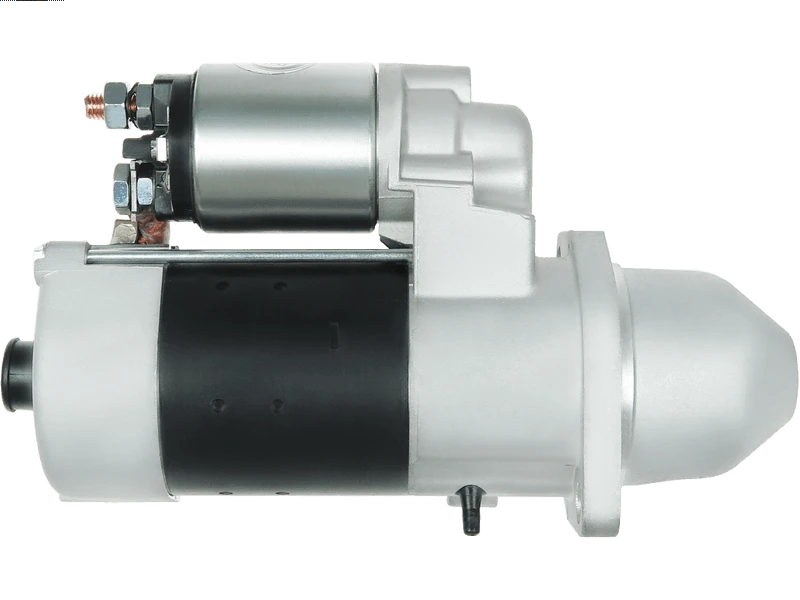

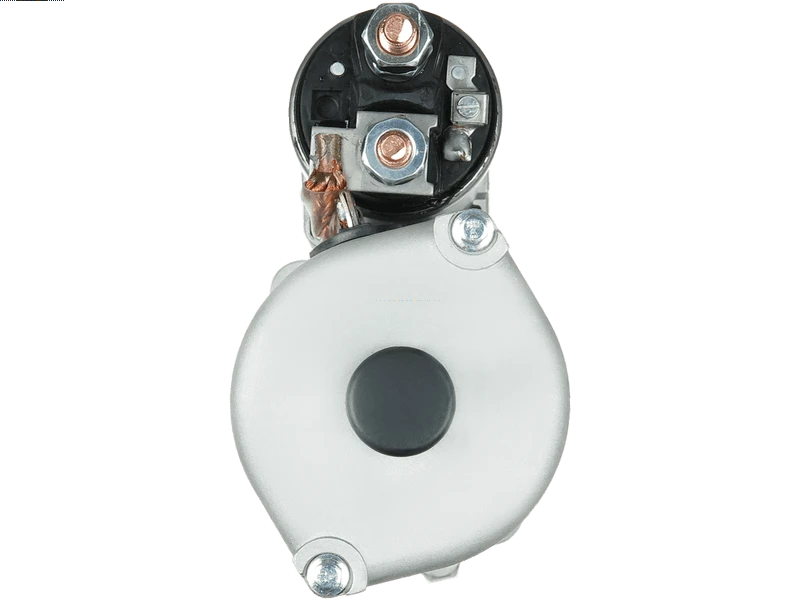

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 423.92 including GST
NZ$ 368.63 excluding GST
or four payments of $105.98
with
Learn More
each
S0164
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001223506Associated Numbers
0001223506 10996 10996B 10996I 10996M 20401451BN 6010154 610.002.112 610.501.112 63522235060 8049 CS996 CST10154AS EAA-121578 MSN2037 S0164 STR50203Specifications
| Kilowatt | 2.60 kW |
| Length (L.1) | 285 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAMBORGHINI | 135 6.0 Diesel Formula | [1000.6] | 12.1989-12.1999 |
| LAMBORGHINI | 165 6.0 Diesel Racing | [1000.6] | 05.1991-12.1999 |
| LAMBORGHINI | 190 6.0 Diesel Rasing | [1000.6] | 01.1992-12.1999 |
| LAMBORGHINI | 674-70 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 674-70 N 4.0 Diesel | [1000.4] | 06.1986-12.1995 |
| LAMBORGHINI | 674-70 N 4.0 Diesel Bosso | [1000.4] | 06.1986-12.1995 |
| LAMBORGHINI | 774-80 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 774-80 DT 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 774-80 N 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 775 4.0 Diesel | [1000.4] | 06.1987-12.1999 |
| LAMBORGHINI | 874-90 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | C 774-80 4.0 Diesel | [1000.4] | 06.1986-12.2000 |
| LAMBORGHINI | Engine | [1000.3W] | 01.1987-12.1999 |
| LAMBORGHINI | Engine | [1000.4W] | 01.1987-12.1999 |
| LAMBORGHINI | Engine | [1000.6..] | 09.1990-12.1999 |
| SAME | Buffalo 120 6.2 | [DA1056] | 07.1974- |
| SAME | Centauro 70 Diesel | 12.1981-10.1987 | |
| SAME | Centurion 75 Diesel | 11.1978-05.1988 | |
| SAME | Drago 5.4 | 11.1971- | |
| SAME | Frutteto 75 3.0 Diesel | 05.1991- | |
| SAME | Galaxy 170 6.2 Diesel | 06.1983- | |
| SAME | Laser 100 5.2 Diesel | 03.1984- | |
| SAME | Laser 110 5.7 Diesel | 03.1983- | |
| SAME | Laser 130 6.2 Diesel | 04.1983- | |
| SAME | Laser 150 6.2 Diesel | 03.1983- | |
| SAME | Ranger 45 2.7 Diesel | 02.1982- | |
| SAME | Solar 60 3.1 Diesel | 06.1986- | |
| SAME | Titan 160 6.0 Diesel | 05.1991- | |
| SAME | Titan 190 6.0 Diesel | 01.1992- | |
| SAME | Transporter | 01.1991- |
Reference Information
| 0001223506 | BOSCH |
| 116465 | CARGO |
| 12345655 | MANDO |
| 1530359C1 | CASE |
| 20401451BN | REAL |
| 207020002 | VALEO |
| 207090002 | VALEO |
| 220930 | ERA |
| 220930A | ERA |
| 296190300 | SAME |
| 296190800 | SAME |
| 2961928 | FIAT |
| 296193600 | SAME |
| 296193700 | SAME |
| 3123491 | HENKEL PARTS |
| 3123493 | HENKEL PARTS |
| 40800090007 | VALEO |
| 51262017011 | MAN |
| 6010154 | SANDO |
| 605720100084 | MWM |
| 610.501.112.010 | PSH |
| 6226486 | VOLVO |
| 63217108 | MAGNETI MARELLI |
| 63522235060 | MAGNETI MARELLI |
| 8049 | CEVAM |
| 88212423 | POWERMAX |
| A90740 | ATL AUTOTECHNIK |
| AC-CBS0996 | ACAUTO |
| BOS0001223506 | WOODAUTO |
| BREF032116465 | CARWOOD GROUP |
| CGB-93506 | AINDE |
| CMA-621578 | COMLINE |
| CS996 | HC PARTS |
| CST10154AS | CASCO |
| F032116465 | CARGO |
| MAV121510 | SIOM |
| MAV121540 | SIOM |
| MSN2037 | MAGNETI MARELLI |
| RNL223506 | RNL |
| S0164 | AS-PL |
| S100653 | BTS TURBO |
| S100714 | BTS TURBO |
| S12BH0288 | SIDAT |
| S12BH0288A2 | SIDAT |
| S134.446 | PSH |
| S-50203 | DTS |
| STR1392 | ELECTROLOG |
| STR50203 | WOODAUTO |
| STRL111 | 3EFFE |
| WOOSTR50203 | WOODAUTO |
