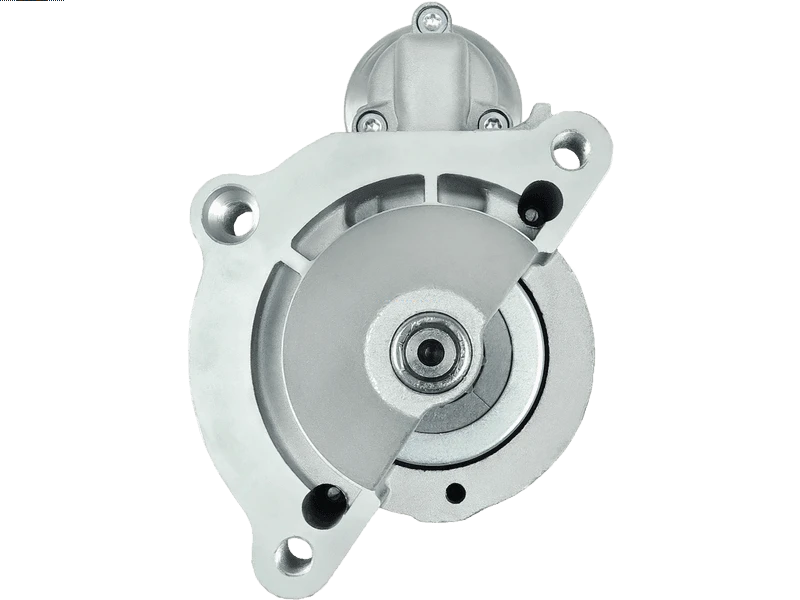

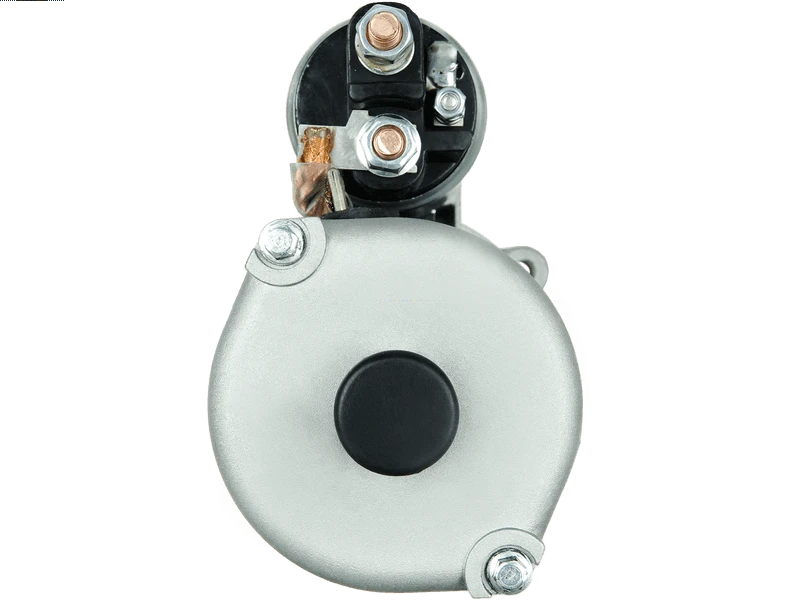

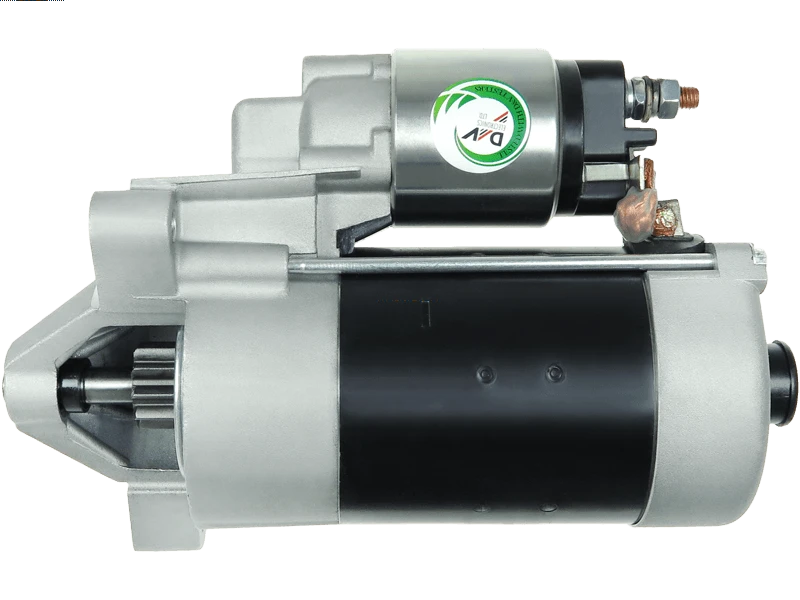

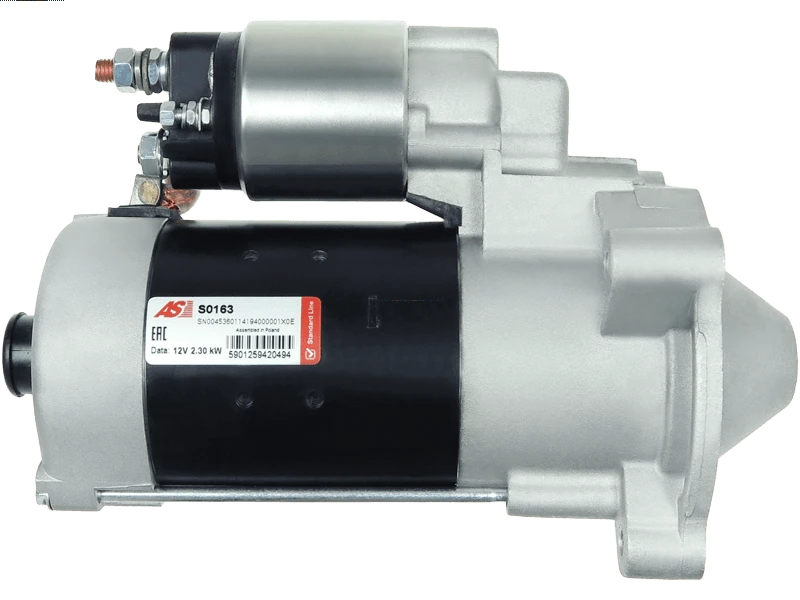

S0163 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0163
Price: 420.22 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 420.22 including GST

NZ$ 365.41 excluding GST

UOM:

each

Product Code:

S0163

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0001223014 0986018970 101326 101342 101342R 101342V 11.131.478 11.131.986 114126 11985 1516821R 20401405BN 220.518.103 220117 25-3181 30477RW 3108 458548 5802W7 6010504 63280090 63984678 71722353 88212822 8EA012528-371 8EA738174-001 944280189700 9635659580 96356597 9635659780 96365597 9636559780 96398467 9639846780 9647157980 AEU1326 AZE6515 AZE6559 CS1326 CST10504 CST10504AS CST10504ES CST10504GS CST10504OS CST10504RS DRS8970 DS0080 EAA-121297 IS1145 LRS02112 LRS2112 MAHMS32 MRS18970 MS32 RAS39081 SG0625 STB1326 STR50463

Kilowatt	2.3 kW
Length (L.1)	247 mm
Mount Hole Center - Center (O.1)	85 mm
Mount Hole Center - Center (O.2)	121 mm
Mount Hole Center - Center (O.3)	85 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	-6 mm
Rotation	CW
Spigot Diameter (A)	72 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	06.2002-08.2004
CITROEN	C5 2.0 HDi	[RHS(DW10ATED4)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHY(DW10TD)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHY(DW10TD)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED4)]	06.2001-08.2004
CITROEN	C5 2.0 HDi FAP	[RHS(DW10ATED4)]	03.2001-08.2004
CITROEN	C5 2.0 HDi FAP	[RHZ(DW10ATED4)]	03.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4)]	03.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4)]	06.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	06.2001-08.2004
CITROEN	C8 2.0 HDi	[RHD(DW10CB)]	03.2006-
CITROEN	C8 2.0 HDi	[RHK(DW10UTED4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHK(DW10UTED4)]	07.2006-
CITROEN	C8 2.0 HDi	[RHM(DW10ATED4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHT(DW10ATED4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHT(DW10ATED4)]	07.2002-12.2002
CITROEN	C8 2.0 HDi	[RHW(DW10ATED4)]	07.2002-
CITROEN	C8 2.2 HDi	[4HW(DW12TED4)]	07.2002-
CITROEN	C8 MPV 2.0 HDi	[RHT(DW10ATED4)]	07.2002-
CITROEN	Jumper 2.2 HDi	[4HY(DW12UTED)]	02.2002-06.2006
CITROEN	Jumper 2.2 HDi	[4HY(DW12UTED)]	04.2002-
CITROEN	Jumper 2.2 HDi	[4HY(DW12UTED)]	04.2002-06.2006
CITROEN	Jumper 2.2 HDi	[4HY(DW12UTED4)]	04.2002-
CITROEN	Jumper 2.2 HDi 16V	[4HY(DW12UTED)]	04.2002-
FIAT	Scudo 2.0 D Multijet	[DW10BTED4]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet	[RHG]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet	[RHK]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet	[RHR]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet 4x4	[RHG]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet 4x4	[RHK]	01.2007-03.2016
FIAT	Scudo 2.0 D Multijet 4x4	[RHR]	01.2007-03.2016
FIAT	Ulysse 2.0 D Multijet	[RHK]	05.2006-06.2011
FIAT	Ulysse 2.0 D Multijet	[RHR]	05.2006-06.2011
FIAT	Ulysse 2.0 JTD	[RHM(DW10ATED4)]	05.2003-08.2006
FIAT	Ulysse 2.0 Multijet	[RHK]	05.2006-
FIAT	Ulysse 2.0 Multijet	[RHR]	05.2006-
LANCIA	Phedra 2.0 D Multijet	[RHR(DW10BTED4)]	07.2006-11.2010
LANCIA	Phedra 2.0 JTD	[RHK(DW10UTED4)]	06.2006-
LANCIA	Phedra 2.0 JTD	[RHK(DW10UTED4)]	06.2006-11.2010
LANCIA	Phedra 2.0 JTD	[RHM(DW10ATED4)]	07.2003-11.2010
LANCIA	Phedra 2.0 Multijet	[RHR(DW10BTED4)]	07.2006-
LANCIA	Phedra 2.2 JTD	[4HW(DW12ATED4)]	09.2002-11.2010
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4)]	03.2000-05.2004
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4)]	03.2000-10.2004
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4)]	03.2000-12.2004
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2000-05.2004
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2000-10.2004
PEUGEOT	406 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2000-12.2004
PEUGEOT	407 2.0 HDi	[RHL(DW10BTED4)]	11.2004-10.2007
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	05.2004-10.2010
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	06.2009-12.2010
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	09.2008-12.2009
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	10.2005-
PEUGEOT	407 SW 2.0 HDi	[RHL(DW10BTED4)]	11.2004-10.2007
PEUGEOT	407 SW 2.0 HDi	[RHR(DW10BTED4)]	07.2004-12.2010
PEUGEOT	407 SW 2.0 HDi	[RHR(DW10BTED4)]	08.2008-12.2010
PEUGEOT	607 2.0 HDi	[RHS(DW10ATED)]	03.2001-07.2004
PEUGEOT	607 2.0 HDi	[RHS(DW10ATED)]	03.2001-09.2004
PEUGEOT	607 2.0 HDi	[RHZ(DW10ATED)]	05.2000-
PEUGEOT	607 2.0 HDi	[RHZ(DW10ATED)]	05.2000-09.2005
PEUGEOT	607 2.2 HDi	[4HX(DW12TED4)]	02.2000-02.2006
PEUGEOT	607 2.2 HDi	[4HX(DW12TED4/FAP)]	02.2000-
PEUGEOT	807 2.0 HDi	[RHD(DW10CTED4)]	06.2006-
PEUGEOT	807 2.0 HDi	[RHK(DW10UTED4)]	02.2006-
PEUGEOT	807 2.0 HDi	[RHK(DW10UTED4)]	06.2002-
PEUGEOT	807 2.0 HDi	[RHM(DW10ATED4)]	06.2002-
PEUGEOT	807 2.0 HDi	[RHM(DW10ATED4)]	06.2002-05.2006
PEUGEOT	807 2.0 HDi	[RHR(DW10BTED4)]	06.2006-
PEUGEOT	807 2.0 HDi	[RHR(DW10CB)]	06.2006-
PEUGEOT	807 2.0 HDi	[RHT(DW10ATED4)]	04.2004-05.2006
PEUGEOT	807 2.0 HDi	[RHT(DW10ATED4)]	06.2002-
PEUGEOT	807 2.0 HDi	[RHT(DW10ATED4)]	06.2002-05.2006
PEUGEOT	807 2.0 HDi	[RHW(DW10ATED4)]	04.2004-05.2006
PEUGEOT	807 2.0 HDi	[RHW(DW10ATED4)]	06.2002-
PEUGEOT	807 2.0 HDi	[RHW(DW10ATED4)]	06.2002-05.2006
PEUGEOT	807 2.2 HDi FAP	[4HX(DW12TED4/FAP)]	06.2002-
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10TD)]	04.2002-
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10TD)]	04.2002-06.2006
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10TD)]	12.2001-06.2006
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10UTD)]	04.2002-
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10UTD)]	04.2002-06.2006
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10UTD)]	08.2001-04.2002
PEUGEOT	Boxer 2.0 HDi	[RHV(DW10UTD)]	12.2001-06.2006
PEUGEOT	Boxer 2.2 HDi	[4HY(DW12UTED)]	04.2002-
PEUGEOT	Boxer 2.2 HDi	[4HY(DW12UTED)]	12.2001-06.2006
PEUGEOT	Expert 2.0 HDi	[RHK(DW10UTED4)]	01.2007-
PEUGEOT	Expert 2.0 HDi	[RHR(DW10BTED4)]	01.2007-
PEUGEOT	Expert Tepee 2.0 HDi	[RHK(DW10UTED4)]	01.2007-03.2016

5802Y0 STR10002 CST10504ES RNL1897 EAA-121297 220117 220117R 8EA738174-001 STM909 986018970 9639846780 000986018970 5802X9 11985 MAV4650 SS223014-A AZE6559 K9635659780 9635659580 96365597 63721897010 MAV321740 CST10504OS 9647157980 6010504 MRS18970 11.131.478 5802Z5 LRS2112 S12BH0141A2 DRS8970 32 RAS39081 96356597 GS223014-A 96356595 331902 96398597 9947830 K9639846780 71722353 42018970 11.131.986 96398467 9335659780 88212822 STR50463 MQS18970 63280090 8EA012528-371 458548 CST10504AS 96253824 5010196 CST10504RS ANM11190X LRS02112 MAV4730 30477RW AZE6515 MS32 CST10504 MS K9635659580 CS1326 K9636559780 9635659780 9.4428E+11 63984678 101342V 963984678 DS0080 101342R SG0625 CGB-28970 STR79188 STR79189 CST10504GS 114126 20401405BN 1223014 0001223014 STB1326 CGB-53181 9636559780 25-3181 101326 5802EA MAV4670 220.518.103 101342 STRS060 AEU1326 MAV123110 1516821R 3108 IS1145 5802W7 S0163 MAHMS32 220117A

0001223014 0986018970 101326 101342 101342R 101342V 11.131.478 11.131.986 114126 11985 1516821R 20401405BN 220.518.103 220117 25-3181 30477RW 3108 42018970 458548 5802W7 6010504 63280090 63984678 71722353 88212822 8EA012528-371 8EA738174-001 944280189700 9635659580 96356597 9635659780 96365597 9636559780 96398467 9639846780 9647157980 AEU1326 AZE6515 AZE6559 CGB-28970 CS1326 CST10504 CST10504AS CST10504ES CST10504GS CST10504OS CST10504RS DRS8970 DS0080 EAA-121297 IS1145 LRS02112 LRS2112 MAHMS32 MAV123110 MAV321740 MAV4650 MAV4670 MAV4730 MRS18970 MS 32 RAS39081 RNL1897 S0163 SG0625 STB1326 STR50463 STRS060
