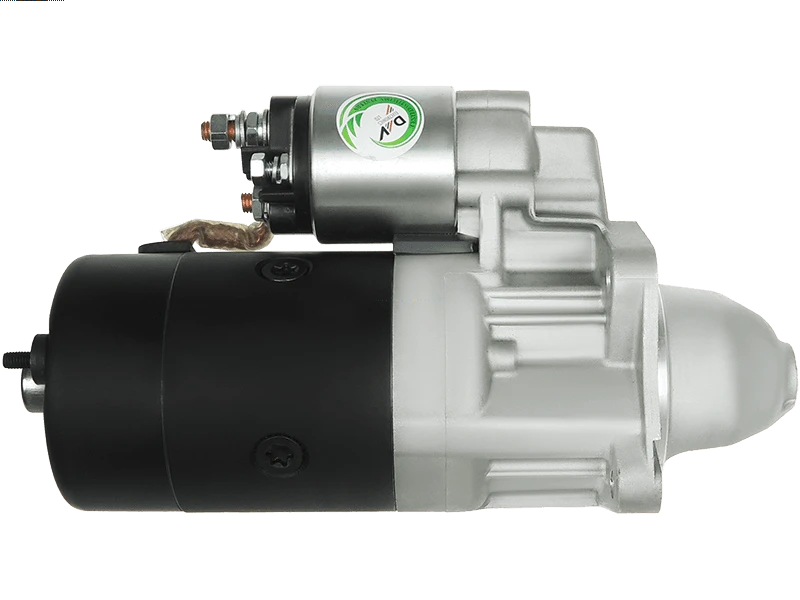

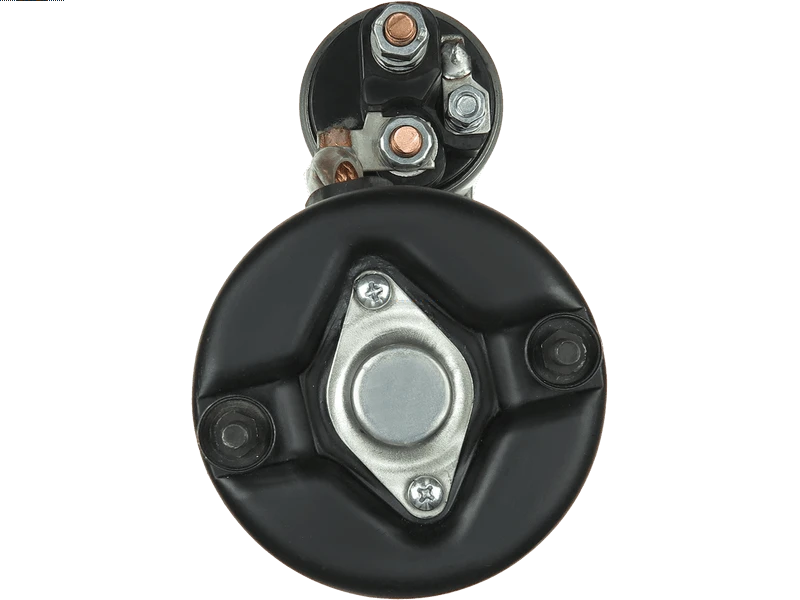

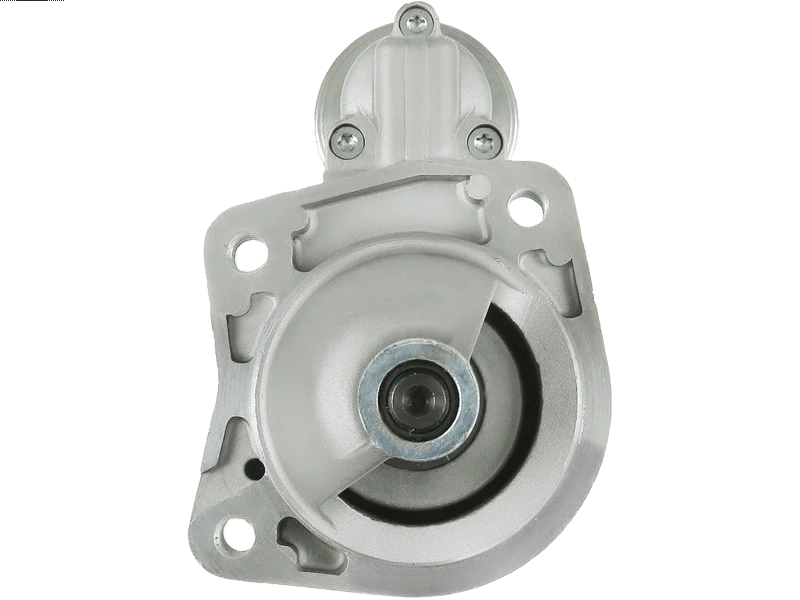

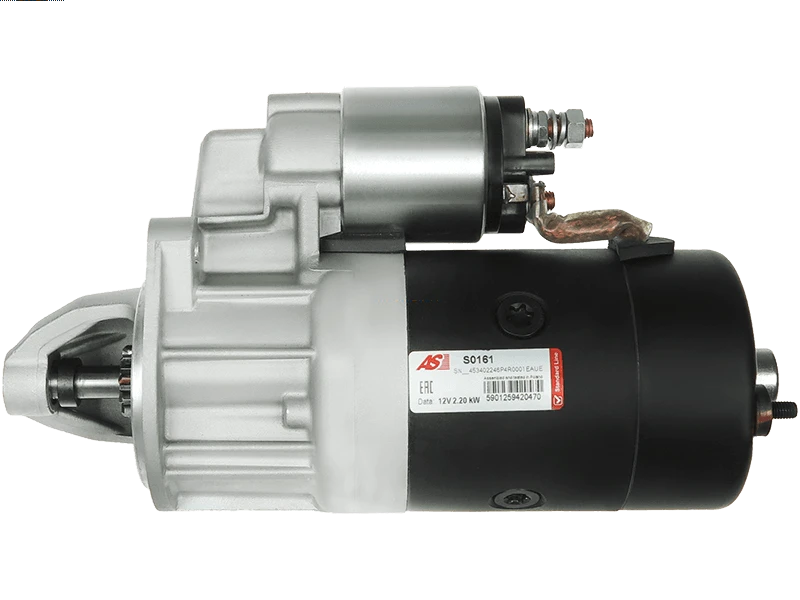

S0161 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	272 mm
Mount Hole Center - Center (O.1)	67 mm
Mount Hole Center - Center (O.2)	103 mm
Mount Hole Center - Center (O.3)	67 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Escort 1.8 TD	[RFD]	01.1995-02.1999
FORD	Escort 1.8 TD	[RFD]	01.1995-10.1998
FORD	Escort 1.8 TD	[RFD]	02.1999-07.2000
FORD	Escort 1.8 TD	[RFD]	09.1995-08.1998
FORD	Escort 1.8 TD	[RFK]	01.1995-02.1999
FORD	Escort 1.8 TD	[RFK]	01.1995-10.1998
FORD	Escort 1.8 TD	[RFK]	02.1999-07.2000
FORD	Escort 1.8 TD	[RFK]	09.1995-08.1998
FORD	Escort 1.8 Turbo D	[RVA]	10.1996-08.1999
FORD	Escort 1.8 Turbo D	[RVA]	12.1995-02.1999
FORD	Escort 1.8 Turbo D	[RVA]	12.1995-10.1998
FORD	Fiesta 1.8 D	[RTJ]	08.1995-04.2000
FORD	Fiesta 1.8 D	[RTK]	08.1995-04.2000
FORD	Fiesta 1.8 Di	[RTN]	04.2000-01.2002
FORD	Fiesta 1.8 Di	[RTN]	09.2000-08.2003
FORD	Fiesta 1.8 Di	[RTP]	04.2000-01.2002
FORD	Fiesta 1.8 Di	[RTP]	09.2000-08.2003
FORD	Fiesta 1.8 Di	[RTQ]	04.2000-01.2002
FORD	Fiesta D 1.8	[RTJ]	05.1998-04.2002
FORD	Fiesta D 1.8	[RTK]	05.1998-04.2002
FORD	Fiesta TD 1.8	[RTN]	03.2000-08.2003
FORD	Fiesta TD 1.8	[RTP]	03.2000-08.2003
FORD	Fiesta TD 1.8	[RTQ]	03.2000-08.2003
FORD	Focus 1.8 Di	[BHDA]	08.1999-11.2004
FORD	Focus 1.8 Di	[BHDB]	08.1999-11.2004
FORD	Focus 1.8 TDCi	[F9DA]	03.2001-11.2004
FORD	Focus 1.8 TDCi	[F9DB]	03.2001-11.2004
FORD	Focus 1.8 TDCi	[FFDA]	08.2002-11.2004
FORD	Focus 1.8 TDDi	[BHDA]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[BHDB]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DA]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DA]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DB]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DB]	10.1998-11.2004
FORD	Focus 1.8 Turbo Di	[C9DC]	02.1999-11.2004
FORD	Focus 1.8 Turbo Di	[C9DC]	10.1998-11.2004
FORD	Mondeo 1.8 TD	[RFN]	08.1996-09.2000

Reference Information

590.511.103.215 1133994 11.139.332 PRSL012 6014104.1 25-1307 112290 1061267 6167032 1416235 89AB11000BA 5023593 42015090 STRL104 R86AB11000A2A CST14104GS 6683311 IS9332 1806690 1218128 6177073 DS4888 98AB-11000-AD1 590.511.103.965 6.0015.9 590.511.103.605 1008813 STR00274 3805 6174535 5023587 726913 96AB11000AD R92AX11000HB SG0385 89AB11000AA 1073093 97BB-11000-BA R86AB11000A1A 63721396010 6147936 6014104 97BB-11000-BD R92AB11000HB 97BB-11000-BB 97BB-11000-BC R92AB11000HA 91AB11000GA 590.511.103.236 S-6245 000986015090 91AB11000GB 000986015093 10613V DRS5090 5016235 G201396VI-R 7003146 7003145 6158978 438483 1118336 R91AB11000FA 88212950 R91AX11000HA LRS163 20450401BN 5029141 R89AB11000AA 220409 590.511.103.900 SX 1008835 6130216 R92AX-11000-HB1 R91AX-11000-HB1 1229425 98AB-11000-AD R98AB-11000-AD 1652470 98AB-11000-AC DRS5090X R98AB-11000-AC 98AB-11000-AB 98AB-11000-AA 91AB11000PA 97BB11000BC 5027121 590.511.103.235 11.139.411 30163R 1218728 AZE4102 0001218728 GS001025-A 92AX11000HA 92AX11000HB 10613 20-100-01008 8EA730183-001 20-100-01007 50232 590.511.103.020 STA0217R 1027300 6129114 R98AB11000AC 1126987 STB0613 5023431 CST14104AS 56 726045 91AB11000FB 91AB11000FA 91AB11000FD R89AB11000CA MS RNL97BB11000 6203379 726845 RAS34889 1061627 CGB-51307 PRSL104 91AB-11000-FB 91AB-11000-FA LRS00163 STRL012 5023549 1416204 11672 5026136 84AB11000AA 590.511.103.010 84AB11000AC 0001218105 84AB11000AB CS613 STF0613 1058429 91AX-11000-HB 91AX-11000-HA AZE4563 1416218 91AB-11000-GA 89AB-11000-CA 92AB11000HB 726113 72735684 91AB-11000-GB 000F042002142 6203381 92AB11000HA R91AB-11000-HA 2123 455725 1644028 5028540 1218105 R91AX-11000-HB CGB-23676 R91AX-11000-HA R92AX11000HB1 MS56 D7R64 8EA011610-471 F042002142 S0161 986015090 91AB-11000-HB 91AB-11000-HA 20450401OE STM517 86AB11000A2A 86AB11000AA R92AX-11000-HB 7412672 986015093 92AX-11000-HB 86AB11000A1A 97BB-11000-B3D DRS3778 92AX-11000-HA 92AB-11000-HA 0001218128 30163N 92AB-11000-HB

Video/Publications

0001218105 0001218128 0001218728 063280008010 0986015090 1008813 10613 111269 112290 20450401BN 20450401OE 20500163 220015 25-1307 30163N 30163R 3805 42015090 438483 455725 590.511.103 6.0015.9 6014104.0 6014104.1 88212950 8EA011610-471 8EA730183-001 91AB-11000-HA 91AB-11000-HB 91AX-11000-HA 943251337010 944280150900 97BB-11000-B3D 97BB-11000-BB 97BB-11000-BD 98AB-11000-AA 98AB-11000-AC 98AB-11000-AD AZE4102 AZE4563 CS329 CS613 CST14104AS CST14104GS D7R64 DRS5090 DS6200 EAA-121483 G201396VI-R GS001025-A LRS00163 LRS163 MAV3570 MRS15090 MS 56 MSR910 S-6245 SG0385 STB0613 STF0613 STM517 STR50235 STRL012 STRL104 SX 2123 S0161 220409
