S0159 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0159
Price: 310.22 NZD
Availability: InStock

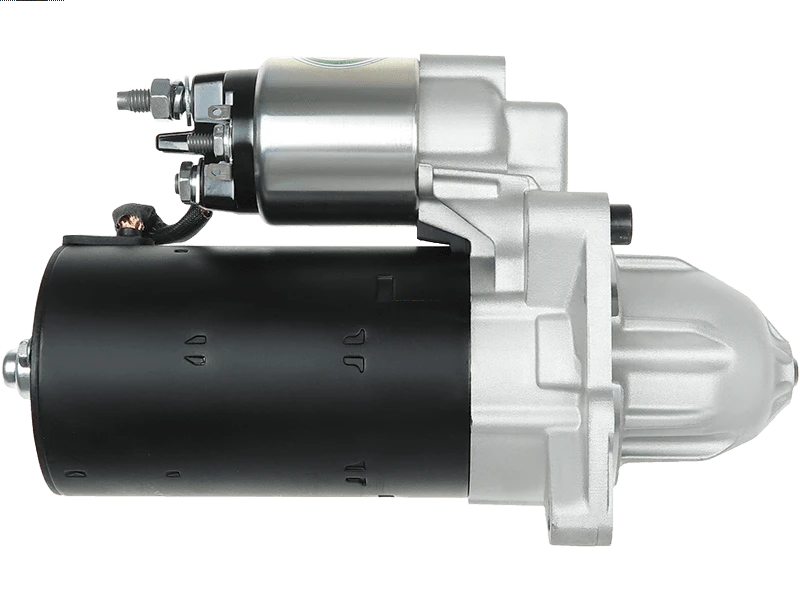

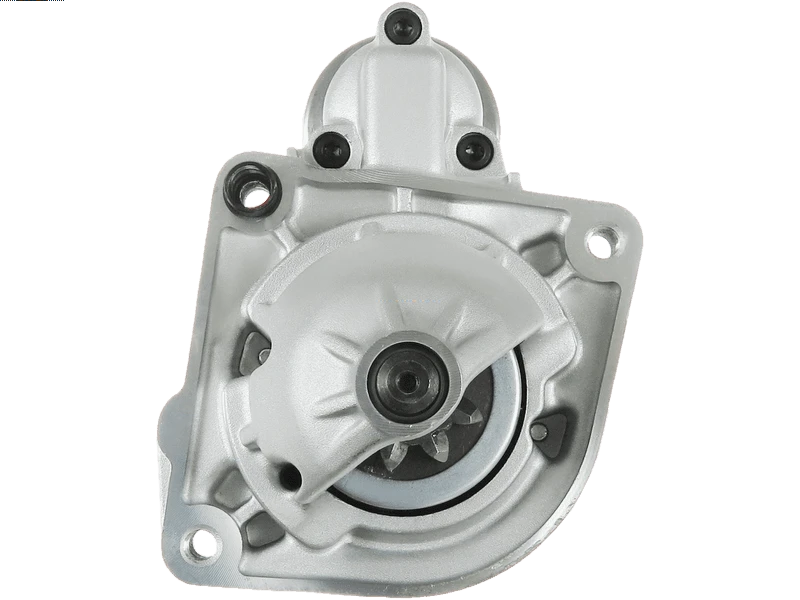

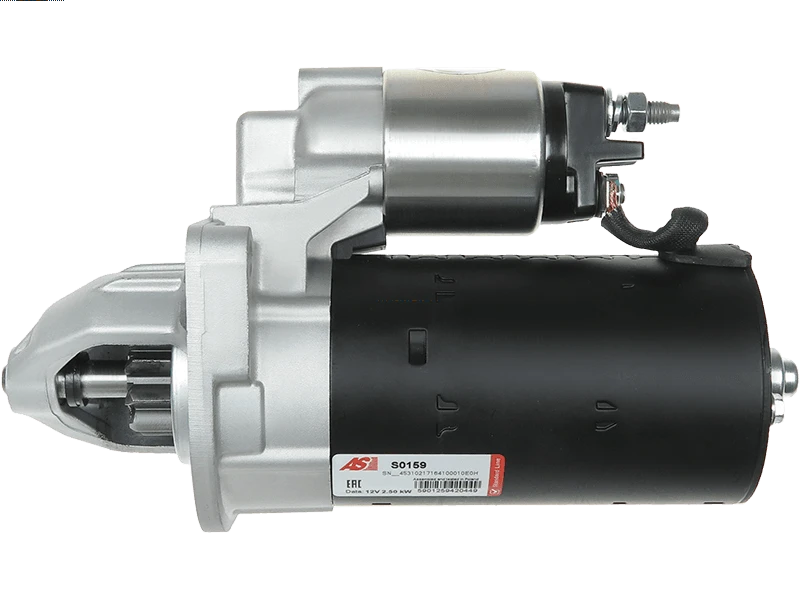

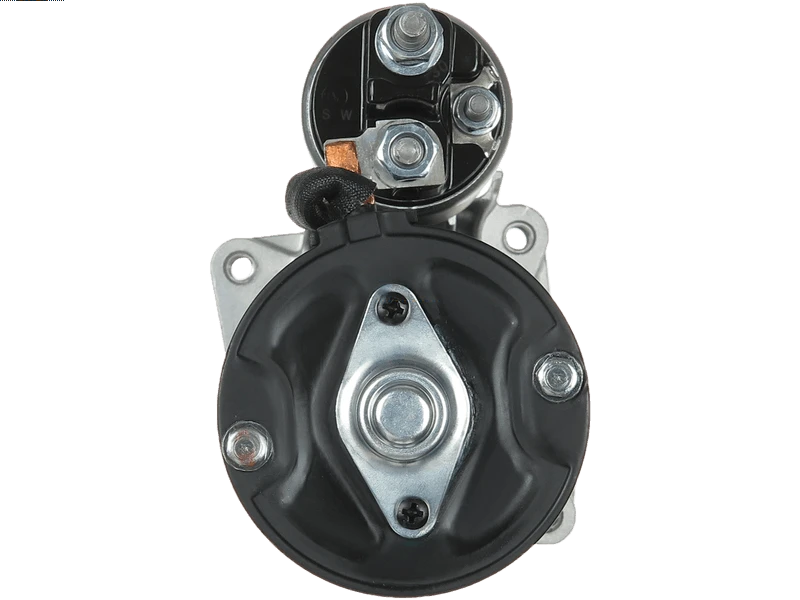

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 310.22 including GST

NZ$ 269.75 excluding GST

UOM:

each

Alternative Item:

S0089

Product Code:

S0159

Quantity In Stock:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0001109302 0001109303 0001109313 0001109334 0001109335 0001109409 0001109410 0001109429 0001109430 063521093020 063721449010 0986023120 101198 101198B 101449 101449B 114054 115516 120-10226 12082 1349920080 1611206880 20401082 220663 25-3490 3164 33318N 33318R 42023120 500.551.093 51779086 51832958 51984358 55779086 5801440013 5802AY 5802EE 5802FQ 6010280 6010440 71789745 71794196 88212989 8EA012527-681 8EA738258-891 AEY2318 BOS0001109302 CS1449 CST10280 CST10280AS CST10280ES CST10280GS CST10280OS CST10280RS CST10440 CST10440AS CST10440ES CST10440GS CST10440OS CST10440RS DRS7983 DS9093 EAA-121085 GS109302-A GS109302B-R LRS02318 RAS38094 S0159 SG0098 STB1449 STM1184 STR50476

Kilowatt	2.5 kW
Length (L.1)	247 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	84 mm
Mount Hole Center - Center (O.3)	84 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	24 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
CITROEN	Jumper 3.0 HDi 145	[F1CE3481N(F30DTE)]	07.2010-
CITROEN	Jumper 3.0 HDi 155	[F1CE0481D(F30DT)]	07.2010-
CITROEN	Jumper 3.0 HDi 160	[F1CE0481D(F30DT)]	09.2006-
CITROEN	Jumper 3.0 HDi 180	[F1CE3481E(F30DTE)]	07.2011-
FIAT	Ducato 110 Multijet 2.3 D	[F1AE3481G]	10.2011-
FIAT	Ducato 120 Multijet 2.3 D	[F1AE0481D]	07.2006-
FIAT	Ducato 120 Multijet 2.3 D	[FPT]	07.2006-
FIAT	Ducato 120 Multijet 2.3 D 4x4	[F1AE0481D]	03.2010-
FIAT	Ducato 130 Multijet 2.3 D	[F1AE0481N]	06.2011-
FIAT	Ducato 130 Multijet 2.3 D	[F1AE0481N]	07.2006-
FIAT	Ducato 130 Multijet 2.3 D	[F1AE3481D]	06.2011-
FIAT	Ducato 130 Multijet 2.3 D	[F1AE3481D]	07.2006-
FIAT	Ducato 130 Multijet 2.3 D	[F1AGL411D]	06.2011-
FIAT	Ducato 130 Multijet 2.3 D	[F1AGL411D]	07.2006-
FIAT	Ducato 130 Multijet 2.3 D	[F1AGL411M]	06.2011-
FIAT	Ducato 140 Natural Power	[F1CE0441A]	04.2009-
FIAT	Ducato 140 Natural Power	[F1CFA401A]	04.2009-
FIAT	Ducato 150 Multijet 2.3 D	[F1AE3481E]	06.2011-
FIAT	Ducato 150 Multijet 3.0 D	[F1CE3481N]	04.2010-
FIAT	Ducato 160 Multijet 3.0 D	[F1CE0481D]	07.2006-
FIAT	Ducato 160 Multijet 3.0 D	[F1CE3481M]	07.2006-
FIAT	Ducato 160 Multijet 3.0 D	[F1CE3481M]	07.2006-12.2011
FIAT	Ducato 180 Multijet 3.0 D	[F1CE3481E]	06.2011-
PEUGEOT	Boxer 3.0 HDi 145	[F1CE3481N(F30DTE)]	04.2010-
PEUGEOT	Boxer 3.0 HDi 160	[F1CE0481D(F30DT)]	04.2006-
PEUGEOT	Boxer 3.0 HDi 175	[F1CE3481E(F30DTE)]	03.2011-
