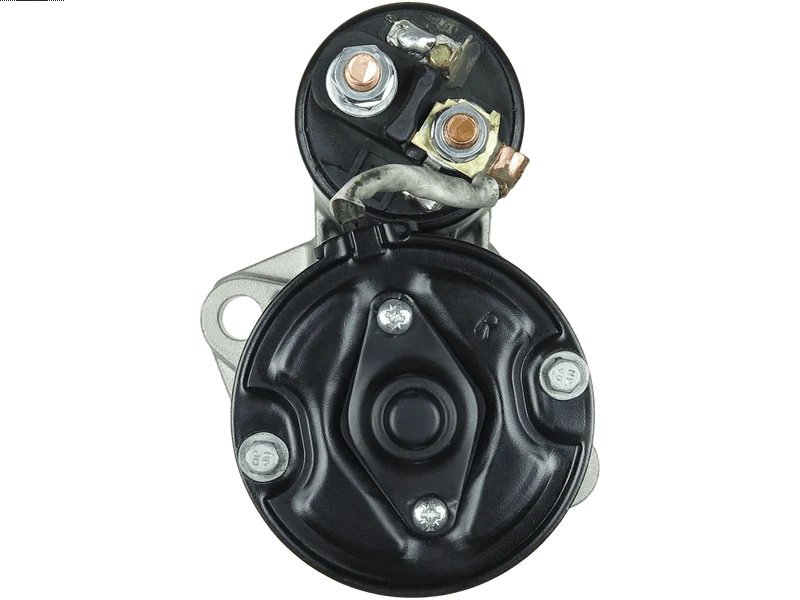

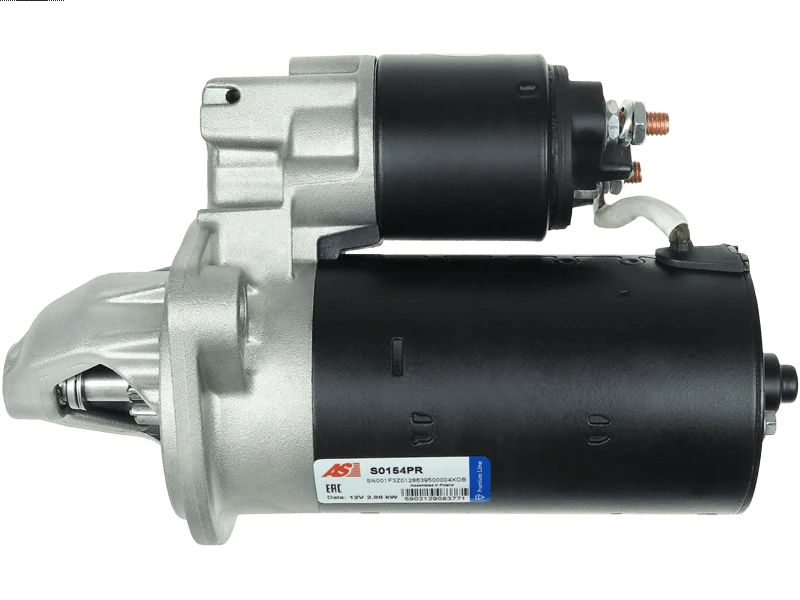

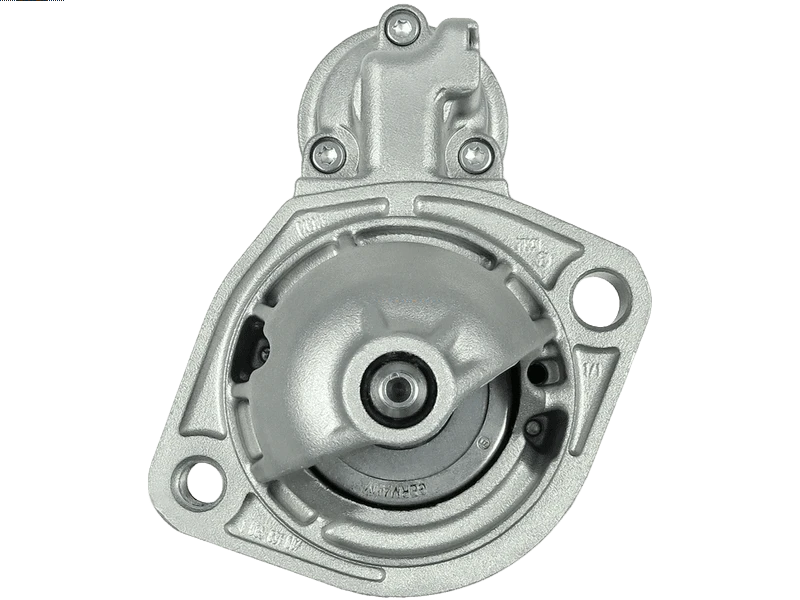

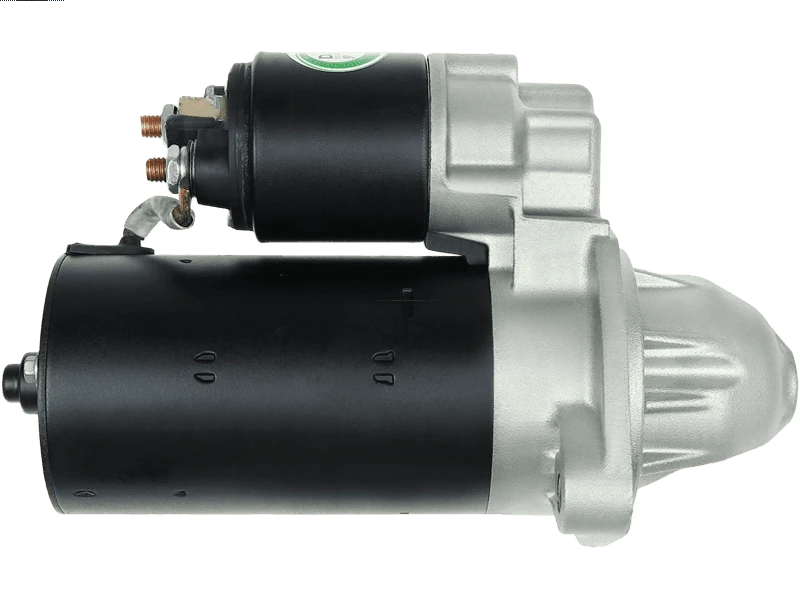

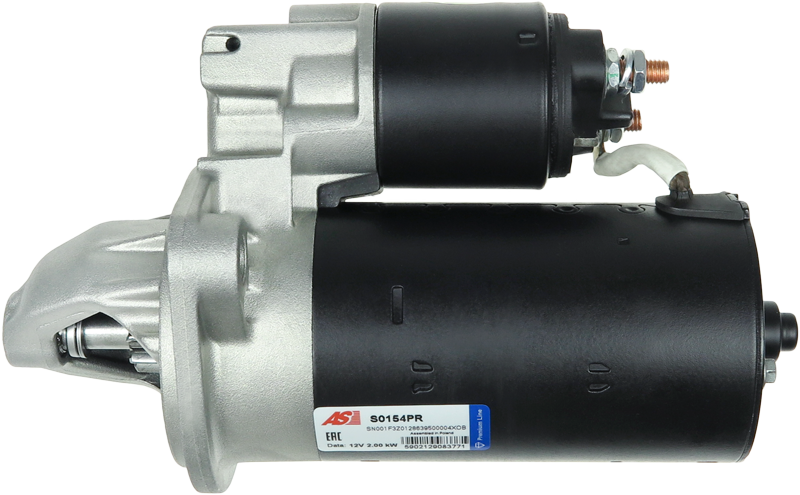

S0154PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	240 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	S60 2.4 CDi	[D5244T3]	10.2003-12.2005
VOLVO	S60 2.4 D	[D5244T2]	05.2001-04.2010
VOLVO	S60 2.4 D	[D5244T5]	07.2005-12.2009
VOLVO	S60 2.4 D	[D5244T6]	05.2005-12.2006
VOLVO	S60 2.4 D	[D5244T7]	03.2005-04.2010
VOLVO	S60 2.4 D5	[D5244T]	01.2001-04.2010
VOLVO	S60 2.4 D5	[D5244T4]	03.2005-04.2010
VOLVO	S70 2.5 TDi	[D5252T]	01.1997-11.2000
VOLVO	S70 2.5 TDi AWD	[D5252T]	10.1999-09.2000
VOLVO	S80 2.4 D	[D5244T2]	10.2001-07.2006
VOLVO	S80 2.4 D5	[D5244T]	08.2001-07.2006
VOLVO	S80 2.5 TDi	[D5252T]	01.1999-07.2006
VOLVO	V70 2.4 AWD	[B5254S]	03.2000-09.2003
VOLVO	V70 2.4 CDi	[D5244T6]	07.2005-12.2008
VOLVO	V70 2.4 D	[D5244T2]	07.2001-08.2007
VOLVO	V70 2.4 D	[D5244T7]	04.2005-12.2008
VOLVO	V70 2.4 D5	[D5244T]	01.2001-12.2008
VOLVO	V70 2.4 D5	[D5244T4]	04.2005-12.2008
VOLVO	V70 2.4 D5	[D5244T5]	08.2005-07.2007
VOLVO	V70 2.4 D5 AWD	[D5244T]	07.2002-08.2007
VOLVO	V70 2.4 D5 AWD	[D5244T2]	07.2002-08.2007
VOLVO	V70 2.4 D5 AWD	[D5244T4]	05.2005-08.2007
VOLVO	V70 2.4 D5 AWD	[D5244T5]	07.2002-08.2007
VOLVO	V70 2.5 TDi	[D5252T]	11.1999-08.2007
VOLVO	V70 2.5 TDi	[D5252T]	12.1995-12.2000
VOLVO	V70 2.5 TDi AWD	[D5252T]	11.1996-02.2000
VOLVO	XC70 2.4 D5 AWD	[D5244T4]	12.2005-08.2007
VOLVO	XC70 2.4 D5 XC AWD	[D5244T]	09.2002-08.2007

Reference Information

101196 32358R 220991 MSN2138 1109041 STB1196 MAV122990 MRS18030 8602360 9459468 STRS257 9.43253E+11 MAV123170 DS9140 0001218173 91629287 DRS8030 9162928 6010299 9162929 458555 112434 STR10258 LRT00251 S12BH0496A2 9.4428E+11 CST10299OS STRF031 810.510.092 CST10299GS STR50366 8EA737850-001 STR1512 CST10299AS 101051 986018030 EAA-121355 9169468 8EA011611-371 CS1196 CST10299RS 25-3149 AES2251 LRT251 CST10299 36050276 000986018030 0001109041 11936 1218173 MSR5343 63521090410 CST10299ES

Video/Publications

0001109041 0001218173 063521090410 0986018030 101051 101196 112434 11936 220991 25-3149 32358R 458555 6010299 810.510.092 8602360 8EA011611-371 8EA737850-001 943253143010 944280180300 9459468 AES2251 CS1196 CST10299 CST10299AS CST10299ES CST10299GS CST10299OS CST10299RS DRS8030 DS9140 EAA-121355 LRT00251 LRT251 MAV122990 MAV123170 MRS18030 MSN2138 MSR5343 STB1196 STR50366 STRF031 STRS257
