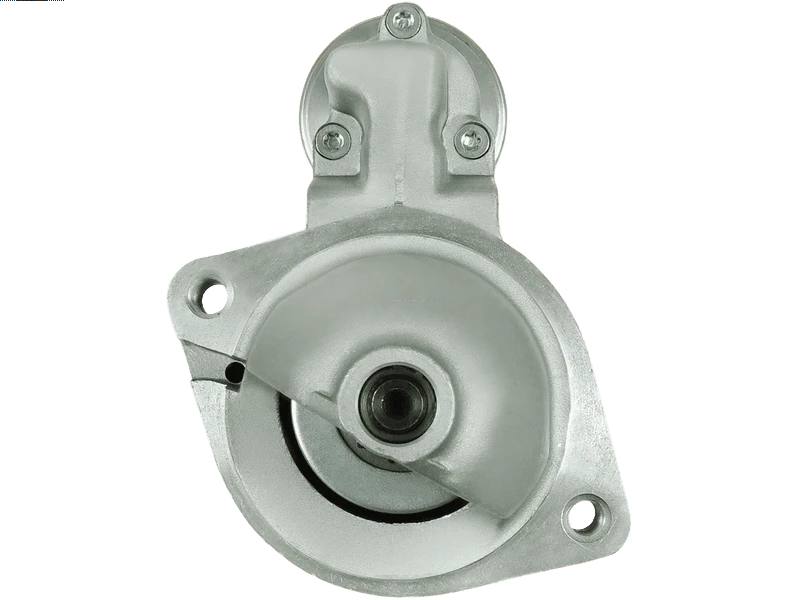

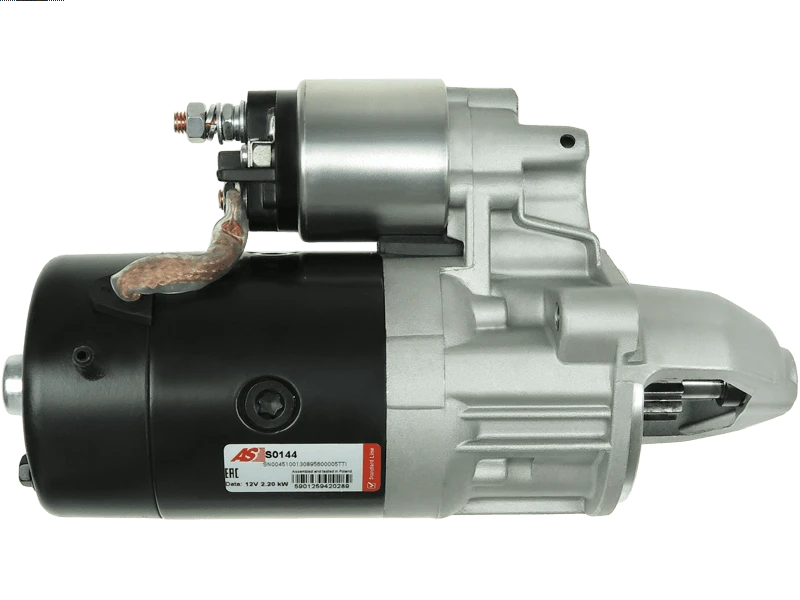

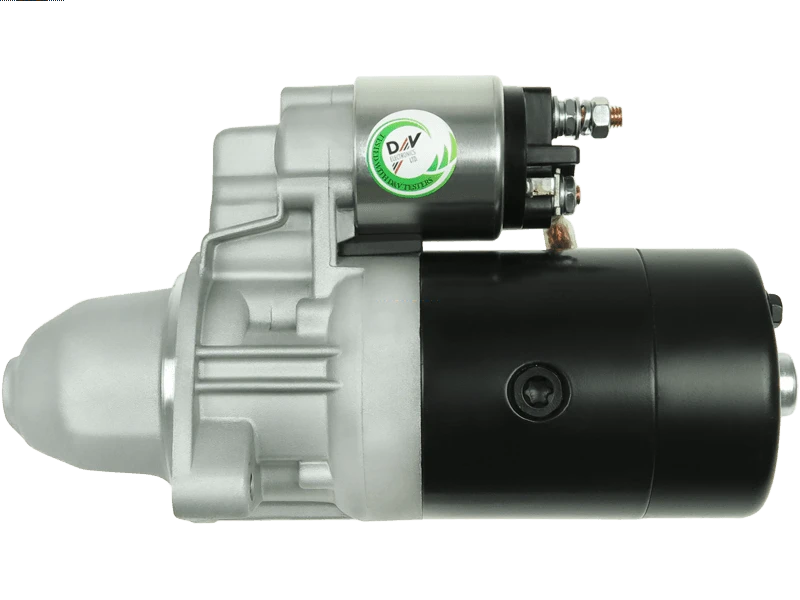

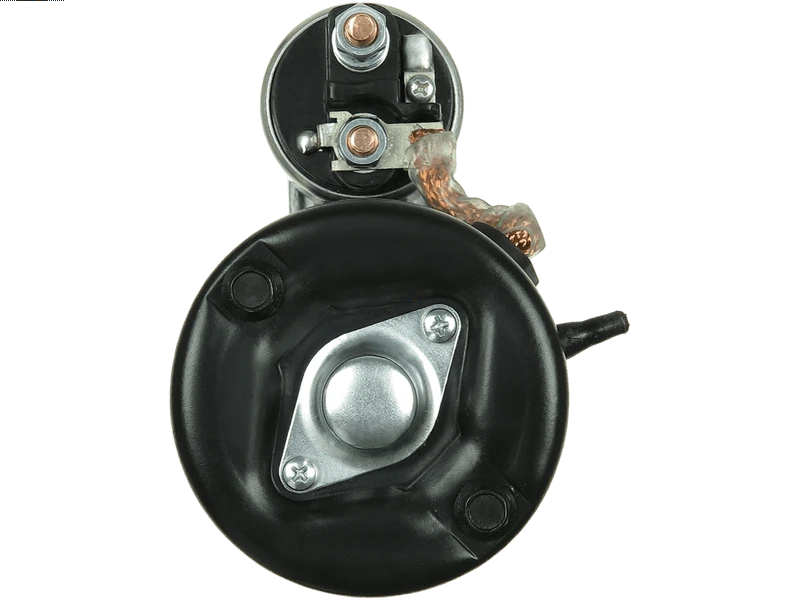

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 388.82 including GST
NZ$ 338.10 excluding GST
or four payments of $97.21
with
Learn More
each
S0144
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001218110Associated Numbers
0001218016 0001218110 0001218710 0041512001 0041513601 0986013910 10576 113389 20401161BN 20500744 22.0576 22.0576M 25-1264 25-2138 30775N 33825 3803 42013910 455324 455624 6010161 8013910 8212143 88212143 8EA726200-001 943251302 A0041512001 A0041513601 AES7144 CS576 CST10161AS DRS3910 EAA-121231 IS9434 LRS00744 SS698 STR50190 VS310 S0144Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 275 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | 208 2.3 Diesel | (601)[OM601.940] | 11.1988-06.1995 |
| MERCEDES BENZ | 210 2.9 Diesel | (601)[OM602.940] | 10.1988-06.1995 |
| MERCEDES BENZ | 308 2.3 Diesel | (601)[OM601.940] | 11.1988-06.1995 |
| MERCEDES BENZ | 308 2.3 Diesel | (602)[OM601.940] | 10.1988-06.1995 |
| MERCEDES BENZ | 310 2.9 Diesel | (601)[OM602.940] | 06.1989-06.1995 |
| MERCEDES BENZ | 310 2.9 Diesel | (602)[OM602.940] | 06.1989-06.1995 |
| MERCEDES BENZ TRUCKS & BUSES | 408 2.3 Diesel | (T1/TN)[OM601.940] | 11.1988-06.1995 |
| MERCEDES BENZ TRUCKS & BUSES | 410 2.9 Diesel | (T1/TN)[OM602.940] | 11.1988-06.1995 |
| MERCEDES BENZ TRUCKS & BUSES | O 100 2.9 | [OM602.940] | 01.1994- |
Reference Information
| 0001218016 | BOSCH |
| 0001218110 | BOSCH |
| 0001218710 | BOSCH |
| 0041512001 | MERCEDES |
| 004151200180 | MERCEDES |
| 0041513601 | MERCEDES |
| 004151360180 | MERCEDES |
| 0061512701 | MERCEDES |
| 0986013910 | BOSCH |
| 10576 | KUHNER |
| 113389 | CARGO |
| 1516778R | DAF |
| 20401161BN | REAL |
| 20500744 | PRESTOLITE |
| 220101 | ERA |
| 22.0576 | LAUBER |
| 22.0576M | LAUBER |
| 25-1264 | ELSTOCK |
| 25-2138 | ELSTOCK |
| 30775N | WAI / TRANSPO |
| 33825 | EAI |
| 3803 | CEVAM |
| 4151360180 | MERCEDES |
| 42013910 | HERTH+BUSS |
| 455324 | VALEO |
| 455624 | VALEO |
| 5010276 | MEAT & DORIA |
| 6010161 | SANDO |
| 8013910 | FRIESEN |
| 8212143 | POWERMAX |
| 88212143 | POWERMAX |
| 8EA726200-001 | HELLA |
| 943251302 | MAGNETI MARELLI |
| A0041512001 | MERCEDES |
| A004151200180 | MERCEDES |
| A0041513601 | MERCEDES |
| A004151360180 | MERCEDES |
| A0061512701 | MERCEDES |
| AES7144 | AUTOELECTRO |
| ALT136120 | SIOM |
| ANM16130X | ANDEL |
| CS576 | HC PARTS |
| CST10161AS | CASCO |
| DRS3910 | DELCO |
| F032113389 | CARGO |
| IS9434 | ISKRA / LETRIKA |
| LRS00744 | LUCAS |
| LRS744 | LUCAS |
| MAV121610 | SIOM |
| MS 127 | MAHLE |
| S0144 | AS-PL |
| S12BH0271A2 | SIDAT |
| SS698 | SOVEREIGN |
| STA0128R | BOVEZ |
| STR1316 | ELECTROLOG |
| STR50190 | WOODAUTO |
| STRL228 | 3EFFE |
| STX200150 | STARDAX |
| STX200150R | STARDAX |
| VS310 | VALEO |
Video/Publications
