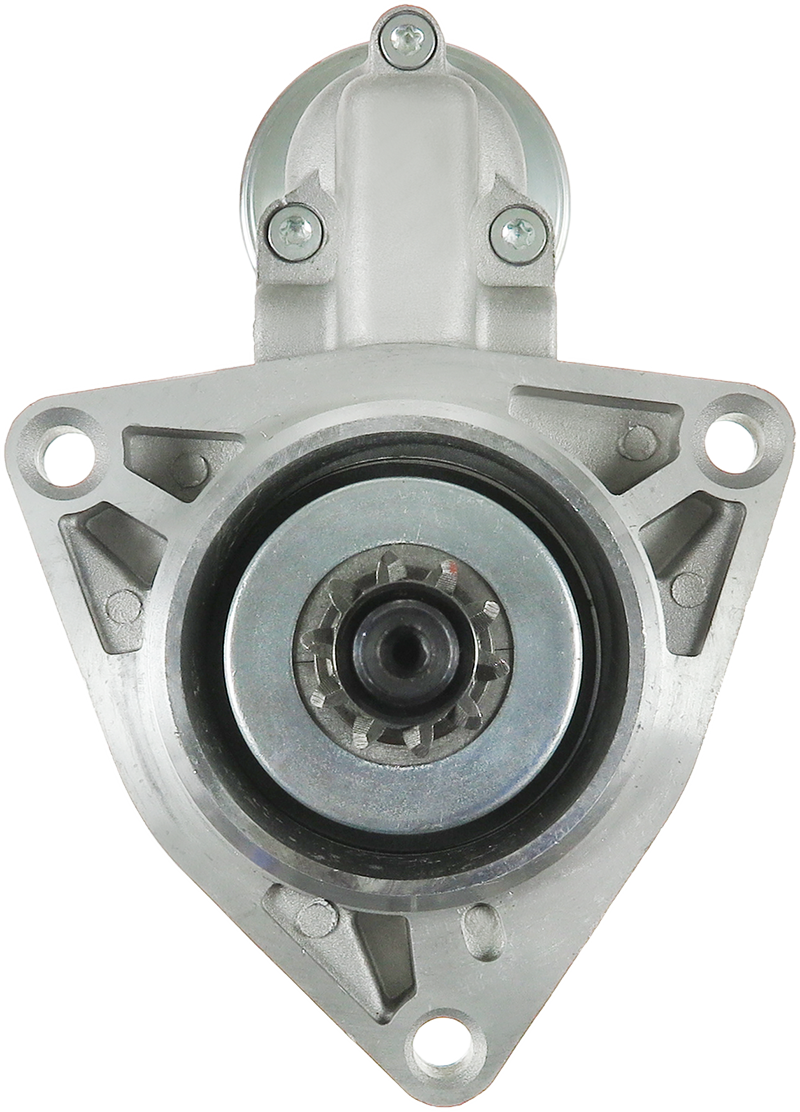

S0142 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	294 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Center - Center (O.2)	102 mm
Mount Hole Center - Center (O.3)	107 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	9 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	52 mm
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	Transporter 2.4 Diesel	[AAB]	09.1990-11.1994
VW	Transporter 2.4 Diesel Syncro	[AAB]	11.1992-04.2003

Reference Information

02B911023AX STR1991 CST10357AS S12BH0624A2 220035 EAA-121331 LRS00893 42016340 02B911023A 20401753BN 112052 STA0069R 0001218116 028911023A AES8193 1516783R 0001218117 3812 6010357 25-1361 2180 88213086 8016340 SX 35259480 STRS183 5010484 330751 SS348 02B911023LX 986016340 CS599 11719 220054 ANM18560X 000986016340 17234R S0142 22.0599 17234N STR50145 1218116 8EA726223-001 DRS6340 1218117 LRS893
