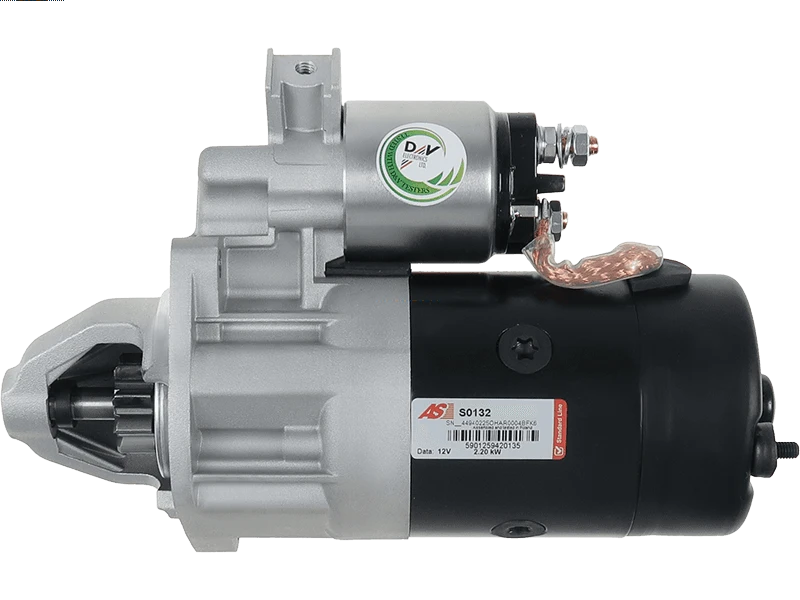

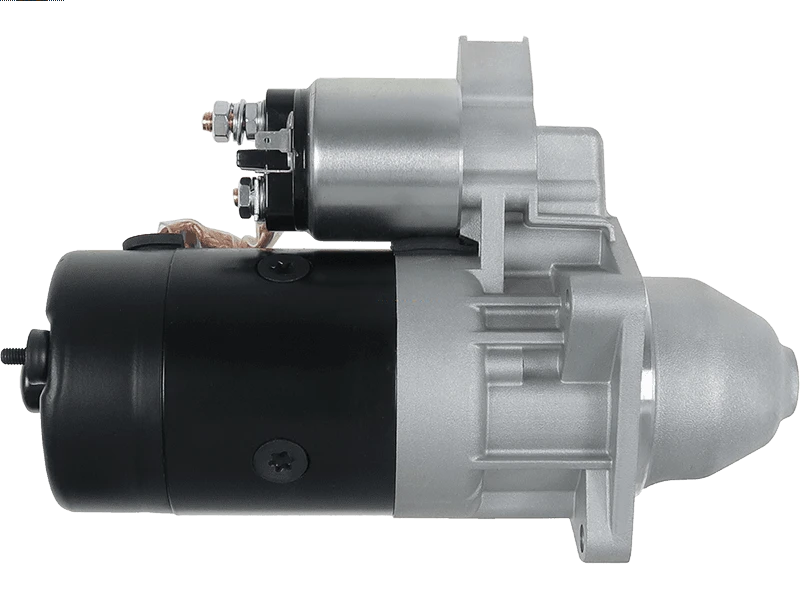

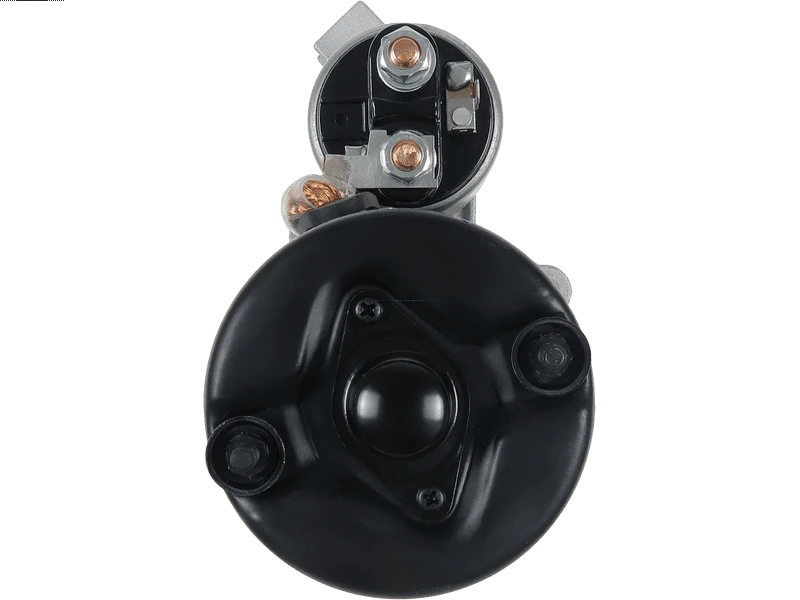

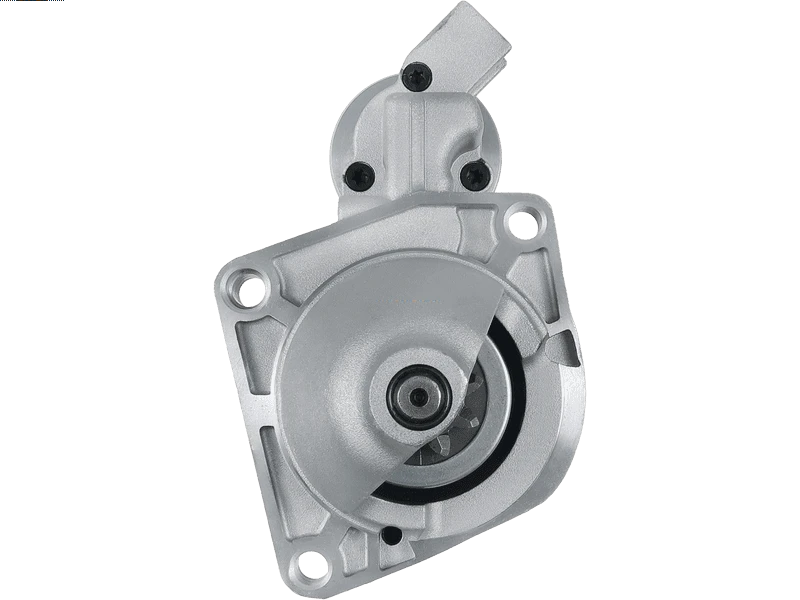

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 390.93 including GST
NZ$ 339.94 excluding GST
or four payments of $97.73
with
Learn More
each
S0132
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001218154Associated Numbers
0001218014 0001218102 0001218154 0986013640 0986013641 10351 10351M 10381R 10510 111113 11208 20401533BN 20404431RC 22.0351 22.0351M 22.0504 25-1195 3548 433233 436028 436045 46231610 500.504.093 580264 5985265 6010335 6030134 63222001 63222031 63222039 63222136 7589435 7658555 7727487 77452430 77671430 8013640 8212545 8EA726099-001 AES6163 CS351 CST10335AS CST30134GS CST30134RS DRS3640 LRS00663 STR52079Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 272 mm |
| Mount Hole Center - Center (O.1) | 117 mm |
| Mount Hole Center - Center (O.2) | 83 mm |
| Mount Hole Center - Center (O.3) | 83 mm |
| Mount Hole Diameter (C.1) | 9.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | 9.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 81.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Croma 1.9 TD | [154C6.000] | 03.1988-10.1992 |
| FIAT | Croma 2.5 Diesel | [8144.67] | 12.1985-12.1989 |
| FIAT | Croma 2.5 TD 2500 | [8144.91.2000] | 12.1985-08.1989 |
| FIAT | Croma 2.5 TD 2500 | [8144.97] | 05.1989-08.1996 |
| FIAT | Croma 2.5 TD 2500 | [8144.97Y] | 11.1992-08.1996 |
| LANCIA | Thema 2.5 TD | [8144.91] | 11.1984-09.1988 |
| LANCIA | Thema 2.5 TD | [8144.97] | 06.1988-05.1992 |
| LANCIA | Thema 2.5 TD | [8144.97S] | 05.1988-07.1992 |
| LANCIA | Thema 2.5 TD | [8144.97Y] | 05.1992-11.1994 |
| LANCIA | Thema 2.5 TDS | [8144.97] | 06.1988-05.1992 |
| LANCIA | Thema 2.5 TDS | [8144.97S] | 05.1992-07.1994 |
Reference Information
| 0001218014 | BOSCH |
| 0001218102 | BOSCH |
| 0001218154 | BOSCH |
| 0986013640 | BOSCH |
| 0986013641 | BOSCH |
| 10351 | KUHNER |
| 10351M | KUHNER |
| 10381R | KUHNER |
| 10510 | KUHNER |
| 111113 | CARGO |
| 11208 | EAI |
| 20401533BN | REAL |
| 20404431RC | REAL |
| 220145 | ERA |
| 22.0351 | LAUBER |
| 22.0351M | LAUBER |
| 22.0504 | LAUBER |
| 25-1195 | ELSTOCK |
| 330503 | LOGISTIK |
| 3548 | CEVAM |
| 433233 | VALEO |
| 436028 | VALEO |
| 436045 | VALEO |
| 46231610 | FIAT |
| 46231642 | FIAT |
| 500.504.093 | PSH |
| 580264 | PEUGEOT |
| 5985265 | FIAT |
| 6010335 | SANDO |
| 6030134 | SANDO |
| 63222001 | MAGNETI MARELLI |
| 63222031 | MAGNETI MARELLI |
| 63222039 | MAGNETI MARELLI |
| 63222136 | MAGNETI MARELLI |
| 7580575 | FIAT |
| 7589435 | FIAT |
| 7658555 | FIAT |
| 7666135 | FIAT |
| 7674733 | FIAT |
| 7727486 | FIAT |
| 7727487 | FIAT |
| 77452430 | FIAT |
| 77671430 | FIAT |
| 8013640 | FRIESEN |
| 8212545 | POWERMAX |
| 8EA726099-001 | HELLA |
| AES6163 | AUTOELECTRO |
| ANM15860X | ANDEL |
| CS351 | HC PARTS |
| CST10335AS | CASCO |
| CST30134GS | CASCO |
| CST30134RS | CASCO |
| DRS3640 | DELCO |
| F032111113 | CARGO |
| LRS00663 | LUCAS |
| LRS663 | LUCAS |
| MAV123350 | SIOM |
| MAV321340 | SIOM |
| MAV6720 | SIOM |
| S132.611 | PSH |
| S148.493 | PSH |
| STR1441 | ELECTROLOG |
| STR52079 | WOODAUTO |
| STRS061 | 3EFFE |
| STX200299 | STARDAX |
| STX200341 | STARDAX |
| STX200521 | STARDAX |
