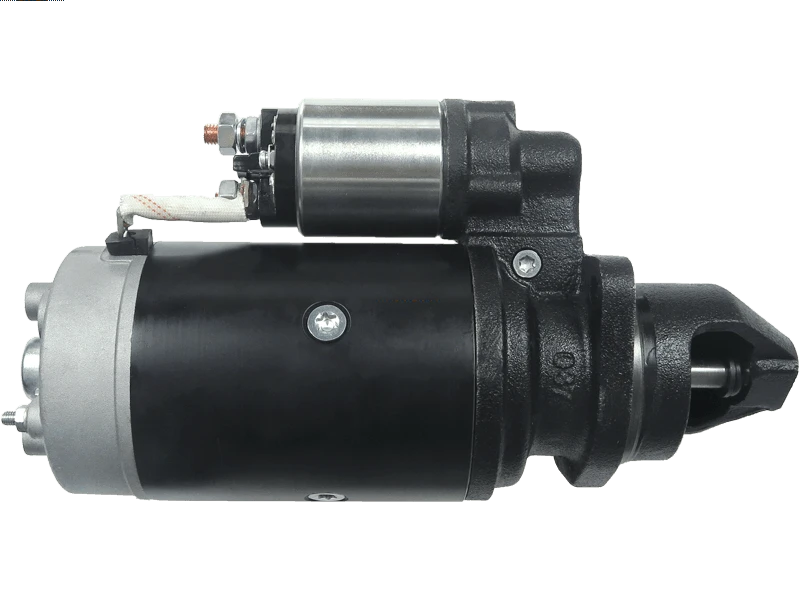

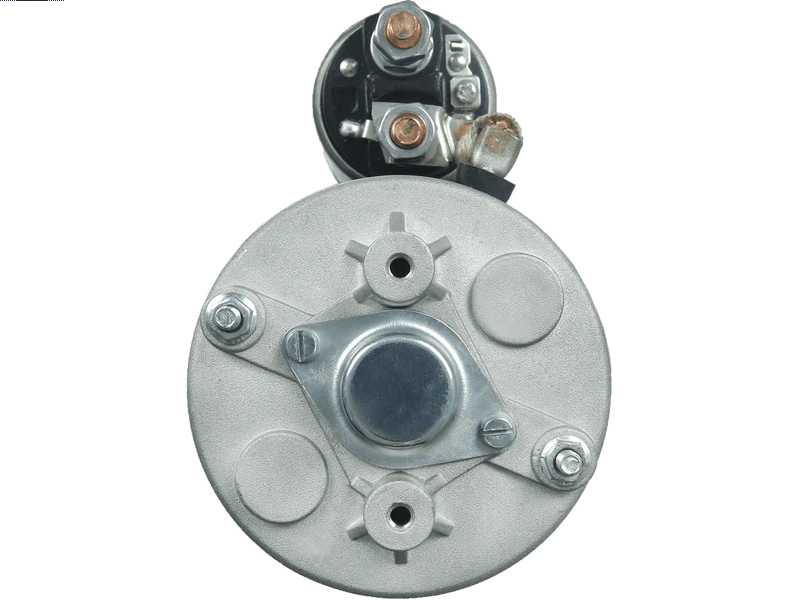

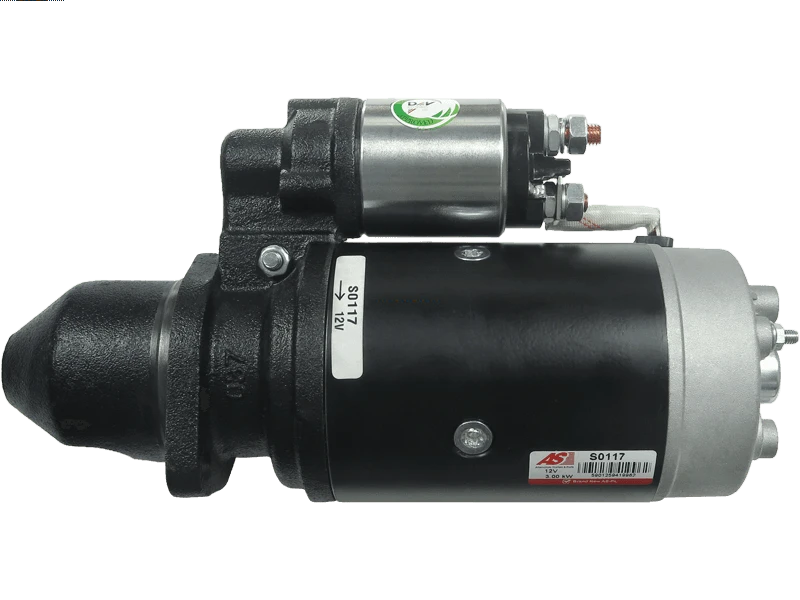

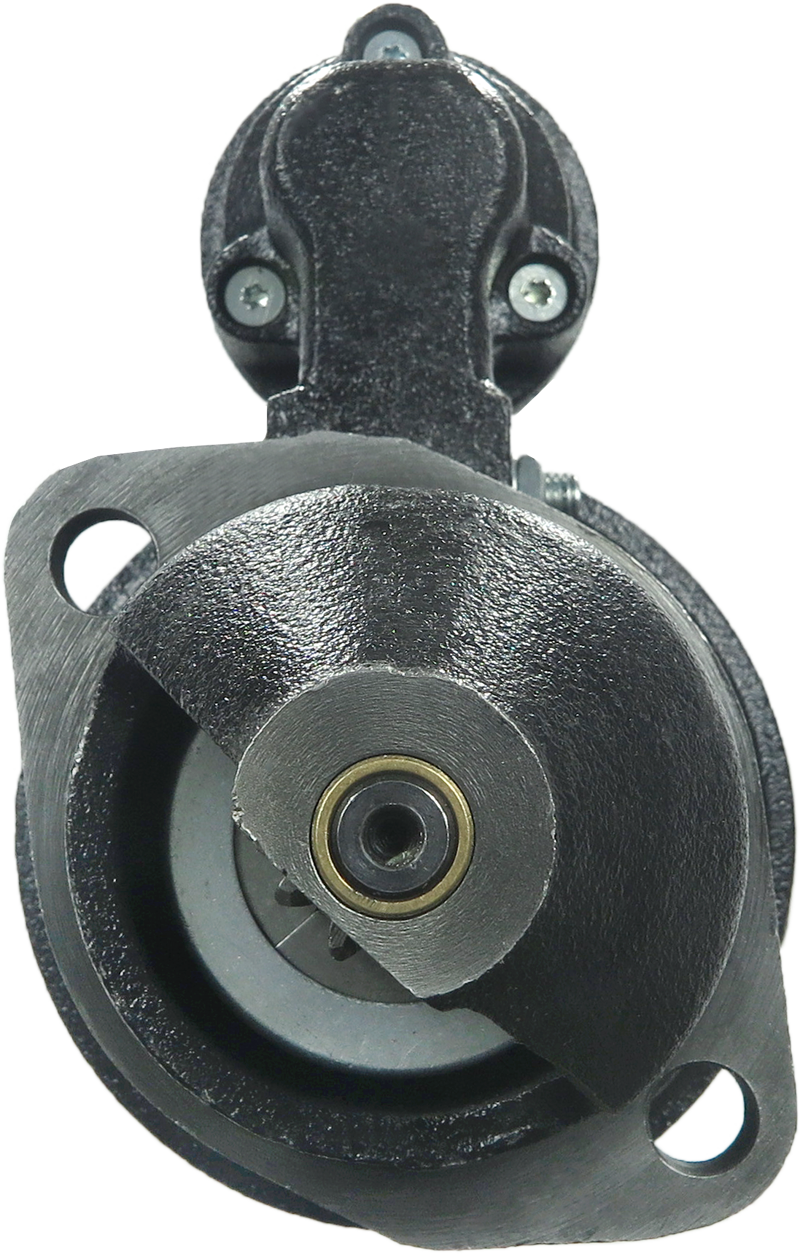

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 511.75 including GST
NZ$ 445.00 excluding GST
or four payments of $127.94
with
Learn More
UOM:
each
Alternative Item:
S0112,S9298(LETRIKA),S9069
Product Code:
S0117
Quantity In Stock Nationally
2 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001367075Associated Numbers
0001359016 0001359090 0001367037 0001367075 0001367078 0001369001 0001369005 0001369022 0986014741 10395 10395I 10395M 11.130.534 11.130.569 11.130.819 1107871 111755 16563N 16563R 220856 25-0227 35258810 436070 443115142700 6010239 630.002.102 630.003.102 860658 8EA726-143-001 93512 943252256010 943252295010 AL110503 AL110504 AL110597 AL11503 AL62690 AL62691 AL62772 AL62773 AL70850 AR70436 AR70437 AT23401 AZJ3158 AZJ3181 AZJ3283 CS395 CST10239 CST10239AS CST10239ES CST10239GS CST10239OS CST10239RS DRS2420 DRS4740 DS3530 DS5850 EAA-111005 IS0534 IS0569 LRS00565 LRS565 M100R2017SE MSR733 MSR746 RE500733 RE505745 RE60384 S0117 SE501427 STB0395 STR22079 TY6720 1107577 Delco Remy 1107599 11130762 Mahle 11130793 11131374 11132062 11320110 Claas 18100793 AES 18422N WAI Prestolite 35259580 35259580S 3821818M93 Agco 630503102 PSH 6860N 72735717 91047835 Wilson 91236507 91236509 AL110598 John Deere AZF4284 AZF4521 AZF4596 AZJ3274 DZ110081 IS0793 LETIS0793 Wood Auto MAHMS89 MS89 RE50095 RE501002 RE505670 RE507670 RE549296 RNLAZF4521 RNL SE501851 STR60606 STR60731 TS6174 Dixie WOOSTR60606 WOOSTR60731 0001358041 Bosch 0001359050 0001367057 000136775S 0986012420 Exchange 0986014740 11130534 11130569 11130819 11130876 HC-Cargo 16010392A Baudouin 17095N 17095R 18100534 18100569 19024297 19070146 19083256 Valeo 436878 Skoda 5010297 Meat & Doria 5010297R 6005012975 Renault 6005012976 6005022635 6005706631 630002102 63206834 Magneti Marelli 63206834010 72735892 72735940 7700044184 90014037 91014037 91014263 91157147 943252256 943252295 AL39700 AL78760 AL787760 AT18150 AT25619 AZJ3307 BOS0001369005 BX369022 (USA) HC-Parts CT6005706631 F00E100557 F032111755 HCS395 IS0762 IS0819 IS0876 LES0402 Lucas Elektrik LES0475 LETIS0569 LRS01484 LRS1484 MAHMS264 MAHMS312 MS264 MS312 RE19187 RNL1242 RNL1474 SE501411 SE501412 SM2541 Honda SM2554 TY1458 TY25974 TY25994 TY6620 TY6780 WOOSTR22079Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 1020 | [3.164DL-04] | 01.1971-12.1975 |
| JOHN DEERE | 1020 2.7 | 3.164DL-04 | 04.1971-07.1975 |
| JOHN DEERE | 1030 | [3.164DL-04] | 01.1975-12.1979 |
| JOHN DEERE | 1030 2.7 | 3.164DL-04 | 08.1975-08.1979 |
| JOHN DEERE | 1030 OU 2.7 | 3.164DL-04 | 08.1975-08.1979 |
| JOHN DEERE | 1032 | 01.1992- | |
| JOHN DEERE | 1032 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1040 | [3.179DL-06] | 01.1979-12.1986 |
| JOHN DEERE | 1040 2.9 | 3.179DL-06 | 09.1979-10.1986 |
| JOHN DEERE | 1040V 2.9 | 3.179DL-06 | 09.1979-10.1986 |
| JOHN DEERE | 1042 | 01.1992- | |
| JOHN DEERE | 1042 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1052 | 01.1992- | |
| JOHN DEERE | 1052 4.0 | 10.1992-10.1998 | |
| JOHN DEERE | 1055 | 01.1992- | |
| JOHN DEERE | 1055 5.9 | 10.1992-10.1998 | |
| JOHN DEERE | 1065 | [6.359TZ-03] | 01.1981-12.1987 |
| JOHN DEERE | 1068 | 01.1981-12.1992 | |
| JOHN DEERE | 1068 5.9 | 01.1992-10.1996 | |
| JOHN DEERE | 1075 | [6.359TZ-02] | 01.1981-12.1987 |
| JOHN DEERE | 1075 5.9 | 10.1981-12.1996 | |
| JOHN DEERE | 1085 | [6.466AZ-01] | 01.1982- |
| JOHN DEERE | 1085 7.6 | 02.1982-02.1997 | |
| JOHN DEERE | 1120 | [3.164DL-01] | 01.1971-12.1975 |
| JOHN DEERE | 1130 | [3.164DL-13] | 01.1975-12.1979 |
| JOHN DEERE | 1130 2.7 | 3.164DL-13 | 08.1975-08.1979 |
| JOHN DEERE | 1140 | [3.179DL-01] | 01.1979-12.1986 |
| JOHN DEERE | 1140 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1140F 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1140V 2.9 | 3.179DL-01 | 09.1979-10.1986 |
| JOHN DEERE | 1530 2.7 | 3.164DL-13 | 07.1972-07.1975 |
| JOHN DEERE | 1630 | [3.179DL-01] | 01.1975-12.1979 |
| JOHN DEERE | 1640 | [4.239DL-03] | 01.1979-12.1986 |
| JOHN DEERE | 1830 | [4.219DL-03] | 01.1972-12.1979 |
| JOHN DEERE | 1840 | [4.239DL-04] | 01.1979-12.1986 |
| JOHN DEERE | 2030 | [4.219DL-03] | 01.1972-12.1979 |
| JOHN DEERE | 2040 | [4.239DL-04] | 01.1979-12.1986 |
| JOHN DEERE | 2130 | [4.239DL-01] | 01.1971-12.1979 |
| JOHN DEERE | 2140 | [4.239TL-02] | 01.1979-12.1986 |
| JOHN DEERE | 2250 | [4.239DL] | 01.1985-12.1988 |
| JOHN DEERE | 2254 | 01.1985-12.1992 | |
| JOHN DEERE | 2256 | 01.1985-12.1992 | |
| JOHN DEERE | 2264 | 01.1985-12.1992 | |
| JOHN DEERE | 2266 | 01.1985-12.1992 | |
| JOHN DEERE | 2450 | 01.1985-12.1992 | |
| JOHN DEERE | 2650 | [4.239TL-006] | 01.1985-12.1992 |
| JOHN DEERE | 2650 | 01.1985-12.1992 | |
| JOHN DEERE | 2850 | [4.239TL-007] | 01.1985-12.1992 |
| JOHN DEERE | 2850 | 01.1985-12.1992 | |
| JOHN DEERE | 3040 | [6.359DL-01] | 01.1979-12.1982 |
| JOHN DEERE | 3040 | [6.359DL-06] | 01.1982-12.1986 |
| JOHN DEERE | 3050 | [6.359DL-008] | 01.1985-12.1992 |
| JOHN DEERE | 3130 | [6.329DL-11] | 01.1972-12.1979 |
| JOHN DEERE | 3130 5.4 | 6.329DL-11 | 09.1972-08.1979 |
| JOHN DEERE | 3140 | [6.359DL-03] | 01.1979-12.1982 |
| JOHN DEERE | 3140 | [6.359DL-04] | 01.1982-12.1986 |
| JOHN DEERE | 3140 5.9 | 6.359DL-03 | 09.1979-05.1987 |
| JOHN DEERE | 3350 | [6.359DL-008] | 01.1985-12.1992 |
| JOHN DEERE | 3350 | 01.1985-12.1992 | |
| JOHN DEERE | 3640 | [6.359D] | 01.1984-12.1985 |
| JOHN DEERE | 3650 | [6.359TL-007] | 01.1985-12.1992 |
| JOHN DEERE | 3650 | 01.1985-12.1992 | |
| JOHN DEERE | 6010 4.5 | [4045] | 01.1998-12.2002 |
| JOHN DEERE | 6110 4.5 | [4045TL] | 01.1998-12.2002 |
| JOHN DEERE | 6210 4.5 | [4045TL] | 01.1998-12.2002 |
| JOHN DEERE | 6410 4.5 | [4045TL053] | 01.1998-12.2002 |
| JOHN DEERE | 925 | [3.164DZ-02] | 01.1974-12.1978 |
| JOHN DEERE | 930 | [3.164DL-15] | 01.1975-12.1979 |
| JOHN DEERE | 932 | [4.239DZ-04] | 01.1979-12.1983 |
| JOHN DEERE | 935 | [4.219DZ-05] | 01.1974-12.1979 |
| JOHN DEERE | 940 | [3.179DL-05] | 01.1979-12.1986 |
| JOHN DEERE | 942 | [4.239DZ-03] | 01.1979-12.1983 |
| JOHN DEERE | 952 | [4.239TZ-01] | 01.1977-12.1983 |
| JOHN DEERE | 955 | [6.329DZ-02] | 01.1975-12.1983 |
| JOHN DEERE | 965 | [6.359TZ-03] | 01.1975-12.1983 |
| JOHN DEERE | 975 | [6.359TZ-02] | 01.1975-12.1981 |
| JOHN DEERE | MD 1065 5.9 | 6.359TZ-03 | 03.1994- |
| JOHN DEERE | MD 1075 5.9 | 6.359TZ-02 | 03.1994- |
| JOHN DEERE | MD 1085 5.9 | 6.466TZ-01 | 03.1994- |
| JOHN DEERE | MD 925 2.7 | 3.164DZ-02 | 11.1974-09.1978 |
| JOHN DEERE | MD 952 3.9 | 4.239TZ-01 | 11.1977-10.1983 |
| JOHN DEERE | MD 955 5.4 | 6.329DZ-02 | 06.1975-10.1983 |
| JOHN DEERE | MD 960 5.4 | 6.329DZ-02 | 08.1972-08.1974 |
| JOHN DEERE | MD 965 5.9 | 6.359TZ-03 | 09.1975-10.1983 |
| JOHN DEERE | MD 968H 5.9 | 6.359TZ-03 | 04.1981-10.1983 |
| JOHN DEERE | MD 970 5.9 | 6.359TZ-01 | 09.1974-07.1975 |
| JOHN DEERE | MD 975 5.9 | 6.359TZ-02 | 09.1975-05.1981 |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2950 | 01.1983-12.1986 |
Reference Information
| 0001359016 | BOSCH |
| 0001359090 | BOSCH |
| 0001367037 | BOSCH |
| 0001367075 | BOSCH |
| 0001367078 | BOSCH |
| 0001369001 | BOSCH |
| 0001369005 | BOSCH |
| 0001369022 | BOSCH |
| 0986014740 | BOSCH |
| 10395 | KUHNER |
| 10395I | KUHNER |
| 10395M | KUHNER |
| 1107871 | DELCO |
| 16010392A | MOTEURS BAUDOUIN.S.A |
| 20401932BN | REAL |
| 220856 | ERA |
| 25-0227 | ELSTOCK |
| 330547 | LOGISTIK |
| 33886 | EAI |
| 443115142700 | MAGNETON |
| 5065899 | MEAT & DORIA |
| 6010239.0 | SANDO |
| 630.002.102.011 | WAI |
| 630.002.102.017 | WAI |
| 630.002.102.019 | WAI |
| 630.002.102.395 | WAI |
| AL110503 | JOHN DEERE |
| AL110504 | JOHN DEERE |
| AL110597 | JOHN DEERE |
| AL39700 | JOHN DEERE |
| AL62772 | JOHN DEERE |
| AL78760 | JOHN DEERE |
| AR70436 | JOHN DEERE |
| AT23401 | JOHN DEERE |
| CST10239AS | CASCO |
| LRS00565 | LUCAS |
| LRS565 | LUCAS |
| MAV3400 | SIOM |
| PRSS082 | 3EFFE |
| S0117 | AS-PL |
| S12BH0289A2 | SIDAT |
| S134.227 | WAI |
| SE501427 | JOHN DEERE |
| STR10070 | ELECTROLOG |
| STRS082 | 3EFFE |
Video/Publications
