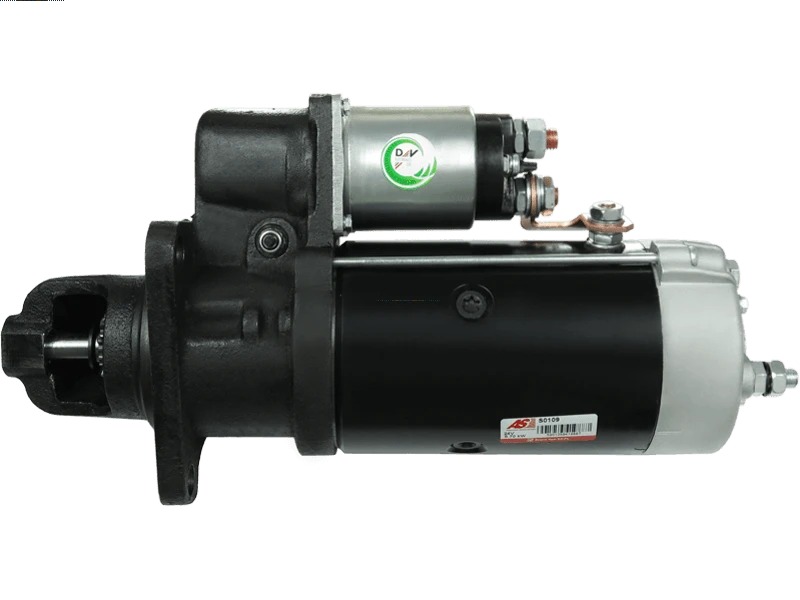

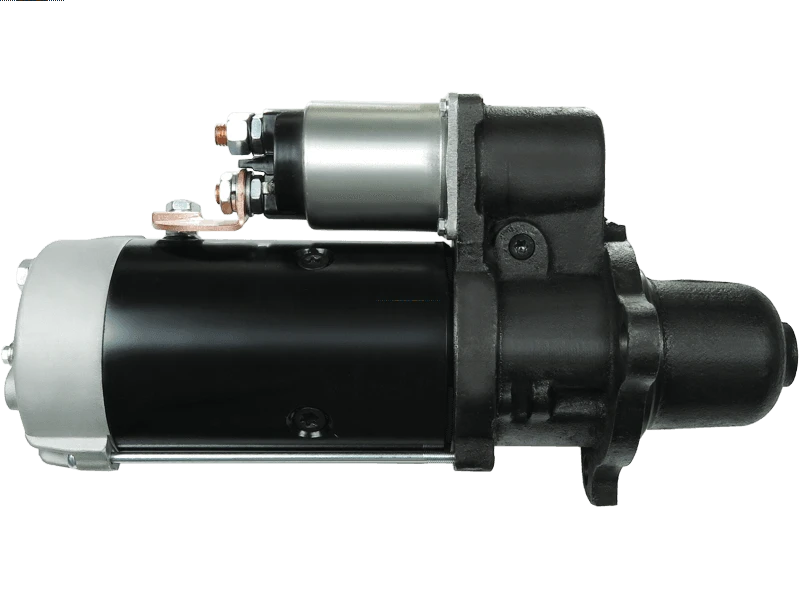

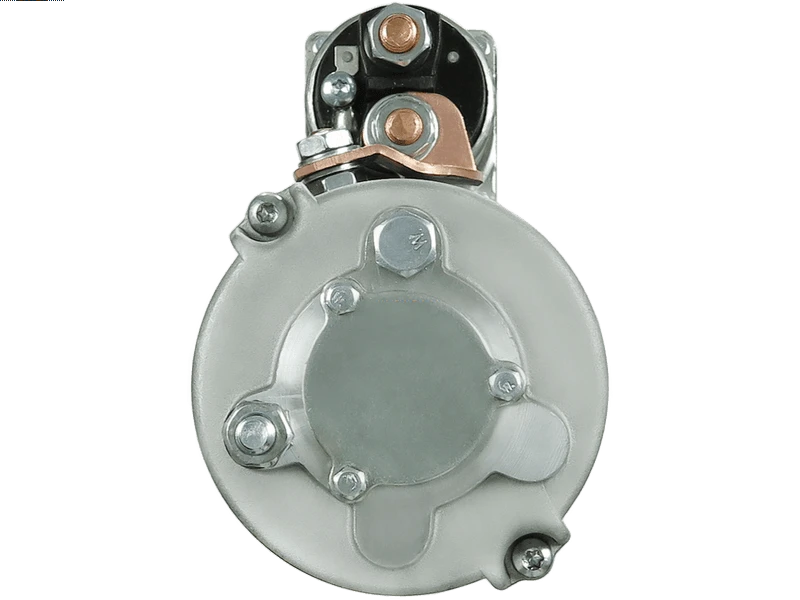

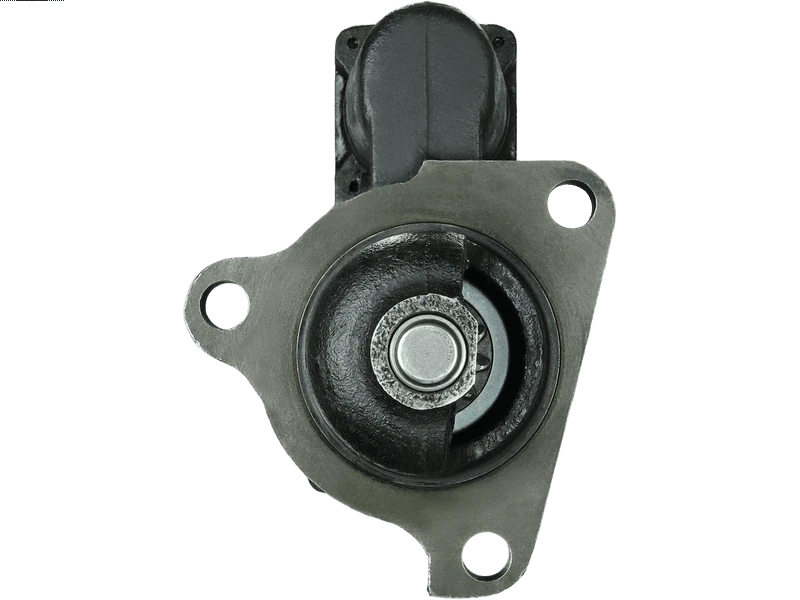

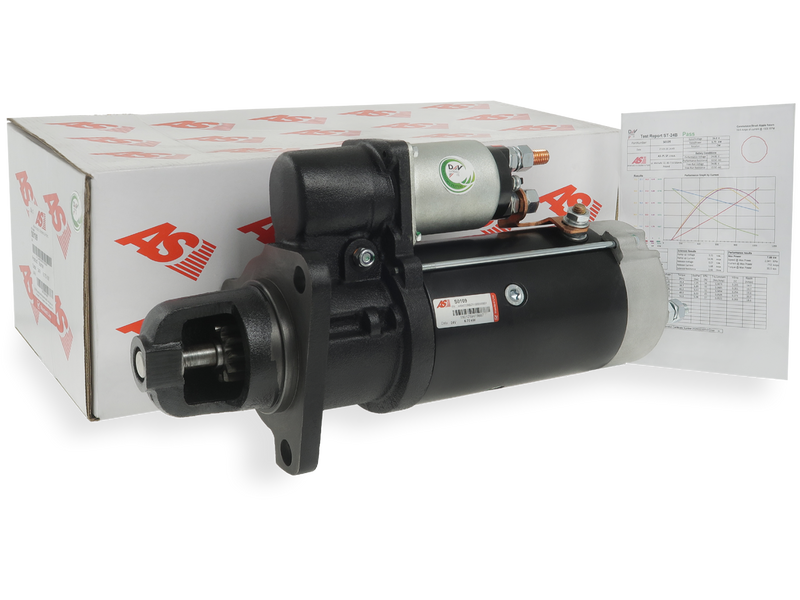

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 927.66 including GST
NZ$ 806.66 excluding GST
or four payments of $231.92
with
Learn More
UOM:
each
Product Code:
S0109
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001371008Associated Numbers
0001371008 101199 101199D 112437 1382290 20401276BN 20401276EL 28.1199 33945 45-2452 458199 571464 6010672 8113 861324 8818800 88212544 8EA737854-001 CS1199 CST10672AS CST10672ES DRS8800 EAA-121447 IS9145 LRS01929 STR50384Specifications
| Kilowatt | 6.70 kW |
| Length (L.1) | 427 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | 114 C/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 G/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 L/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | T 114 G/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | T 114 L/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
Reference Information
| 0001371008 | BOSCH |
| 101199 | KUHNER |
| 101199D | KUHNER |
| 112437 | CARGO |
| 1382290 | SCANIA |
| 20401276BN | REAL |
| 20401276EL | REAL |
| 220287 | ERA |
| 28.1199 | LAUBER |
| 331351 | LOGISTIK |
| 33945 | EAI |
| 45-2452 | ELSTOCK |
| 458199 | VALEO |
| 571428 | SCANIA |
| 571464 | SCANIA |
| 6010672 | SANDO |
| 8113 | CEVAM |
| 861324 | PRESTOLITE |
| 8818800 | FRIESEN |
| 88212544 | POWERMAX |
| 8EA737854-001 | HELLA |
| 911.004.113.010 | PSH |
| 911.004.113.311 | PSH |
| ANM11020X | ANDEL |
| CGB-28800 | AINDE |
| CS1199 | HC PARTS |
| CST10672AS | CASCO |
| CST10672ES | CASCO |
| DRS8800 | DELCO |
| F032112437 | CARGO |
| IS9145 | ISKRA / LETRIKA |
| LRS01929 | LUCAS |
| LRS1929 | LUCAS |
| MAV126720 | SIOM |
| MS464 | MAHLE |
| PRSL836 | 3EFFE |
| S136.171 | PSH |
| S145.228 | PSH |
| STR1346 | ELECTROLOG |
| STR50384 | WOODAUTO |
| STRL836 | 3EFFE |
| UD104992S | AS-PL |
