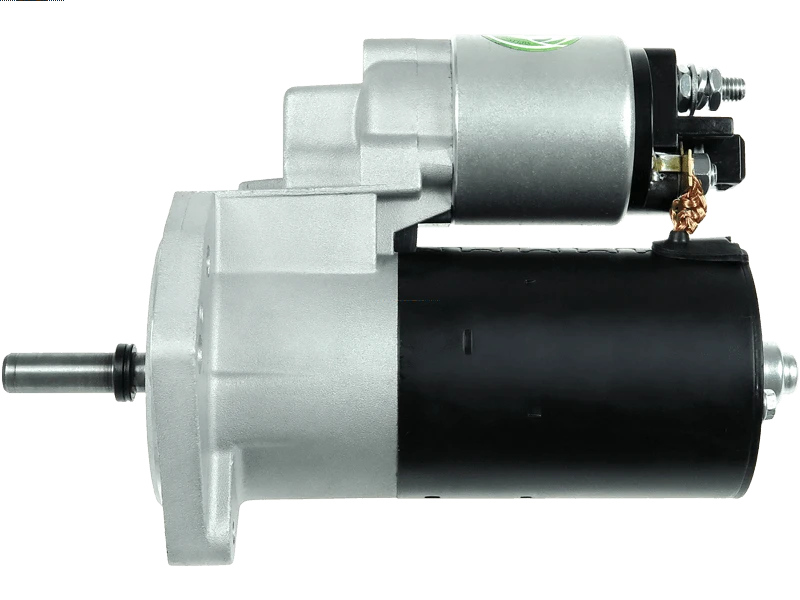

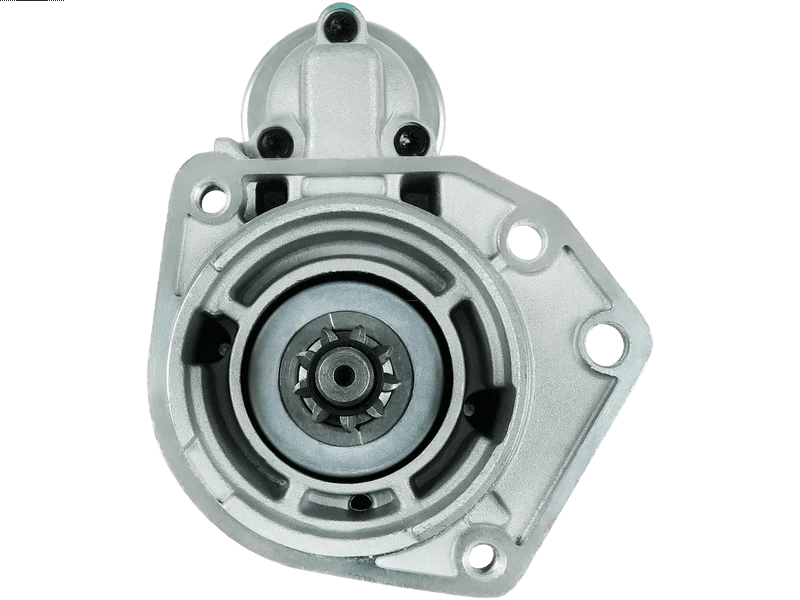

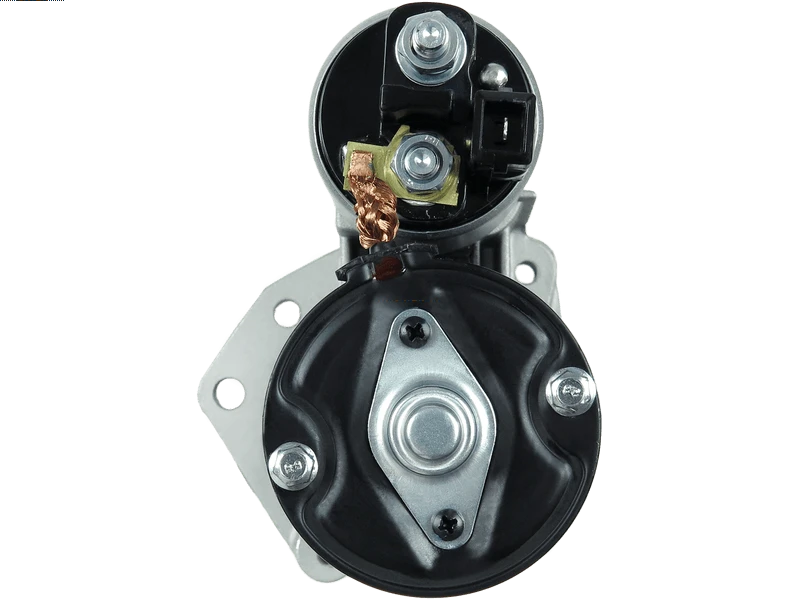

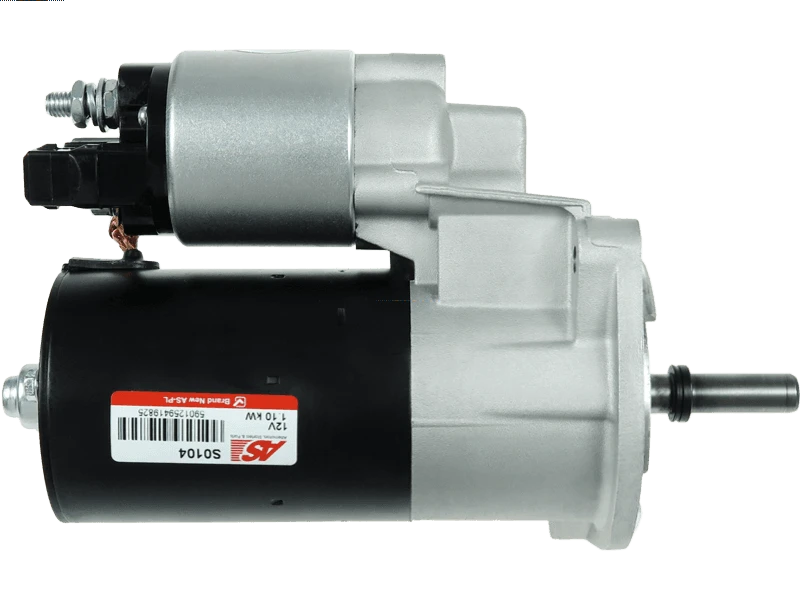

S0104 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.1 kW
Length (L.1)	234 mm
Mount Hole Center - Center (O.1)	74 mm
Mount Hole Center - Center (O.2)	30 mm
Mount Hole Center - Center (O.3)	58 mm
Mount Hole Center - Center (O.4)	104 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	8.5 mm
Mount Hole Diameter (C.3)	10 mm
Mount Hole Diameter (C.4)	M8x1.25 mm
No./Mount holes	4 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	2 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SEAT	Arosa 1.4	[AEX]	02.1997-11.1997
SEAT	Arosa 1.4	[AKK]	01.1999-10.2000
SEAT	Arosa 1.4	[AKV]	05.1997-09.1999
SEAT	Arosa 1.4	[ANW]	01.1999-10.2000
SEAT	Arosa 1.4	[APQ]	12.1997-08.1998
SEAT	Arosa 1.4	[AUD]	09.2000-06.2004
SEAT	Arosa 1.4 16V	[AFK]	01.1999-09.2000
SEAT	Arosa 1.4 16V	[ANW]	01.1999-10.2000
SEAT	Arosa 1.4 16V	[AQQ]	05.1999-09.2000
SEAT	Arosa 1.4 16V	[AUB]	09.2000-06.2004
SEAT	Cordoba 1.0	[ALD]	06.1999-10.2002
SEAT	Cordoba 1.0	[ANV]	06.1999-10.2002
SEAT	Cordoba 1.0	[AUC]	06.1999-10.2002
SEAT	Cordoba 1.0 16V	[AST]	05.2000-10.2002
SEAT	Cordoba 1.0 16V	[AVZ]	05.2000-10.2002
SEAT	Cordoba 1.0 i	[AER]	09.1996-06.1999
SEAT	Cordoba 1.4	[AKK]	06.1999-12.2002
SEAT	Cordoba 1.4	[AUD]	06.1999-12.2002
SEAT	Cordoba 1.4 16V	[APE]	06.1999-06.2000
SEAT	Cordoba 1.4 16V	[AQQ]	02.2000-10.2002
SEAT	Cordoba 1.4 16V	[AUA]	09.1999-06.2000
SEAT	Cordoba 1.4 16V	[AUB]	02.2000-10.2002
SEAT	Cordoba 1.4 i	[ABD]	09.1993-12.1995
SEAT	Cordoba 1.4 i	[AEX]	12.1995-12.1997
SEAT	Cordoba 1.4 i	[AKV]	09.1997-12.2002
SEAT	Cordoba 1.4 i	[ANX]	01.1996-05.1998
SEAT	Cordoba 1.4 i	[APQ]	12.1997-12.2002
SEAT	Cordoba 1.4 i 16V	[AFH]	09.1996-06.1999
SEAT	Cordoba 1.6	[ALM]	09.1997-08.2002
SEAT	Cordoba 1.6 i	[ABU]	09.1993-07.1994
SEAT	Cordoba 1.6 i	[AEE]	03.1997-12.1998
SEAT	Cordoba 1.6 i	[ALM]	09.1997-12.2002
SEAT	Ibiza 1.0	[ALD]	05.1999-05.2002
SEAT	Ibiza 1.0	[ANV]	05.1999-07.2000
SEAT	Ibiza 1.0	[AUC]	07.2000-05.2002
SEAT	Ibiza 1.0 16V	[AST]	05.2000-02.2002
SEAT	Ibiza 1.0 16V	[AVZ]	05.2000-02.2002
SEAT	Ibiza 1.0 i	[AER]	09.1996-10.1999
SEAT	Ibiza 1.4	[AKK]	05.1999-05.2002
SEAT	Ibiza 1.4	[ANW]	08.1999-08.2000
SEAT	Ibiza 1.4	[AUD]	06.2000-05.2002
SEAT	Ibiza 1.4 16V	[APE]	05.1999-06.2000
SEAT	Ibiza 1.4 16V	[AQQ]	08.1999-07.2000
SEAT	Ibiza 1.4 16V	[AUA]	05.2000-05.2002
SEAT	Ibiza 1.4 16V	[AUB]	07.2000-05.2002
SEAT	Ibiza 1.4 i	[ABD]	09.1993-12.1995
SEAT	Ibiza 1.4 i	[AEX]	12.1995-12.1997
SEAT	Ibiza 1.4 i	[AKV]	12.1997-10.1999
SEAT	Ibiza 1.4 i	[APQ]	12.1997-10.1999
SEAT	Ibiza 1.4 i 16V	[AFH]	09.1996-08.1999
SEAT	Ibiza 1.6	[ALM]	09.1997-02.2002
SEAT	Ibiza 1.6 i	[ABU]	03.1993-07.1994
SEAT	Ibiza 1.6 i	[AEE]	03.1997-12.1998
SEAT	Ibiza 1.6 i	[ALM]	09.1997-05.2002
SEAT	Inca 1.4 16V	[AUA]	04.2000-06.2003
SEAT	Inca 1.4 i	[APQ]	12.1997-06.2003
SEAT	Inca 1.4 i	[AUD]	09.2000-06.2003
SEAT	Inca 1.6 i	[AEE]	06.1997-09.2000
VW	Caddy 1.4	[AEX]	11.1995-12.1997
VW	Caddy 1.4	[AKV]	11.1997-09.2000
VW	Caddy 1.4	[APQ]	12.1997-06.2003
VW	Caddy 1.4	[AUA]	08.2000-06.2003
VW	Caddy 1.4	[AUD]	09.2000-06.2003
VW	Caddy 1.4 16V	[AUA]	08.2000-06.2003
VW	Caddy 1.6	[AEE]	06.1996-12.2000
VW	Golf III 1.4	[ABD]	08.1992-07.1995
VW	Golf III 1.6	[ABU]	09.1992-09.1994
VW	Lupo 1.4	[AHW]	01.1999-
VW	Lupo 1.4	[AKQ]	10.1998-
VW	Lupo 1.4	[APE]	05.1999-
VW	Lupo 1.4	[AUA]	09.2000-04.2002
VW	Lupo 1.4	[AUD]	10.2000-
VW	Lupo 1.4	[BBY]	11.2001-
VW	Lupo 1.4 16V	[AFK]	05.1999-
VW	Lupo 1.4 16V	[ANM]	05.1999-
VW	Lupo 1.4 16V	[AQQ]	05.1999-
VW	Lupo 1.4 16V	[AUB]	05.2000-
VW	Polo 1.4	[AEX]	08.1995-10.1999
VW	Polo 1.4	[AKK]	10.1999-09.2001
VW	Polo 1.4	[AKP]	12.1998-09.2001
VW	Polo 1.4	[AKV]	05.1997-08.1999
VW	Polo 1.4	[ANW]	10.1999-08.2000
VW	Polo 1.4	[ANX]	12.1997-08.1999
VW	Polo 1.4	[APQ]	11.1997-12.1999
VW	Polo 1.4	[AUD]	06.2000-09.2001
VW	Polo 1.4 16V	[AFH]	04.1996-10.1999
VW	Polo 1.4 16V	[AFK]	09.1998-09.2001
VW	Polo 1.4 16V	[AHW]	01.1999-09.2001
VW	Polo 1.4 16V	[APE]	01.1999-09.2001
VW	Polo 1.4 16V	[AQQ]	09.1998-09.2001
VW	Polo 1.4 16V	[AUA]	10.1999-09.2001
VW	Polo 1.4 16V	[AUB]	10.1999-09.2001
VW	Polo 1.6	[AEA]	10.1994-07.1995
VW	Polo 1.6	[AEE]	07.1995-12.1999
VW	Polo 1.6	[AHS]	03.1996-12.1999
VW	Polo 1.6	[ALM]	11.1995-09.2001
VW	Polo 1.6 GTi 16V	[AJV]	04.1998-12.1999
VW	Polo 1.6 GTi 16V	[ARC]	10.1999-09.2001
VW	Vento 1.6	[ABU]	09.1992-09.1994

Reference Information

1107025 ANM19020X 1107026 1107103 0001107104 1107104 S12BH0082A2 0001107026 0001107103 0001107025 DRS6800 LRS00892 085911023BX 36911023S CS880 36911023SX S1016B 000331303147647 42016800 EAA-121103 22.088 20500892 85911023B 036911023SV CST10112AS 036911023SX S0104 3.31303E+11 STB0880 036911023Q IS9327 036911023S 085911023B 88213336 986016800 30892R 11.139.327 30892N 085911023J 85911023BX 8213336 AZE2147 036911025B 8EA732659-001 STA0162R 20401211BN 36911025B 112307 STRS117 300.520.094.050 455728 6010112 STR50036 3811 11763 AES8192 36911023SV 8EA011610-551 PRSS117 STR1324 8016800 220128 331032 943251340 RNL1680 000986016800 25-2049 10880 MAV6680 LRS892

Video/Publications

0001107025 0001107026 0001107103 0001107104 0331303147647 036911023S 036911023SX 036911025B 0986016800 10880 11.139.327 112307 11763 20401211BN 20500892 22.0880 25-2049 30892N 3811 42016800 455728 6010112 8016800 8213336 88213336 8EA732659-001 943251340 AES8192 AZE2147 CS880 CST10112AS DRS6800 EAA-121103 IS9327 LRS00892 LRS892 MAV6680 RNL1680 S0104 S1016B STR50036 STRS117 220128
