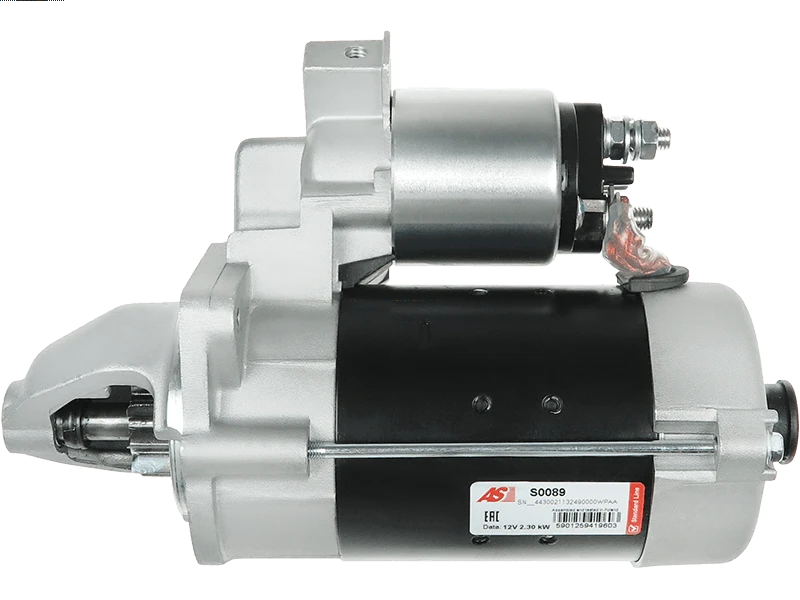

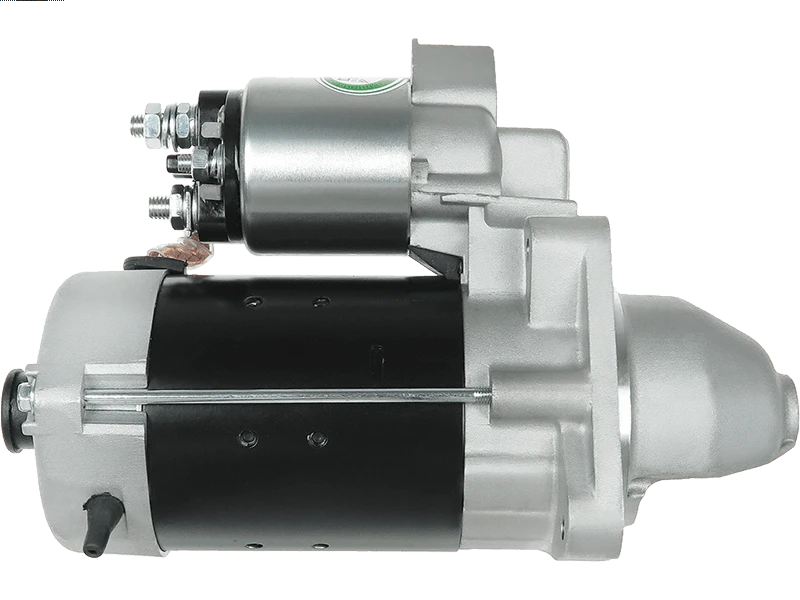

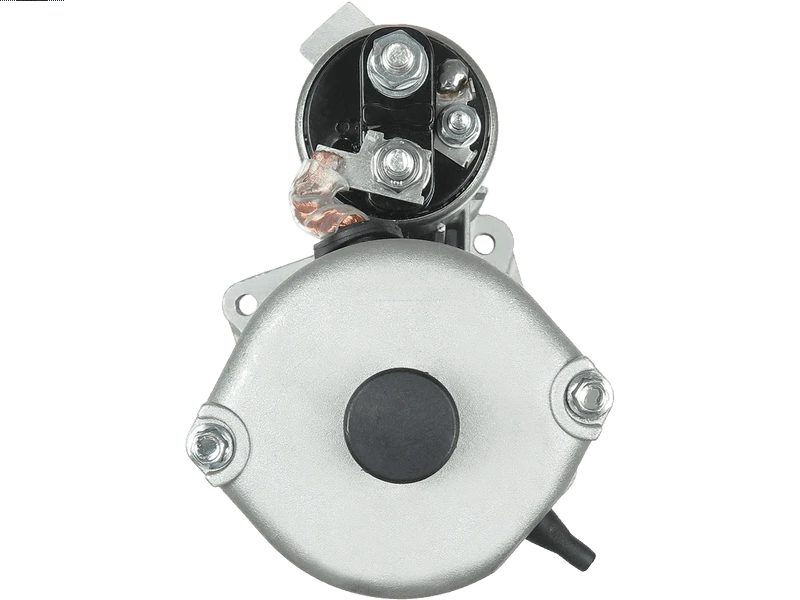

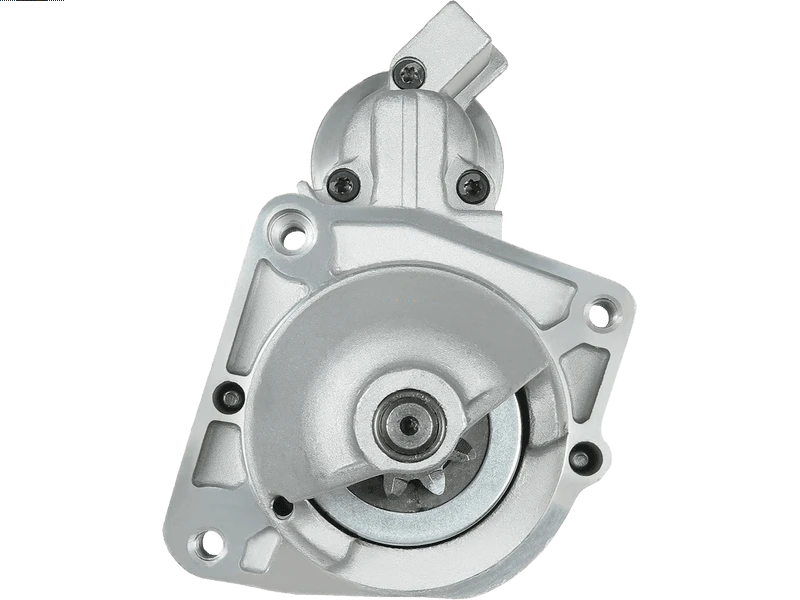

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 381.20 including GST
NZ$ 331.48 excluding GST
or four payments of $95.30
with
Learn More
each
S0159
S0089
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001223013Associated Numbers
0001223013 0986018960 101198 101198B 112436 11854 1329201080 20401261BN 20401261OE 20510188 22.1198 22.1198M 25-2232 25-3106 33221N 33222N 3671 42018960 458486 46758240 5802Z0 5802Z3 6010162 71723353 8018960 8029647 8213011 88213011 8EA012526-221 8EA737853-001 AEU1198 CS1198 CST10162AS CST10162GS DRS8960 DRS8960N EAA-121060 G201198B-R GS223013-A IS1269 LRS01592 RNL1896 S0089 S1065B S1070B SS248 STR22122Specifications
| Kilowatt | 2.3 kW |
| Length (L.1) | 248 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Center - Center (O.2) | 116.5 mm |
| Mount Hole Center - Center (O.3) | 83 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 81.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.8 HDi | [8140.43N] | 04.2004-06.2006 |
| CITROEN | Jumper 2.8 HDi | [8140.43N] | 05.2004- |
| CITROEN | Jumper 2.8 HDi | [8140.43N] | 05.2004-06.2006 |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 04.2002-06.2006 |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 09.2000- |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 09.2000-04.2002 |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 04.2002-06.2006 |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 09.2000- |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 09.2000-04.2002 |
| CITROEN | Jumper 2.8 HDi 4x4 | [F28TDCR] | 02.2002-06.2006 |
| FIAT | Ducato 2.3 JTD | [F1AE0481C] | 04.2002- |
| FIAT | Ducato 2.3 JTD | [F1AE0481C] | 12.2001-07.2006 |
| FIAT | Ducato 2.5 TDi | [8140.47] | 03.2000-04.2002 |
| FIAT | Ducato 2.8 D | [8140.63] | 02.1998-04.2002 |
| FIAT | Ducato 2.8 D | [8140.63] | 05.1998-04.2002 |
| FIAT | Ducato 2.8 D 4x4 | [8140.63] | 08.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel | [8140.63] | 02.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel 4x4 | [8140.63] | 08.1998- |
| FIAT | Ducato 2.8 iDTD 4x4 | [8140.43] | 05.1998-09.2001 |
| FIAT | Ducato 2.8 JTD | [8140.43] | 11.2003-07.2006 |
| FIAT | Ducato 2.8 JTD | [8140.43N] | 04.2004-07.2006 |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 11.2000- |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 11.2000-04.2002 |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 12.2001- |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 12.2001-07.2006 |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 12.2001-12.2011 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 07.2002- |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 10.2001-04.2002 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 11.2000-04.2002 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 12.2001-07.2006 |
| FIAT | Ducato 2.8 JTD Power | [8140.43N] | 04.2004-07.2006 |
| FIAT | Ducato 2.8 TD | [8140.43] | 11.2003-07.2006 |
| FIAT | Ducato 2.8 TD | [8140.43] | 12.2001-07.2006 |
| FIAT | Ducato 2.8 TD 4x4 | [8140.43] | 05.1998-09.2001 |
| FIAT | Ducato 2.8 TD 4x4 | [8140.43] | 11.2003-07.2006 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 10.1997-04.2002 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 12.1998-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 06.1999-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 07.1999-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 10.1997-04.2002 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43N] | 04.2004-06.2006 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 10.2000-11.2001 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 11.2000-04.2002 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 12.2001-06.2006 |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S(F28DTCR)] | 10.2000-04.2002 |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S(F28DTCR)] | 10.2000-11.2001 |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S(F28DTCR)] | 12.2001-06.2006 |
| PEUGEOT | Boxer 2.8 HDi, 4x4 | [8140.43S] | 11.2000- |
Reference Information
STX200091R 101198 PRSL096 AEU1198 220033 0986018960 5802-Z1 RNL1896 42018960 33222N 943253266010 71723353 S1065B 6010162.1 6010162.0 GS223013-A 5802-Y9 20401261OE MAV6730 5802Z1 5802Z2 112436 5802Z3 CGB-28960 5802Z4 LRS1592 8018960 500.525.093.215 5802Z0 CST10162GS 80296470 20401261BN DRS8960N STRL096B STRL096 1349920080 K1329201080 5802Y9 458486 8029647 1516685R STA0406R 438410 8EA012526-221 DRS8960 1329201080 NPANSM1473 22.1198 438515 88213011 8EA737853-001 ANM11180X 0001223013 CS1198 STR22122 25-3106 STX200042 500.525.093.010 5802EE STX200042R G201198B-R STR1247 STA0068R 3671 101198B STX200091 5010060 CST10162AS 71786771 SS248 71786770 S12BH0016 ASM1473 S12BH0016A2 STB1198 5802-Z2 LRS01592 438392 5802-Z4 22.1198M 46758240 S0089 5802-EE 11854Video/Publications
