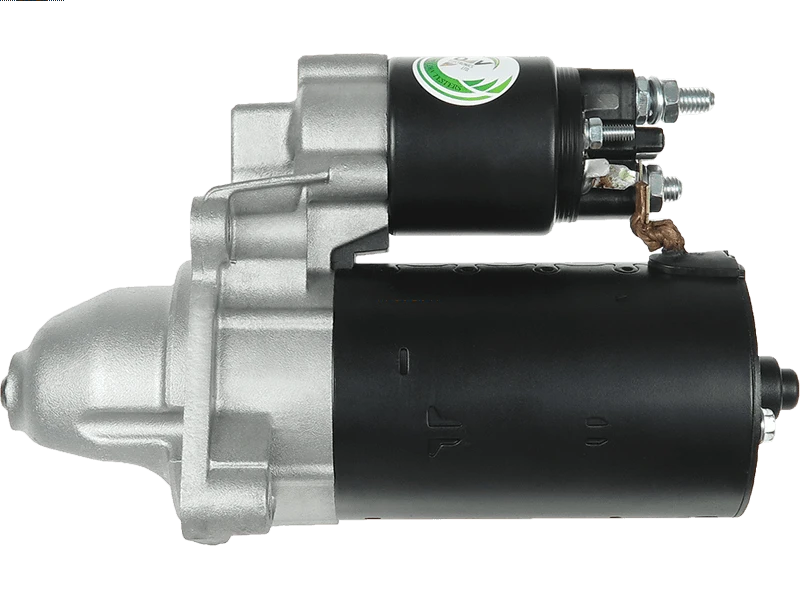

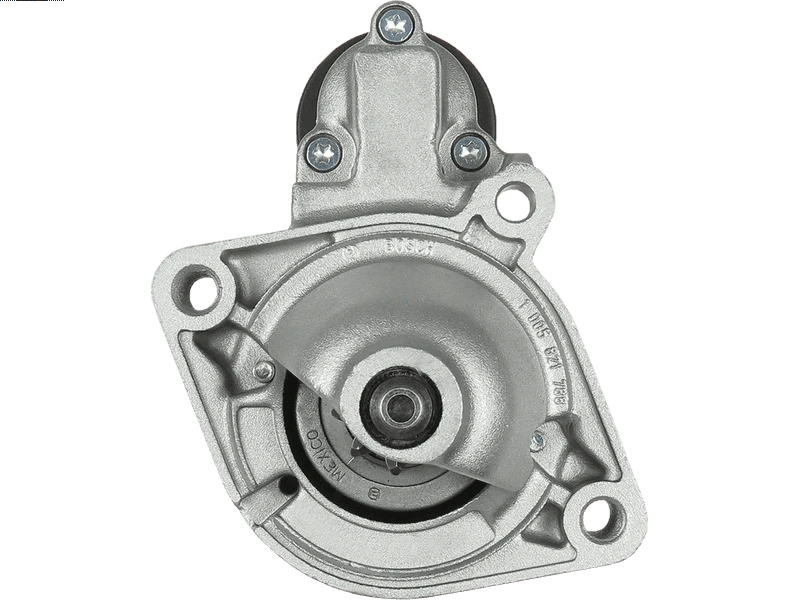

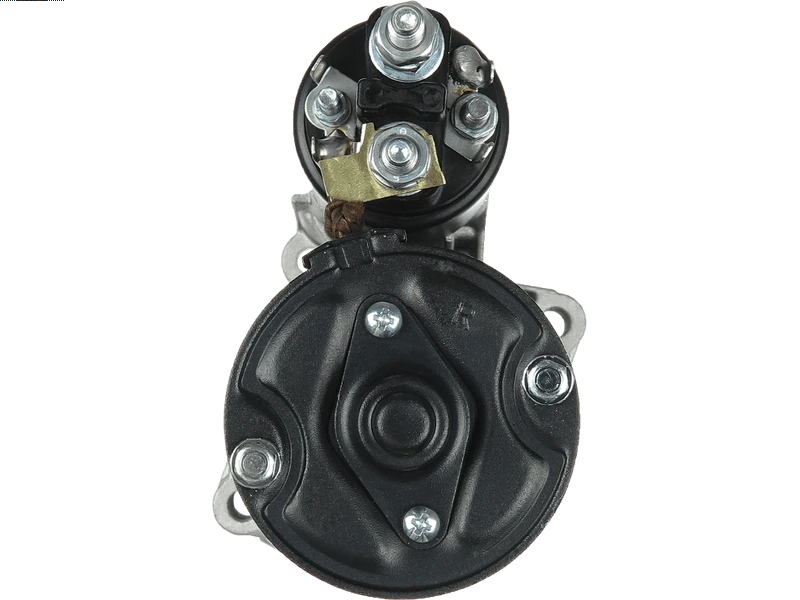

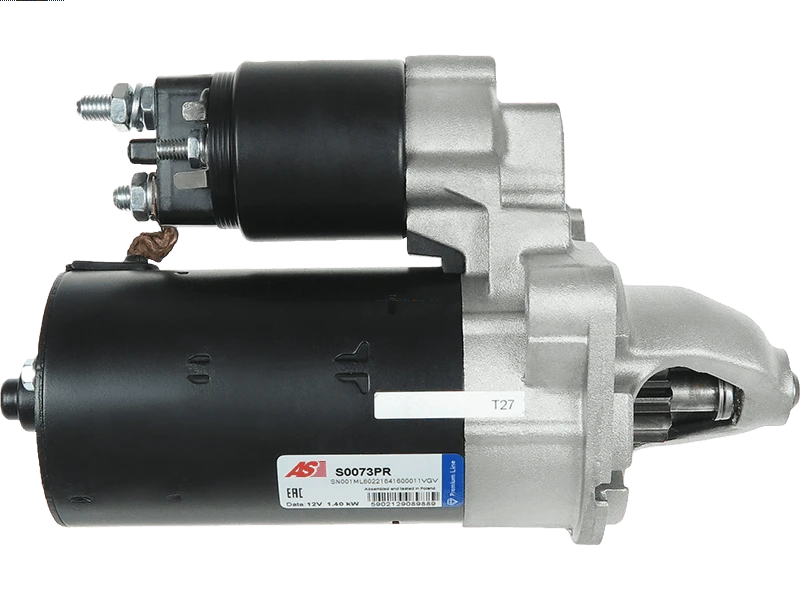

S0073PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	105 mm
Mount Hole Center - Center (O.3)	75 mm
Mount Hole Diameter (C.1)	7.5 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
Mount Hole Diameter (C.3)	M10x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	316 1.6 Ci	(E46)[M43B16(164E3)]	04.2000-07.2006
BMW	316 1.6 g	(E36)[M43B16(164E2)]	03.1994-08.2000
BMW	316 1.6 i	(E30)[M40B16(164E1)]	07.1988-06.1991
BMW	316 1.6 i	(E30)[M40B16(164E1)]	09.1987-06.1991
BMW	316 1.6 i	(E30)[M40B16(164E1)]	09.1991-06.1994
BMW	316 1.6 i	(E36)[M40B16(164E1)]	09.1990-09.1993
BMW	316 1.6 i	(E36)[M43B16(164E2)]	01.1996-10.1999
BMW	316 1.6 i	(E36)[M43B16(164E2)]	03.1994-08.2000
BMW	316 1.6 i	(E36)[M43B16(164E2)]	07.1993-02.1998
BMW	316 1.6 i	(E36)[M43B16(164E2)]	09.1990-09.1993
BMW	316 1.6 i	(E36)[M43B16(164E2)]	09.1993-04.1999
BMW	316 1.6 i	(E46)[M43B16(164E3)]	04.2000-02.2005
BMW	316 1.9 i	(E36)[M43B19(194E1)]	12.1998-08.2000
BMW	316 1.9 i	(E46)[M43B19(194E1)]	09.1998-02.2005
BMW	318 1.8 i	(E30)[M40B18(184E1)]	04.1989-06.1994
BMW	318 1.8 i	(E30)[M40B18(184E1)]	09.1987-06.1991
BMW	318 1.8 i	(E30)[M40B18(184E1)]	09.1990-10.1993
BMW	318 1.8 i	(E36)[M40B18(184E1)]	12.1990-10.1993
BMW	318 1.8 i	(E36)[M43B18(184E2)]	01.1994-04.1999
BMW	318 1.8 i	(E36)[M43B18(184E2)]	07.1995-10.1999
BMW	318 1.8 i	(E36)[M43B18(184E2)]	10.1993-02.1998
BMW	318 1.8 is	(E30)[M42B18(184S1)]	09.1989-08.1991
BMW	318 1.8 is	(E36)[M42B18(184S1)]	03.1992-10.1995
BMW	318 1.8 is	(E36)[M42B18(184S1)]	03.1993-02.1998
BMW	318 1.8 ti	(E36)[M42B18(184S1)]	11.1994-08.1995
BMW	318 1.9 Ci	(E46)[M43B19(194E1)]	11.1999-09.2001
BMW	318 1.9 i	(E46)[M43B19(194E1)]	02.1998-09.2001
BMW	318 1.9 i	(E46)[M43B19(194E1)]	10.1999-09.2001
BMW	318 1.9 is	(E36)[M44B19(194S1)]	09.1995-02.1998
BMW	318 1.9 is	(E36)[M44B19(194S1)]	09.1995-04.1999
BMW	318 1.9 ti	(E36)[M44B19(194S1)]	07.1995-08.2000
BMW	320 2.0 Ci	(E46)[M52B20(206S4)]	02.1999-08.2001
BMW	320 2.0 i	(E36)[M50B20(206S1)]	03.1992-04.1999
BMW	320 2.0 i	(E36)[M50B20(206S1)]	09.1990-02.1998
BMW	320 2.0 i	(E36)[M50B20(206S2)]	03.1992-04.1999
BMW	320 2.0 i	(E36)[M50B20(206S2)]	09.1990-02.1998
BMW	320 2.0 i	(E36)[M50B20(206S2)]	12.1993-04.1999
BMW	320 2.0 i	(E36)[M52B20(206S3)]	01.1995-10.1999
BMW	320 2.0 i	(E36)[M52B20(206S3)]	03.1992-04.1999
BMW	320 2.0 i	(E36)[M52B20(206S3)]	09.1990-02.1998
BMW	320 2.0 i	(E36)[M52B20(206S3)]	12.1993-04.1999
BMW	320 2.0 i	(E46)[M52B20(206S4)]	03.1998-09.2000
BMW	320 2.0 i	[(E46)M52B20(206S4)]	10.1999-09.2000
BMW	320 2.2 Ci	(E46)[M54B22(226S1)]	01.2000-05.2006
BMW	320 2.2 Ci	(E46)[M54B22(226S1)]	09.2000-12.2007
BMW	320 2.2 i	(E46)[M54B22(226S1)]	09.2000-02.2005
BMW	323 2.5 Ci	(E46)[M52B25(256S4)]	04.1999-09.2000
BMW	323 2.5 Ci	(E46)[M52B25(256S4)]	04.2000-09.2000
BMW	323 2.5 i	(E36)[M52B25(256S3)]	03.1995-02.1998
BMW	323 2.5 i	(E36)[M52B25(256S3)]	03.1995-04.1999
BMW	323 2.5 i	(E36)[M52B25(256S3)]	06.1995-04.1999
BMW	323 2.5 i	(E36)[M52B25(256S3)]	09.1995-10.1999
BMW	323 2.5 i	(E46)[M52B25(256S4)]	03.1998-09.2000
BMW	323 2.5 ti	(E36)[M52B25(256S3)]	08.1997-08.2000
BMW	325 2.5 Ci	(E46)[M54B25(256S5)]	09.2000-07.2006
BMW	325 2.5 Ci	(E46)[M54B25(256S5)]	09.2000-12.2007
BMW	325 2.5 i	(E36)[M50B25(256S1)]	09.1990-09.1995
BMW	325 2.5 i	(E36)[M50B25(256S1)]	09.1991-04.1999
BMW	325 2.5 i	(E36)[M50B25(256S2)]	03.1993-12.1995
BMW	325 2.5 i	(E36)[M50B25(256S2)]	09.1990-09.1995
BMW	325 2.5 i	(E36)[M50B25(256S2)]	09.1991-04.1999
BMW	325 2.5 i	(E46)[M54B25(256S5)]	09.2000-02.2005
BMW	325 2.5 ti	(E46)[M54B25(256S5)]	06.2001-02.2005
BMW	325 2.5 xi	(E46)[M54B25(256S5)]	09.2000-02.2005
BMW	328 2.8 Ci	(E46)[M52B28(286S2)]	04.1999-06.2000
BMW	328 2.8 i	(E36)[M52B28(286S1)]	01.1995-04.1999
BMW	328 2.8 i	(E36)[M52B28(286S1)]	03.1995-04.1999
BMW	328 2.8 i	(E36)[M52B28(286S1)]	08.1994-12.1998
BMW	328 2.8 i	(E36)[M52B28(286S1)]	08.1994-12.1999
BMW	328 2.8 i	(E46)[M52B28(286S2)]	02.1998-06.2000
BMW	328 2.8 i	(E46)[M52B28(286S2)]	10.1999-06.2000
BMW	330 3.0 Ci	(E46)[M54B30(306S3)]	06.2000-07.2006
BMW	330 3.0 Ci	(E46)[M54B30(306S3)]	06.2000-12.2007
BMW	330 3.0 i	(E46)[M54B30(306S3)]	06.2000-02.2005
BMW	330 3.0 xi	(E46)[M54B30(306S3)]	06.2000-02.2005
BMW	330 3.0 xi	(E46)[M54B30(306S3)]	06.2000-07.2006
BMW	518 1.8 g	(E34)[M43B18(184E2)]	11.1995-06.1996
BMW	518 1.8 i	(E34)[M40B18(184E1)]	08.1989-09.1995
BMW	518 1.8 i	(E34)[M43B18(184E2)]	03.1993-09.1994
BMW	518 1.8 i	(E34)[M43B18(184E2)]	08.1989-09.1995
BMW	518 1.8 i	(E34)[M43B18(184E2)]	09.1994-01.1997
BMW	520 2.0 i	(E34)[M50B20(206S1)]	11.1991-01.1997
BMW	520 2.0 i	(E34)[M50B20(206S2)]	11.1991-01.1997
BMW	520 2.0 i	(E39)[M52B20(206S3)]	01.1996-06.2003
BMW	520 2.0 i	(E39)[M52B20(206S3)]	01.1997-09.2000
BMW	520 2.0 i	(E39)[M52B20(206S3)]	04.1999-05.2004
BMW	520 2.0 i	(E39)[M52B20(206S3)]	04.1999-06.2003
BMW	520 2.0 i	(E39)[M52B20(206S4)]	01.1996-06.2003
BMW	520 2.0 i 24V	(E34)[M50B20(206S1)]	09.1989-09.1995
BMW	520 2.0 i 24V	(E34)[M50B20(206S2)]	09.1989-09.1995
BMW	520 2.2 i	(E39)[M54B22(226S1)]	09.2000-06.2003
BMW	520 2.2 i	(E39)[M54B22(226S1)]	09.2000-12.2003
BMW	520 2.2 i	(E60)[M54B22(226S1)]	07.2003-03.2010
BMW	520 2.2 i		06.2004-
BMW	523 2.5 i	(E39)[M52B25(256S3)]	09.1996-08.2000
BMW	523 2.5 i	(E39)[M52B25(256S3)]	11.1995-09.2000
BMW	523 2.5 i	(E39)[M52B25(256S4)]	09.1996-08.2000
BMW	525 2.5 i	(E34)[M50B25(256S1)]	11.1991-01.1997
BMW	525 2.5 i	(E34)[M50B25(256S2)]	11.1991-01.1997
BMW	525 2.5 i	(E39)[M54B25(256S5)]	09.2000-05.2004
BMW	525 2.5 i	(E39)[M54B25(256S5)]	09.2000-06.2003
BMW	525 2.5 i	(E60)[M54B25(256S5)]	09.2003-03.2010
BMW	525 2.5 i	(E61)[M54B25(256S5)]	06.2004-12.2010
BMW	525 2.5 i 24V	(E34)[M50B25(256S2)]	09.1989-12.1995
BMW	525 2.5 ix	(E34)[M50B25(256S1)]	02.1992-01.1997
BMW	525 2.5 ix	(E34)[M50B25(256S2)]	02.1992-01.1997
BMW	525 2.5 iX 24V	(E34)[M50B25(256S1)]	10.1991-09.1995
BMW	525 2.5 iX 24V	(E34)[M50B25(256S2)]	10.1991-09.1995
BMW	528 2.8 i	(E39)[M52B28(286S1)]	01.1997-09.2000
BMW	528 2.8 i	(E39)[M52B28(286S1)]	11.1995-09.2000
BMW	528 2.8 i	(E39)[M52B28(286S2)]	01.1997-09.2000
BMW	528 2.8 i	(E39)[M52B28(286S2)]	11.1995-09.2000
BMW	530 3.0 i	(E39)[M54B30(306S3)]	09.2000-05.2004
BMW	530 3.0 i	(E39)[M54B30(306S3)]	09.2000-06.2003
BMW	530 3.0 i	(E60)[M54B30(306S3)]	12.2001-02.2005
BMW	530 3.0 i		06.2004-
BMW	728 2.8 i	(E38)[M52B28(286S1)]	08.1995-11.2001
BMW	728 2.8 i	(E38)[M52B28(286S2)]	08.1995-11.2001
BMW	728 2.8 iL	(E38)[M52B28(286S1)]	08.1995-11.2001
BMW	728 2.8 iL	(E38)[M52B28(286S2)]	08.1995-11.2001
BMW	728 2.8i X	(E38)[M52B28(286S1)]	11.1995-09.2001
BMW	730 3.0 i	(E65)[M54B30(306S3)]	03.2003-07.2008
BMW	730 3.0 i	(E66)[M54B30(306S3)]	03.2003-07.2008
BMW	730 3.0 i	(E67)[M54B30(306S3)]	03.2003-07.2008
BMW	730 3.0 Li	(E65)[M54B30(306S3)]	03.2003-07.2008
BMW	730 3.0 Li	(E66)[M54B30(306S3)]	03.2003-07.2008
BMW	730 3.0 Li	(E67)[M54B30(306S3)]	03.2003-07.2008
BMW	X3 2.5 i	(E83)[M54B25(256S5)]	01.2004-08.2006
BMW	X3 3.0 i xDrive	(E83)[M54B30(306S3)]	01.2004-08.2006
BMW	X5 3.0 i	(E53)[M54B30(306S3)]	05.2000-12.2006
BMW	Z3 1.8 i	(E36)[M43B18(184E2)]	10.1995-10.1998
BMW	Z3 1.9 i	(E36)[M43B19(194E1)]	01.1999-01.2003
BMW	Z3 1.9 i	(E36)[M43B19(194E1)]	07.1998-01.2003
BMW	Z3 1.9 i	(E36)[M44B19(194S1)]	10.1995-03.1999
BMW	Z3 2.0 i	(E36)[M52B20(206S4)]	04.1999-01.2003
BMW	Z3 2.2 i	(E36)[M54B22(226S1)]	08.2000-01.2003
BMW	Z3 2.8 i	(E36)[M52B28(286S1)]	04.1997-06.2000
BMW	Z3 2.8 i	(E36)[M52B28(286S1)]	07.1997-06.2000
BMW	Z3 3.0 i	(E36)[M54B30(306S3)]	06.2000-01.2003
BMW	Z3 3.0 i	(E36)[M54B30(306S3)]	06.2000-06.2003
BMW	Z4 2.2 i	(E85)[M54B22(226S1)]	10.2003-10.2005
BMW	Z4 2.5 i	(E85)[M54B25(256S5)]	02.2003-12.2005
BMW	Z4 3.0 i	(E85)[M54B30(306S3)]	02.2003-10.2005

Reference Information

8EA012526-841 0001108157 000986018460 1108157 MSN2019 63223537 STR1145A 91-15-7097N 111911 210.507.093.280 1241174037 STB1067 91-15-7097 MSR1170 7501668 438464 26-2238 88212495 12411740379 12411740378 986018460 12411740375 12411740374 1740375 1740374 94860420800 000986017117 12411740373 12412354693 2354693 8EA737417-001 438456 000986017110 12411438696 000986017111 STRF112 12417501738 12411354823 1107443 63521074420 210.507.093.415 000986026220 1107442 330423 S12BH0089A2 63721067010 MSR642 12417501668 AI-80143 438488 1108401 12417515396 986026220 9.43241E+11 986017111 986017110 7515392 7515390 12417515391 986017117 210.507.093.010 DRS8460 MRS17110 12417515390 7515391 12417515392 12412167996 331219 STR1498 9.43294E+11 0001108230 1108230 1108190 PRSF112 0001108190 42017110 LRT119 STR00357 101067B STR1145 17702N 210.507.093.500 1.24124E+11 220147 9.4428E+11 STR00349 101067V 7501738 SG0408 0001107443 210.507.093.215 0001107442 12412179001 12411712937 12411712939 12414354823 12417578684 MSN642 3850 STR1394 STR50031 63293537 LRT00119 2354709 12412354709 0001108401 12412344242 STM596 12412344247 EAA-121083 101067 210.507.093.211 SEG0001107442 11774

Video/Publications

0001107442 0001107443 0001108065 0001108115 0001108157 0001108190 0001108230 0001108231 0001108401 063521074420 063721067010 0986026220 101067 101067B 10516 11.139.430 111911 11774 12411354823 12411712937 12411712939 12411740373 12411740374 12411740379 12412167996 12412344242 12412354693 12412354709 124123547096 12414354823 12417501668 12417501738 12417515391 12417578684 17702N 17702R 20500750 20510119 210.507.093 220147 26-2238 42017110 428000-0670 458460 6010118 63223537 63293537 726032 72735683 88212495 8EA012526-841 8EA726162-001 8EA737417-001 91-15-7097 91-15-7097N 943241170010 943293537010 944280171100 AES1219 AZE2198 BOS0001107442 CS1067 CST10118 CST10118AS CST10118ES CST10118GS CST10118OS CST10118RS DRS7110 DS8220 EAA-121083 GS107442-A IS9308 LRT00119 MAV2420 MRS17110 MS 55 MS55 MSN642 MSR1170 MSR642 NES1219 S-6246 S1011B S1197D SG0408 STB1067 STB9067 STR50031 STRL038 SX 2027 220169
