0001108066 0001108107 0001108153 0001108166 0001108167 0986016660 10680 10979 11.139.309 11.139.407 112818 11702 1363451 1363451-0 1363451-4 17508N 17508R 20401851BN 20510116 22.0680 22.0680M 25-2037 25-3135 260-14111 30658564 30658565 30815466 30819127 3652 42016660 458190 5003810 5003810-0 5003810-8 5003918-0 5003918-9 564338 565904 6.0133.9 6010158 7700102000 7700103386 7700114428 8016660 810.504.093 8111302 8111302-0 8111302-9 8212223 8251551 8251551-0 8251551-1 8602084 8602085 8602085-0 8602085-6 8602104 8602104-0 8602104-5 88212223 8EA730196-001 91-15-7036 91-15-7036N 9128421 9128421-0 9128421-6 9162617 9162618 9162618-4 943241060010 944280166600 AES1216 AZE2123 AZE2182 CS680 CST10158 CST10158AS CST10158ES CST10158GS CST10158OS CST10158RS DRS6660 EAA-121311 IS9309 LRS02109 LRT00116 MS216 MSR1060 RAS37771 RS37771 S-6160 S0059 S1029B SS024 SS027 SS027OE SS095 SS097 SS868 STR50020 STR50269 UD12029S s0059. s0533. s0877s.
Push on terminal for exciter, plus ballast bypass
| Kilowatt | 1.4 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| Pinion at Rest (B) | -1 mm |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
| RENAULT | Safrane 1.9 16V | [N7Q710] | 07.1996-12.2000 |
| RENAULT | Safrane 1.9 16V | [N7Q711] | 07.1996-12.2000 |
| RENAULT | Safrane 2.5 20V | [N7U700] | 07.1996-12.2000 |
| RENAULT | Safrane 2.5 20V | [N7U701] | 07.1996-12.2000 |
| VOLVO | 850 2.0 | [B5202S] | 08.1994-12.1996 |
| VOLVO | 850 2.0 | [B5204F] | 06.1991-12.1996 |
| VOLVO | 850 2.0 Turbo | [B5204FT] | 08.1993-01.1998 |
| VOLVO | 850 2.0 Turbo | [B5204T] | 01.1995-07.1997 |
| VOLVO | 850 2.3 T5 | [B5234FT] | 02.1993-12.1996 |
| VOLVO | 850 2.3 T5 | [B5234T4] | 08.1995-12.1996 |
| VOLVO | 850 2.5 | [B5252S] | 08.1994-12.1996 |
| VOLVO | 850 2.5 | [B5252] | 08.1992-07.1994 |
| VOLVO | 850 2.5 10V | [B5252S] | 08.1994-12.1996 |
| VOLVO | 850 2.5 10V | [B5252] | 06.1991-07.1994 |
| VOLVO | 850 2.5 20V | [B5254S] | 08.1991-12.1996 |
| VOLVO | 850 2.5 AWD | [B5254T] | 04.1996-12.1996 |
| VOLVO | C70 2.0 20V | [B5204T2] | 01.1997-08.1998 |
| VOLVO | C70 2.0 Turbo | [B5204T3] | 03.1997-07.2000 |
| VOLVO | C70 2.0 Turbo | [B5204T4] | 08.1999-03.2006 |
| VOLVO | C70 2.3 T5 | [B5234T3] | 08.1997-10.2005 |
| VOLVO | C70 2.4 Turbo | [B5244T7] | 08.2002-03.2006 |
| VOLVO | C70 2.5 | [B5244S] | 03.1999-07.2000 |
| VOLVO | C70 2.5 | [B5254S] | 06.1998-07.2000 |
| VOLVO | C70 2.5 Turbo | [B5244T] | 08.1999-07.2002 |
| VOLVO | C70 2.5 Turbo | [B5254T] | 03.1998-07.2002 |
| VOLVO | S40 1.6 | [B4164S2] | 08.1999-01.2004 |
| VOLVO | S40 1.6 | [B4164S] | 09.1995-08.1999 |
| VOLVO | S40 1.8 | [B4184S2] | 03.1999-12.2003 |
| VOLVO | S40 1.8 | [B4184S3] | 08.1999-01.2004 |
| VOLVO | S40 1.8 | [B4184S9] | 03.1999-01.2004 |
| VOLVO | S40 1.8 | [B4184S] | 07.1995-08.1999 |
| VOLVO | S40 1.9 T4 | [B4194T2] | 08.1999-07.2000 |
| VOLVO | S40 1.9 T4 | [B4194T] | 05.1997-07.1999 |
| VOLVO | S40 2.0 | [B4204S] | 07.1995-08.1999 |
| VOLVO | S40 2.0 16V | [B4204S2] | 07.1999-12.2003 |
| VOLVO | S40 2.0 16V | [B4204S] | 07.1995-08.1999 |
| VOLVO | S40 2.0 Turbo | [B4204T] | 10.1997-07.2000 |
| VOLVO | S40 2.0 Turbo T4 | [B4204T5] | 07.2000-12.2003 |
| VOLVO | S60 2.0 Turbo | [B5204T5] | 11.2000- |
| VOLVO | S60 2.3 T5 | [B5234T3] | 11.2000-03.2004 |
| VOLVO | S60 2.4 | [B5244S2] | 11.2000- |
| VOLVO | S60 2.4 | [B5244S] | 11.2000- |
| VOLVO | S60 2.4 Bifuel | [B5244SG2] | 06.2002- |
| VOLVO | S60 2.4 T5 | [B5244T5] | 04.2004- |
| VOLVO | S60 2.4 Turbo | [B5244T3] | 11.2000-07.2004 |
| VOLVO | S60 2.4 Turbo AWD | [B5244T3] | 11.2001-07.2003 |
| VOLVO | S60 2.5 Turbo | [B5254T2] | 04.2004- |
| VOLVO | S60 2.5 Turbo AWD | [B5254T2] | 04.2004- |
| VOLVO | S60 R 2.5 Turbo AWD | [B5254T4] | 03.2003- |
| VOLVO | S70 2.0 | [B5202S] | 01.1997-11.2000 |
| VOLVO | S70 2.0 | [B5204F] | 01.1997-03.2000 |
| VOLVO | S70 2.0 | [B5204T4] | 01.1997-07.2000 |
| VOLVO | S70 2.0 20V | [B5204T2] | 01.1997-11.2000 |
| VOLVO | S70 2.0 Turbo | [B5204T3] | 08.1998-11.2000 |
| VOLVO | S70 2.0 Turbo | [B5204T] | 01.1997-03.2000 |
| VOLVO | S70 2.3 T5 | [B5234T3] | 01.1997-11.2000 |
| VOLVO | S70 2.3 Turbo | [B5234FT] | 01.1997-11.2000 |
| VOLVO | S70 2.4 | [B5244S2] | 08.1999-07.2000 |
| VOLVO | S70 2.4 | [B5244SG] | 08.1999-07.2000 |
| VOLVO | S70 2.4 | [B5252S] | 01.1997-11.2000 |
| VOLVO | S70 2.4 | [B5254S] | 01.1997-11.2000 |
| VOLVO | S70 2.4 | [GB5252S] | 10.1998-11.2000 |
| VOLVO | S70 2.4 Turbo | [B5244T] | 01.1997-11.2000 |
| VOLVO | S70 2.5 Bifuel | [B5244SG] | 07.1999-11.2000 |
| VOLVO | S80 2.0 | [B5204T4] | 06.1998-07.2000 |
| VOLVO | S80 2.0 Turbo | [B5204T3] | 06.1998-07.2000 |
| VOLVO | S80 2.0 Turbo | [B5204T5] | 08.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S2] | 01.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S] | 01.1999-07.2006 |
| VOLVO | S80 2.4 Bifuel | [B5244SG2] | 09.2001-07.2006 |
| VOLVO | S80 2.4 Turbo | [B5244T3] | 06.2000-07.2003 |
| VOLVO | S80 2.5 Turbo | [B5254T2] | 07.2003-07.2006 |
| VOLVO | S80 2.5 Turbo AWD | [B5254T2] | 07.2003-07.2006 |
| VOLVO | V40 1.6 | [B4164S2] | 03.1999-04.2004 |
| VOLVO | V40 1.6 | [B4164S] | 12.1995-08.1999 |
| VOLVO | V40 1.8 | [B4184S2] | 03.1999-04.2004 |
| VOLVO | V40 1.8 | [B4184S3] | 08.1999-04.2004 |
| VOLVO | V40 1.8 | [B4184S9] | 03.1999-04.2004 |
| VOLVO | V40 1.8 | [B4184S] | 07.1995-08.1999 |
| VOLVO | V40 1.9 T4 | [B4194T] | 05.1997-07.1999 |
| VOLVO | V40 2.0 | [B4204S] | 07.1995-08.1999 |
| VOLVO | V40 2.0 16V | [B4204S2] | 07.1995-04.2004 |
| VOLVO | V40 2.0 Turbo | [B4204T2] | 07.2000-07.2000 |
| VOLVO | V40 2.0 Turbo | [B4204T3] | 06.2001-04.2004 |
| VOLVO | V40 2.0 Turbo 16V | [B4204T] | 04.1998-07.1999 |
| VOLVO | V40 2.0 Turbo T4 | [B4204T5] | 07.2000-04.2004 |
| VOLVO | V70 2.0 | [B5202S] | 01.1997-03.2000 |
| VOLVO | V70 2.0 | [B5204S] | 01.1997-03.2000 |
| VOLVO | V70 2.0 | [B5204T4] | 01.1997-03.2000 |
| VOLVO | V70 2.0 20V | [B5204T2] | 01.1997-08.1998 |
| VOLVO | V70 2.0 Turbo | [B5204T3] | 01.1997-08.1999 |
| VOLVO | V70 2.0 Turbo | [B5204T5] | 03.2000-07.2007 |
| VOLVO | V70 2.0 Turbo | [B5204T] | 01.1997-03.2000 |
| VOLVO | V70 2.0 Turbo AWD | [B5204T3] | 01.1997-08.1999 |
| VOLVO | V70 2.3 | [B5234FT] | 01.1997-03.2000 |
| VOLVO | V70 2.3 T5 | [B5234T3] | 01.1997-07.2004 |
| VOLVO | V70 2.3 T5 AWD | [B5234T3] | 01.1997-03.2000 |
| VOLVO | V70 2.3 Turbo AWD | [B5234FT] | 04.1997-03.2000 |
| VOLVO | V70 2.4 | [B5244S2] | 03.2000-07.2007 |
| VOLVO | V70 2.4 | [B5244S] | 03.2000-07.2007 |
| VOLVO | V70 2.4 | [B5252S] | 01.1997-03.2000 |
| VOLVO | V70 2.4 | [B5254S] | 01.1997-03.2000 |
| VOLVO | V70 2.4 | [GB5244S2] | 08.1999-03.2000 |
| VOLVO | V70 2.4 | [GB5244SG2] | 08.1999-03.2000 |
| VOLVO | V70 2.4 | [GB5252S] | 10.1998-08.1999 |
| VOLVO | V70 2.4 Bifuel | [B5244SG] | 08.1999-07.2006 |
| VOLVO | V70 2.4 Turbo | [B5244T3] | 03.2000-07.2002 |
| VOLVO | V70 2.4 Turbo | [B5244T] | 01.1997-03.2000 |
| VOLVO | V70 2.4 Turbo | [B5254T] | 01.1997-03.2000 |
| VOLVO | V70 2.4 Turbo AWD | [B5244T3] | 03.2000-07.2003 |
| VOLVO | V70 2.4 Turbo AWD | [B5244T] | 01.1997-03.2000 |
| VOLVO | V70 2.4 Turbo AWD | [B5254T] | 01.1997-03.2000 |
| VOLVO | V70 2.4 Turbo T5 | [B5244T5] | 04.2004-07.2007 |
| VOLVO | V70 2.5 AWD | [B5244T2] | 03.1999-03.2000 |
| VOLVO | V70 2.5 Turbo | [B5254T2] | 04.2004-07.2007 |
| VOLVO | V70 2.5 Turbo AWD | [B5254T2] | 09.2002-07.2007 |
| VOLVO | V70 2.5 Turbo R AWD | [B5254T4] | 03.2003-07.2007 |
| VOLVO | XC70 2.4 Turbo AWD | [B5244T3] | 09.2000-09.2002 |
| VOLVO | XC70 2.5 Turbo AWD | [B5254T2] | 09.2002-07.2007 |
| VOLVO | XC90 2.5 Turbo | [B5254T2] | 10.2002- |
8212223
AZE2123
CGB-25161
7700102000
CST10158
0001108153
0986016660
8251551
8111302-9
CST10158ES
30819127
458190
MS216
20510116
8016660
SS868
220104
STRL175
1363451
8111302-0
8111302
CST10158OS
AZE2182
565904
8602104
CST10158GS
22.0680M
91-15-7036
EAA-121311
944280166600
91-15-7036N
SS095
SS097
3652
943241060010
8602104-5
0001108167
LRS2109
0001108166
30658564
8602104-0
30658565
9128421-0
112818
ANM50662X
9128421-6
25-3135
5003918-0
11.139.309
9162618
9162617
5003918-9
7700114428
S1029B
22.0680
RS37771
11702
42016660
8602084
8602085
10979
25-2037
0001108107
8251551-0
8251551-1
CST10158RS
8602085-0
8602085-6
17508R
MS
0001108066
SS027OE
20401851BN
17508N
SS024
SS027
CST10158AS
11.139.407
9162618-4
LRS02109
DRS6660
564338
RAS37771
UD12029S
8EA730196-001
30815466
216
6010158
S-6160
810.504.093
5003810-0
S0059
LRT00116
5003810-8
7700103386
10680
CS680
AES1216
9128421
260-14111
MAV121580
STR50269
IS9309
6.0133.9
1363451-0
5003810
MSR1060
STR50020
1363451-4
88212223
0001108066 0001108107 0001108153 0001108166 0001108167 0986016660 10680 10979 11.139.309 11.139.407 112818 11702 1363451 1363451-0 1363451-4 17508N 17508R 20401851BN 20510116 22.0680 22.0680M 25-2037 25-3135 260-14111 30658564 30658565 30815466 30819127 3652 42016660 458190 5003810 5003810-0 5003810-8 5003918-0 5003918-9 564338 565904 6.0133.9 6010158 7700102000 7700103386 7700114428 8016660 810.504.093 8111302 8111302-0 8111302-9 8212223 8251551 8251551-0 8251551-1 8602084 8602085 8602085-0 8602085-6 8602104 8602104-0 8602104-5 88212223 8EA730196-001 91-15-7036 91-15-7036N 9128421 9128421-0 9128421-6 9162617 9162618 9162618-4 943241060010 944280166600 AES1216 AZE2123 AZE2182 CGB-25161 CS680 CST10158 CST10158AS CST10158ES CST10158GS CST10158OS CST10158RS DRS6660 EAA-121311 IS9309 LRS02109 LRS2109 LRT00116 MAV121580 MS 216 MS216 MSR1060 RAS37771 RS37771 S-6160 S0059 S1029B SS024 SS027 SS027OE SS095 SS097 SS868 STR50020 STR50269 STRL175 UD12029S 220104

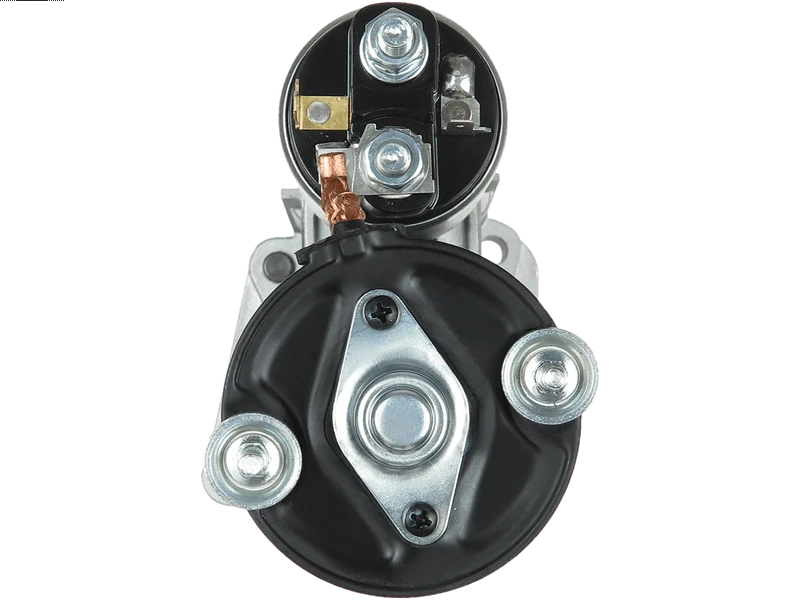

Differences in solenoid connection types between S0059, S0533, S0877S
