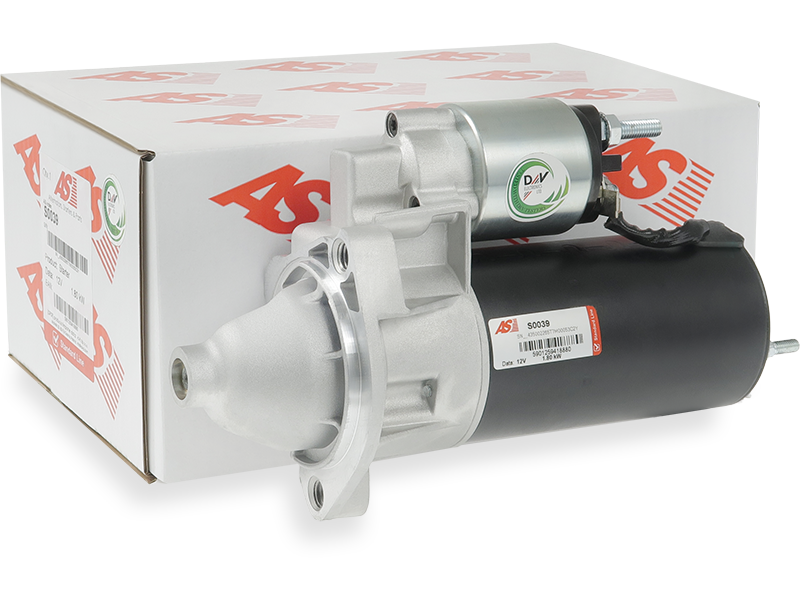

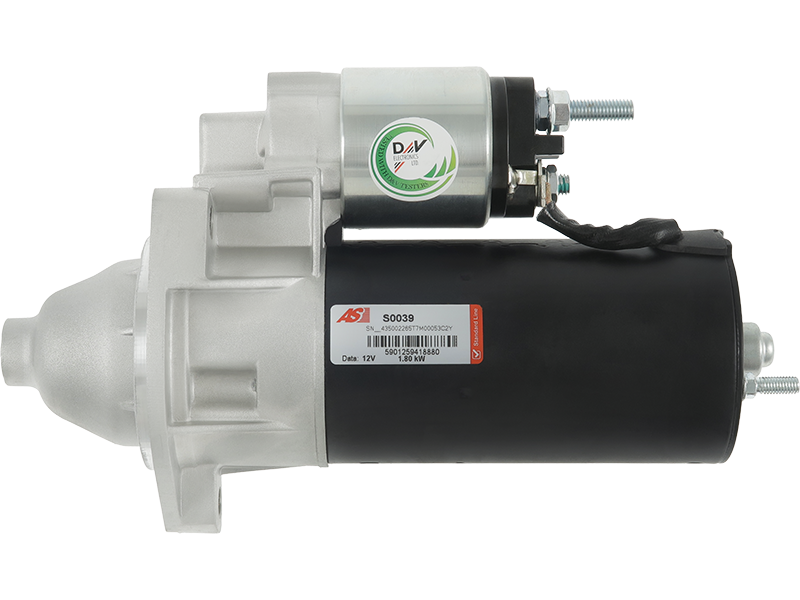

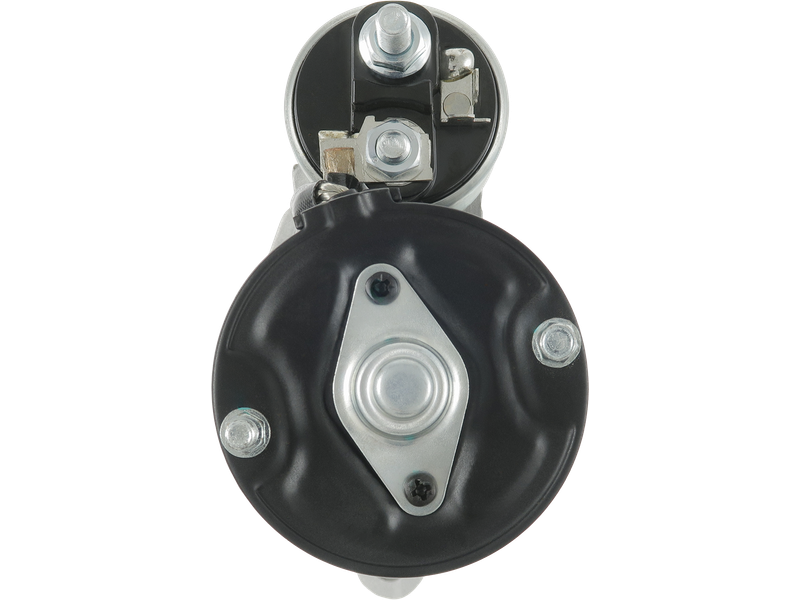

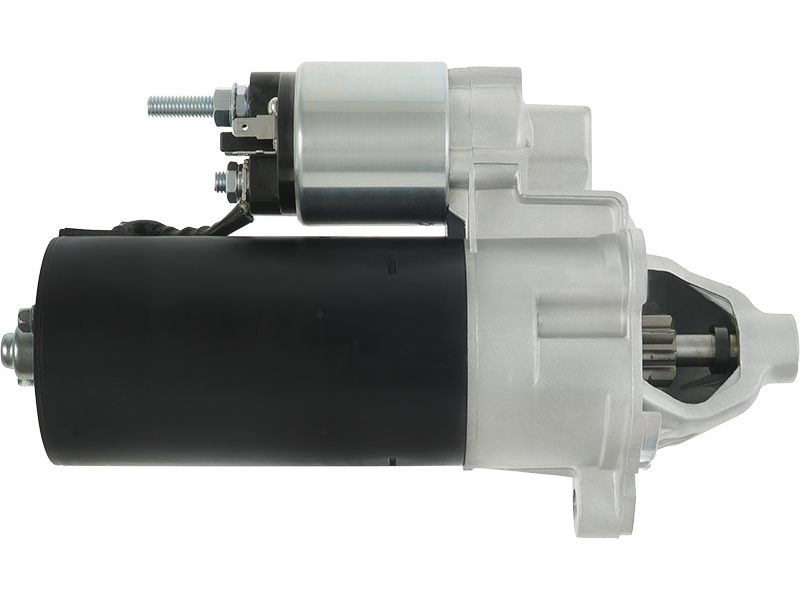

S0039 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.8 kW
Length (L.1)	270 mm
Mount Hole Center - Center (O.1)	101 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9. 10 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

AUDI	80 1.6 D	[CR]	08.1980-08.1986
AUDI	80 1.6 D	[JK]	09.1986-08.1991
AUDI	80 1.6 TD	[CY]	08.1981-05.1986
AUDI	80 1.6 TD	[RA]	09.1986-08.1991
AUDI	80 1.6 TD	[SB]	09.1986-08.1991
AUDI	80 1.9 D	[1Y]	08.1989-08.1991
AUDI	80 1.9 TD	[AAZ]	09.1991-12.1994
AUDI	80 1.9 TDi	[1Z]	07.1992-01.1996
AUDI	90 1.6 TD	[RA]	04.1987-09.1991
AUDI	90 1.6 TD	[SB]	04.1987-09.1991
AUDI	A4 1.9 D	[AFF]	03.1996-09.2001
AUDI	A4 1.9 Hybrid Duo	[AHU]	03.1998-09.2001
AUDI	A4 1.9 TDi	[1Z]	02.1996-09.2001
AUDI	A4 1.9 TDi	[AFN]	02.1996-07.1999
AUDI	A4 1.9 TDi	[AHH]	04.1997-11.2000
AUDI	A4 1.9 TDi	[AHU]	08.1996-07.1998
AUDI	A4 1.9 TDi	[AJM]	08.1998-09.2001
AUDI	A4 1.9 TDi	[AVB]	09.2001-12.2004
AUDI	A4 1.9 TDi	[AVG]	08.1999-06.2000
AUDI	A4 1.9 TDi	[AWX]	11.2000-12.2004
AUDI	A4 1.9 TDi	[BKE]	11.2004-
AUDI	A4 1.9 TDi Quattro	[AFN]	07.1996-07.1999
AUDI	A4 1.9 TDi Quattro	[AJM]	03.2000-11.2000
AUDI	A4 1.9 TDi Quattro	[ATJ]	03.2000-09.2001
AUDI	A4 1.9 TDi Quattro	[AVG]	08.1999-01.2000
AUDI	A4 3.0	[ASN]	09.2001-12.2004
AUDI	A4 3.0	[AVK]	11.2000-12.2004
AUDI	A4 3.0 Quattro	[ASN]	11.2000-12.2004
AUDI	A4 3.0 Quattro	[AVK]	09.2001-12.2004
AUDI	A6 1.9 TDi	[1Z]	06.1994-06.1996
AUDI	A6 1.9 TDi	[AFN]	02.1998-04.2001
AUDI	A6 1.9 TDi	[AHU]	07.1996-10.1997
AUDI	A6 1.9 TDi	[AJM]	07.2000-01.2005
AUDI	A6 1.9 TDi	[AVF]	08.2001-01.2005
AUDI	A6 1.9 TDi	[AVG]	02.1998-04.2001
AUDI	A6 1.9 TDi	[AWX]	08.2001-01.2005
AUDI	Cabriolet 1.9 TDi	[1Z]	07.1995-07.1996
AUDI	Cabriolet 1.9 TDi	[AHU]	07.1996-08.2000
FERRARI	328 3.2 GTB	[F105C..]	09.1985-09.1989
FERRARI	MonDial 3.4 T	[F119D]	03.1989-12.1993
SEAT	Alhambra 1.9 TDi	[AFN]	08.1996-06.2000
SEAT	Alhambra 1.9 TDi	[AVG]	08.1996-06.2000
SEAT	Cordoba 1.9 TDi	[AFN]	07.1997-06.1999
SEAT	Ibiza 1.9 TDi	[AHU]	08.1996-08.1999
SEAT	Toledo 1.9 TDi	[AFN]	11.1996-03.1999
SKODA	Superb 1.9 TDi	[AVB]	08.2002-
SKODA	Superb 1.9 TDi	[AVF]	12.2001-
SKODA	Superb 1.9 TDi	[AWX]	12.2001-
VW	Passat 1.9 TDi	[AFN]	06.1997-11.2000
VW	Passat 1.9 TDi	[AHH]	06.1997-11.2000
VW	Passat 1.9 TDi	[AHU]	10.1996-11.2000
VW	Passat 1.9 TDi	[AJM]	08.1998-11.2000
VW	Passat 1.9 TDi	[ATJ]	08.1998-11.2000
VW	Passat 1.9 TDi	[AVB]	11.2000-05.2005
VW	Passat 1.9 TDi	[AVF]	11.2000-05.2005
VW	Passat 1.9 TDi	[AVG]	06.1997-11.2000
VW	Passat 1.9 TDi	[AWX]	11.2000-05.2005
VW	Passat 1.9 TDi 4-Motion	[AVF]	11.2000-05.2005
VW	Passat 1.9 TDi Syncro 4-Motion	[AFN]	06.1997-11.2000
VW	Passat 1.9 TDi Syncro 4-Motion	[ATJ]	08.1999-11.2000
VW	Passat 1.9 TDi Syncro 4-Motion	[AVG]	08.1999-11.2000
VW	Passat 2.0 TDi	[BGW]	12.2003-05.2005

Reference Information

17977R EAA-121051 17977N 068911024CX MSR903 260-17115 SG0033 063521101060 0001110128 0001110129 068911024BX 8149 88212891 0001110122 0001110123 25-0448 0001110126 0001110127 CST10212RS MAHMS304 DS7350 10548 S1052B CST10212AS LRS2003 120-10120 CST10212 068911023P S-6241 111694 BOS0001110106 068911023R 068911023S 20500783 944251323010 MAV172080 2050 25-1365 3533 068911024B 068911024C 068911024E AES7183 068911024F 068911024G 944280162400 CS624 STR50231 0001110108 72735932 CGB-26240 0001110106 0001110107 SX 0001110067 MQS624 0001110066 91-15-7206 LRS02003 MS304 IS0773 304 AZE2578 CST10212ES 137269 RAS37351 220037 S0039 6010212 063521101380 LRS783 20401212 BOS0001110136 8EA011610-491 BOS0001110138 10624V MS 0001110045 RNL1624 0001110046 068911024T 10624K MAV122120 10624 10624B 2112 068911024GX MRS16240 CST10212GS 0001110139 0986016240 CST10212OS 0001110137 0001110138 0001110136 STRL042 068911024FX 11.130.911 42016240 11127 GS110066-A 943251323010 200.508.092 0001110023 068911023SX 0001110022 EAA-121243 LRS00783 ANM50328X 8EA730194-001 STRS982 063720624010 DRS4620 068911024EX DRS6240 STB0624

Video/Publications

0001110022 0001110023 0001110045 0001110046 0001110066 0001110067 0001110106 0001110107 0001110108 0001110122 0001110123 0001110126 0001110127 0001110128 0001110129 0001110136 0001110137 0001110138 0001110139 063521101060 063521101380 063720624010 068911023P 068911023R 068911023S 068911023SX 068911024B 068911024BX 068911024C 068911024CX 068911024E 068911024EX 068911024F 068911024FX 068911024G 068911024GX 068911024T 0986016240 10548 10624 10624B 10624K 10624V 11.130.911 11127 111694 120-10120 137269 17977N 17977R 200.508.092 20401212 20500783 220037 25-0448 25-1365 260-17115 3533 42016240 6010212 72735932 8149 88212891 8EA011610-491 8EA730194-001 91-15-7206 943251323010 944251323010 944280162400 AES7183 AZE2578 BOS0001110106 BOS0001110136 BOS0001110138 CGB-26240 CS624 CST10212 CST10212AS CST10212ES CST10212GS CST10212OS CST10212RS DRS4620 DRS6240 DS7350 EAA-121051 EAA-121243 GS110066-A IS0773 LRS00783 LRS02003 LRS2003 LRS783 MAHMS304 MAV122120 MAV172080 MQS624 MRS16240 MS 304 MSR903 RAS37351 RNL1624 S-6241 S0039 S1052B SG0033 STB0624 STR50231 STRL042 STRS982 SX 2050 SX 2112
