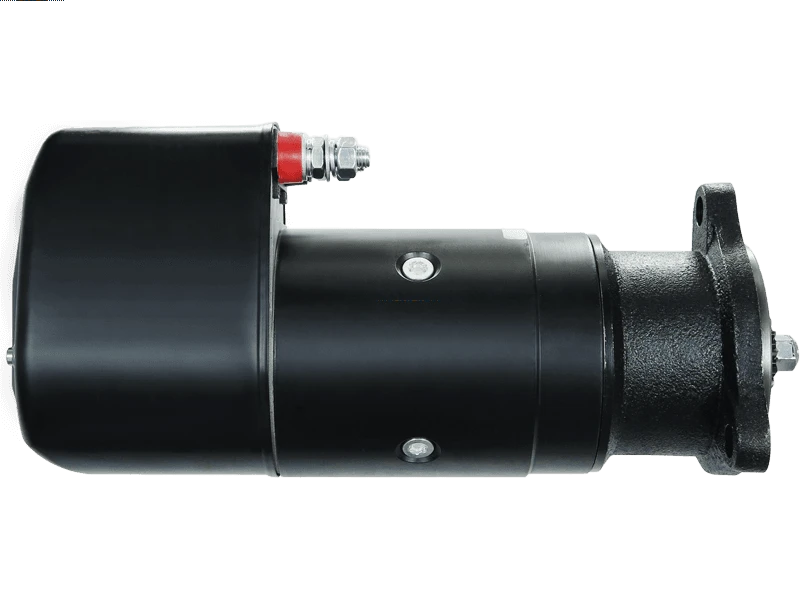

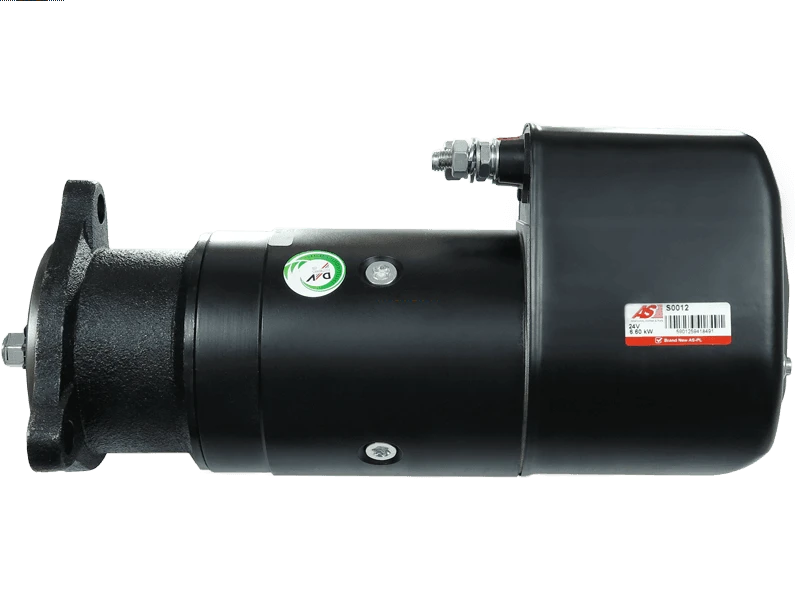

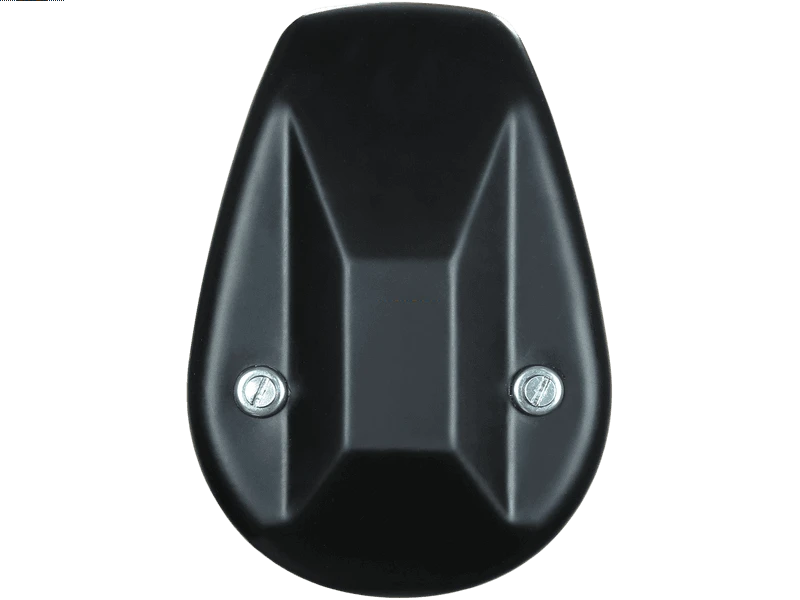

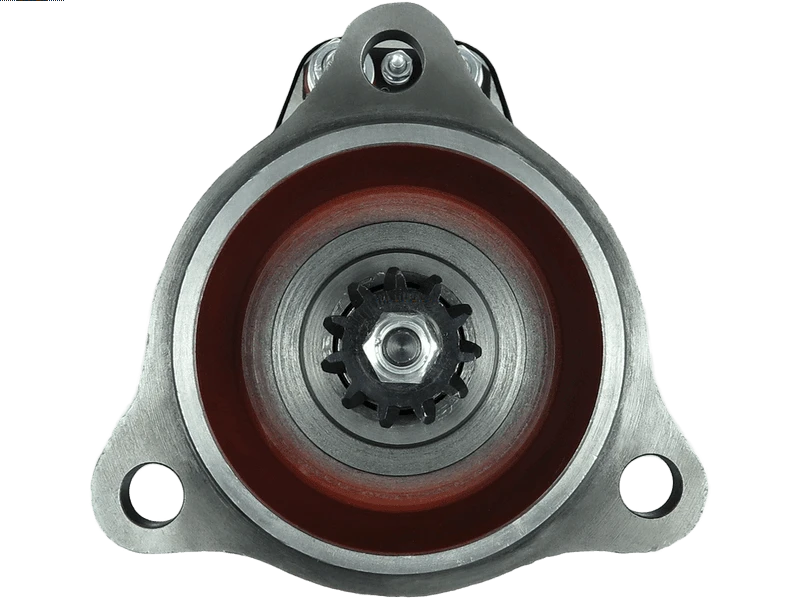

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 755.30 including GST
NZ$ 656.78 excluding GST
or four payments of $188.83
with
Learn More
each
S0012
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417064Associated Numbers
0001417064 043.000.0 0986017850 101163 101163P 112117 20401946BN 20401946EL 28.1163 30085N 33946 45-2237 4839041 6010649 77712318 8118 860513 860513GB 8EA737676-001 CS1163 CST10649AS CST10649ES CST10649RS DRS7850 LRS01906 R22-43 STR22043Specifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 407 mm |
| Mount Hole Center - Center (O.1) | 126.50 mm |
| Mount Hole Center - Center (O.2) | 126.50 mm |
| Mount Hole Center - Center (O.3) | 126.50 mm |
| Mount Hole Diameter (C.1) | 15.50 mm |
| Mount Hole Diameter (C.2) | 15.50 mm |
| Mount Hole Diameter (C.3) | 15.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 115 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 180 E 42 14.0 | [8210.42L.400] | 04.1992-12.1993 |
| IVECO | 190 E 37 14.0 | [8210.42K] | 04.1993-11.2000 |
| IVECO | 190 E 42 14.0 | [8210.42L] | 01.1995-07.2000 |
| IVECO | 190 E 42 14.0 | [8210.42L.400] | 01.1993-07.2000 |
| IVECO | 190 E 42 14.0 | [8210.42L.400] | 01.1995-07.2000 |
| IVECO | 240 E 42 14.0 | [8210.42L.400] | 01.1993-02.2002 |
| IVECO | 240 E 42 14.0 | [8210.42L.400] | 04.1992-12.2000 |
| IVECO | 260 E 37 14.0 | [8210.42K] | 01.1993-12.2001 |
| IVECO | 260 E 42 14.0 | [8210.42L] | 01.1993-12.2000 |
| IVECO | 260 E 42 14.0 | [8210.42L] | 01.1994-12.2000 |
| IVECO | 260 E 42 14.0 | [8210.42L.400] | 01.1994-12.2000 |
| IVECO | 340 E 37 14.0 | [8210.42K] | 03.1995-12.2002 |
| IVECO | 380 E 37 14.0 | [8210.42K] | 01.1993-12.2002 |
| IVECO | 400 E 37 14.0 | [8210.42K] | 07.1994-12.2000 |
| IVECO | 400 E 42 14.0 | [8210.42L] | 01.1994-12.2000 |
| IVECO | 400 E 42 14.0 | [8210.42L.400] | 04.1992-12.2000 |
| IVECO | 410 E 42 14.0 | [8210.42L] | 04.1992-11.2000 |
| IVECO | 440 E 37 14.0 | [8210.42K] | 01.1993-11.2000 |
| IVECO | 440 E 42 14.0 | [8210.42L] | 01.1993-12.2000 |
| IVECO | 440 E 42 14.0 | [8210.42L] | 01.1997-12.2000 |
| IVECO | 440 E 42 14.0 | [8210.42L.400] | 01.1993-12.2000 |
| IVECO | 720 E 37 14.0 | [8210.42K] | 09.1993-12.1995 |
| IVECO | 720 E 42 14.0 | [8210.42L] | 09.1993-12.1995 |
| IVECO | 720 E 47 17.2 | [8210.42M.TCA] | 04.1992-12.2000 |
Reference Information
| 0001417064 | BOSCH |
| 043.000.0 | ELMOT |
| 0986017850 | BOSCH |
| 101163 | KUHNER |
| 101163P | KUHNER |
| 112117 | CARGO |
| 20401946BN | REAL |
| 20401946EL | REAL |
| 20401946RC | REAL |
| 220283 | ERA |
| 28.1163 | LAUBER |
| 2997385 | IVECO |
| 30085N | WAI / TRANSPO |
| 33946 | EAI |
| 45-2237 | ELSTOCK |
| 4839041 | IVECO |
| 6010649.0 | SANDO |
| 6010649.2 | SANDO |
| 6010649.3 | SANDO |
| 77712318 | CQ |
| 8118 | CEVAM |
| 860513 | PRESTOLITE |
| 860513GB | PRESTOLITE |
| 8EA737676-001 | HELLA |
| ANM10070X | ANDEL |
| CGB-11664 | AINDE |
| CS1163 | HC PARTS |
| CST10649AS | CASCO |
| CST10649ES | CASCO |
| CST10649RS | CASCO |
| DRS7850 | DELCO |
| F032112117 | CARGO |
| LRS01906 | LUCAS |
| LRS1906 | LUCAS |
| MAV1202 | SIOM |
| PRSL234 | 3EFFE |
| PTC-4089 | POWER TRUCK |
| R22-43 | ELMOT |
| S0012 | AS-PL |
| S24BH0043A2 | SIDAT |
| STR10115 | ELECTROLOG |
| STR22043 | WOODAUTO |
| STRL234 | 3EFFE |
Video/Publications
