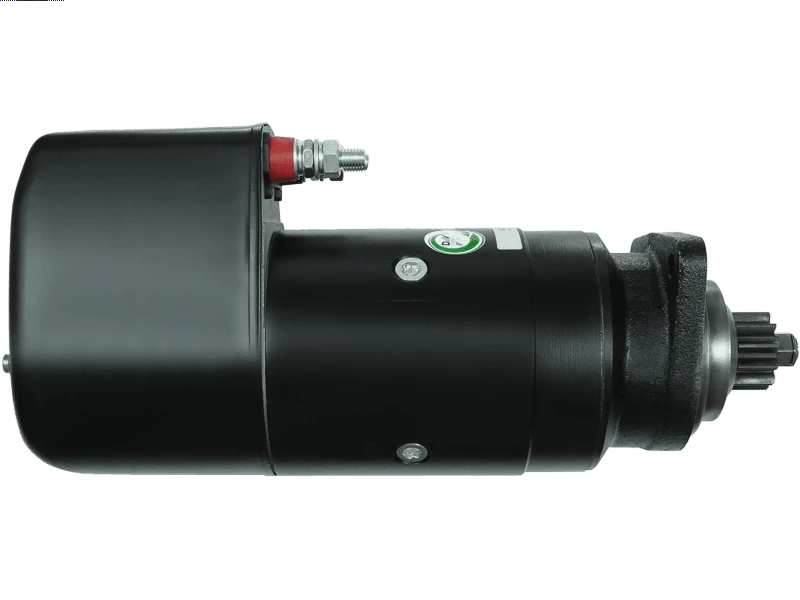

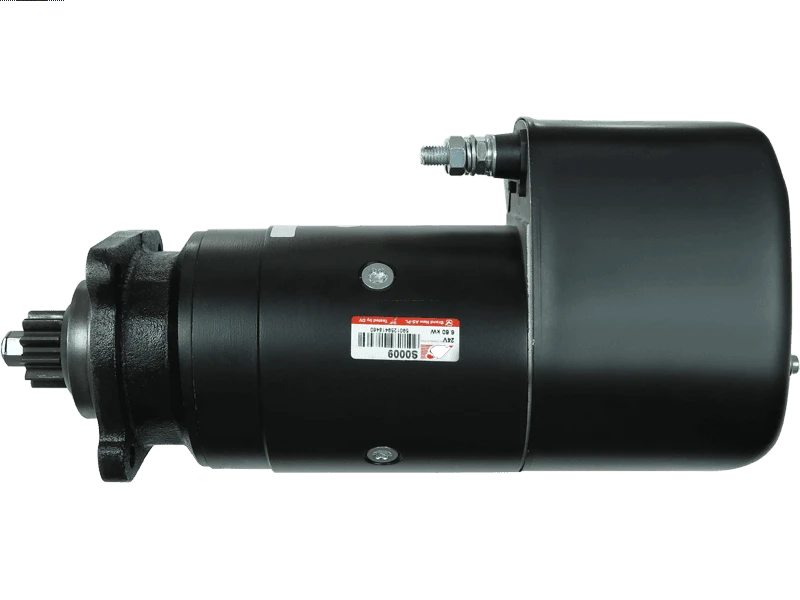

S0009 - Brand new AS-PL Starter motor

Specifications

Insulated Earth	Yes
Kilowatt	6.6 kW
Length (L.1)	405 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127.5 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Oil Sealed	Yes
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO PENTA	MD120A		01.1970-12.1980
VOLVO PENTA	TAMD120A		01.1972-12.1980
VOLVO PENTA	TMD100		01.1965-12.1985
VOLVO PENTA	TMD120A		01.1970-12.1982

Reference Information

45-1271 220319 8EA737099-001 20401896EL 33670 EAA-121433 10954P 255925P RNL417023 111219 CGB-11553 MAV126980 10954 1417023 DRS3763 STR50256 6010635 20401536EL 6010698 1410050 1416053 STRF225 22626 331746 860541GB 331106 MAV126350 110519 220246 10800 CST10635AS 81467023 S0009 CST10635ES 20401536BN 860518GB CST10698ES 1411010 STRS729 IM623 LRS1855 255925 LRS01855 19024063 CS954 MAV1310

Video/Publications

0001410050 0001411010 0001416053 0001417023 10954 10954P 110519 111219 19024063 20401536BN 20401536EL 20401896EL 255925 255925P 33670 45-1271 6010635 6010698 81467023 860518GB 860541GB 8EA737099-001 CGB-11553 CS954 CST10635AS CST10635ES CST10698ES DRS3763 EAA-121433 IM623 LRS01855 LRS1855 MAV126350 MAV126980 MAV1310 RNL417023 STR50256 STRF225 STRS729 S0009 220246 220319
