Associated Numbers
A5257 A2T09591 A2T13977 A2T18874 A2T19991 A2T33191 A2T33991 A2T34477 A2T35177 A2T17574 A2T18177 A2T18277 A2T29594 A2T33493 A002T09591 A002T13977 A002T18874 A002T19991 A002T33191 A002T33991 A002T34477 A002T35177 A002T17574 A002T18177 A002T18277 A002T29594 A002T33493 A5178 A2TA5191 A002TA5191Specifications

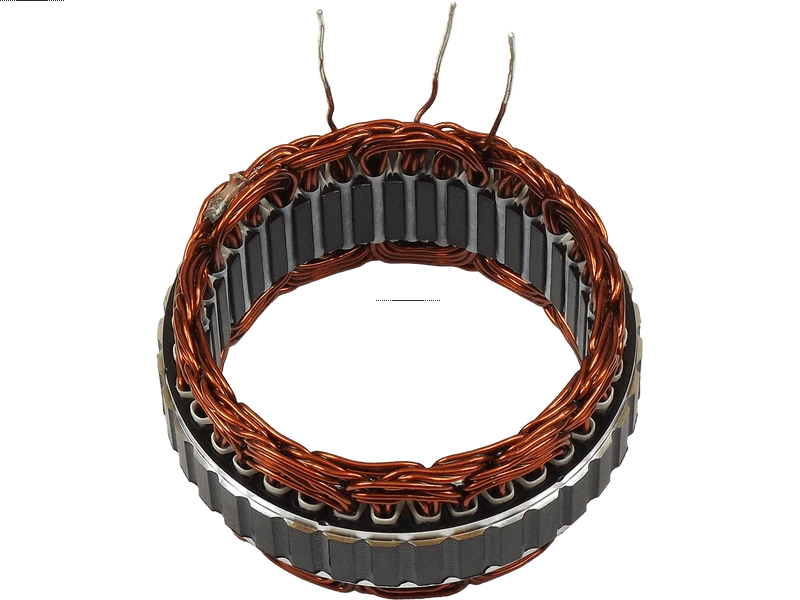

| Amp | 80 A |
| Height (H.1) | 59 mm |
| Height (H.2) | 20.5 mm |
| Inside Diameter (I.D.1) | 100.4 mm |
| Lam. Stack Height (H.3) | 27.3 mm |
| No./Leads | 3 qty |
| Outside Diameter (O.D.1) | 129.1 mm |
| Outside Diameter (O.D.2) | 126.2 mm |
| Outside Diameter of Windings (O.D.3) | 119.6 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Reference Information
MD618209 A383T38770 23310236N10 B66S18W45 MD618657 S/3031 A383X47670 A383T46670 A383T46270 A383T42170 A383T38170 CSR35005 JE1518W45 SSR35005 STA5062 37350-32120Video/Publications
A2T18177 MD618209 A002T33493 23310236N10 B66S18W45 A002T18874 A002T35177 A002T33991 A002T18277 A2T33191 A002T18177 A2T33493 A2T18874 A2T35177 A002T33191 A2T33991 A2T18277 A5178 A2TA5191 A383T38170 CSR35005 JE1518W45 SSR35005 A2T09591 A002TA5191 A002T09591 A383T38770 A002T17574 MD618657 S/3031 A002T19991 A383X47670 A5257 A2T19991 A2T17574 A2T29594 A2T13977 A2T34477 A383T46670 A383T46270 A383T42170 A002T13977 A002T34477 A002T29594 37350-32120Add Your Number
